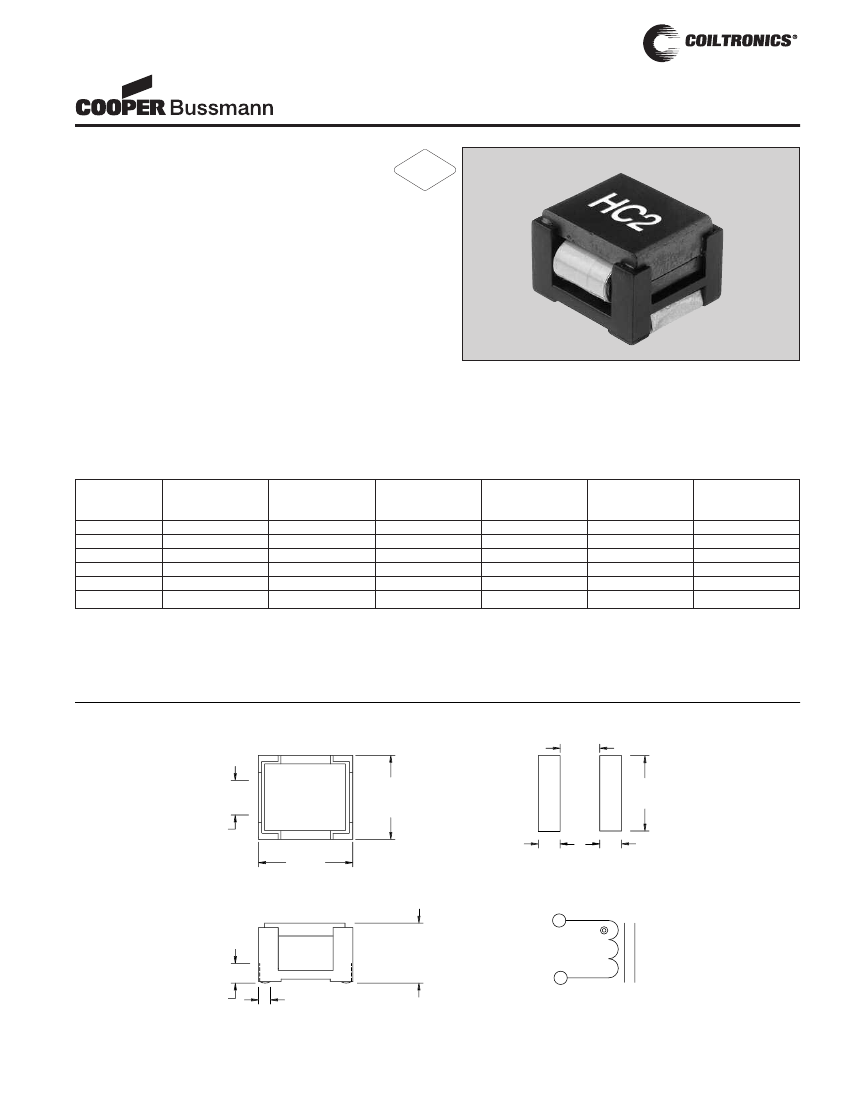

HIGH CURRENT 2™
Power Inductors
Description
RoHS
2002/95/EC
• Compact footprint for high density, high
current/low voltage applications
• Foil technology that adds higher reliability factor
over the traditional magnet wire used for higher
frequency circuit designs
• Frequency Range up to 1MHz
Applications
• Next generation microprocessors
• Energy storage applications
• DC-DC converters
• Computers
Environmental Data
• Storage temperature range: -40°C to +125°C
• Operating ambient temperature range: -40°C to +85°C
(range is application specific).
• Solder reflow temperature: +260°C for 10 seconds
maximum
ED
ND
ME NS
OM SIG
EC DE
PR W
2L NE
HC R
FO
Rated
Inductance
µH
.47
.68
1.0
2.2
4.7
6.0
OCL (1)
µH ± 20%
.52
.63
1.15
2.00
4.55
6.00
Irms (2)
Amperes
(Typ.)
52.9
52.9
33.0
24.3
17.0
17.0
Isat (3)
Amperes
(Typ.)
63.75
50.00
42.50
31.90
21.25
16.50
DCR (4)
Ohms
(Max.)
.0006
.0006
.0013
.0023
.0046
.0046
Volts (5)
µSec
6.87
6.87
10.31
13.75
20.62
20.62
TOP VIEW
RECOMMENDED PCB PAD LAYOUT
10.00
Packaging
• 45 parts per tray bulk packaging.
• Tape and reel packaging also available, 44mm width,
110 parts per 13" reel.
• Add -TR after part number for tape and reel packaging.
Part
Number
HC2-R47-R
HC2-R68-R
HC2-1R0-R
HC2-2R2-R
HC2-4R7-R
HC2-6R0-R
1) Open Circuit Inductance Test Parameters: 300kHz, 0.250 Vrms, 0.0 Adc
2) DC current for an approximate temperature change of 40°C without core loss.
Derating is necessary for AC currents.
PCB layout, trace thickness and width, air-flow and proximity of other heat
generating components will affect the temperature rise.
It is recommended that the temperature of the part not exceed 125°C under
worst case operating conditions verified in the end application.
3) Peak current for approximately 30% roll-off
4) Values @ 20°C
5) Applied Volt-Time product (V-µS) across the inductor. This value represents the
applied V-µS at 300KHz necessary to generate a core loss equal to 10% of the
total losses for 40°C temperature rise.
Mechanical Diagrams
1
HC2 - XXX
wwllyy R
2
19.0
max
19.00
9.5
typ
5.50
5.50
19.2
max
FRONT VIEW
SCHEMATIC
1
12.7
max
2
Dimensions in Millimeters
3.5
typ
2.3
typ
HIGH CURRENT 2™
Power Inductors

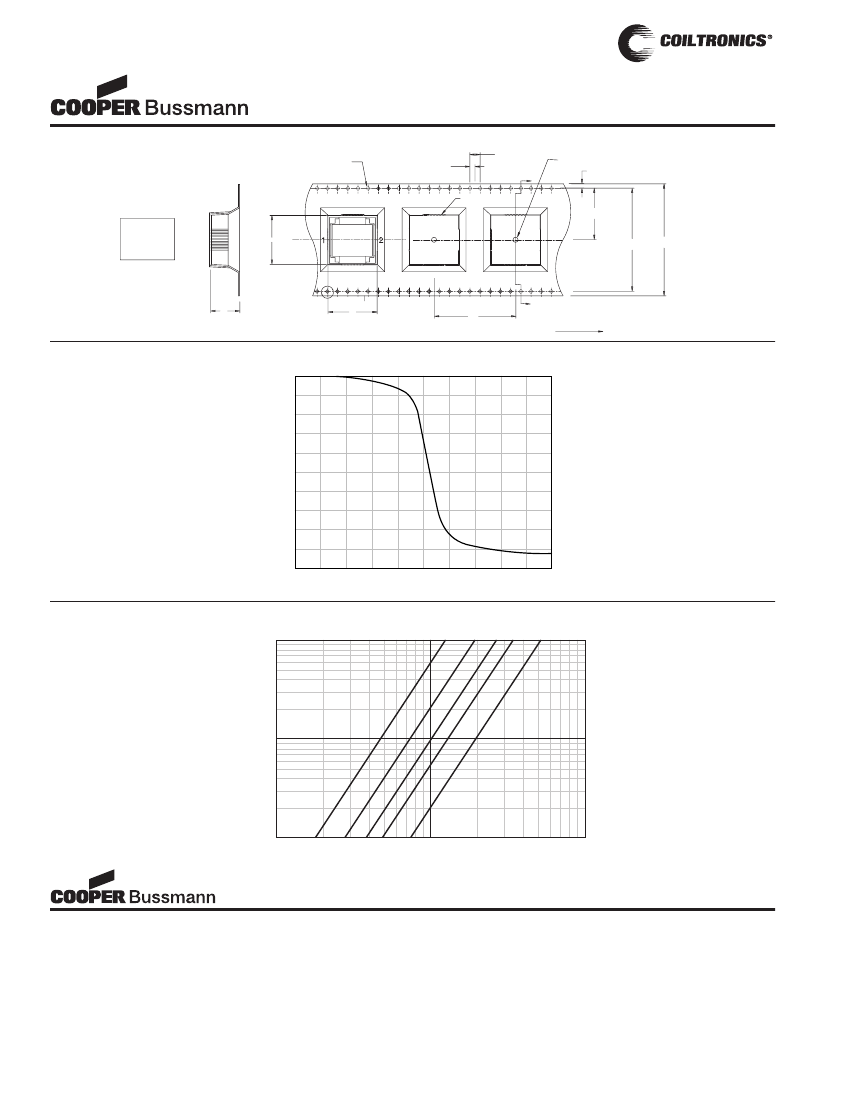

Packaging Information
1.5Dia +0.10
-0.00
4.0
2.0
2.0Dia
min
1.75
A
R0.5 ref
Ao= 19.3mm
Bo= 19.3mm
Ko= 12.9mm
Dimensions in Millimeters
ED
ND
ME NS
OM SIG
EC DE
PR W
2L NE
HC R
FO
20.2
Bo
HC2-xxx
wwllyy R
40.4
+/-0.1
44.0
+/-0.3
A
Ko
Ao
32
SECTION A-A
User direction of feed
Packaging Information:
Parts packaged on a
13" Dia. EIA-481 compliant reel.
110 parts per reel using a 7" hub.
Rolloff
INDUCTANCE VERSUS SATURATION CURRENT
100
90
80
70
% of OCL
60
50
40
30
20
10
0
0
20
40
60
80
100
120
140
160
180
200
% of I
SAT
Core Loss
I
RMS
DERATING WITH CORE LOSS
0
% of Losses from Irms (maximum)
20
40
50
60
70
80
KH
z
KH
z
KH
z
90
92
94
95
96
97
98
99
10
20
30
40
50
60
80
100
20
0
200
10
0K
Hz
1M
H
z
50
0
30
0
300
400 500 600
800 1000
% of Applied Volt-µ-Seconds
PM-4109 8/06
© Cooper Electronic
Technologies 2006
Visit us on the Web at www.cooperbussmann.com
1225 Broken Sound Pkwy. Suite F Boca Raton, FL 33487
Tel: +1-561-998-4100 Toll Free: +1-888-414-2645 Fax: +1-561-241-6640
This bulletin is intended to present product design solutions and technical information that will help the end user with design applications. Cooper Electronic
Technologies reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Cooper
Electronic Technologies also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been
selected, it should be tested by the user in all possible applications.
Life Support Policy: Cooper Electronic Technologies does not authorize the use of any of its products for use in life support devices or systems without the
express written approval of an officer of the Company. Life support systems are devices which support or sustain life, and whose failure to perform, when
properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.
