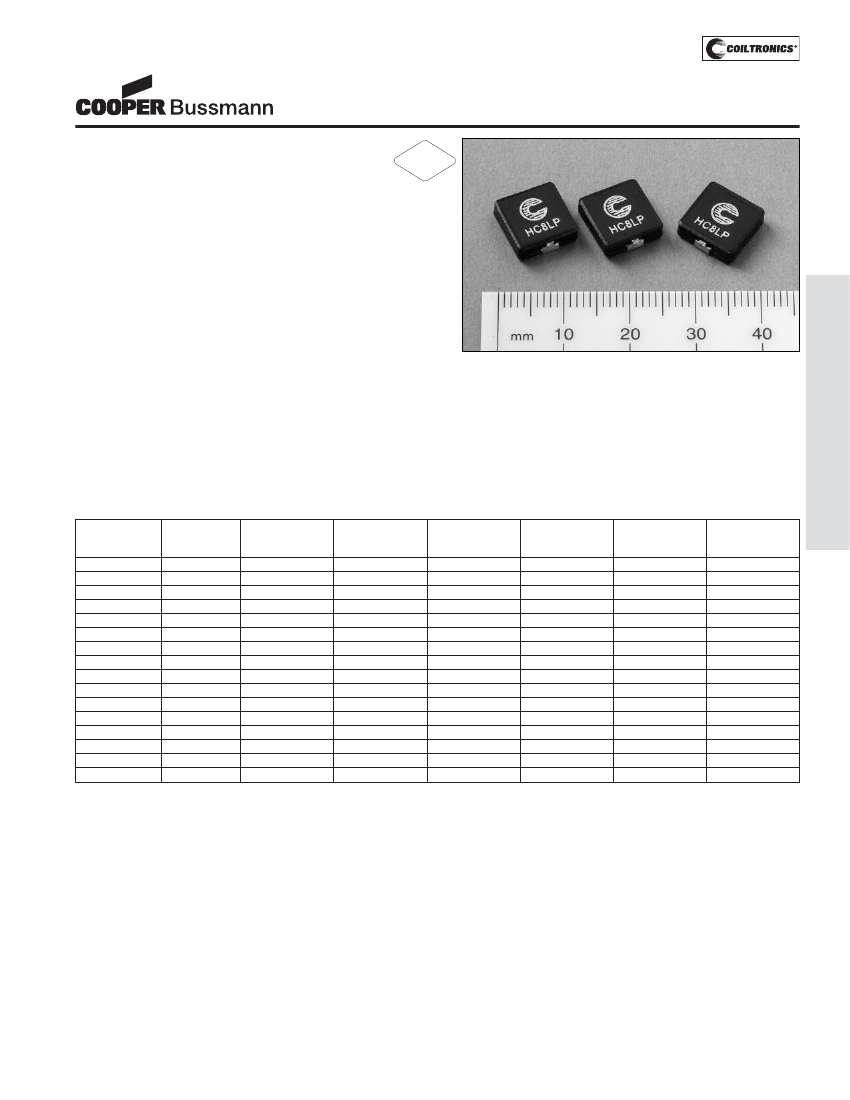

HC8LP Series
Power Inductors
Description
• 155°C maximum temperature operation
• Low profile surface mount inductors designed
for higher speed switch mode applications
requiring low voltage, and high current
• Design utilizes high temperature powder iron material
with a non-organic binder to eliminate thermal aging
• Inductance range from 0.17 uH to 47.9 uH
• Current range from 29 Amps to 1.8 Amps
• Frequency range 1kHz to 500kHz
Applications
• Next generation processors
• High current DC-DC converters
• VRM, multi-phase buck regulator
• PC Workstations, Routers, Servers
• Telecom soft switches, Base stations
Environmental Data
• Storage temperature range: -40°C to +155°C
• Operating temperature range: -40°C to +155°C
(Range is application specific)
• Solder reflow temperature: +260°C max. for
10 seconds max.
Part
Number
HC8LP-R15-R
HC8LP-R39-R
HC8LP-R75-R
HC8LP-1R2-R
HC8LP-1R9-R
HC8LP-2R6-R
HC8LP-3R5-R
HC8LP-4R5-R
HC8LP-5R6-R
HC8LP-6R9-R
HC8LP-8R2-R
HC8LP-100-R
HC8LP-150-R
HC8LP-220-R
HC8LP-330-R
HC8LP-470-R
Rated
Inductance
μH
0.15
0.39
0.75
1.2
1.9
2.6
3.5
4.5
5.6
6.9
8.2
10.0
15.0
22.0
33.0
47.0
OCL (1)
nominal
+/-20%
μH
0.170
0.430
0.830
1.35
1.92
2.67
3.56
4.57
5.71
6.98
8.37
9.90
15.20
21.70
32.10
47.90
RoHS
2002/95/EC
HIGH CURRENT (HC8LP)
Packaging
• Supplied in tape and reel packaging, 800 parts per reel
Irms (2)
Amperes
(Typ.)
29.0
20.2
15.6
12.4
10.1
8.3
6.9
6.5
5.5
5.2
4.5
4.3
3.4
2.8
2.3
1.8
Isat (3)
Amperes
15% rolloff
31
19
13.5
10.1
8.7
7.4
6.4
5.6
5.1
4.6
4.2
6.8
3.1
2.6
2.1
1.7
Isat (4)
Amperes
30% rolloff
56
34
24
18.7
15.5
13.1
11.4
10.0
9.0
8.1
7.4
3.8
5.5
4.6
3.8
3.1
DCR (mΩ)
max. @
20°C
1.40
2.80
4.70
7.50
11.5
17.1
24.5
27.6
38.9
42.8
58.0
62.9
99.4
149
224
344
Volts (5)
μSec (VμS)
(ref.)
7.8
4.7
3.4
2.6
4.1
4.8
5.6
6.3
7.1
7.8
8.6
9.3
11.6
13.7
16.8
20.3
1) Open Circuit Inductance test parameters: 100KHz, 1.0V, 0.0Adc
2) Irms: DC current for an approximate DT of 40°C without core loss. Derating is
necessary for AC currents. PCB layout, trace thickness and width, air-flow, and prox-
imity of other heat generating components will affect the temperature rise. It is rec-
ommended that the temperature of the part not exceed 155°C under worst case
operating conditions verified in the end application.
3) Isat Amperes Peak for approximately 15% rolloff (@20°C)
4) Isat Amperes Peak for approximately 30% rolloff (@20°C)
5) Applied Volt-Time product (V-μS) across the inductor. This value represents the
applied V-μS at operating frequency necessary to generate additional core loss
which contributes to the 40°C temperature rise. De-rating of the Irms is required
to prevent excessive temperature rise. The 100% V-uS rating is equivalent to a
ripple current Ip-p of 20% of Isat (30% rolloff option).
Part number definition:
HC8LP-xxx-R
HC8LP = Product code and size
xxx = Inductance in μH. R = decimal point.
If no R is present third character = # of zeros.
-R suffix indicates RoHS compliant
PM-45
