MC68HC705J2VS: Description8-BIT, UVPROM, 2.1MHz, MICROCONTROLLER, CDIP20, WINDOWED, CERDIP-20; CategoryThe embedded processor and controller Microcontrollers and processors; File Size242KB，10 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

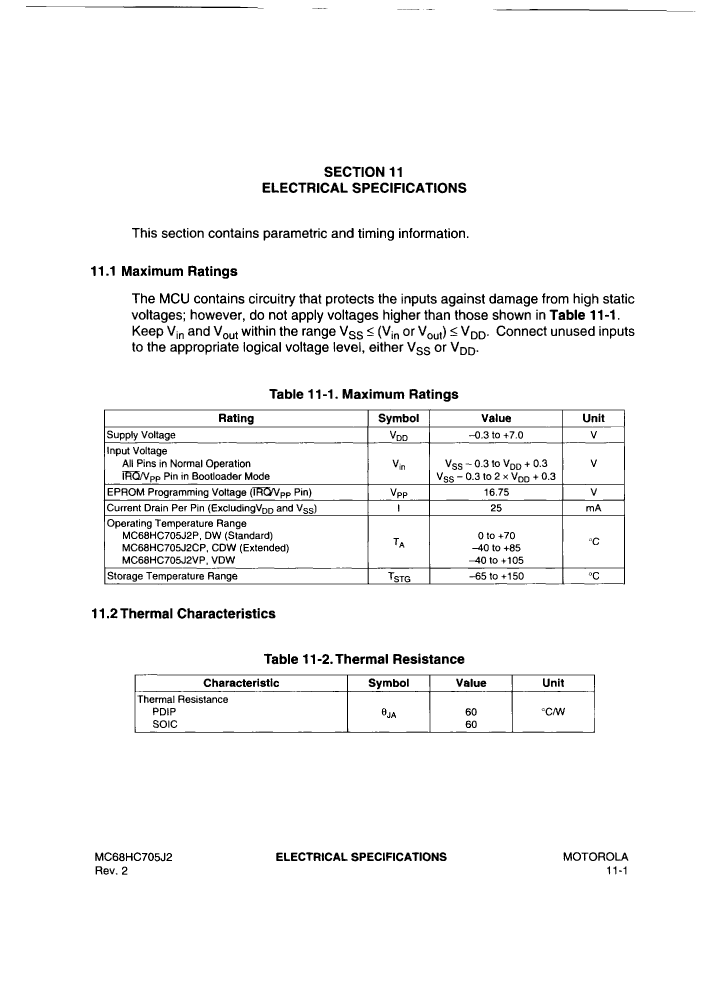

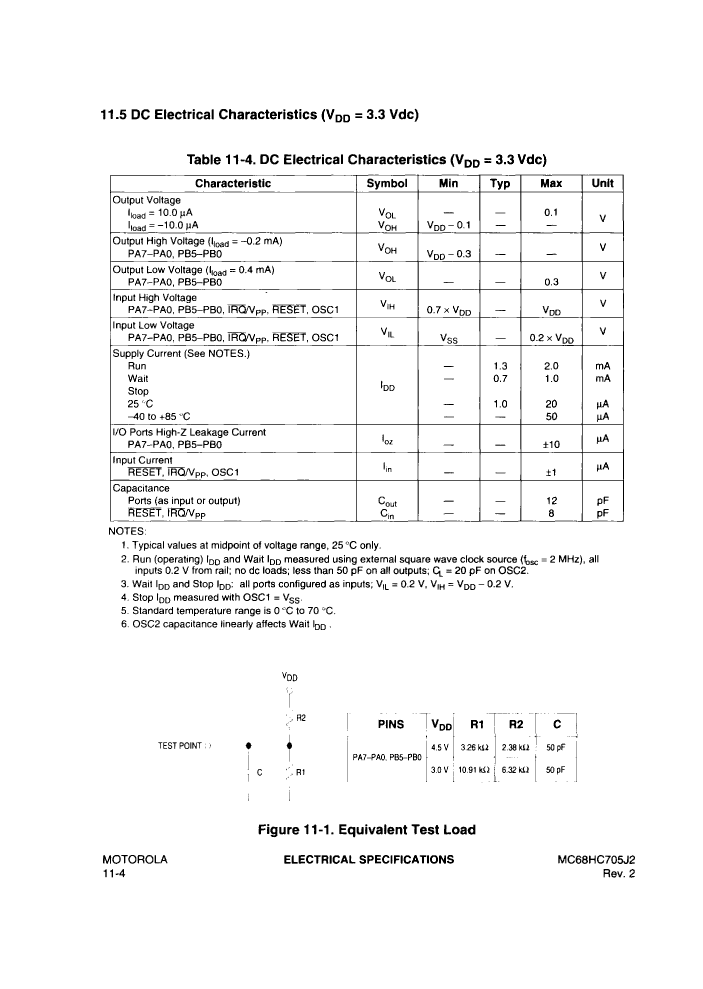

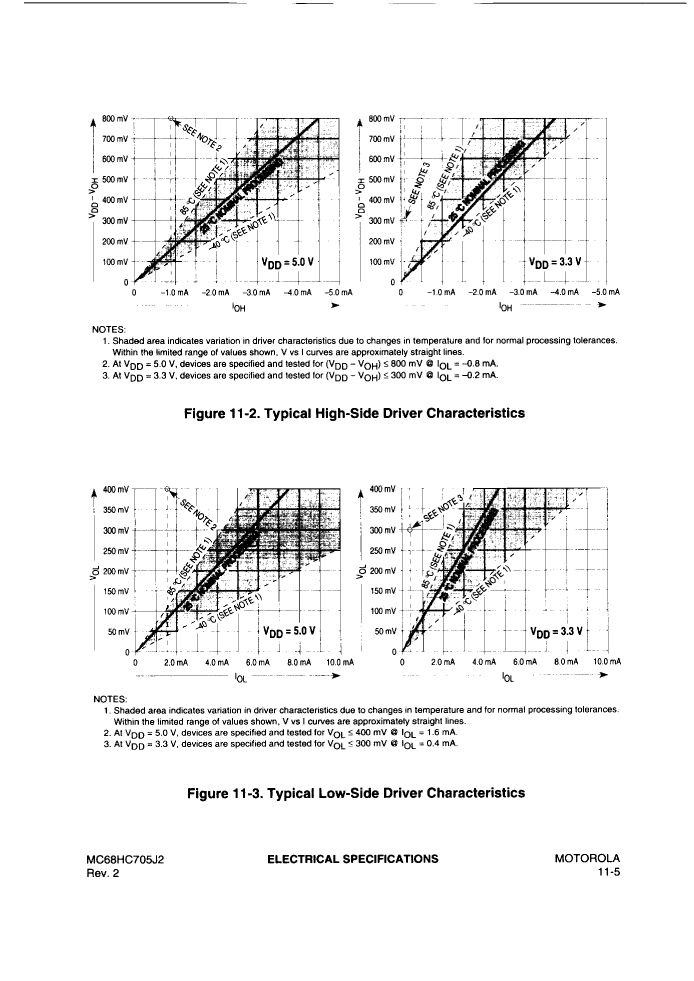

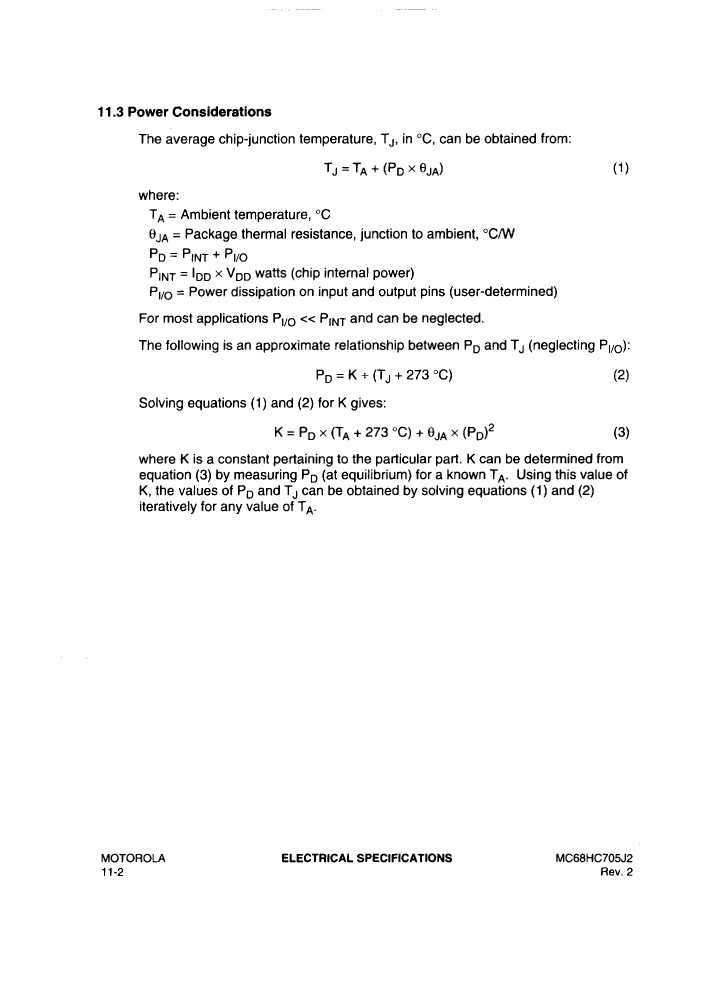

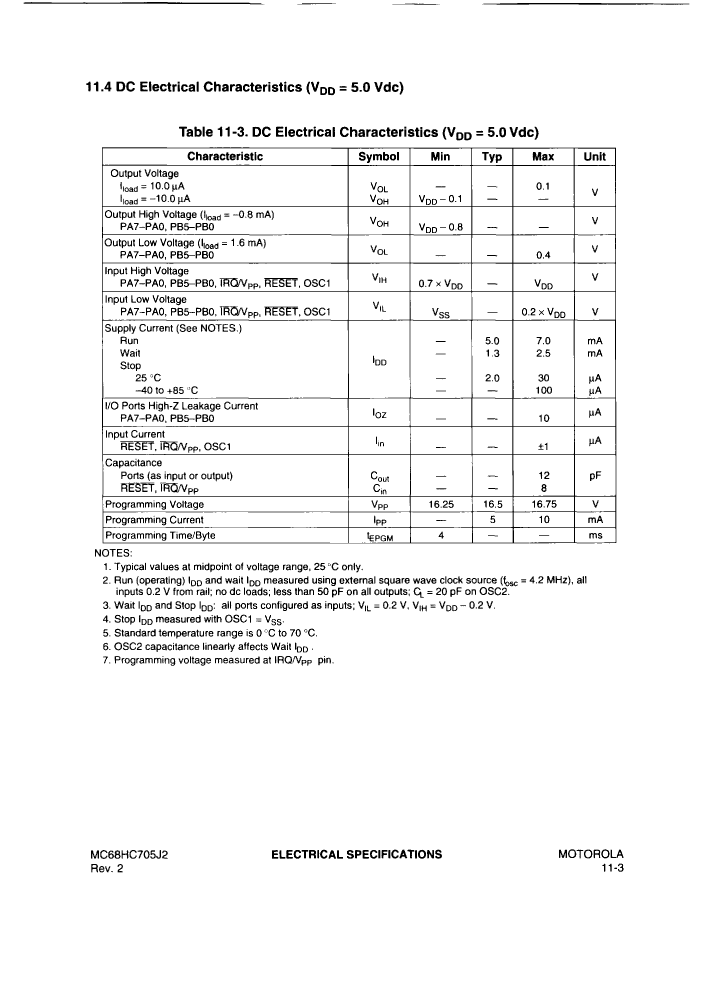

MC68HC705J2VS Overview

8-BIT, UVPROM, 2.1MHz, MICROCONTROLLER, CDIP20, WINDOWED, CERDIP-20

Parameter Name	Attribute value
Maker	Motorola ( NXP )
Parts packaging code	DIP
package instruction	WDIP,
Contacts	20
Reach Compliance Code	unknown
Has ADC	NO
Address bus width
bit size	8
maximum clock frequency	4.2 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-CDIP-T20
length	24.511 mm
Number of I/O lines	14
Number of terminals	20
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WDIP
Package shape	RECTANGULAR
Package form	IN-LINE, WINDOW
Certification status	Not Qualified
ROM programmability	UVPROM
Maximum seat height	5.08 mm
speed	2.1 MHz
Maximum slew rate	7 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	HCMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

	MC68HC705J2VS	MC68HC705J2CS
Description	8-BIT, UVPROM, 2.1MHz, MICROCONTROLLER, CDIP20, WINDOWED, CERDIP-20	8-BIT, UVPROM, 2.1MHz, MICROCONTROLLER, CDIP20, WINDOWED, CERDIP-20
Maker	Motorola ( NXP )	Motorola ( NXP )
Parts packaging code	DIP	DIP
package instruction	WDIP,	WDIP, DIP20,.3
Contacts	20	20
Reach Compliance Code	unknown	unknown
Has ADC	NO	NO
bit size	8	8
maximum clock frequency	4.2 MHz	4.2 MHz
DAC channel	NO	NO
DMA channel	NO	NO
JESD-30 code	R-CDIP-T20	R-CDIP-T20
length	24.511 mm	24.511 mm
Number of I/O lines	14	14
Number of terminals	20	20
Maximum operating temperature	105 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
PWM channel	NO	NO
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WDIP	WDIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE, WINDOW	IN-LINE, WINDOW
Certification status	Not Qualified	Not Qualified
ROM programmability	UVPROM	UVPROM
Maximum seat height	5.08 mm	5.08 mm
speed	2.1 MHz	2.1 MHz
Maximum slew rate	7 mA	7 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
technology	HCMOS	HCMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
width	7.62 mm	7.62 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
