LPR520CM24 datasheet, PDF - EEWORLD Datasheet

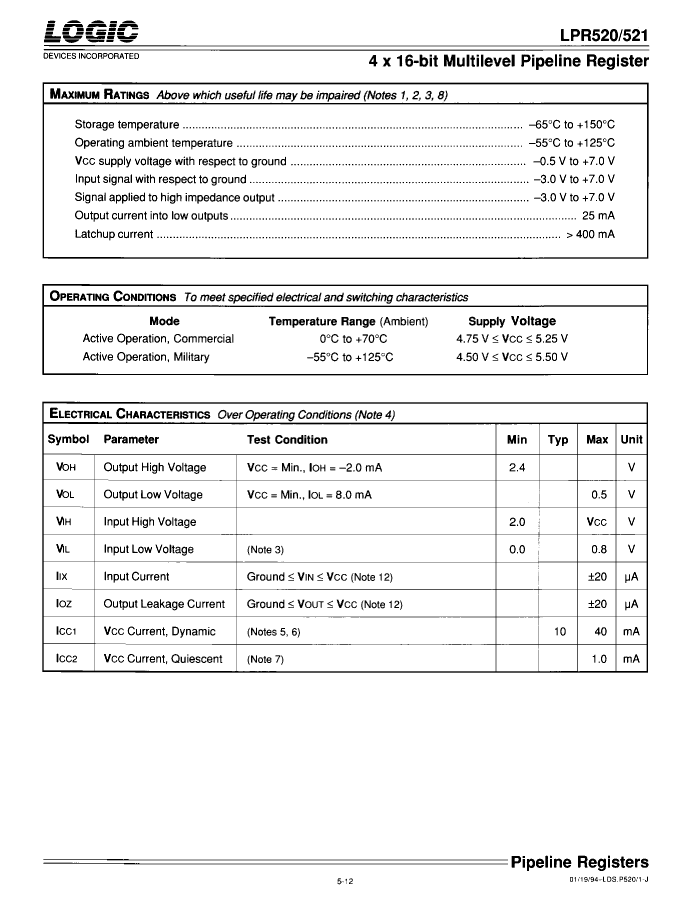

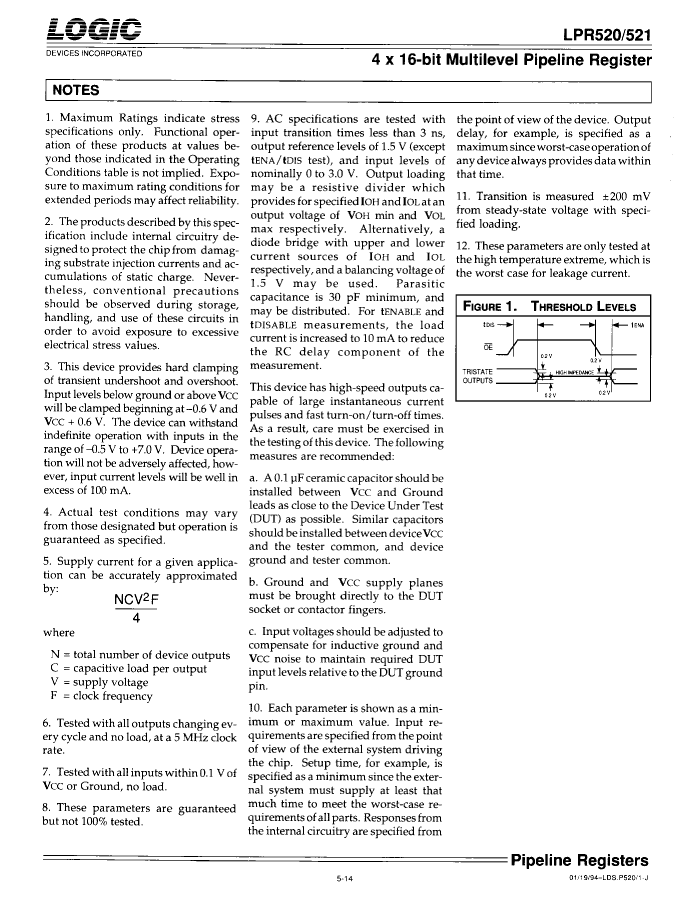

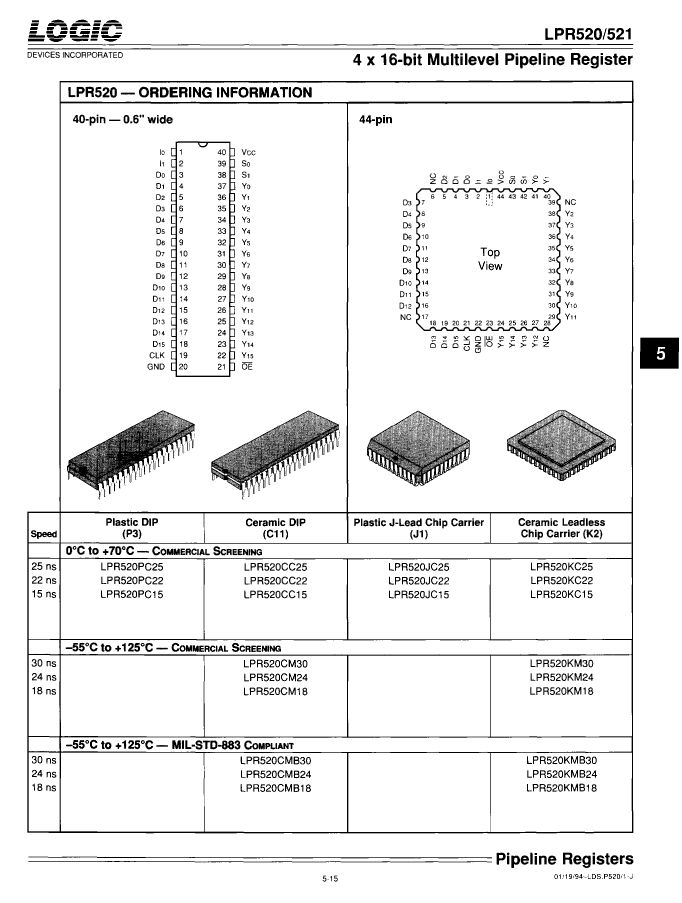

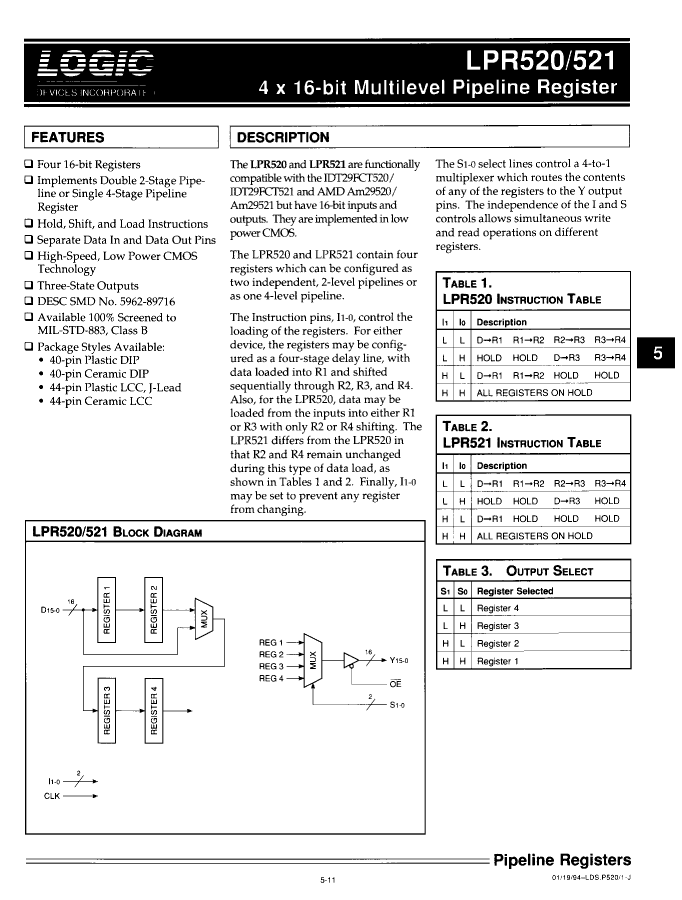

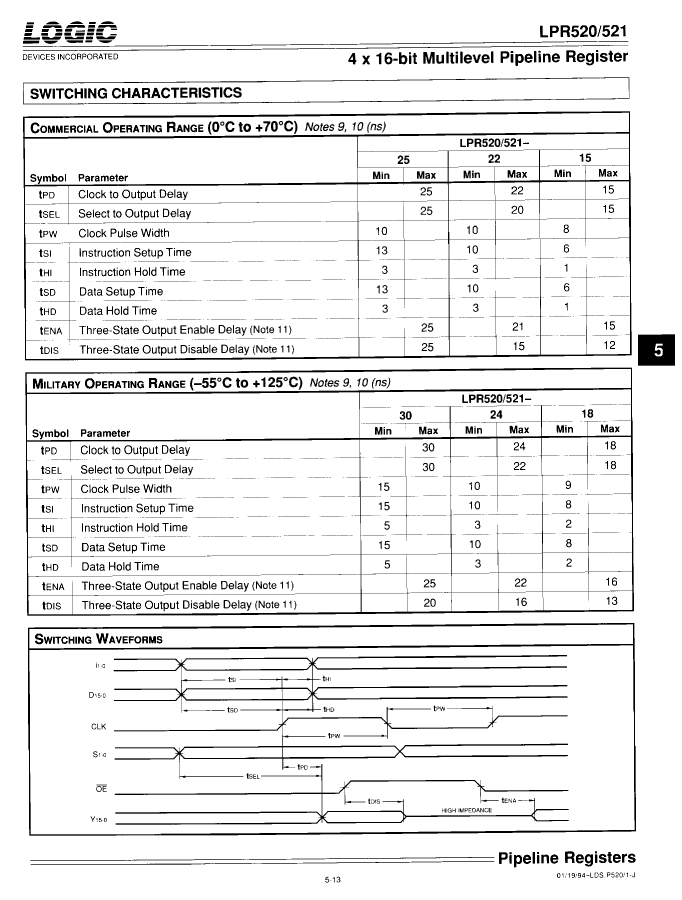

LPR520CM24: DescriptionPipeline Register, 16-Bit, CMOS, CDIP40, 0.600 INCH, CERAMIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size275KB，6 Pages; ManufacturerLOGIC Devices; Websitehttp://www.logicdevices.com/

Download Datasheet Parametric View All

LPR520CM24 Overview

Pipeline Register, 16-Bit, CMOS, CDIP40, 0.600 INCH, CERAMIC, DIP-40

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	LOGIC Devices
Parts packaging code	DIP
package instruction	DIP, DIP40,.6
Contacts	40
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	MULTIPLEXED OUTPUT; ICC SPECIFIED @ 5MHZ
boundary scan	NO
External data bus width	16
JESD-30 code	R-GDIP-T40
JESD-609 code	e0
low power mode	NO
Humidity sensitivity level	3
Number of terminals	40
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output data bus width	16
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Certification status	Not Qualified
Maximum seat height	5.715 mm
Maximum slew rate	40 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, PIPELINE REGISTER
