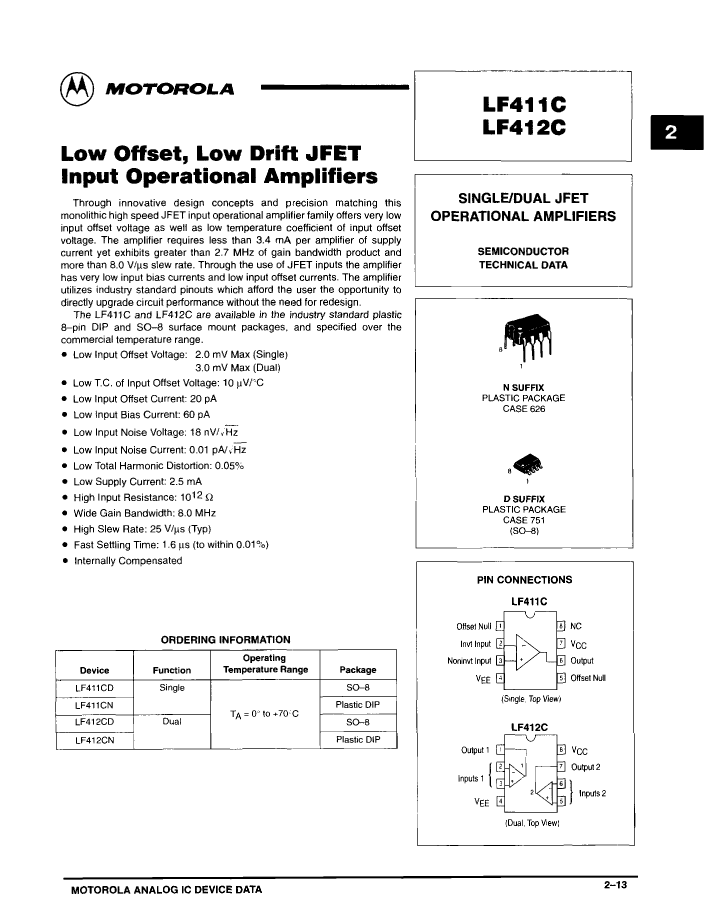

Operational Amplifier, 1 Func, 2000uV Offset-Max, BIPolar, PDIP8, PLASTIC, DIP-8

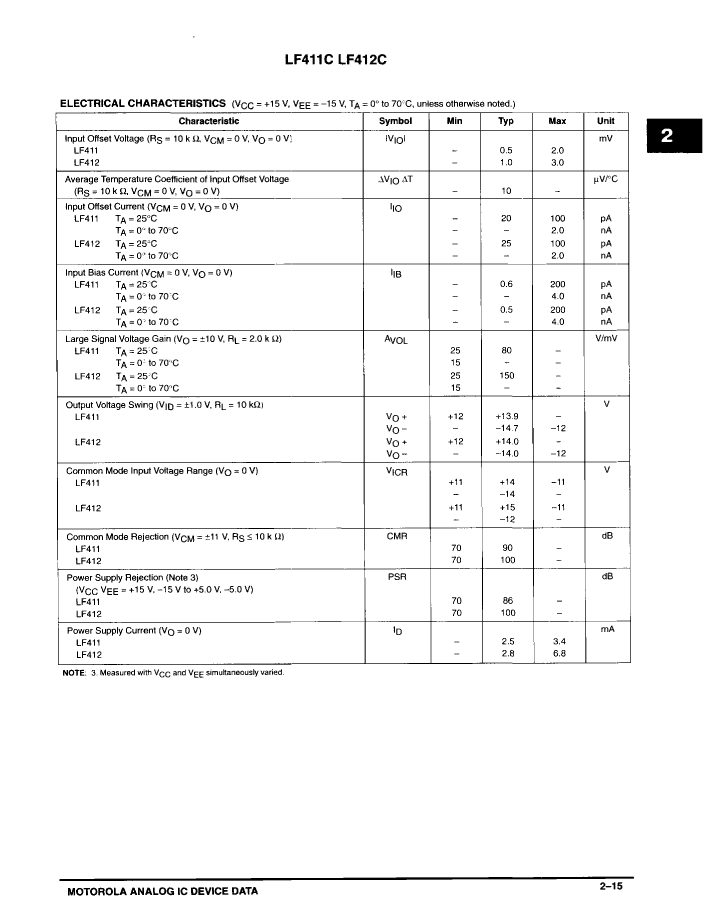

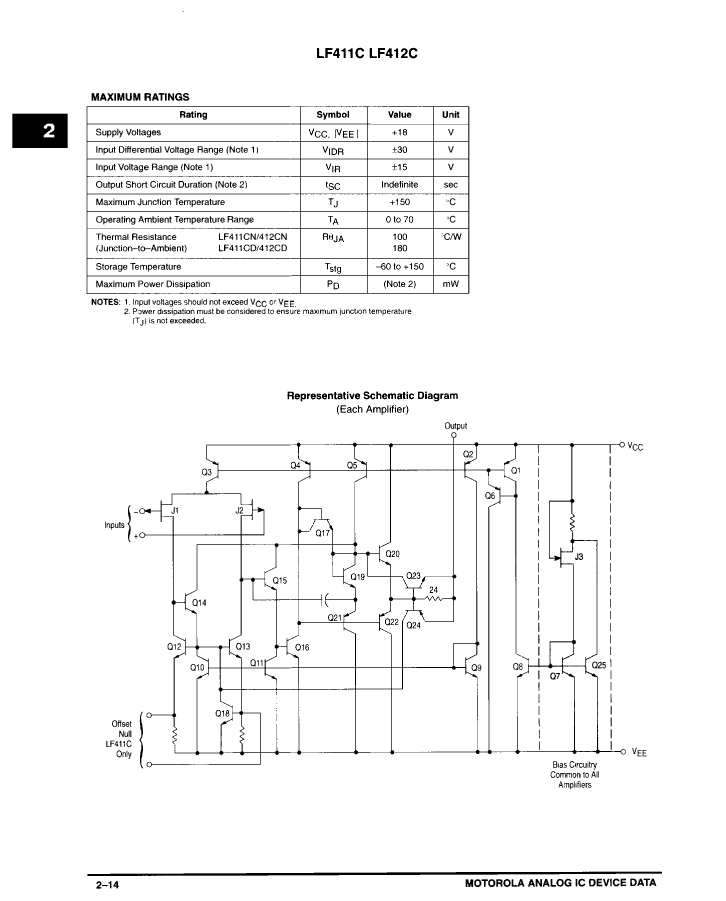

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Motorola ( NXP ) |
| package instruction | DIP, |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.004 µA |
| Minimum Common Mode Rejection Ratio | 70 dB |
| Nominal Common Mode Rejection Ratio | 90 dB |
| Maximum input offset voltage | 2000 µV |
| JESD-30 code | R-PDIP-T8 |
| JESD-609 code | e0 |
| length | 9.78 mm |
| Negative supply voltage upper limit | -18 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum seat height | 4.45 mm |
| minimum slew rate | 8 V/us |
| Nominal slew rate | 25 V/us |
| Maximum slew rate | 3.4 mA |
| Supply voltage upper limit | 18 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | 8000 kHz |
| Minimum voltage gain | 25000 |
| width | 7.62 mm |
| LF411CN | LF411CDR2 | LF411CD | LF412CDR2 | LF412CN | LF412CD | |
|---|---|---|---|---|---|---|
| Description | Operational Amplifier, 1 Func, 2000uV Offset-Max, BIPolar, PDIP8, PLASTIC, DIP-8 | OP-AMP, 2000uV OFFSET-MAX, 8MHz BAND WIDTH, PDSO8, PLASTIC, SO-8 | OP-AMP, 2000uV OFFSET-MAX, 8MHz BAND WIDTH, PDSO8, PLASTIC, SO-8 | DUAL OP-AMP, 3000uV OFFSET-MAX, 4MHz BAND WIDTH, PDSO8, PLASTIC, SO-8 | DUAL OP-AMP, 3000uV OFFSET-MAX, 4MHz BAND WIDTH, PDIP8, PLASTIC, DIP-8 | DUAL OP-AMP, 3000uV OFFSET-MAX, 4MHz BAND WIDTH, PDSO8, PLASTIC, SO-8 |
| Maker | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) |
| package instruction | DIP, | SOP, | SOP, | SOP, | DIP, | SOP, |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.004 µA | 0.004 µA | 0.004 µA | 0.004 µA | 0.004 µA | 0.004 µA |
| Minimum Common Mode Rejection Ratio | 70 dB | 70 dB | 70 dB | 70 dB | 70 dB | 70 dB |
| Nominal Common Mode Rejection Ratio | 90 dB | 90 dB | 90 dB | 100 dB | 100 dB | 100 dB |
| Maximum input offset voltage | 2000 µV | 2000 µV | 2000 µV | 3000 µV | 3000 µV | 3000 µV |
| JESD-30 code | R-PDIP-T8 | R-PDSO-G8 | R-PDSO-G8 | R-PDSO-G8 | R-PDIP-T8 | R-PDSO-G8 |
| length | 9.78 mm | 4.9 mm | 4.9 mm | 4.9 mm | 9.78 mm | 4.9 mm |
| Negative supply voltage upper limit | -18 V | -18 V | -18 V | -18 V | -18 V | -18 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V | -15 V | -15 V | -15 V | -15 V |
| Number of functions | 1 | 1 | 1 | 2 | 2 | 2 |
| Number of terminals | 8 | 8 | 8 | 8 | 8 | 8 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | SOP | SOP | SOP | DIP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | IN-LINE | SMALL OUTLINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 4.45 mm | 1.75 mm | 1.75 mm | 1.75 mm | 4.45 mm | 1.75 mm |
| minimum slew rate | 8 V/us | 8 V/us | 8 V/us | 8 V/us | 8 V/us | 8 V/us |
| Nominal slew rate | 25 V/us | 25 V/us | 25 V/us | 13 V/us | 13 V/us | 13 V/us |
| Maximum slew rate | 3.4 mA | 3.4 mA | 3.4 mA | 6.8 mA | 6.8 mA | 6.8 mA |
| Supply voltage upper limit | 18 V | 18 V | 18 V | 18 V | 18 V | 18 V |
| Nominal supply voltage (Vsup) | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V |
| surface mount | NO | YES | YES | YES | NO | YES |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | THROUGH-HOLE | GULL WING | GULL WING | GULL WING | THROUGH-HOLE | GULL WING |
| Terminal pitch | 2.54 mm | 1.27 mm | 1.27 mm | 1.27 mm | 2.54 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Nominal Uniform Gain Bandwidth | 8000 kHz | 8000 kHz | 8000 kHz | 4000 kHz | 4000 kHz | 4000 kHz |
| Minimum voltage gain | 25000 | 25000 | 25000 | 25000 | 25000 | 25000 |
| width | 7.62 mm | 3.9 mm | 3.9 mm | 3.9 mm | 7.62 mm | 3.9 mm |
| Is it Rohs certified? | incompatible | - | incompatible | incompatible | incompatible | incompatible |
| JESD-609 code | e0 | - | e0 | e0 | e0 | e0 |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Terminal surface | Tin/Lead (Sn/Pb) | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Maximum time at peak reflow temperature | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Parts packaging code | - | SOIC | SOIC | SOIC | DIP | SOIC |
| Contacts | - | 8 | 8 | 8 | 8 | 8 |
