LF351DR2

Description
OP-AMP, 13000uV OFFSET-MAX, 4MHz BAND WIDTH, PDSO8, PLASTIC, SO-8
CategoryAnalog mixed-signal IC    Amplifier circuit
File Size102KB,4 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

LF351DR2 Overview

OP-AMP, 13000uV OFFSET-MAX, 4MHz BAND WIDTH, PDSO8, PLASTIC, SO-8

LF351DR2 Parametric

Parameter NameAttribute value
MakerMotorola ( NXP )
Parts packaging codeSOIC
package instructionSOP,
Contacts8
Reach Compliance Codeunknown
ECCN codeEAR99
Amplifier typeOPERATIONAL AMPLIFIER
Maximum average bias current (IIB)0.008 µA
Minimum Common Mode Rejection Ratio70 dB
Nominal Common Mode Rejection Ratio100 dB
Maximum input offset voltage13000 µV
JESD-30 codeR-PDSO-G8
JESD-609 codee0
length4.9 mm
Negative supply voltage upper limit-18 V
Nominal Negative Supply Voltage (Vsup)-15 V
Number of functions1
Number of terminals8
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Certification statusNot Qualified
Maximum seat height1.75 mm
Nominal slew rate13 V/us
Supply voltage upper limit18 V
Nominal supply voltage (Vsup)15 V
surface mountYES
technologyJFET
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Nominal Uniform Gain Bandwidth4000 kHz
Minimum voltage gain25000
width3.9 mm

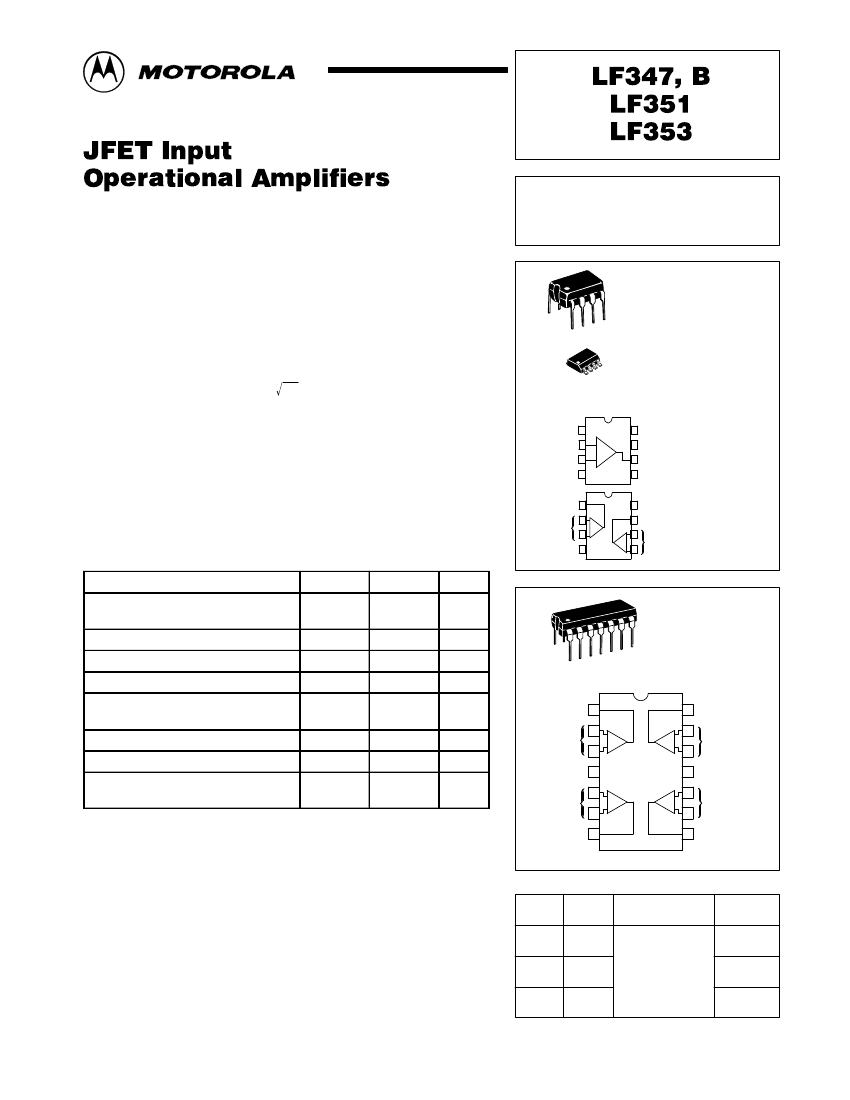

Order this document by LF347/D
LF347, B
LF351
JFET Input
Operational Amplifiers
These low cost JFET input operational amplifiers combine two
state–of–the–art analog technologies on a single monolithic integrated
circuit. Each internally compensated operational amplifier has well matched
high voltage JFET input devices for low input offset voltage. The JFET
technology provides wide bandwidths and fast slew rates with low input bias
currents, input offset currents, and supply currents.
These devices are available in single, dual and quad operational
amplifiers which are pin–compatible with the industry standard MC1741,
MC1458, and the MC3403/LM324 bipolar devices.
Input Offset Voltage of 5.0 mV Max (LF347B)
LF353
FAMILY OF JFET
OPERATIONAL AMPLIFIERS
N SUFFIX
PLASTIC PACKAGE
CASE 626
8
1
Low Input Bias Current: 50 pA
Low Input Noise Voltage: 16 nV/ Hz
Wide Gain Bandwidth: 4.0 MHz
High Slew Rate: 13V/µs
Low Supply Current: 1.8 mA per Amplifier
High Input Impedance: 1012
High Common Mode and Supply Voltage Rejection Ratios: 100 dB
8
1
D SUFFIX
PLASTIC PACKAGE
CASE 751
(SO–8)
PIN CONNECTIONS
Offset Null 1
Invt Input 2
Noninvt Input 3
VEE 4
Output A 1
Inputs A
2
3
8 NC
+
7 VCC
6 Output
5 Offset Null
LF351
(Top View)
+
A
B
8 VCC
7 Output B
+
6
5
LF353
(Top View)
MAXIMUM RATINGS
Rating
Supply Voltage
Differential Input Voltage
Input Voltage Range (Note 1)
Output Short Circuit Duration (Note 2)
Power Dissipation at TA = +25°C
Derate above TA =+25°C
Operating Ambient Temperature Range
Operating Junction Temperature Range
Storage Temperature Range
Symbol
VCC
VEE
VID
VIDR
tSC
PD
1/
θJA
TA
TJ
Tstg
Value
+18
–18
±30
±15
Continuous
900
10
0 to +70
115
– 65 to
+150
mW
mW/°C
°C
°C
°C
Unit
V
V
V
VEE 4
Inputs B
N SUFFIX
PLASTIC PACKAGE
CASE 646
14
1
PIN CONNECTIONS
Out 1 1
2
Inputs 1
3
14 Out 4
+
1
4
+
13
Inputs 4
12
11 VEE
VCC 4
5
Inputs 2
6
Out 2 7
+
2
3
+
10
Inputs 3
9
8 Out 3
NOTES:
1. Unless otherwise specified, the absolute maximum negative input voltage is
limited to the negative power supply.
2. Any amplifier output can be shorted to ground indefinitely. However, if more than
one amplifier output is shorted simultaneously, maximum junction temperature
rating may be exceeded.
(Top View)
ORDERING INFORMATION
Device
LF351D
LF351N
LF353D
LF353N
LF347BN
LF347N
Operating
Function Temperature Range
Single
Single
Dual
Dual
Quad
Quad
TA = 0° to +70°C
Package
SO–8
Plastic DIP
SO–8
Plastic DIP
Plastic DIP
Plastic DIP
Rev 0
©
Motorola, Inc. 1996
MOTOROLA ANALOG IC DEVICE DATA
1
