Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LM108H/883B

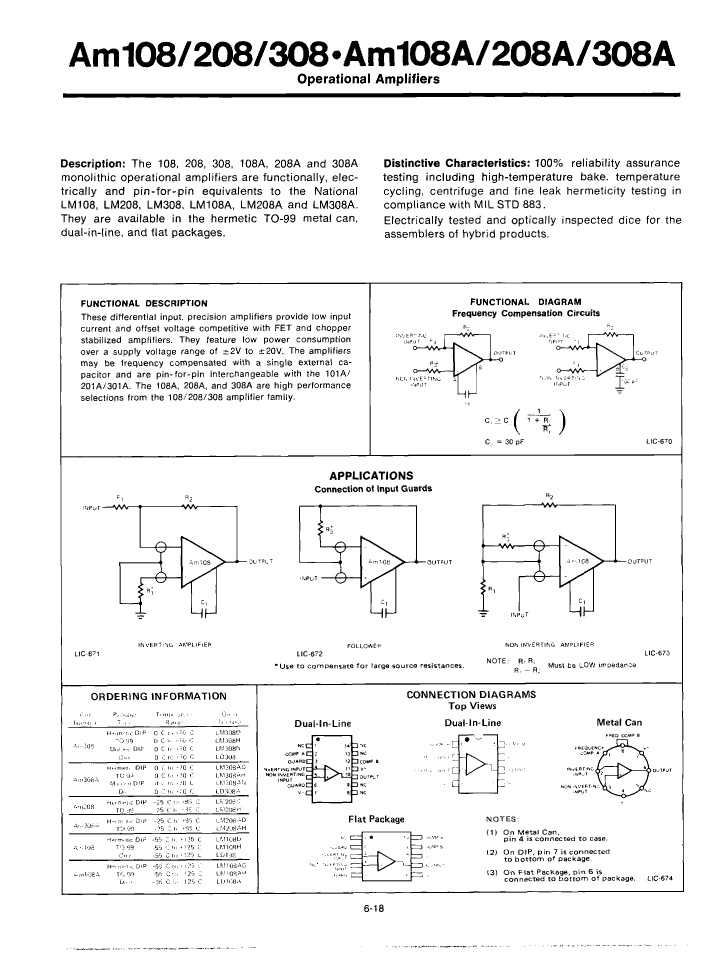

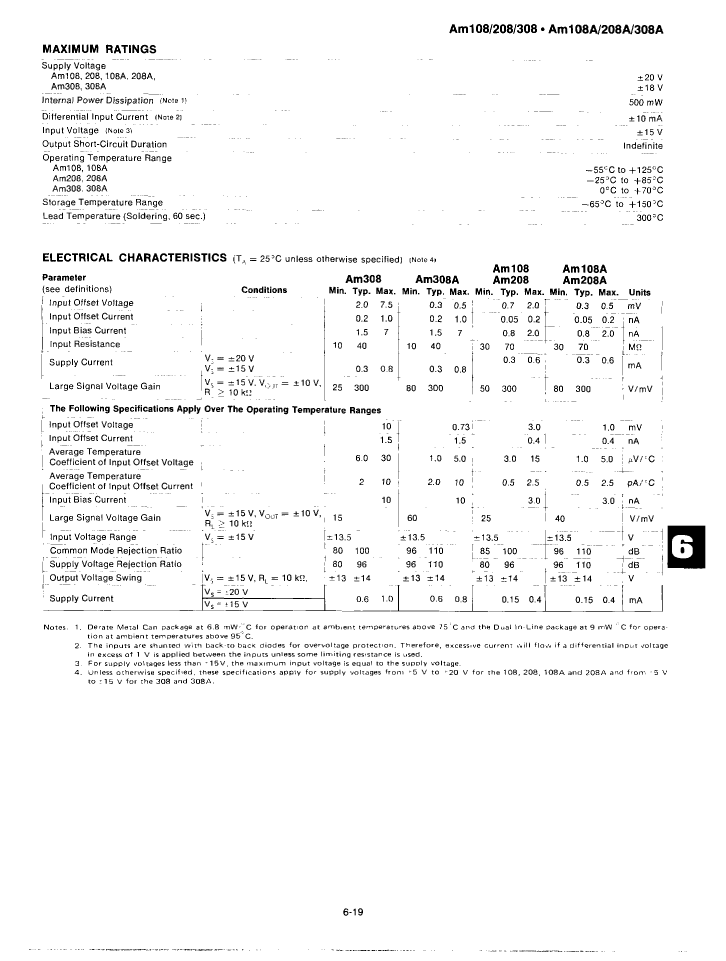

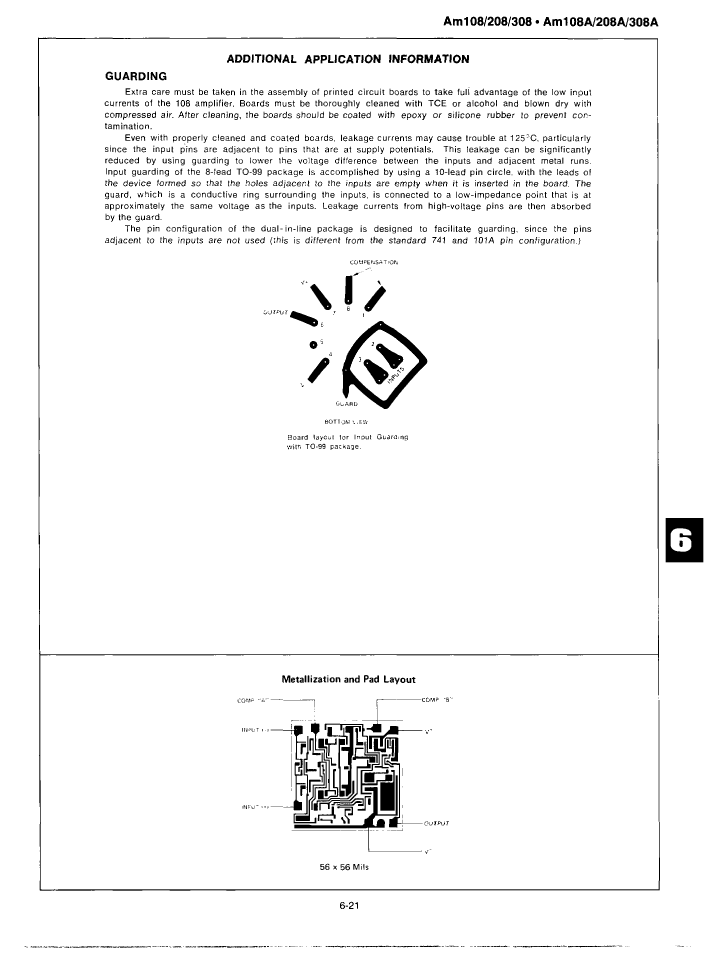

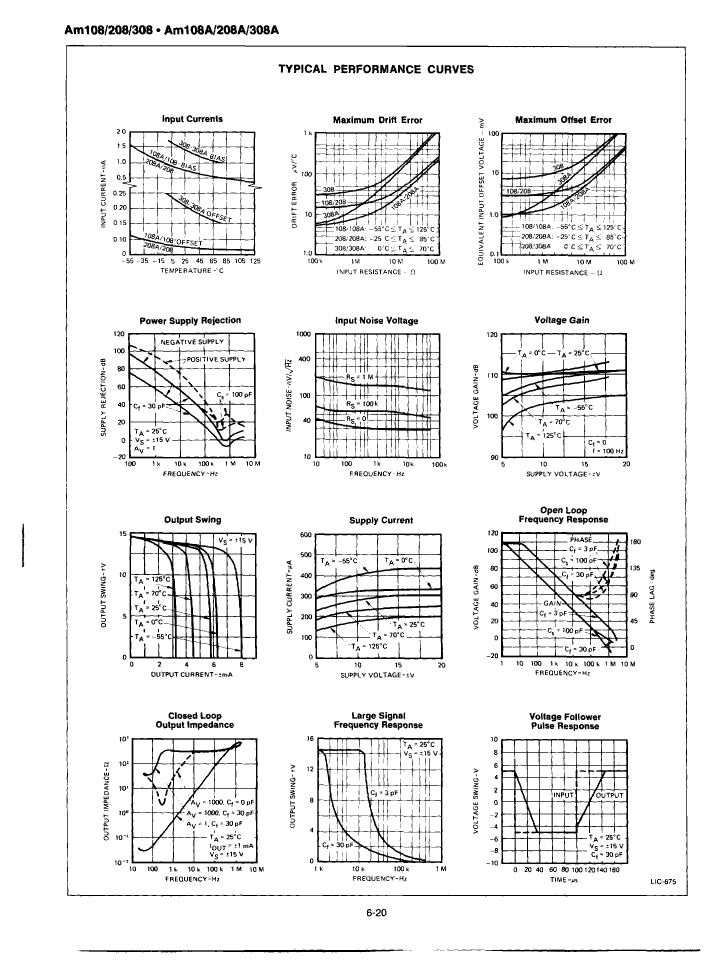

Preview

LM108H/883B: DescriptionOperational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, MBCY8, HERMETIC SEALED, METAL CAN, TO-99, 8 PIN; CategoryAnalog mixed-signal IC Amplifier circuit; File Size149KB，4 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

LM108H/883B Overview

Operational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, MBCY8, HERMETIC SEALED, METAL CAN, TO-99, 8 PIN

LM108H/883B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	TO-99
package instruction	TO-99, CAN8,.2
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.003 µA
Nominal Common Mode Rejection Ratio	100 dB
frequency compensation	NO
Maximum input offset voltage	3000 µV
JESD-30 code	O-MBCY-W8
JESD-609 code	e0
low-dissonance	NO
Nominal Negative Supply Voltage (Vsup)	-20 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
encapsulated code	TO-99
Encapsulate equivalent code	CAN8,.2
Package shape	ROUND
Package form	CYLINDRICAL
power supply	+-5/+-20 V
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B (Modified)
Maximum slew rate	0.6 mA
Nominal supply voltage (Vsup)	20 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM

Preview

Download Datasheet

View All

LM108H/883B Related Products

	LM108H/883B	LM108D/883B	LM108AD/883B	LD108/883B	LM108AH/883B	LD108A/883B
Description	Operational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, MBCY8, HERMETIC SEALED, METAL CAN, TO-99, 8 PIN	Operational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, CDIP8, HERMETIC SEALED, DIP-8	Operational Amplifier, 1 Func, 1000uV Offset-Max, BIPolar, CDIP8, HERMETIC SEALED, DIP-8	Operational Amplifier, 1 Func, 3000uV Offset-Max, 0.056 X 0.056 INCH, DIE-7	Operational Amplifier, 1 Func, 1000uV Offset-Max, BIPolar, MBCY8, HERMETIC SEALED, METAL CAN, TO-99, 8 PIN	Operational Amplifier, 1 Func, 1000uV Offset-Max, 0.056 X 0.056 INCH, DIE-7
Parts packaging code	TO-99	DIP	DIP	DIE	TO-99	DIE
package instruction	TO-99, CAN8,.2	HERMETIC SEALED, DIP-8	HERMETIC SEALED, DIP-8	DIE,	TO-99, CAN8,.2	DIE,
Contacts	8	8	8	7	8	7
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.003 µA	0.003 µA	0.003 µA	0.003 µA	0.003 µA	0.003 µA
Nominal Common Mode Rejection Ratio	100 dB	100 dB	110 dB	100 dB	110 dB	110 dB
Maximum input offset voltage	3000 µV	3000 µV	1000 µV	3000 µV	1000 µV	1000 µV
JESD-30 code	O-MBCY-W8	R-CDIP-T8	R-CDIP-T8	S-XUUC-N7	O-MBCY-W8	S-XUUC-N7
Nominal Negative Supply Voltage (Vsup)	-20 V	-20 V	-20 V	-20 V	-20 V	-20 V
Number of functions	1	1	1	1	1	1
Number of terminals	8	8	8	7	8	7
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	METAL	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	METAL	UNSPECIFIED
encapsulated code	TO-99	DIP	DIP	DIE	TO-99	DIE
Package shape	ROUND	RECTANGULAR	RECTANGULAR	SQUARE	ROUND	SQUARE
Package form	CYLINDRICAL	IN-LINE	IN-LINE	UNCASED CHIP	CYLINDRICAL	UNCASED CHIP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	0.6 mA	0.6 mA	0.6 mA	0.6 mA	0.6 mA	0.6 mA
Nominal supply voltage (Vsup)	20 V	20 V	20 V	20 V	20 V	20 V
surface mount	NO	NO	NO	YES	NO	YES
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	WIRE	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	WIRE	NO LEAD
Terminal location	BOTTOM	DUAL	DUAL	UPPER	BOTTOM	UPPER
Is it Rohs certified?	incompatible	incompatible	incompatible	-	incompatible	-
Maker	AMD	AMD	-	AMD	AMD	AMD
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	-	VOLTAGE-FEEDBACK	-
frequency compensation	NO	NO	NO	-	NO	-
JESD-609 code	e0	e0	e0	-	e0	-
low-dissonance	NO	NO	NO	-	NO	-
Encapsulate equivalent code	CAN8,.2	DIP14,.3	DIP14,.3	-	CAN8,.2	-
power supply	+-5/+-20 V	+-5/+-20 V	+-5/+-20 V	-	+-5/+-20 V	-
Filter level	MIL-STD-883 Class B (Modified)	MIL-STD-883 Class B (Modified)	MIL-STD-883 Class B	-	MIL-STD-883 Class B (Modified)	-
technology	BIPOLAR	BIPOLAR	BIPOLAR	-	BIPOLAR	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	-
