A-70280-0024: Description48 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; Categorysemiconductor Other integrated circuit (IC); File Size421KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

A-70280-0024 Overview

48 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

Preview

Download Datasheet

View All

This document was generated on 03/29/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Description:

0010897481

Active

2.54mm (.100") Pitch C-Grid® Breakaway Header, Dual Row, Vertical, High

Temperature, 48 Circuits, Tin (Sn) Plating, 2.72mm (.107") PC Tail Length

Documents:

3D Model

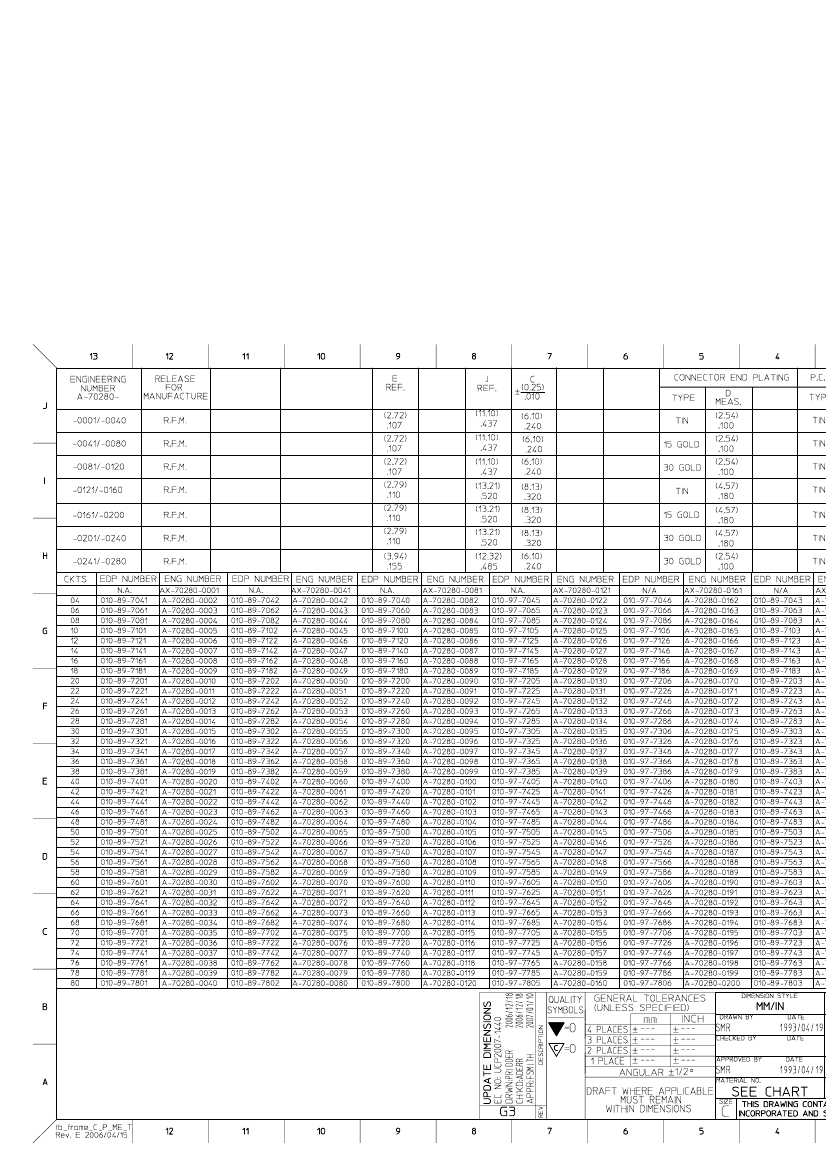

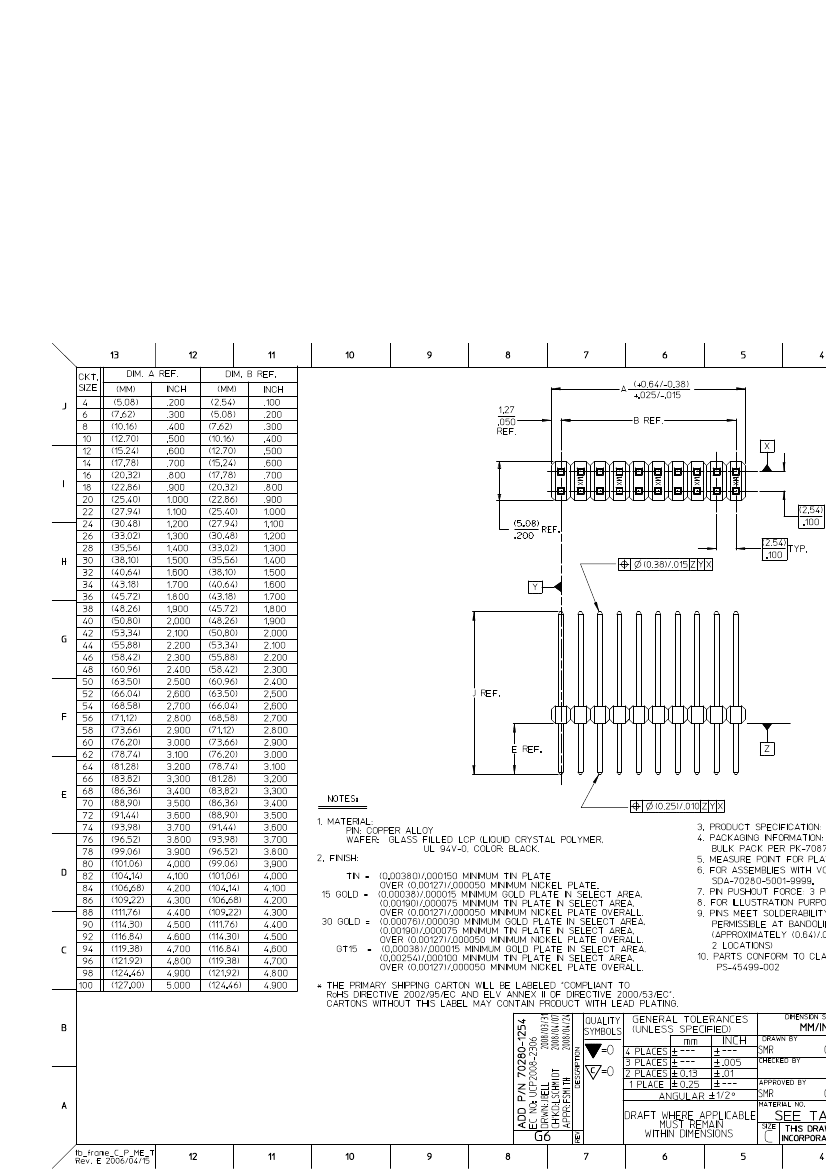

Drawing (PDF)

Product Specification PS-70280 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Application

Product Name

PCB Headers

70280

Board-to-Board, Wire-to-Board

C-Grid®

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Yes

Black

94V-0

None

Copper Alloy

Tin

High Temperature Thermoplastic

Vertical

0.110 In

2.79 mm

None

0.062 In

1.60 mm

Bag

0.100 In

2.54 mm

152.4

3.81

152.4

3.81

Yes

-40°C to +105°C

Through Hole

EU RoHS

ELV and

Complia

REACH S

Not Revie

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

70280S
