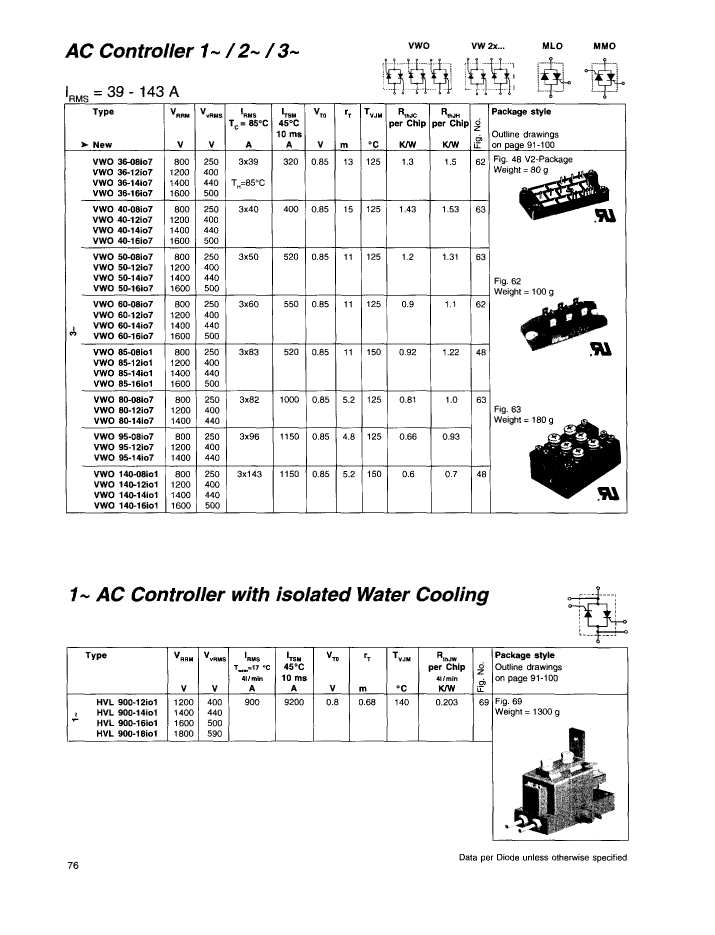

Silicon Controlled Rectifier, 900A I(T)RMS, 1200V V(DRM), 1200V V(RRM), 2 Element,
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | Littelfuse |
| package instruction | SPECIAL SHAPE, R-XXSS-X7 |
| Reach Compliance Code | compliant |
| Configuration | ANTI-PARALLEL, 2 ELEMENTS |
| Maximum DC gate trigger current | 150 mA |
| Maximum DC gate trigger voltage | 2 V |
| Quick connection description | 2G-2AK |
| Description of screw terminals | 3AK |
| Maximum holding current | 150 mA |
| JESD-30 code | R-XXSS-X7 |
| Maximum leakage current | 40 mA |
| On-state non-repetitive peak current | 9200 A |
| Number of components | 2 |
| Number of terminals | 7 |
| Maximum operating temperature | 140 °C |
| Minimum operating temperature | -40 °C |
| Package body material | UNSPECIFIED |
| Package shape | RECTANGULAR |
| Package form | SPECIAL SHAPE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum rms on-state current | 900 A |
| Off-state repetitive peak voltage | 1200 V |
| Repeated peak reverse voltage | 1200 V |
| surface mount | NO |
| Terminal form | UNSPECIFIED |
| Terminal location | UNSPECIFIED |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Trigger device type | SCR |
| HVL900-12IO1 | VWO50-08IO7 | VWO60-08IO7 | VWO40-08IO7 | VWO36-08IO7 | HVL900-16IO1 | HVL900-18IO1 | HVL900-14IO1 | |
|---|---|---|---|---|---|---|---|---|
| Description | Silicon Controlled Rectifier, 900A I(T)RMS, 1200V V(DRM), 1200V V(RRM), 2 Element, | Silicon Controlled Rectifier, 36A I(T)RMS, 23000mA I(T), 800V V(DRM), 800V V(RRM), 6 Element, MODULE-12 | Silicon Controlled Rectifier, 43A I(T)RMS, 800V V(DRM), 800V V(RRM), 6 Element, MODULE-12 | Silicon Controlled Rectifier, 29A I(T)RMS, 18000mA I(T), 800V V(DRM), 800V V(RRM), 6 Element, MODULE-12 | Silicon Controlled Rectifier, 28A I(T)RMS, 18000mA I(T), 800V V(DRM), 800V V(RRM), 6 Element, MODULE-12 | Silicon Controlled Rectifier, 900A I(T)RMS, 1600V V(DRM), 1600V V(RRM), 2 Element, | Silicon Controlled Rectifier, 900A I(T)RMS, 1800V V(DRM), 1800V V(RRM), 2 Element, | Silicon Controlled Rectifier, 900A I(T)RMS, 1400V V(DRM), 1400V V(RRM), 2 Element, |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to |
| package instruction | SPECIAL SHAPE, R-XXSS-X7 | FLANGE MOUNT, R-XUFM-X12 | FLANGE MOUNT, R-XUFM-D12 | FLANGE MOUNT, R-XUFM-X12 | FLANGE MOUNT, R-XUFM-D12 | SPECIAL SHAPE, R-XXSS-X7 | SPECIAL SHAPE, R-XXSS-X7 | SPECIAL SHAPE, R-XXSS-X7 |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant |
| Configuration | ANTI-PARALLEL, 2 ELEMENTS | 3 BANKS, ANTI-PARALLEL, 2 ELEMENTS | 3 BANKS, ANTI-PARALLEL, 2 ELEMENTS | 3 BANKS, ANTI-PARALLEL, 2 ELEMENTS | 3 BANKS, ANTI-PARALLEL, 2 ELEMENTS | ANTI-PARALLEL, 2 ELEMENTS | ANTI-PARALLEL, 2 ELEMENTS | ANTI-PARALLEL, 2 ELEMENTS |
| Maximum DC gate trigger current | 150 mA | 100 mA | 100 mA | 100 mA | 65 mA | 150 mA | 150 mA | 150 mA |
| JESD-30 code | R-XXSS-X7 | R-XUFM-X12 | R-XUFM-D12 | R-XUFM-X12 | R-XUFM-D12 | R-XXSS-X7 | R-XXSS-X7 | R-XXSS-X7 |
| Number of components | 2 | 6 | 6 | 6 | 6 | 2 | 2 | 2 |
| Number of terminals | 7 | 12 | 12 | 12 | 12 | 7 | 7 | 7 |
| Package body material | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SPECIAL SHAPE | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | SPECIAL SHAPE | SPECIAL SHAPE | SPECIAL SHAPE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum rms on-state current | 900 A | 36 A | 43 A | 29 A | 28 A | 900 A | 900 A | 900 A |
| Off-state repetitive peak voltage | 1200 V | 800 V | 800 V | 800 V | 800 V | 1600 V | 1800 V | 1400 V |
| Repeated peak reverse voltage | 1200 V | 800 V | 800 V | 800 V | 800 V | 1600 V | 1800 V | 1400 V |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO |
| Terminal form | UNSPECIFIED | UNSPECIFIED | SOLDER LUG | UNSPECIFIED | SOLDER LUG | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED |
| Terminal location | UNSPECIFIED | UPPER | UPPER | UPPER | UPPER | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Trigger device type | SCR | SCR | SCR | SCR | SCR | SCR | SCR | SCR |
| Maker | Littelfuse | - | Littelfuse | Littelfuse | Littelfuse | Littelfuse | Littelfuse | Littelfuse |
| Maximum DC gate trigger voltage | 2 V | 1 V | - | 1 V | 1 V | 2 V | 2 V | 2 V |
| Quick connection description | 2G-2AK | - | - | - | 6G-6AK | 2G-2AK | 2G-2AK | 2G-2AK |
| Description of screw terminals | 3AK | 6G-3MT1-3MT2 | - | 6G-3MT1-3MT2 | - | 3AK | 3AK | 3AK |
| Maximum holding current | 150 mA | 150 mA | - | 150 mA | 100 mA | 150 mA | 150 mA | 150 mA |
| Maximum leakage current | 40 mA | 5 mA | - | 5 mA | 5 mA | 40 mA | 40 mA | 40 mA |
| On-state non-repetitive peak current | 9200 A | 560 A | - | 450 A | 320 A | 9200 A | 9200 A | 9200 A |
| Maximum operating temperature | 140 °C | 125 °C | - | 125 °C | 125 °C | 140 °C | 140 °C | 140 °C |
| Minimum operating temperature | -40 °C | -40 °C | - | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
