2SK369
TOSHIBA Field Effect Transistor
Silicon N Channel Junction Type
2SK369
For Low Noise Audio Amplifier Applications
•
•
•
•
•
Suitable for use as first stage for equalizer and MC head amplifiers.
High |Y
fs
|: |Y
fs
| = 40 mS (typ.) (V
DS
= 10 V, V
GS
= 0, I
DSS
= 5 mA)
High breakdown voltage: V
GDS
=
−40
V (min)
Super low noise: NF = 1.0dB (typ.)
(V
DS
= 10 V, I
D
= 5 mA, f = 1 kHz, R
G
= 100
Ω)
High input impedance: I
GSS
=
−1
nA (max) (V
GS
=
−30
V)

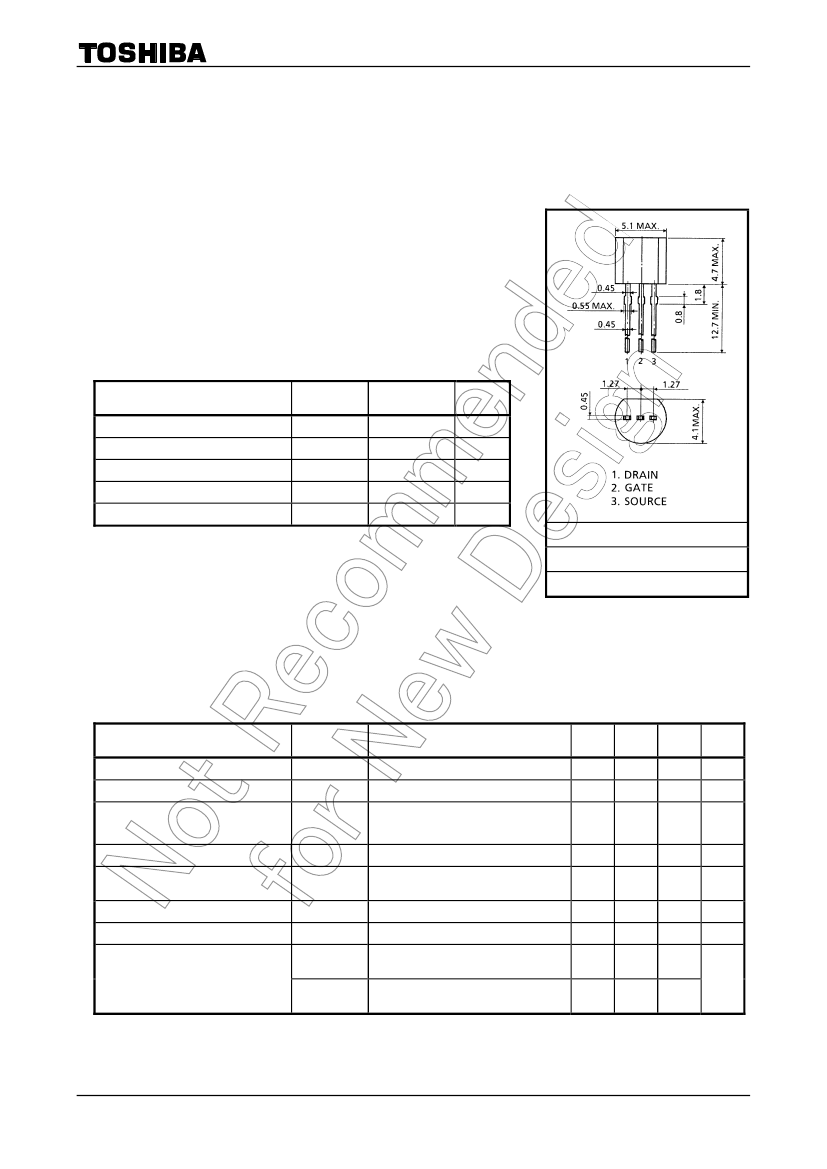

Unit: mm
Absolute Maximum Ratings
(Ta
=
25°C)
Characteristics
Gate-drain voltage
Gate current
Drain power dissipation
Junction temperature
Storage temperature range
Symbol
V
GDS
I
G
P
D
T
j
T
stg
Rating
−40
10
400
125
−55~125
Unit
V
mA
mW
°C
°C
Note:
JEDEC
TO-92
Using continuously under heavy loads (e.g. the application of
high temperature/current/voltage and the significant change in
JEITA
SC-43
temperature, etc.) may cause this product to decrease in the
TOSHIBA
2-5F1D
reliability significantly even if the operating conditions (i.e.
operating temperature/current/voltage, etc.) are within the
Weight: 0.21 g (typ.)
absolute maximum ratings.
Please design the appropriate reliability upon reviewing the
Toshiba Semiconductor Reliability Handbook (“Handling Precautions”/“Derating Concept and Methods”) and
individual reliability data (i.e. reliability test report and estimated failure rate, etc).
Electrical Characteristics
(Ta
=
25°C)
Characteristics
Gate cut-off current
Gate-drain breakdown voltage
Drain current
Gate-source cut-off voltage
Forward transfer admittance
Input capacitance
Reverse transfer capacitance
Symbol
I
GSS
V
(BR) GDS
I
DSS
(Note 1)
V
GS (OFF)
⎪Y
fs
⎪
C
iss
C
rss
NF (1)
Noise figure
(Note 2)
NF (2)
Test Condition
V
GS
= −30
V, V
DS
=
0
V
DS
=
0, I
G
= −100 μA
V
DS
=
10 V, V
GS
=
0
V
DS
=
10 V, I
D
=
0.1
μA
V
DS
=
10 V, V
GS
=
0, f
=
1 kHz,
(I
DSS
=
5 mA)
V
DS
=
10 V, V
GS
=
0, f
=
1 MHz
V
GD
= −10
V, I
D
=
0, f
=
1 MHz
V
DS
=
10 V, R
G
=
100
Ω,
I
D
=
5 mA,
f
=
100 Hz
V
DS
=
10 V, R
G
=
100
Ω,
I
D
=
5 mA,
f
=
1 kHz
Min
⎯
−40
5.0
−0.3
25
⎯
⎯
⎯
⎯
Typ.
⎯
⎯
⎯
⎯
40
75
15
5
1
Max
−1.0
⎯
30
−1.2
⎯
⎯
⎯
10
dB
2
Unit
nA
V
mA
V
mS
pF
pF
Note 1: I
DSS
classification GR: 5.0~10.0 mA, BL: 8.0~16.0 mA, V: 14.0~30.0 mA
Note 2: Use this in the low voltage region (VDS
<
15 V) for low noise applications.
1
2007-11-01
