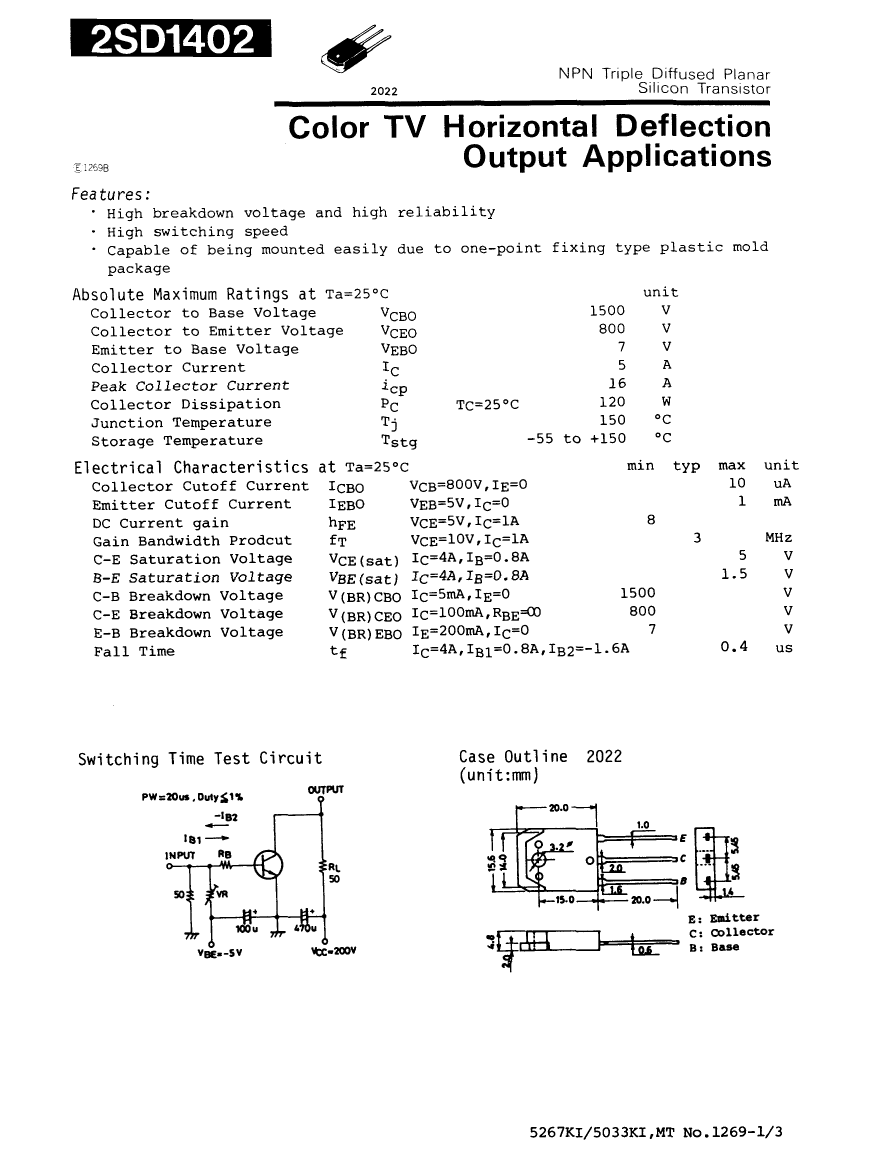

2SD1402 datasheet, PDF - EEWORLD Datasheet

2SD1402: Description5A, 800V, NPN, Si, POWER TRANSISTOR; CategoryDiscrete semiconductor The transistor; File Size117KB，3 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn; Environmental Compliance

Download Datasheet Parametric Compare View All

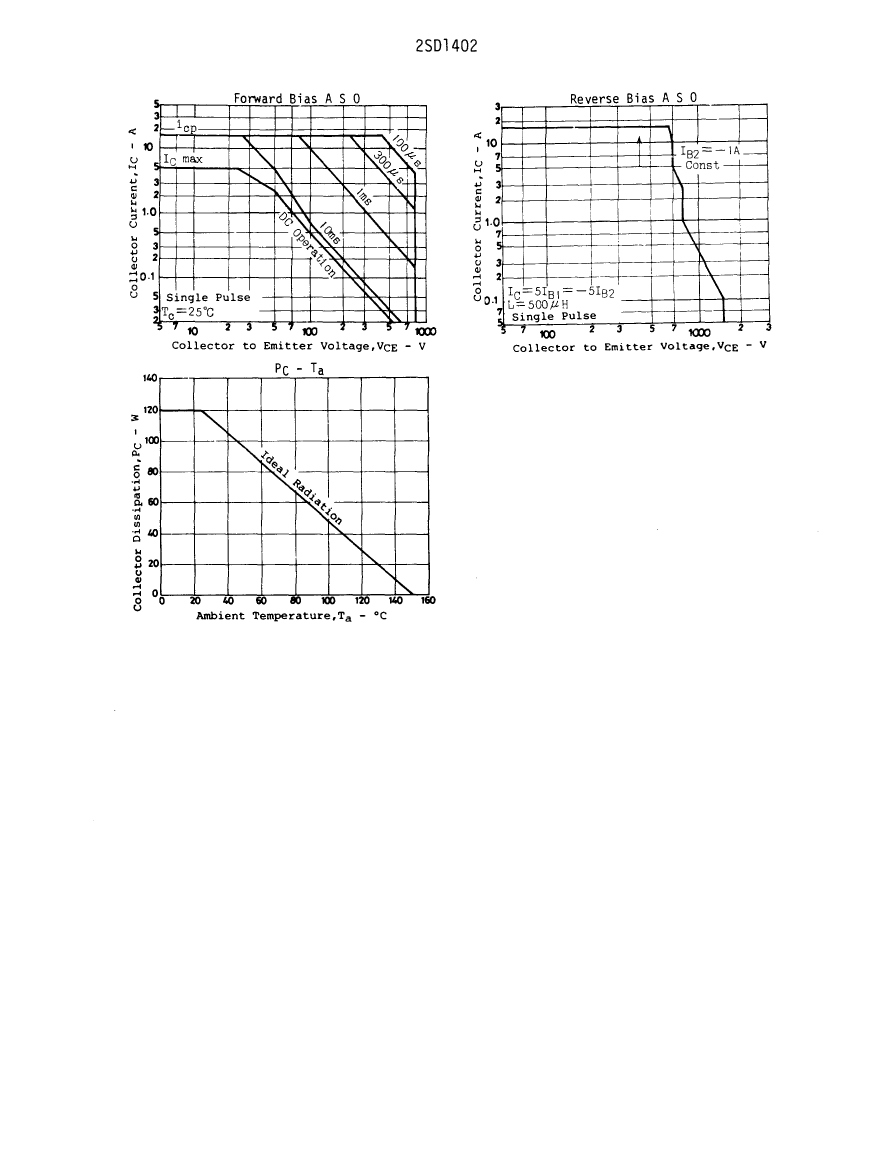

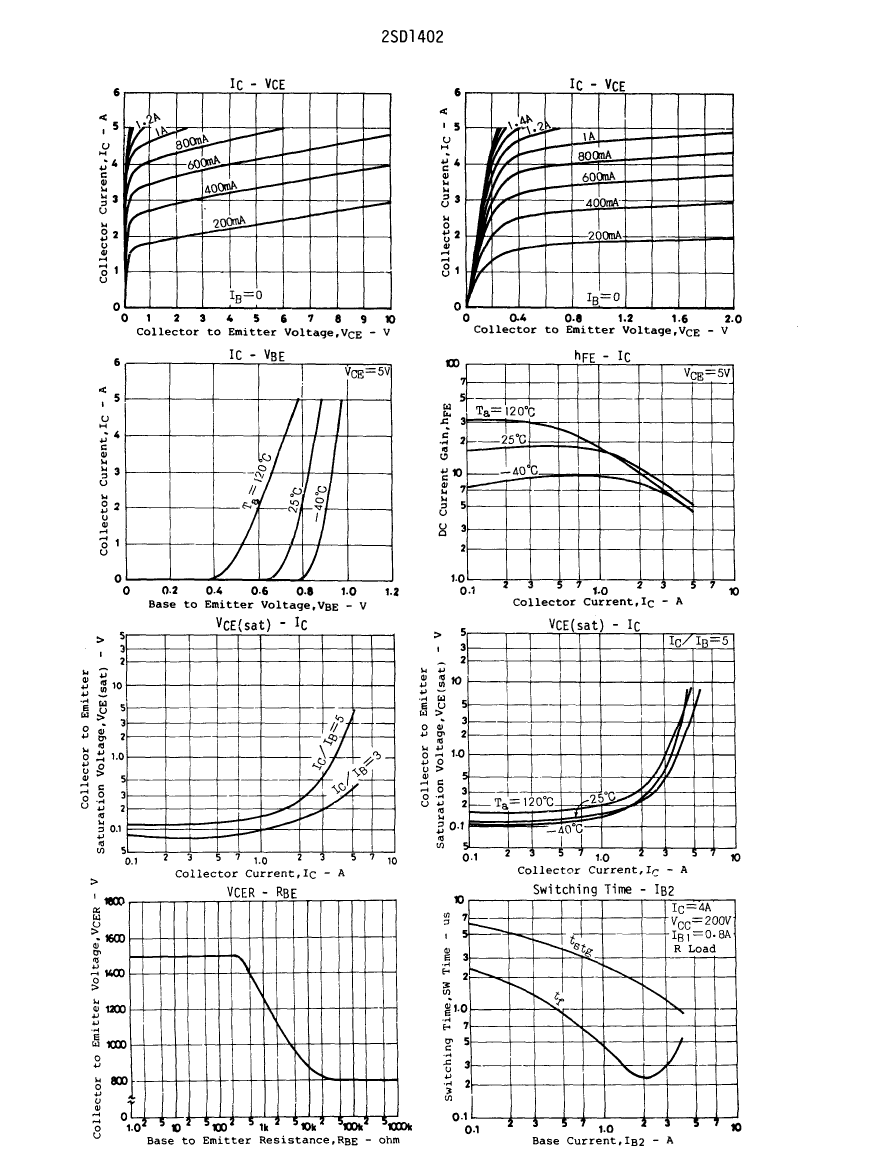

2SD1402 Overview

5A, 800V, NPN, Si, POWER TRANSISTOR

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	HIGH RELIABILITY
Maximum collector current (IC)	5 A
Collector-emitter maximum voltage	800 V
Configuration	SINGLE
Minimum DC current gain (hFE)	8
JESD-30 code	R-PSFM-T3
JESD-609 code	e2
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	3 MHz
Base Number Matches	1

	2SD1402
Description	5A, 800V, NPN, Si, POWER TRANSISTOR
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	HIGH RELIABILITY
Maximum collector current (IC)	5 A
Collector-emitter maximum voltage	800 V
Configuration	SINGLE
Minimum DC current gain (hFE)	8
JESD-30 code	R-PSFM-T3
JESD-609 code	e2
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	3 MHz
Base Number Matches	1
