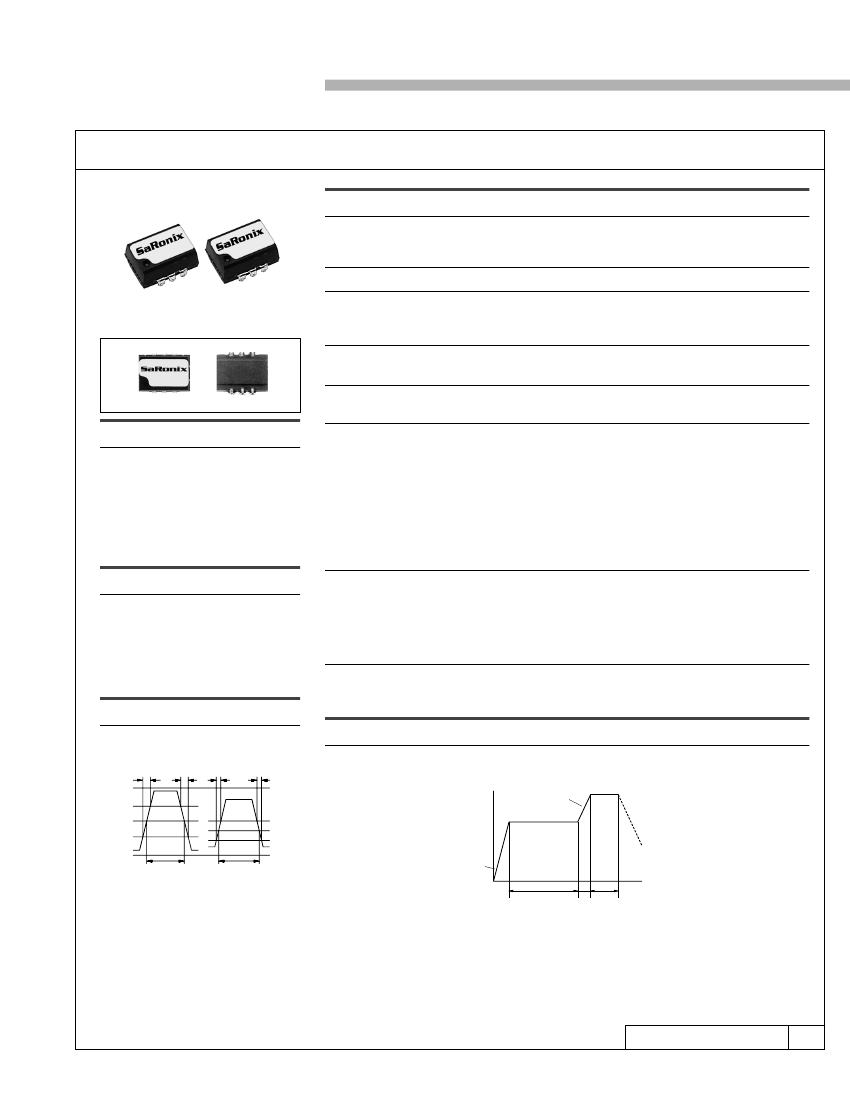

SaRonix
Crystal Clock Oscillator
Technical Data
Frequency Range:
Frequency Stability:
32 MHz to 125 MHz
See Part Numbering Guide: ±50ppm to ±130ppm over all
conditions: calibration tolerance, operating temperature, input
voltage, load, shock and vibration.
±10ppm max
5V, ACMOS, TTL, SMD
S1228 Series
Aging @ 25°C:
Temperature Range:
Operating:
Storage:
Supply Voltage:
Recommended Operating:
Supply Current:
ACTUAL SIZE
0 to +70°C, 0 to +85°C, -40 to +85°C, See Part Numbering Guide
-55 to +125°C
5V ±10%
35mA max, 32 to 70 MHz
50mA max, 70+ to 125 MHz
Description
A crystal controlled oscillator, with
output logic levels compatible with
ACMOS and TTL logic families. The
device is moulded in a plastic, 6-pin,
SMD, J leaded package that is ideal for
today's automated assembly environ-
ments.
Applications
• Compact, plastic-moulded surface
mountable package
• ACMOS and TTL compatible
• Tri-State output
• Ideally suited for use with contempo-
rary MPU's and custom ASIC's
Output Waveform
Output:
Symmetry:
Rise & Fall Times:
Logic 0:
Logic 1:
Load:
Period Jitter RMS:
See Part Numbering Guide and Output Waveform
1.5ns max measured 0.5 to 2.5V
10% V
DD
max
80% V
DD
min
5 MTTL, 32 to 70 MHz
50ΩAC, 70+ to 125 MHz
13ps max 32 to 72 MHz
20ps max 72+ to 125 MHz, 0 to +70°C
25ps max, 72+ to 125 MHz, -40 to +85°C
Mechanical:
Shock:
Solderability:
Terminal Strength:
Vibration:
Resistance to Soldering Heat:
Environmental:
Thermal Shock:
Moisture Resistance:
MIL-STD-883,
MIL-STD-883,
MIL-STD-202,
MIL-STD-883,
MIL-STD-202,
Method 2002, Condition B
Method 2003
Method 211, Conditions A & C
Method 2007, Condition A
Method 210, Condition I or J
MIL-STD-883, Method 1011, Condition A
MIL-STD-883, Method 1004
Solder Reflow Guide
CMOS
T
r
Logic 1
80% V
DD
50% V
DD
20% V
DD
Logic 0
SYMMETRY
SYMMETRY
2.5 VDC
1.5 VDC
0.5 VDC
GND
4°C/sec max
T
f
T
r
TTL
T
f
Temperature – °C
V
DD
250
4°C/sec max
200
150
Preheat 183 ±10°C
Reflow 240°C max
Cooling
Time
1 – 2 minutes
10 sec max
DS-152
REV D
3.17
SaRonix
141 Jefferson Drive • Menlo Park, CA 94025 • USA • 650-470-7700 • 800-227-8974 • Fax 650-462-9894
SaRonix
Crystal Clock Oscillator
Technical Data
Tri-State Logic Table
Pin 2 Input
Logic 1 or NC
Logic 0 or GND
Pin 4 Output
Oscillation
High Impedance
5V, ACMOS, TTL, SMD
S1228 Series
Part Numbering Guide
S1228
Series
S1228 = J Lead, CMOS/TTL
Logic Type
T = TTL
C = CMOS
Frequency Stability
G = ±50ppm
**
H = ±100ppm
J = ±60ppm
**
L = ±130ppm
M = ±70ppm
**
N = ±80ppm
C H E A
- 40.0000
Frequency (MHz)
Symmetry
A = 45/55% max (TTL/CMOS)
*
B = 40/60% max (TTL/CMOS)
C = 47/53% max (TTL/CMOS)
*
D = 45/55% max (TTL only)
*
Operating Temperature
C = 0°C to +70°C
E = 0°C to +85°C
L = -40°C to +85°C
Required Input Levels on Pin 2:
Logic 1 = 3.0V min
Logic 0 = 0.5V max
Package Details & Marking*
6
5
4
DENOTES
PIN 1
SARONIX WWYY
FREQUENCY
PART NUMBER
8.74
.344
10.4
max
.409
1
2
3
*
not available with all frequencies, please contact SaRonix
**
0°C to +70°C or 0°C to +85°C only
Test Circuit
5.9
.234
13.2 max
.520
6.1
max
.240
0.46
.018
5.08
.200
SIMULATED TEST LOAD
V
CC
2.54
.100
850Ω
mA
M
0.75
.030
0.51
x45° CHAM
.020
Pin 6
Pin 5
Pin 4
OSCILLATOR
1.50±.15
.059±.006
8.74
.344
0.1 µF
POWER
SUPPLY
Pin 4: Output
Pin 5: N/C
Pin 6: V
CC
mm
)
inches
Pin 1 Pin 2
Pin 3
C
L
= 15 pF
(Note A)
1.83KΩ
Pin Functions:
Pin 1: N/C
Pin 2: Tri-State
Pin 3: GND
Scale: None (Dimensions in
TRI-STATE INPUT
NOTE A: C
L
includes probe and jig capacitance.
*
Exact location of items may vary
Recommended Land Pattern
5.08
.200
1.27
.050
2.5
.100
2.54
.100
8.65
.341
All specifications are subject to change without notice.
DS-152
REV D
3.18
SaRonix
141 Jefferson Drive • Menlo Park, CA 94025 • USA • 650-470-7700 • 800-227-8974 • Fax 650-462-9894
