2SD1624S-TD-H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SD1624S-TD-H

2SD1624S-TD-H: DescriptionSmall Signal Bipolar Transistor, 3A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-243AA, HALOGEN AND LEAD FREE, TO-243, SC-62, PCP, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size452KB，7 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

2SD1624S-TD-H Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2SD1624S-TD-H	-	-	View	Buy Now

2SD1624S-TD-H Overview

Small Signal Bipolar Transistor, 3A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-243AA, HALOGEN AND LEAD FREE, TO-243, SC-62, PCP, 3 PIN

2SD1624S-TD-H Parametric

Parameter Name	Attribute value
package instruction	SMALL OUTLINE, R-PSSO-F3
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	3 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE
Minimum DC current gain (hFE)	140
JEDEC-95 code	TO-243AA
JESD-30 code	R-PSSO-F3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
surface mount	YES
Terminal form	FLAT
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	150 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

Ordering number : EN2019B

2SB1124/2SD1624

SANYO Semiconductors

DATA SHEET

2SB1124/2SD1624

Applications

•

PNP/NPN Epitaxial Planar Silicon Transistors

High Current Switching

Applications

Voltage regulators, relay drivers, lamp drivers, electrical equipment

Features

•

Adoption of FBET, MBIT processes

Fast switching speed

•

Low collector-to-emitter saturation voltage

Large current capacity and wide ASO

Speciﬁcations

( ): 2SB1124

Absolute Maximum Ratings

at Ta=25°C

Parameter

Collector-to-Base Voltage

Collector-to-Emitter Voltage

Emitter-to-Base Voltage

Collector Current

Collector Current (Pulse)

Symbol

VCBO

VCEO

VEBO

ICP

Conditions

Ratings

(--)60

-)50

-)6

-)3

-)6

Unit

Continued on next page.

Package Dimensions

unit : mm (typ)

7007B-004

Top View

4.5

1.6

1.5

Product & Package Information

• Package

: PCP

• JEITA, JEDEC

: SC-62, SOT-89, TO-243

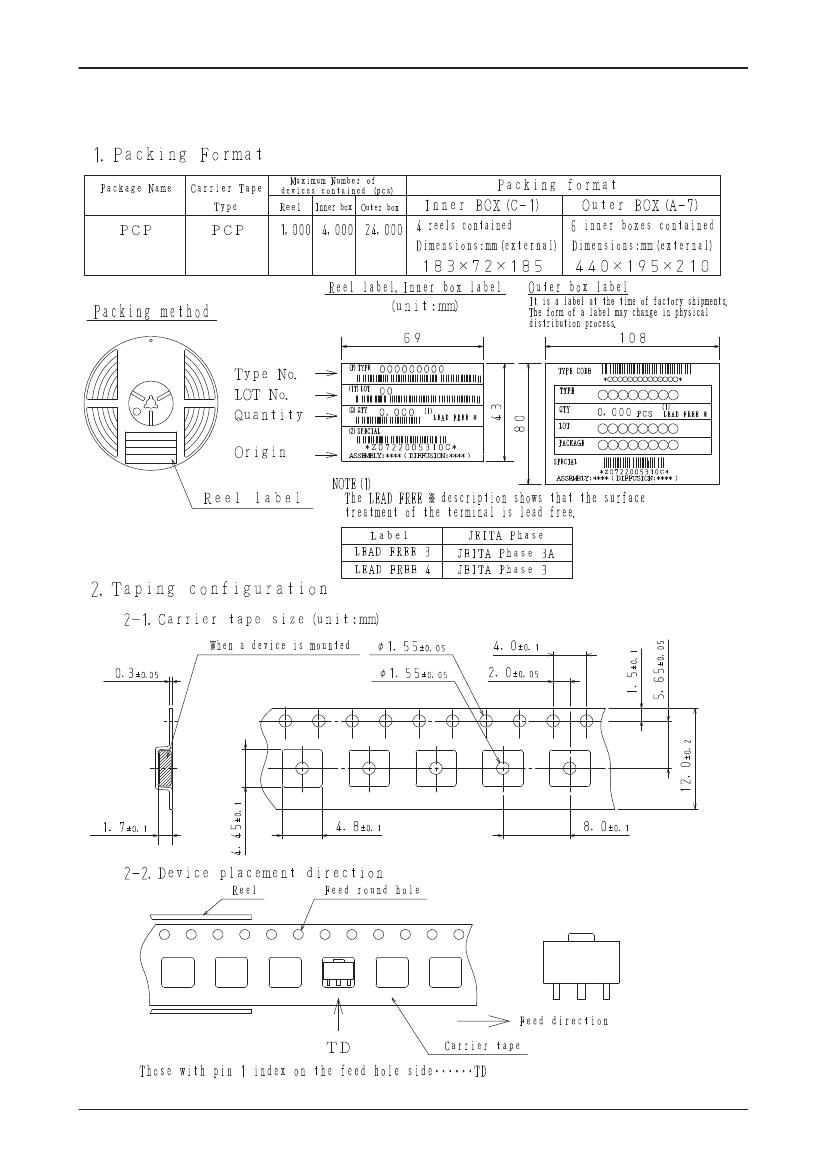

• Minimum Packing Quantity : 1,000 pcs./reel

2SB1124S-TD-E

2SB1124S-TD-H

2SB1124T-TD-E

2SB1124T-TD-H

2SD1624S-TD-E

2SD1624S-TD-H

2SD1624T-TD-E

2SD1624T-TD-H

Packing Type: TD

2.5

1.0

4.0

0.4

0.5

1.5

3.0

0.4

Marking

LOT No.

RANK

2SD1624

RANK

0.75

2SB1124

Electrical Connection

1 : Base

2 : Collector

3 : Emitter

Bottom View

SANYO : PCP

2SB1124

http://www.sanyosemi.com/en/network/

80812 TKIM/O1003TN (KOTO)/92098HA (KT)/3307AT, TS No.2019-1/7

LOT No.

2SD1624S-TD-H Related Products

	2SD1624S-TD-H	2SB1124S-TD-E	2SB1124S-TD-H	2SB1124T-TD-E	2SB1124T-TD-H	2SD1624S-TD-E	2SD1624T-TD-E	2SD1624T-TD-H
Description	Small Signal Bipolar Transistor, 3A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-243AA, HALOGEN AND LEAD FREE, TO-243, SC-62, PCP, 3 PIN	Small Signal Bipolar Transistor, 3A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, TO-243AA, LEAD FREE, TO-243, SC-62, PCP, 3 PIN	Small Signal Bipolar Transistor, 3A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, TO-243AA, HALOGEN AND LEAD FREE, TO-243, SC-62, PCP, 3 PIN	Small Signal Bipolar Transistor, 3A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, TO-243AA, LEAD FREE, TO-243, SC-62, PCP, 3 PIN	Small Signal Bipolar Transistor, 3A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, TO-243AA, HALOGEN AND LEAD FREE, TO-243, SC-62, PCP, 3 PIN	Small Signal Bipolar Transistor, 3A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-243AA, LEAD FREE, TO-243, SC-62, PCP, 3 PIN	Small Signal Bipolar Transistor, 3A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-243AA, LEAD FREE, TO-243, SC-62, PCP, 3 PIN	Small Signal Bipolar Transistor, 3A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-243AA, HALOGEN AND LEAD FREE, TO-243, SC-62, PCP, 3 PIN
package instruction	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR
Maximum collector current (IC)	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Collector-emitter maximum voltage	50 V	50 V	50 V	50 V	50 V	50 V	50 V	50 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	140	140	140	200	200	140	200	200
JEDEC-95 code	TO-243AA	TO-243AA	TO-243AA	TO-243AA	TO-243AA	TO-243AA	TO-243AA	TO-243AA
JESD-30 code	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3
Number of components	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	NPN	PNP	PNP	PNP	PNP	NPN	NPN	NPN
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Terminal form	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	150 MHz	150 MHz	150 MHz	150 MHz	150 MHz	150 MHz	150 MHz	150 MHz
Base Number Matches	1	1	1	1	1	1	1	1
