0009016082
Active
edge_card_connectors
3.96mm (.156") Pitch KK® Crimp Housing, Edge Card Connector, Single-Sided,
Surface Mount, Polarized, Without Flange, 6 Circuits
Documents:
Packaging Specification (PDF)

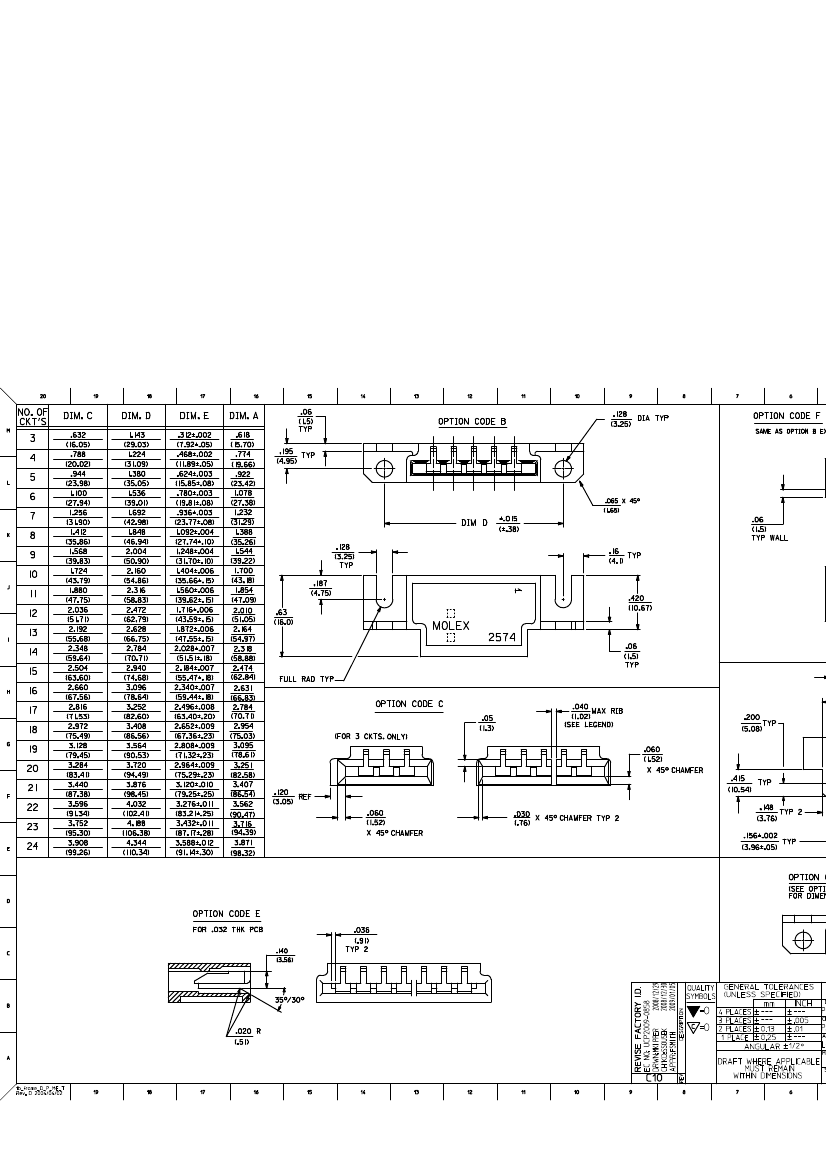

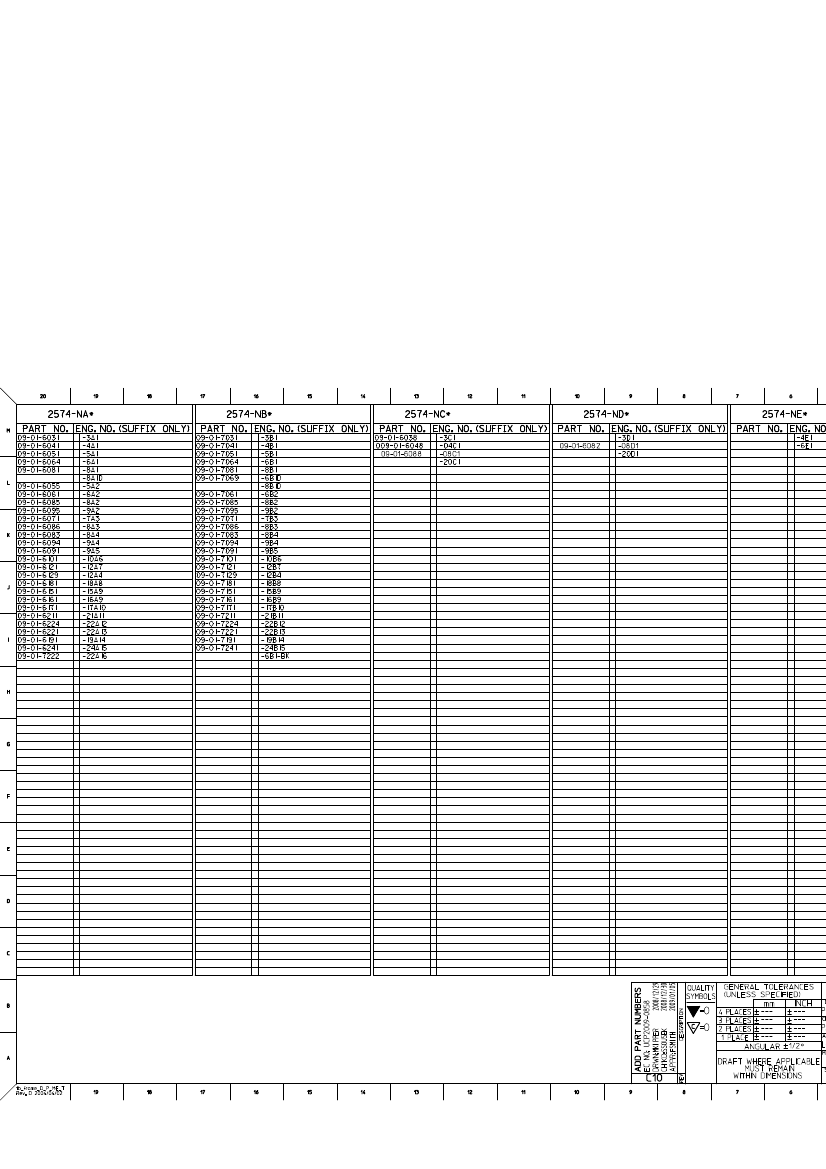

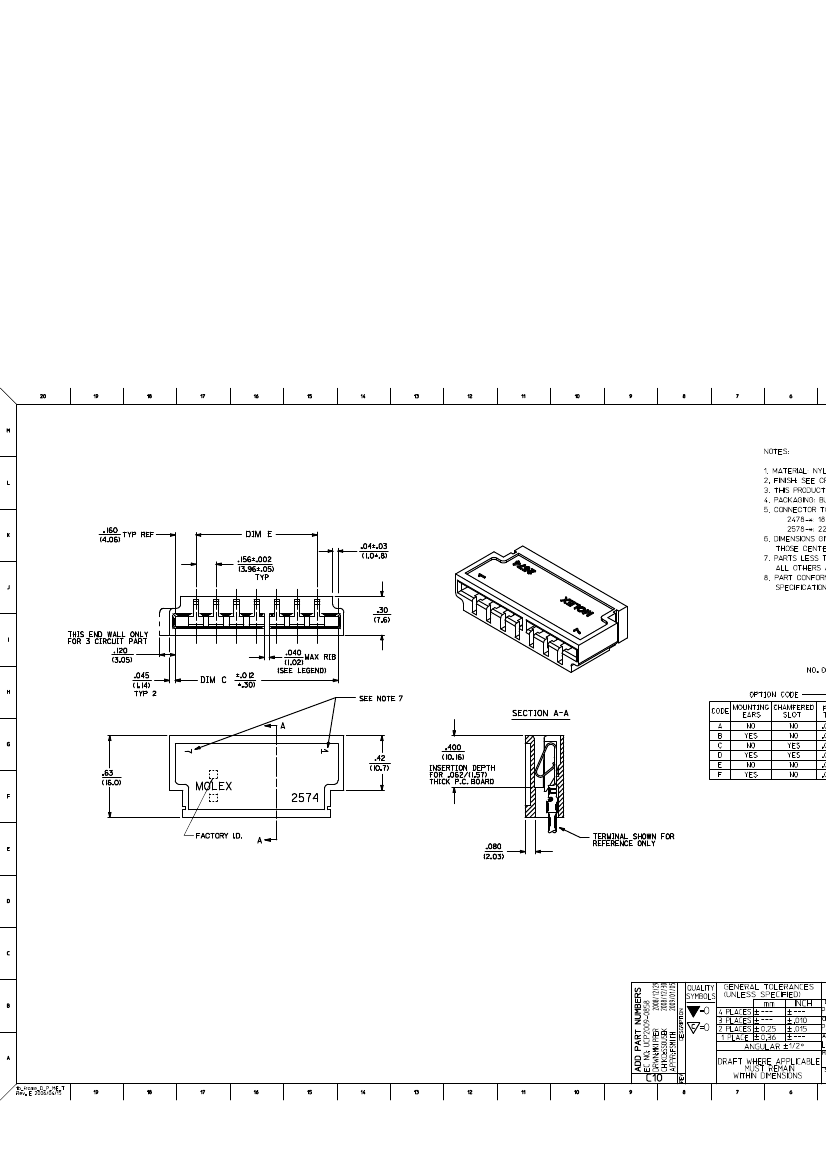

Drawing (PDF)
Product Specification PS-08-50 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Component Type
Overview
Product Name
Edge Card Connectors
2574
Edgecard to Wire
edge_card_connectors
Edge Card, KK®
Physical
Circuits (Loaded)
Circuits (maximum)
Circuits Detail
Color - Resin
Durability (mating cycles max)
Entry Angle
Keying to Mating Part
Material - Plating Mating
Material - Resin
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Temperature Range - Operating
Termination Interface: Style
8
8
All Signal
Natural
25
Vertical (Top Entry)
N/A
n/a
Nylon
None
0.062 In
1.60 mm
Bag
Without Flange
0.156 In
3.96 mm
Yes
0°C to +75°C
N/A
EU RoHS
ELV and
Complia
REACH S
Contains
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
2574Se
Mates
PCB, 1
Electrical
Current - Maximum per Contact
Voltage - Maximum
4.25A, 4.5A, 4.75A, 4A, 5A
250V
Use W
2878 T
Termin
Material Info
Old Part Number
2574-08D1
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
PK-2574-001
PS-08-50
SD-2574
