DTC143EM-T2L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> DTC143EM-T2L

DTC143EM-T2L: DescriptionSmall Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, VMT3, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size1MB，11 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DTC143EM-T2L Overview

Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, VMT3, 3 PIN

DTC143EM-T2L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	SMALL OUTLINE, R-PDSO-F3
Reach Compliance Code	compliant
Other features	BUILT-IN BIAS RESISTOR RATIO IS 1
Maximum collector current (IC)	0.1 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	30
JESD-30 code	R-PDSO-F3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.15 W
Certification status	Not Qualified
surface mount	YES
Terminal form	FLAT
Terminal location	DUAL
Maximum time at peak reflow temperature	10
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	250 MHz

Preview

Download Datasheet

View All

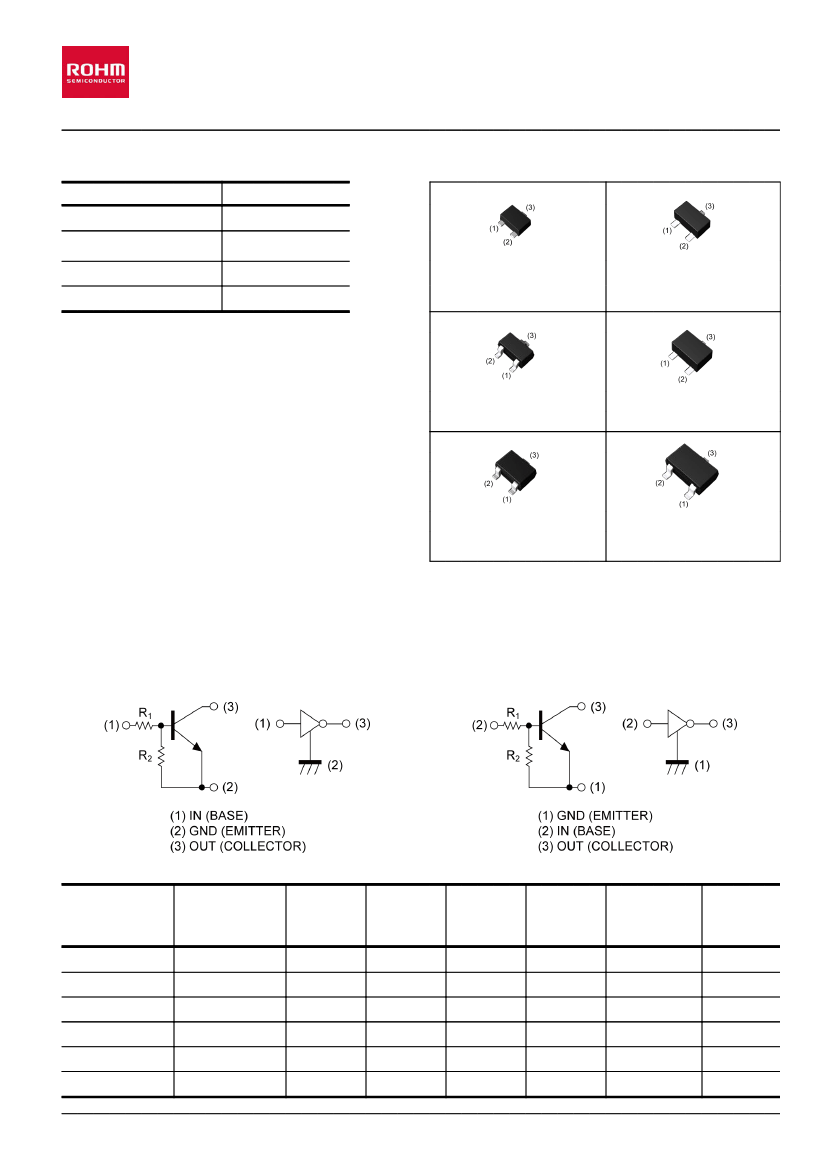

DTC143E series

NPN 100mA 50V Digital Transistors (Bias Resistor Built-in Transistors)

Datasheet

Outline

Parameter

C(MAX.)

Value

50V

100mA

4.7kΩ

VMT3

EMT3F

DTC143EM

(SC-105AA)

EMT3

DTC143EEB

(SC-89)

UMT3F

Features

1) Built-In Biasing Resistors, R

= R

= 4.7kΩ

2) Built-in bias resistors enable the configuration of

an inverter circuit without connecting external

input resistors (see inner circuit) .

3) Only the on/off conditions need to be set

for operation, making the circuit design easy.

4) Complementary PNP Types: DTA143E series

DTC143EE

SOT-416(SC-75A)

UMT3

DTC143EUB

(SC-85)

SMT3

DTC143EUA

SOT-323(SC-70)

DTC143EKA

SOT-346(SC-59)

Application

INVERTER, INTERFACE,DRIVER

Inner circuit

DTC143EM/ DTC143EEB/ DTC143EUB

DTC143EE/ DTC143EUA/ DTC143EKA

Packaging specifications

Part No.

DTC143EM

DTC143EEB

DTC143EE

DTC143EUB

DTC143EUA

DTC143EKA

Package

VMT3

EMT3F

EMT3

UMT3F

UMT3

SMT3

Package

size

1212

1616

2021

2928

Taping

code

T2L

T106

T146

1/10

Reel size Tape width

(mm)

180

Basic

ordering

unit.(pcs)

8000

3000

Marking

www.rohm.com

20150311 - Rev.003

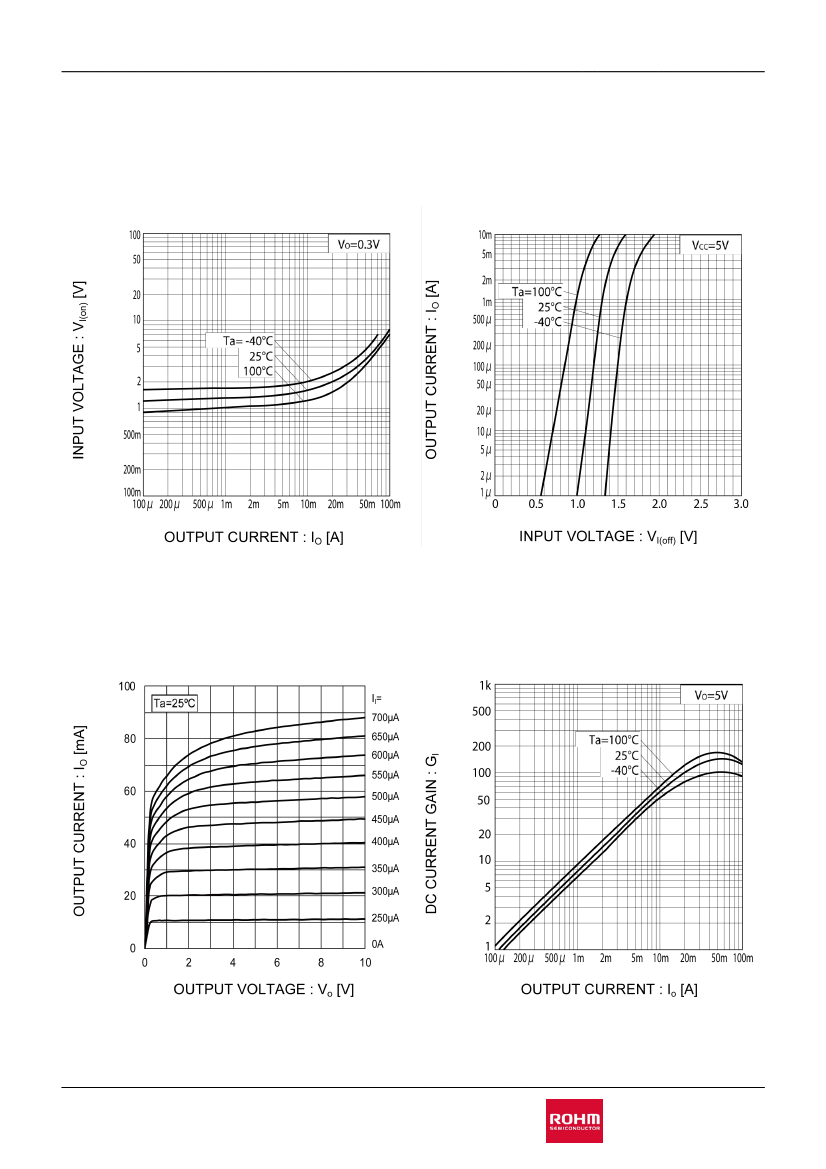

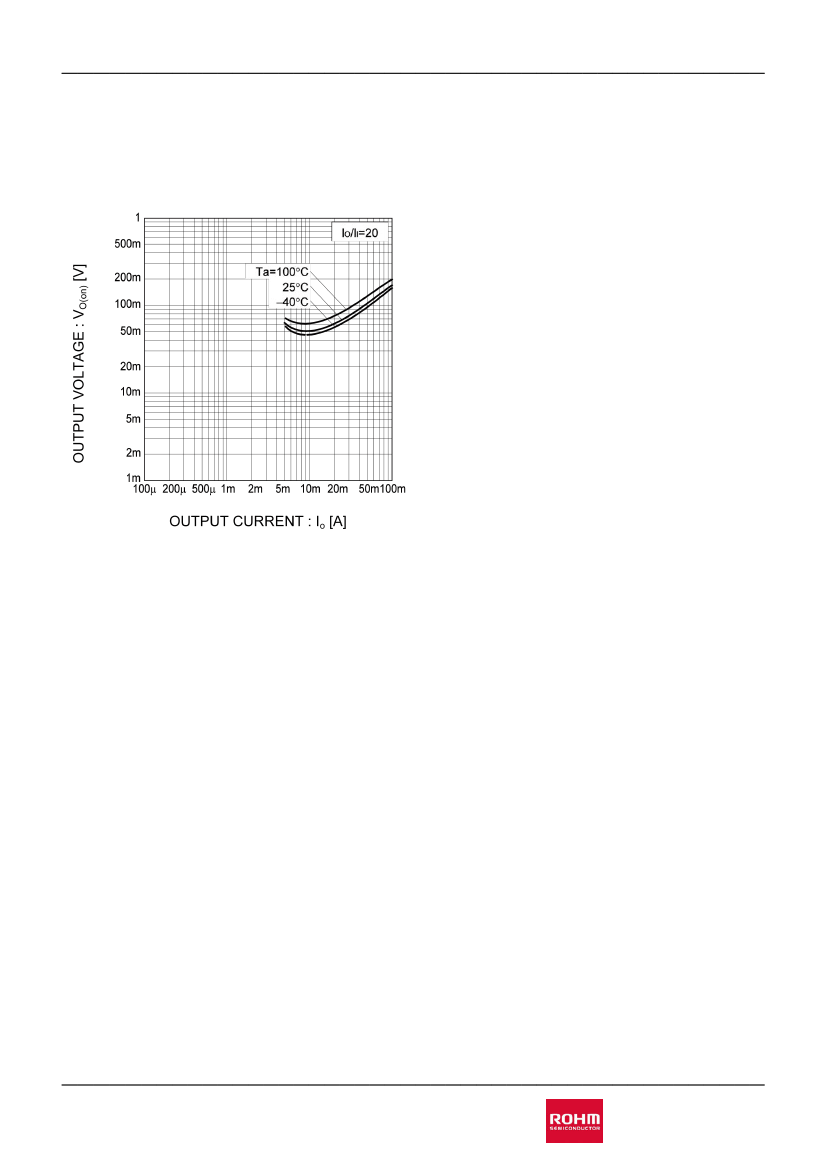

DTC143EM-T2L Related Products

	DTC143EM-T2L	DTC143EUA-T106	DTC143EKA-T146	DTC143EE-TL	DTC143EUB-TL	DTC143EEB-TL
Description	Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, VMT3, 3 PIN	Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, SC-70, 3 PIN	Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, SC-59, 3 PIN	Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, EMT3, 3 PIN	Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, UMT3F, 3 PIN	Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, EMT3F, 3 PIN
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
package instruction	SMALL OUTLINE, R-PDSO-F3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-F3	SMALL OUTLINE, R-PDSO-F3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Other features	BUILT-IN BIAS RESISTOR RATIO IS 1	BUILT-IN BIAS RESISTOR RATIO IS 1	BUILT-IN BIAS RESISTOR RATIO IS 1	BUILT-IN BIAS RESISTOR RATIO IS 1	BUILT-IN BAIS RESISTOR RATIO IS 1	BUILT IN BIAS RESISTANCE RATIO IS 1
Maximum collector current (IC)	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Collector-emitter maximum voltage	50 V	50 V	50 V	50 V	50 V	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	30	30	30	30	30	30
JESD-30 code	R-PDSO-F3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-F3	R-PDSO-F3
Humidity sensitivity level	1	1	1	1	1	1
Number of components	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN
Maximum power dissipation(Abs)	0.15 W	0.2 W	0.2 W	0.15 W	0.2 W	0.15 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	FLAT	GULL WING	GULL WING	GULL WING	FLAT	FLAT
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	10	10	10	10	10	10
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	250 MHz	250 MHz	250 MHz	250 MHz	250 MHz	250 MHz
JESD-609 code	-	e1	e1	e1	e1	e1
Terminal surface	-	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)
