2SD1624T: DescriptionSmall Signal Bipolar Transistor, 3A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, PCP, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size142KB，4 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric View All

2SD1624T Overview

Small Signal Bipolar Transistor, 3A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, PCP, 3 PIN

2SD1624T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1481159215
package instruction	SMALL OUTLINE, R-PSSO-F3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	3 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE
Minimum DC current gain (hFE)	200
JESD-30 code	R-PSSO-F3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.5 W
Certification status	Not Qualified
surface mount	YES
Terminal surface	TIN LEAD
Terminal form	FLAT
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	150 MHz
Maximum off time (toff)	685 ns
Maximum opening time (tons)	70 ns

Preview

Download Datasheet

View All

Ordering number:2019A

PNP/NPN Epitaxial Planar Silicon Transistors

2SB1124/2SD1624

High Current Switching Applications

Applications

· Voltage regulators, relay drivers, lamp drivers,

electrical equipment.

Package Dimensions

unit:mm

2038

[2SB1124/2SD1624]

Features

· Adoption of FBET, MBIT processes.

· Low collector-to-emitter saturation voltage.

· Fast switching speed.

· Large current capacity and wide ASO.

E : Emitter

C : Collector

B : Base

( ) : 2SB1124

Specifications

Absolute Maximum Ratings

at Ta = 25˚C

Parameter

Collector-to-Base Voltage

Collector-to-Emitter Voltage

Emitter-to-Base Voltage

Collector Current

Collector Current (Pulse)

Collector Dissipation

Junction Temperature

Storage Temperature

Symbol

VCBO

VCEO

VEBO

ICP

Conditions

SANYO : PCP

(Bottom view)

Ratings

(–)60

(–)50

(–)6

(–)3

(–)6

500

Unit

Mounted on ceramic board (250mm

×0.8mm)

1.5

150

–55 to +150

Tstg

˚C

Electrical Characteristics

at Ta = 25˚C

Parameter

Collector Cutoff Current

Emitter Cutoff Current

DC Current Gain

Gain-Bandwidth Product

Output Capacitance

Symbol

ICBO

IEBO

hFE1

hFE2

Cob

VCB=(–)40V, IE=0

VEB=(–)4V, IC=0

VCE=(–)2V, IC=(–)100mA

VCE=(–)2V, IC=(–)3A

VCE=(–)10V, IC=(–)50mA

VCB=(–)10V, f=1MHz

100*

150

(39)

MHz

Conditions

Ratings

min

typ

max

(–)1

560*

Unit

µA

* ; The 2SB1124/2SD1624 are classified by 100mA h

as follows :

100

200

140

280

200

400

280

560

Any and all SANYO products described or contained herein do not have specifications that can handle

applications that require extremely high levels of reliability, such as life-support systems, aircraft’s

control systems, or other applications whose failure can be reasonably expected to result in serious

physical and/or material damage. Consult with your SANYO representative nearest you before using

any SANYO products described or contained herein in such applications.

SANYO assumes no responsibility for equipment failures that result from using products at values that

exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges,or other

parameters) listed in products specifications of any and all SANYO products described or contained

herein.

SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquaters

TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN

92098HA (KT)/3307AT, TS No.2019–1/4

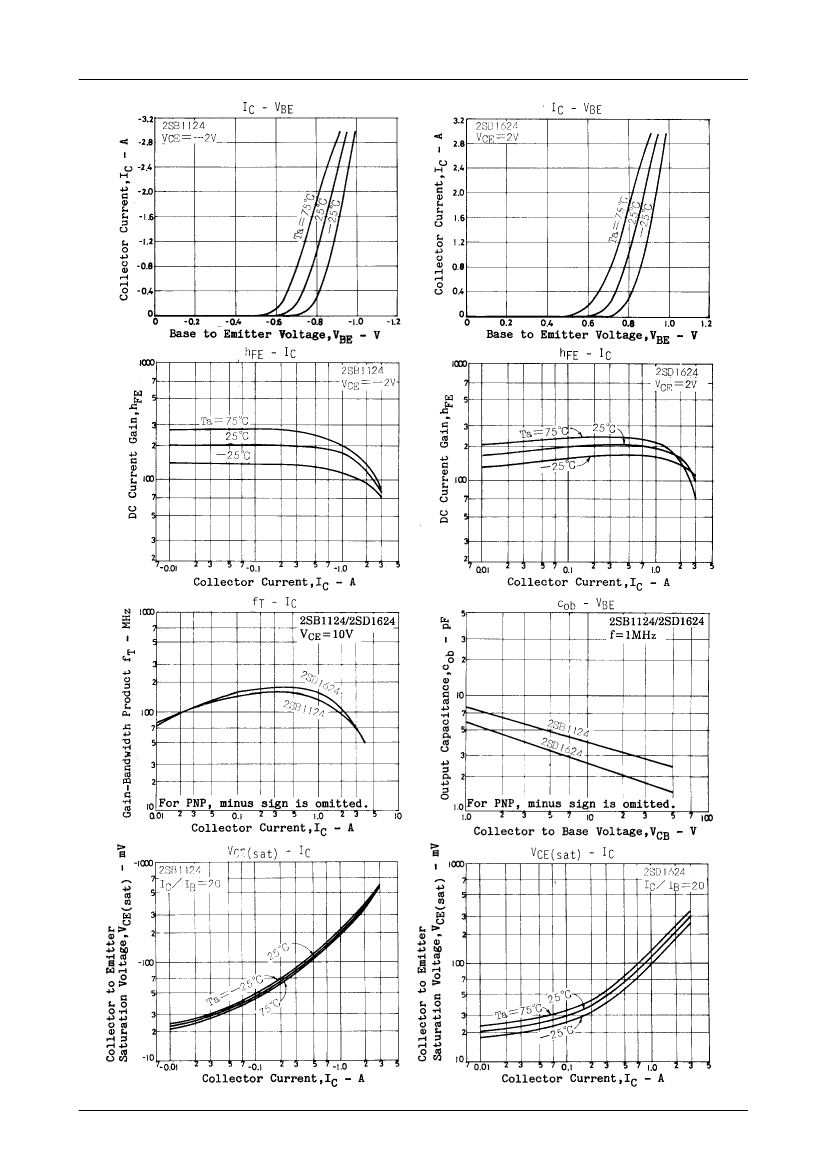

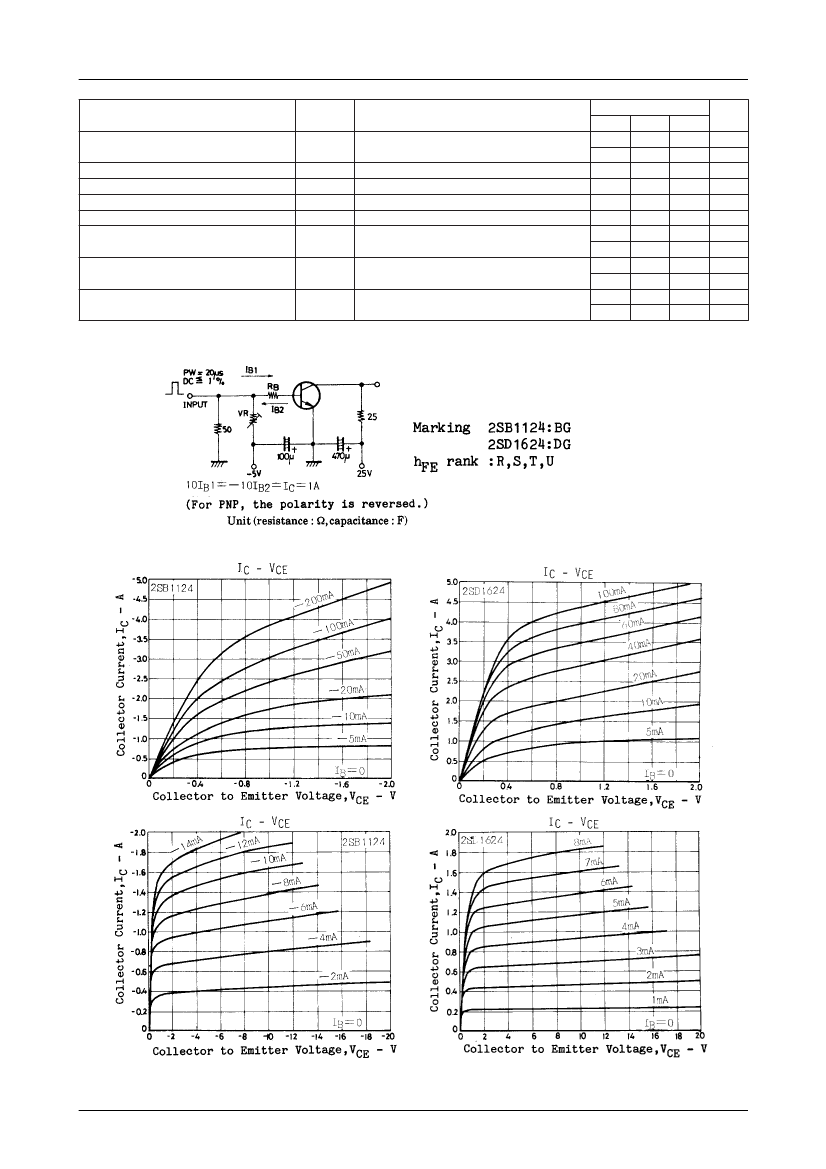

2SB1124/2SD1624

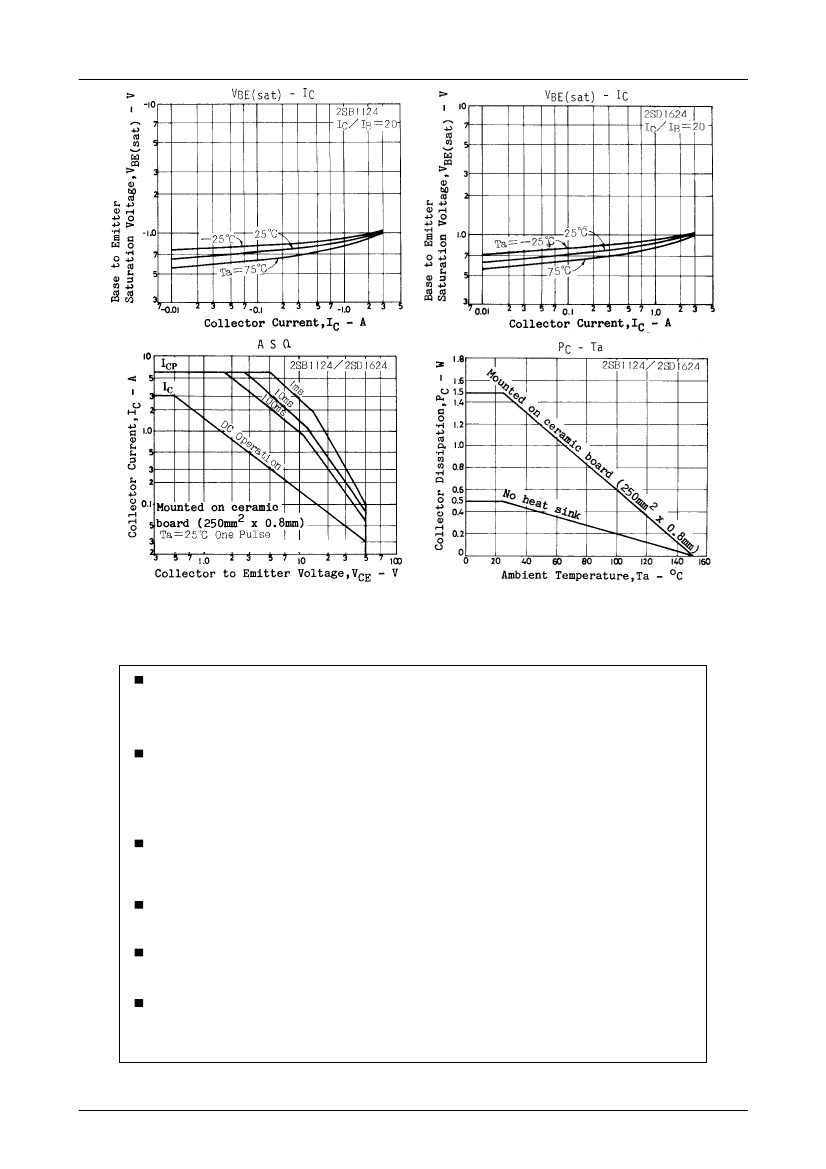

Specifications of any and all SANYO products described or contained herein stipulate the performance,

characteristics, and functions of the described products in the independent state, and are not guarantees

of the performance, characteristics, and functions of the described products as mounted in the customer’s

products or equipment. To verify symptoms and states that cannot be evaluated in an independent device,

the customer should always evaluate and test devices mounted in the customer’s products or equipment.

SANYO Electric Co., Ltd. strives to supply high-quality high-reliability products. However, any and all

semiconductor products fail with some probability. It is possible that these probabilistic failures could

give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire,

or that could cause damage to other property. When designing equipment, adopt safety measures so

that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective

circuits and error prevention circuits for safe design, redundant design, and structural design.

In the event that any and all SANYO products described or contained herein fall under strategic

products (including services) controlled under the Foreign Exchange and Foreign Trade Control Law of

Japan, such products must not be exported without obtaining export license from the Ministry of

International Trade and Industry in accordance with the above law.

No part of this publication may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying and recording, or any information storage or retrieval system,

or otherwise, without the prior written permission of SANYO Electric Co. , Ltd.

Any and all information described or contained herein are subject to change without notice due to

product/technology improvement, etc. When designing equipment, refer to the “Delivery Specification”

for the SANYO product that you intend to use.

Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not

guaranteed for volume production. SANYO believes information herein is accurate and reliable, but

no guarantees are made or implied regarding its use or any infringements of intellectual property rights

or other rights of third parties.

This catalog provides information as of September, 1998. Specifications and information herein are

subject to change without notice.

PS No.2019–4/4
