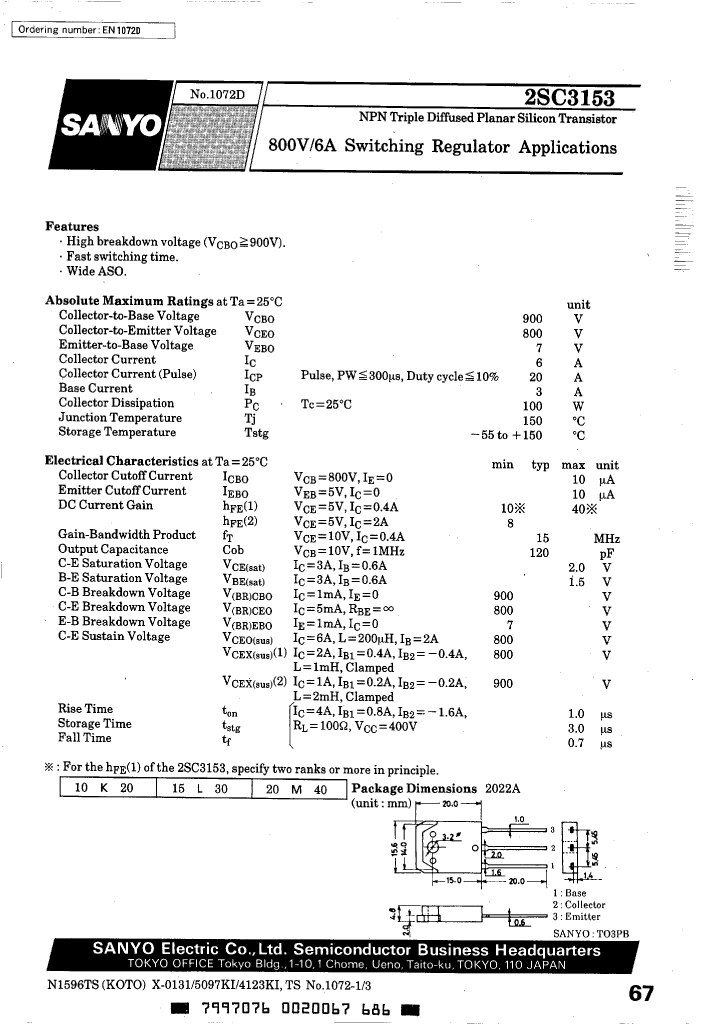

2SC3153L datasheet, PDF - EEWORLD Datasheet

2SC3153L: Description6A, 800V, NPN, Si, POWER TRANSISTOR, TO-218, TO-3PB, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size215KB，3 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric View All

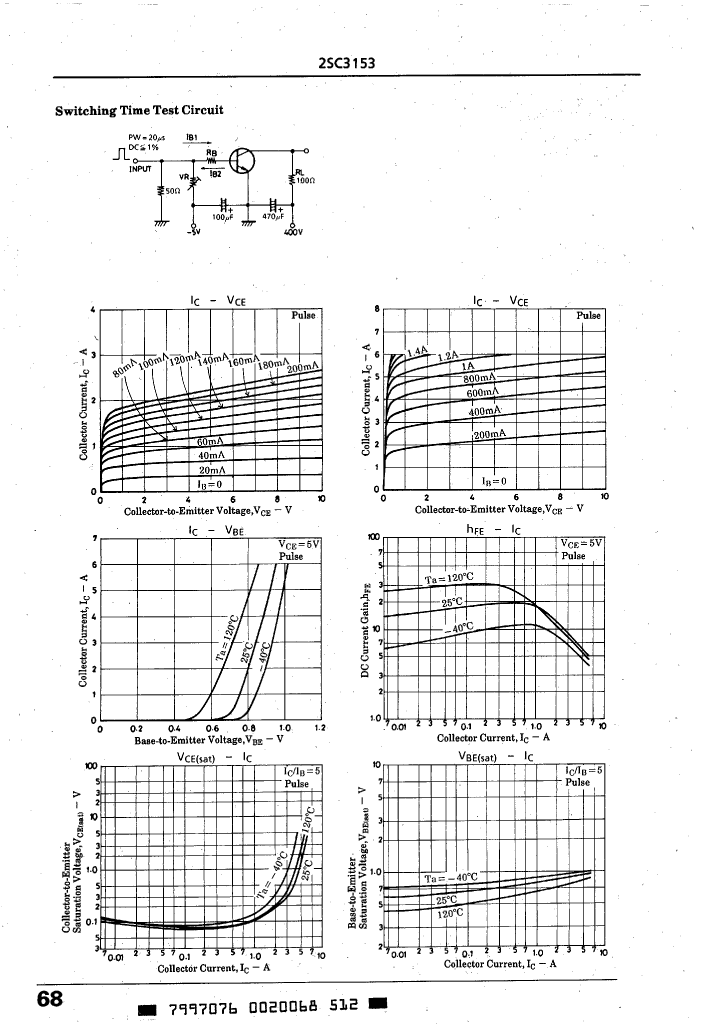

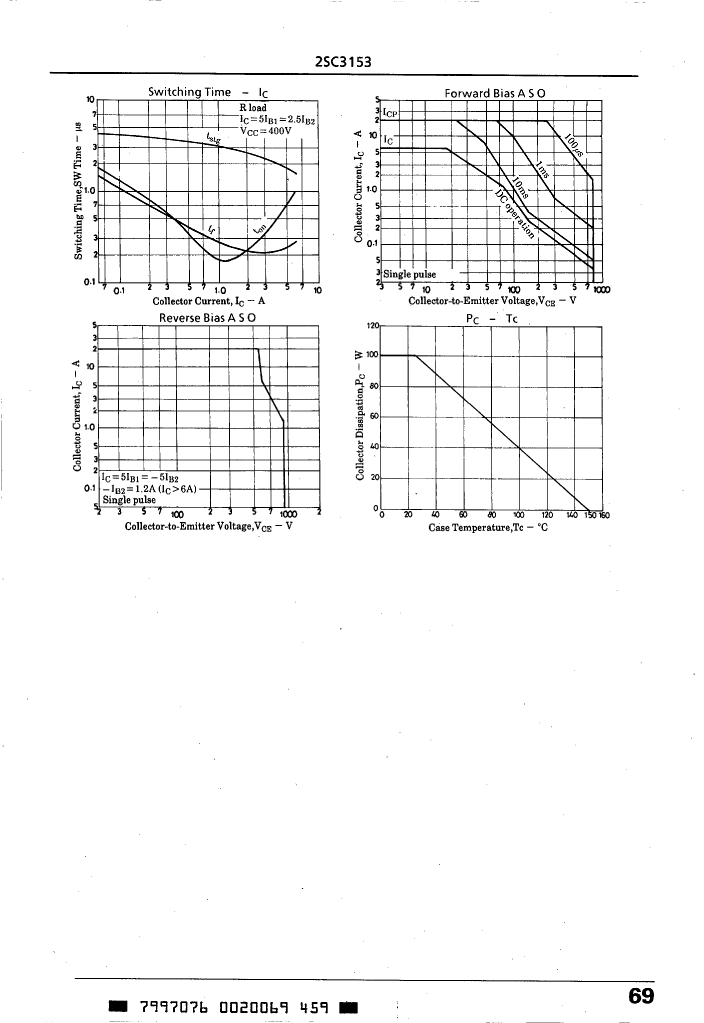

2SC3153L Overview

6A, 800V, NPN, Si, POWER TRANSISTOR, TO-218, TO-3PB, 3 PIN

Parameter Name	Attribute value
Objectid	1483104048
Parts packaging code	TO-218
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	2
Reach Compliance Code	unknown
Other features	HIGH RELIABILITY
Maximum collector current (IC)	6 A
Collector-emitter maximum voltage	800 V
Configuration	SINGLE
Minimum DC current gain (hFE)	15
JEDEC-95 code	TO-218
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	NPN
Maximum power consumption environment	100 W
Maximum power dissipation(Abs)	100 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	15 MHz
