DG308ACK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> DG308ACK

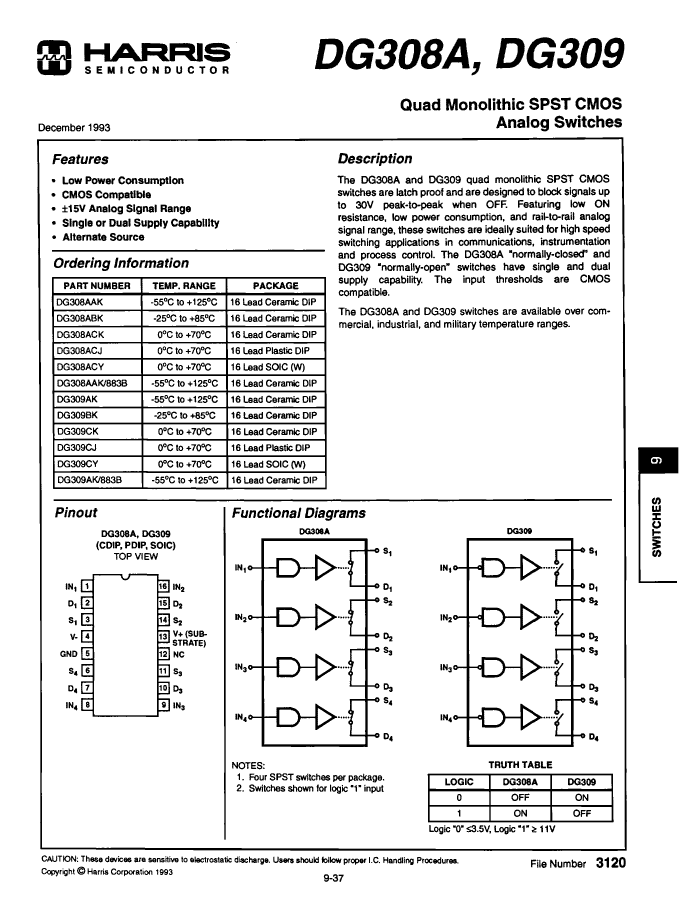

DG308ACK: DescriptionIC,ANALOG SWITCH,QUAD,SPST,CMOS,DIP,16PIN,CERAMIC; CategoryAnalog mixed-signal IC The signal circuit; File Size158KB，5 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

DG308ACK Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DG308ACK	-	-	View	Buy Now

DG308ACK Overview

IC,ANALOG SWITCH,QUAD,SPST,CMOS,DIP,16PIN,CERAMIC

DG308ACK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
package instruction	DIP, DIP16,.3
Reach Compliance Code	not_compliant
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
normal position	NO
Number of functions	4
Number of terminals	16
Maximum on-state resistance (Ron)	125 Ω
Maximum operating temperature	70 °C
Minimum operating temperature
output	SEPARATE OUTPUT
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum connection time	200 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

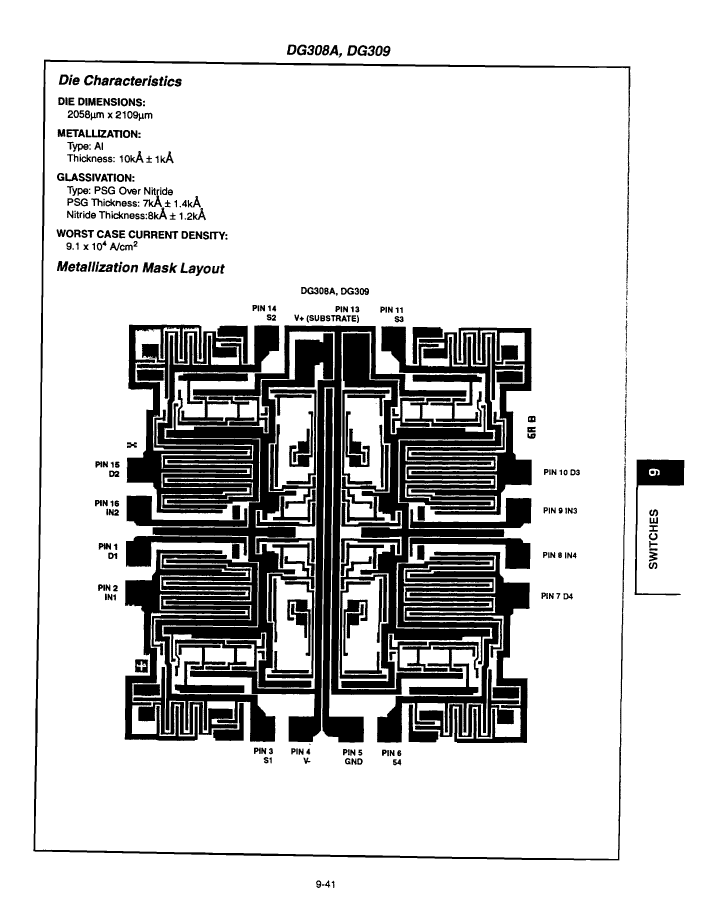

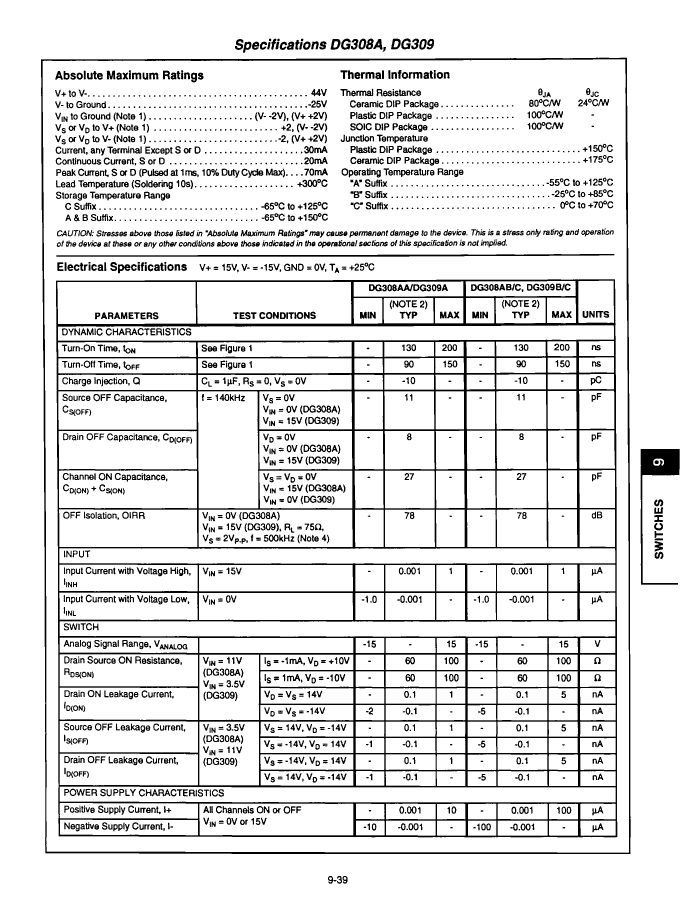

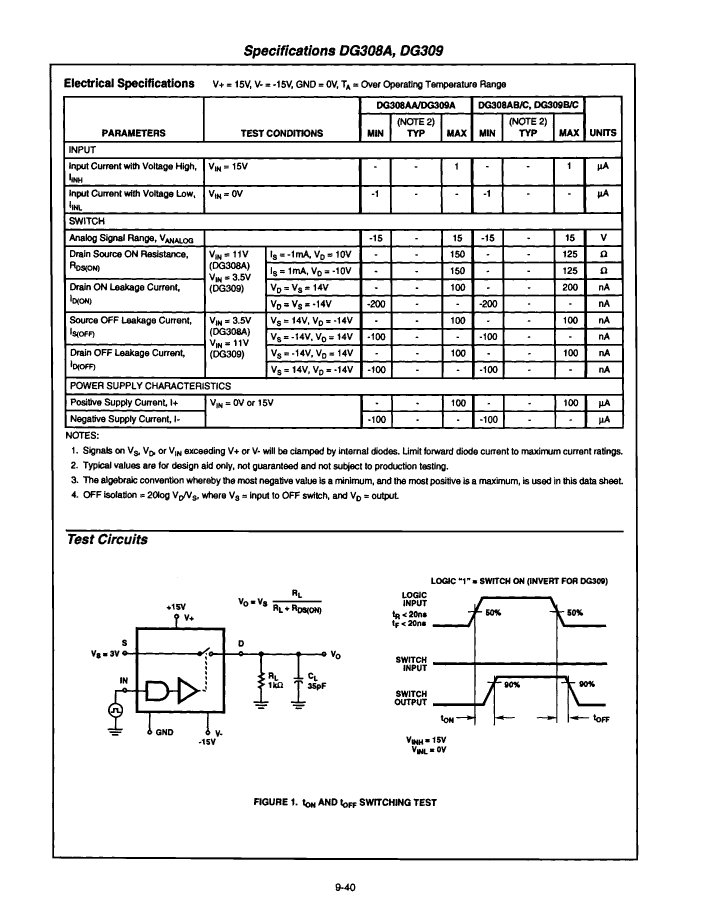

Preview

Download Datasheet

View All

DG308ACK Related Products

	DG308ACK	DG309BK	DG308AAK	DG308ABK	DG309CK
Description	IC,ANALOG SWITCH,QUAD,SPST,CMOS,DIP,16PIN,CERAMIC	IC,ANALOG SWITCH,QUAD,SPST,CMOS,DIP,16PIN,CERAMIC	IC,ANALOG SWITCH,QUAD,SPST,CMOS,DIP,16PIN,CERAMIC	IC,ANALOG SWITCH,QUAD,SPST,CMOS,DIP,16PIN,CERAMIC	IC,ANALOG SWITCH,QUAD,SPST,CMOS,DIP,16PIN,CERAMIC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Analog Integrated Circuits - Other Types	SPST	SPST	SPST	SPST	SPST
JESD-30 code	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16
JESD-609 code	e0	e0	e0	e0	e0
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V
normal position	NO	NC	NO	NO	NC
Number of functions	4	4	4	4	4
Number of terminals	16	16	16	16	16
Maximum on-state resistance (Ron)	125 Ω	125 Ω	150 Ω	125 Ω	125 Ω
Maximum operating temperature	70 °C	85 °C	125 °C	85 °C	70 °C
Minimum operating temperature	-	-25 °C	-55 °C	-25 °C	-
output	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO
Maximum connection time	200 ns	200 ns	200 ns	200 ns	200 ns
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	OTHER	MILITARY	OTHER	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Renesas Electronics Corporation	-	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
package instruction	DIP, DIP16,.3	-	DIP, DIP16,.3	DIP, DIP16,.3	-
