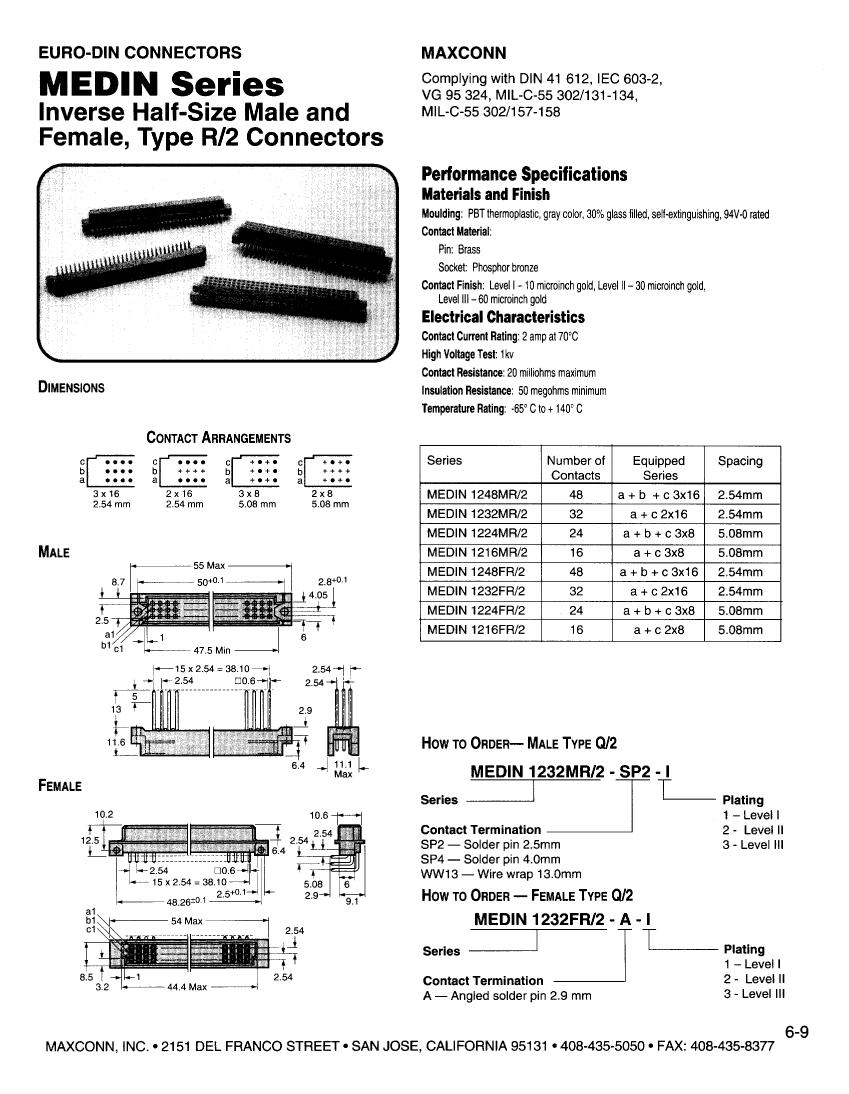

Preview

MEDIN1248MR/2: DescriptionBoard Euro Connector, Male, Straight, Solder; Wire Wrap Terminal,; CategoryThe connector The connector; File Size145KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric Compare View All

MEDIN1248MR/2 Overview

Board Euro Connector, Male, Straight, Solder; Wire Wrap Terminal,

MEDIN1248MR/2 Parametric

Parameter Name	Attribute value
Maker	ERNI
Reach Compliance Code	compliant
Other features	STANDARDS: MIL-C-55302/131-134; MIL-C-55302/157-158; DIN 41612; IEC 603-2, MAX CONTACTS (SERIES)=48, MAX ROWS (SERIES)=3
Connector type	BOARD EURO CONNECTOR
Contact point gender	MALE
DIN compliance	YES
Filter function	NO
IEC compliance	YES
MIL compliance	YES
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER; WIRE WRAP
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

MEDIN1248MR/2 Related Products

	MEDIN1248MR/2	MEDIN1216FR/2	MEDIN1224FR/2	MEDIN1232FR/2	MEDIN1248FR/2	MEDIN1216MR/2	MEDIN1224MR/2
Description	Board Euro Connector, Male, Straight, Solder; Wire Wrap Terminal,	Board Euro Connector, Female, Right Angle, Solder Terminal,	Board Euro Connector, Female, Right Angle, Solder Terminal,	Board Euro Connector, Female, Right Angle, Solder Terminal,	Board Euro Connector, Female, Right Angle, Solder Terminal,	Board Euro Connector, Male, Straight, Solder; Wire Wrap Terminal,	Board Euro Connector, Male, Straight, Solder; Wire Wrap Terminal,
Maker	ERNI	ERNI	ERNI	ERNI	ERNI	ERNI	ERNI
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	unknown
Other features	STANDARDS: MIL-C-55302/131-134; MIL-C-55302/157-158; DIN 41612; IEC 603-2, MAX CONTACTS (SERIES)=48, MAX ROWS (SERIES)=3	STANDARDS: MIL-C-55302/131-134; MIL-C-55302/157-158; DIN 41612; IEC 603-2, MAX CONTACTS (SERIES)=16, MAX ROWS (SERIES)=2	STANDARDS: MIL-C-55302/131-134; MIL-C-55302/157-158; DIN 41612; IEC 603-2, MAX CONTACTS (SERIES)=24, MAX ROWS (SERIES)=3	STANDARDS: MIL-C-55302/131-134; MIL-C-55302/157-158; DIN 41612; IEC 603-2, MAX CONTACTS (SERIES)=32, MAX ROWS (SERIES)=2	STANDARDS: MIL-C-55302/131-134; MIL-C-55302/157-158; DIN 41612; IEC 603-2, MAX CONTACTS (SERIES)=48, MAX ROWS (SERIES)=3	STANDARDS: MIL-C-55302/131-134; MIL-C-55302/157-158; DIN 41612; IEC 603-2, MAX CONTACTS (SERIES)=16, MAX ROWS (SERIES)=2	STANDARDS: MIL-C-55302/131-134; MIL-C-55302/157-158; DIN 41612; IEC 603-2, MAX CONTACTS (SERIES)=24, MAX ROWS (SERIES)=3
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact point gender	MALE	FEMALE	FEMALE	FEMALE	FEMALE	MALE	MALE
DIN compliance	YES	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES	YES	YES	YES
MIL compliance	YES	YES	YES	YES	YES	YES	YES
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	STRAIGHT
Installation type	BOARD AND PANEL	BOARD	BOARD	BOARD	BOARD	BOARD AND PANEL	BOARD AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	5.08 mm	5.08 mm	2.54 mm	2.54 mm	5.08 mm	5.08 mm
Termination type	SOLDER; WIRE WRAP	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER; WIRE WRAP	SOLDER; WIRE WRAP
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
