BYV29F-500 datasheet, PDF - EEWORLD Datasheet

BYV29F-500: DescriptionRectifier Diode, 1 Phase, 1 Element, 9A, 500V V(RRM), Silicon; CategoryDiscrete semiconductor diode; File Size267KB，9 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

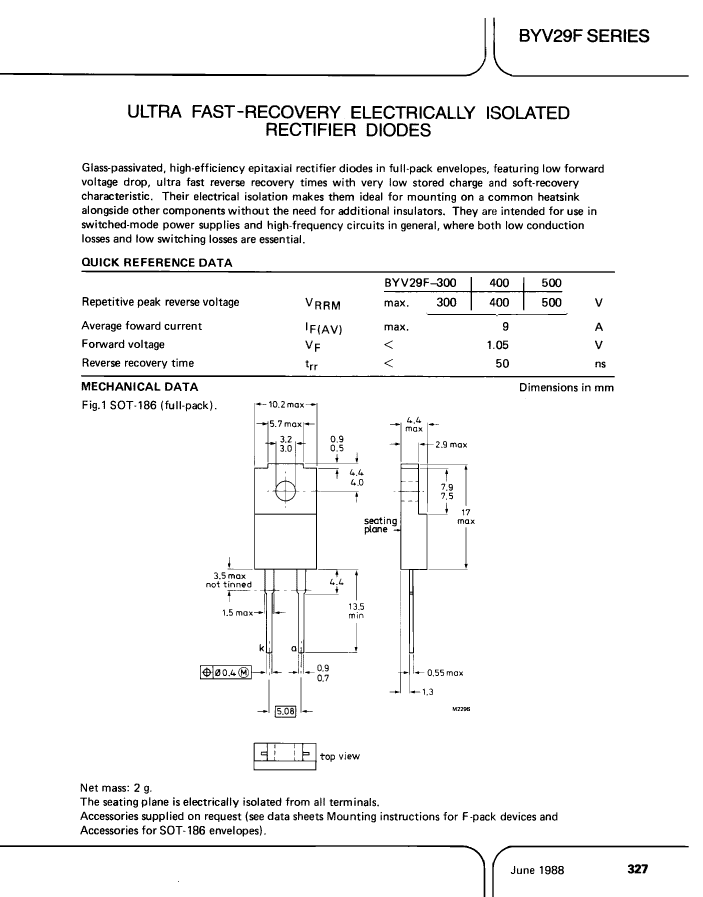

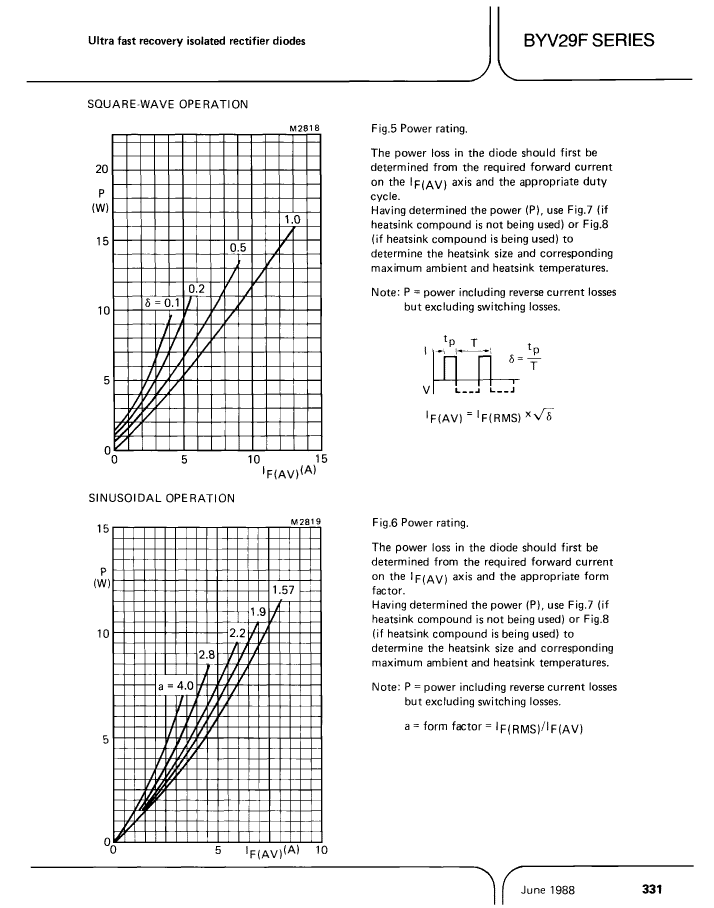

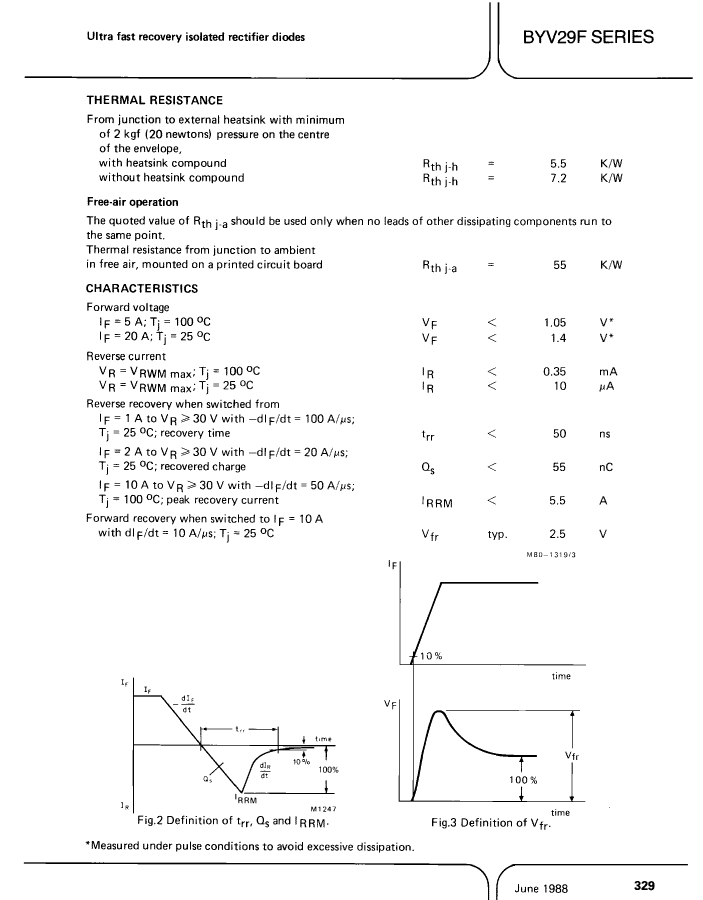

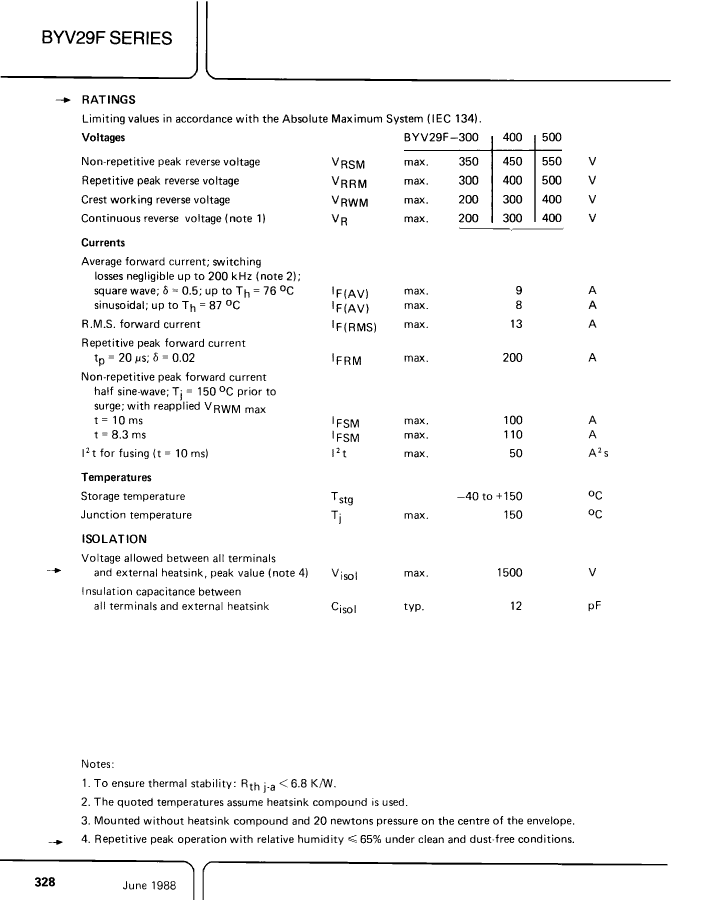

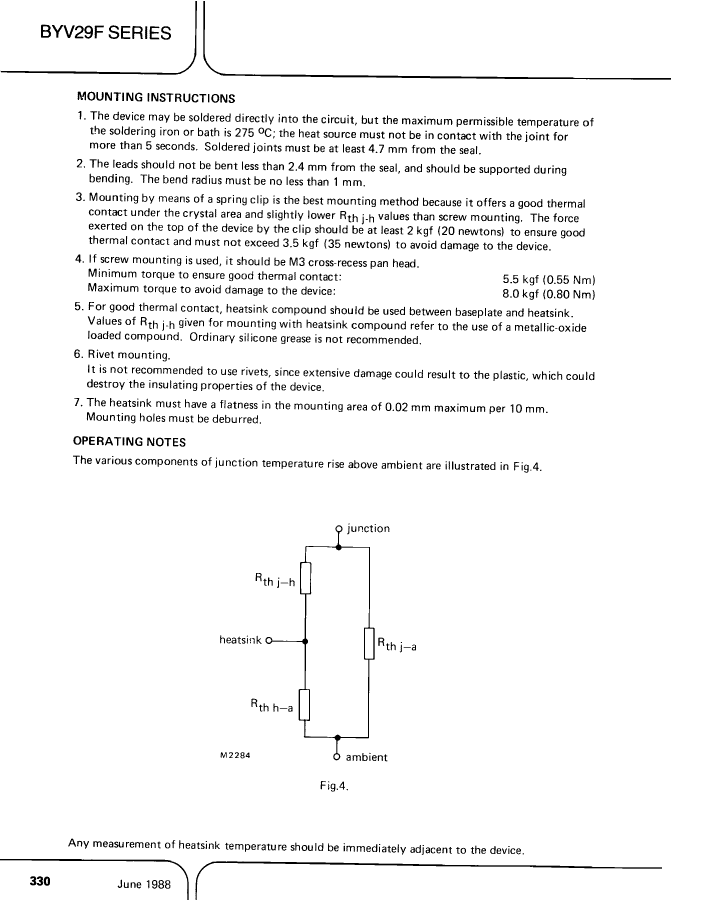

BYV29F-500 Overview

Rectifier Diode, 1 Phase, 1 Element, 9A, 500V V(RRM), Silicon

Parameter Name	Attribute value
Maker	YAGEO
package instruction	R-PSFM-T2
Reach Compliance Code	unknown
application	ULTRA FAST SOFT RECOVERY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.4 V
JESD-30 code	R-PSFM-T2
Maximum non-repetitive peak forward current	110 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Maximum output current	9 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	500 V
Maximum reverse current	10 µA
Maximum reverse recovery time	0.05 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

	BYV29F-500	BYV29F-400	BYV29F-300
Description	Rectifier Diode, 1 Phase, 1 Element, 9A, 500V V(RRM), Silicon	Rectifier Diode, 1 Phase, 1 Element, 9A, 400V V(RRM), Silicon	Rectifier Diode, 1 Phase, 1 Element, 9A, 300V V(RRM), Silicon
Maker	YAGEO	YAGEO	YAGEO
package instruction	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2
Reach Compliance Code	unknown	unknown	unknown
application	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY
Shell connection	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.4 V	1.4 V	1.4 V
JESD-30 code	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2
Maximum non-repetitive peak forward current	110 A	110 A	110 A
Number of components	1	1	1
Phase	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C
Maximum output current	9 A	9 A	9 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	500 V	400 V	300 V
Maximum reverse current	10 µA	10 µA	10 µA
Maximum reverse recovery time	0.05 µs	0.05 µs	0.05 µs
surface mount	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
