SP208CP-L: DescriptionLine Transceiver, 4 Func, 4 Driver, 4 Rcvr, CMOS, PDIP24, LEAD FREE, PLASTIC, DIP-24; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size275KB，16 Pages; ManufacturerSIPEX; Websitehttp://www.sipex.com/; Environmental Compliance

Download Datasheet Parametric View All

SP208CP-L Overview

Line Transceiver, 4 Func, 4 Driver, 4 Rcvr, CMOS, PDIP24, LEAD FREE, PLASTIC, DIP-24

SP208CP-L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SIPEX
package instruction	DIP, DIP24,.3
Reach Compliance Code	unknown
Differential output	NO
Number of drives	4
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER
Interface standards	EIA-232; V.28
JESD-30 code	R-PDIP-T24
JESD-609 code	e3
Humidity sensitivity level	2
Number of functions	4
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Minimum output swing	14 V
Maximum output low current	0.0032 A
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT APPLICABLE
power supply	5 V
Certification status	Not Qualified
Maximum receive delay
Number of receiver bits	4
Maximum slew rate	10 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT APPLICABLE

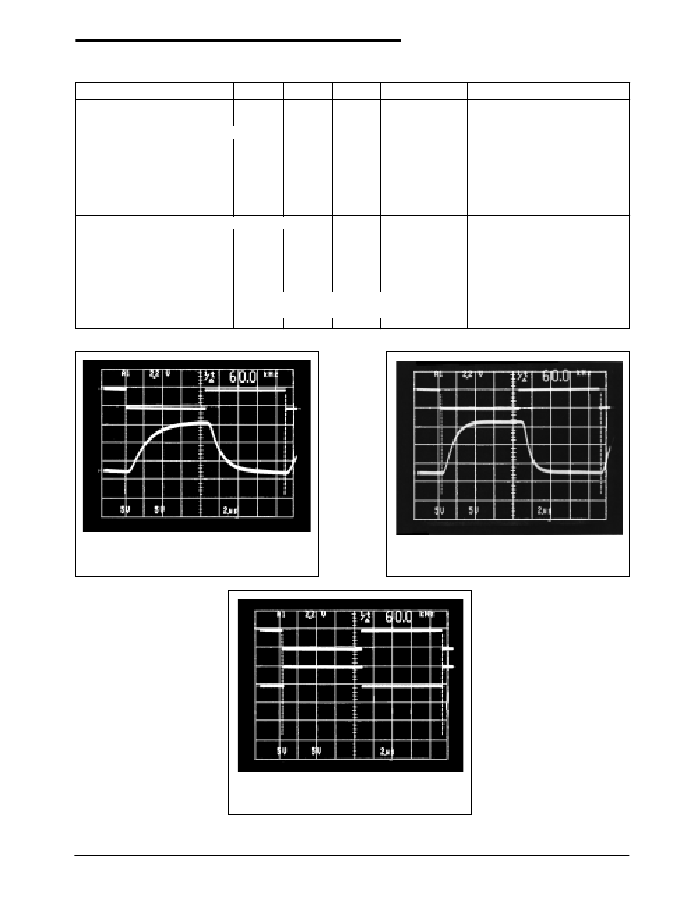

Preview

Download Datasheet

View All

SP200/204/205/206/207/208/211/213

+5V High–Speed RS-232 Transceivers with 0.1µF Capacitors

FEATURES

■

0.1µF External Charge Pump Capacitors

■

120kbps Data Rate

■

Standard SOIC and SSOP Packages

■

Multiple Drivers and Receivers

■

Single 5V Supply Operation

■

1µA Shutdown Mode

■

WakeUp Feature in Shutdown Mode

■

Tri–State Receiver Outputs

■

Meets All RS-232 and V.28 Specifications

■

Improved Driver Output Capacity for Mouse

Applications

■

±10kV

ESD Protection*

OUT

GND

V+

–

OUT

V–

–

SP200

Now Available in Lead Free Packaging

Note: See page 4 & 5 for other pinouts.

DESCRIPTION

The

SP200 Series

are multi–channel RS-232 line transceivers in a variety of configurations to

fit most communication needs. All models in this Series feature low–power CMOS construction

and

Sipex

patented (5,306,954) on-board charge pump circuitry to generate the

±10V

RS-232

voltage levels, using 0.1µF charge pump capacitors to save board space and reduce circuit cost.

The

SP200, SP205, SP206, SP207B, SP211

and

SP213

models feature a low–power shutdown

mode, which reduces power supply drain to 1µA. A WakeUp function keeps the receivers active

in the shutdown mode.

Number of RS-232

Drivers

Receivers

No. of Receivers

No. of External

Active in Shutdown 0.1

F Capacitors

None

Model

SP200

SP204

SP205

SP205B

SP206

SP206B

SP207

SP207B

SP208

SP211

SP211B

SP213

Shutdown WakeUp TTL Tri–State

Yes

Table 1. Model Selection Table

*All driver outputs and receiver inputs characterized per MIL-STD-883C Method 3015.7

Date:03/04/2005

+5V High-Speed RS232 Transceivers
