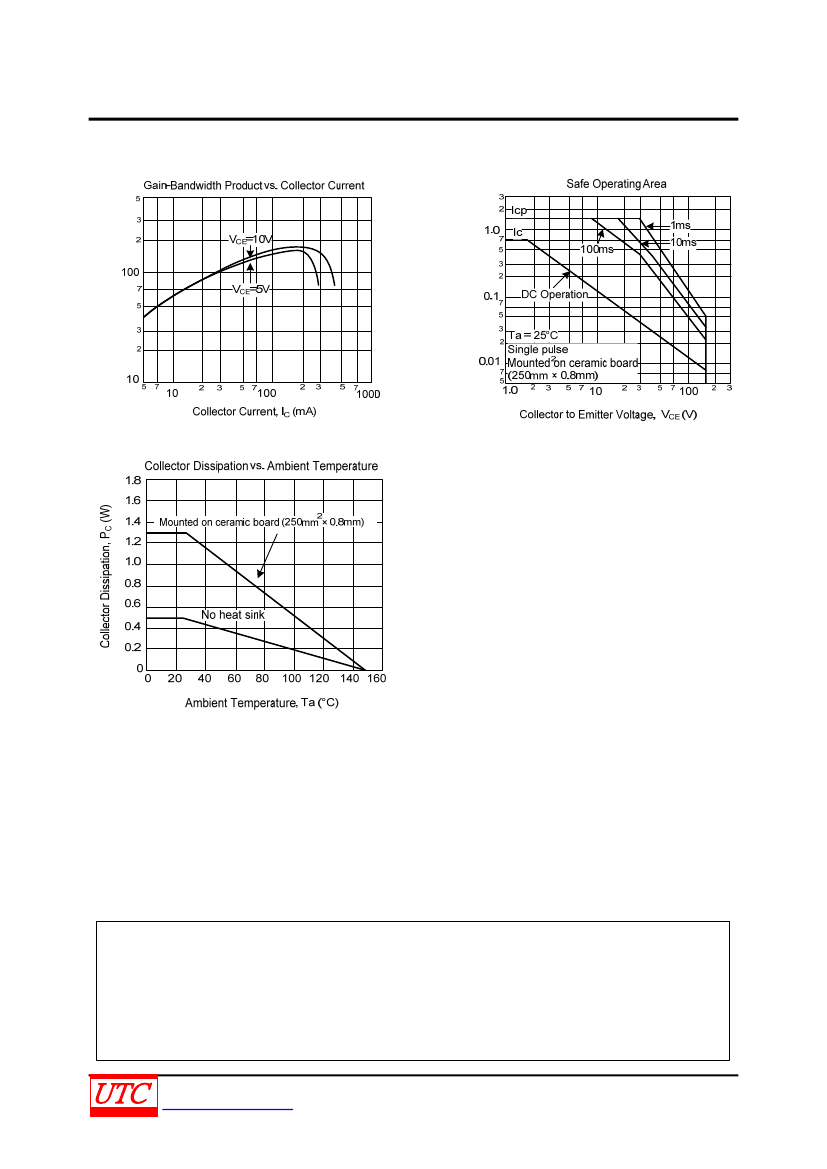

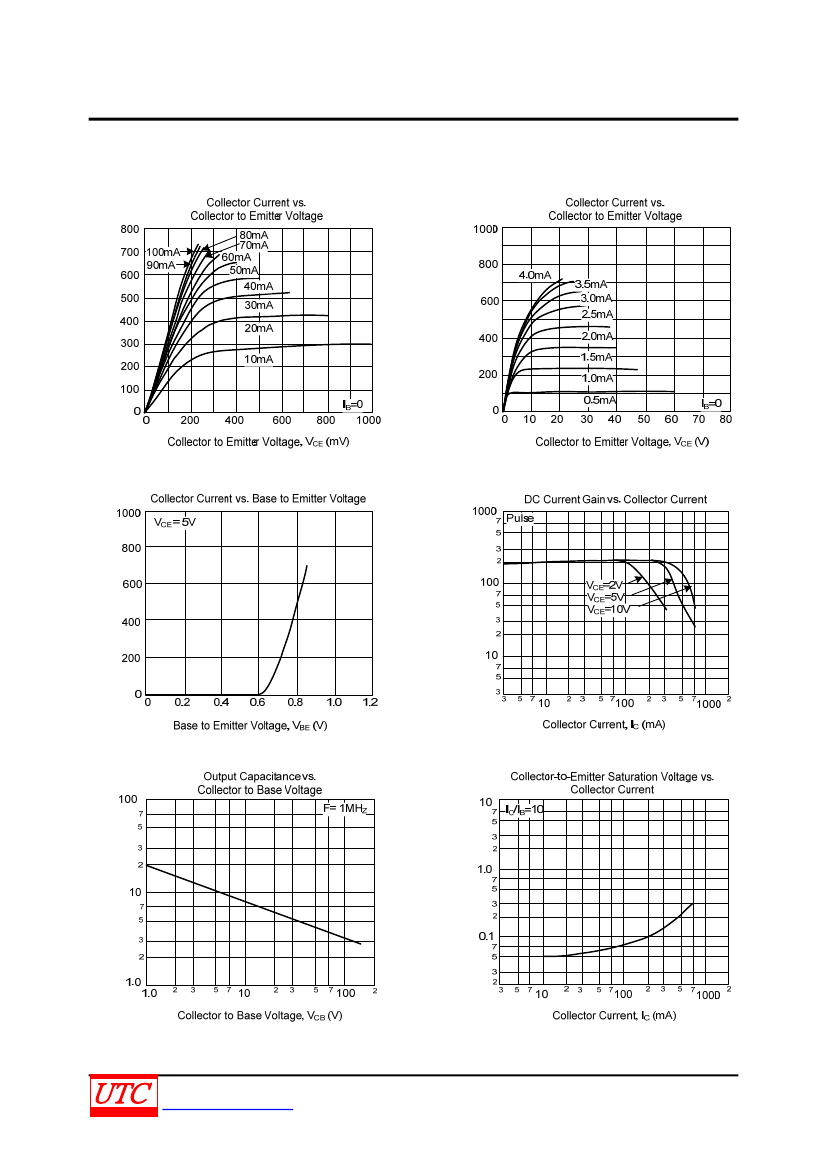

Small Signal Bipolar Transistor, 0.7A I(C), 160V V(BR)CEO, 1-Element, NPN, Silicon, SOT-89, 3 PIN
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Parts packaging code | SOT-89 |
| package instruction | SMALL OUTLINE, R-PSSO-F3 |
| Contacts | 3 |
| Reach Compliance Code | compli |
| ECCN code | EAR99 |
| Maximum collector current (IC) | 0.7 A |
| Collector-emitter maximum voltage | 160 V |
| Configuration | SINGLE |
| Minimum DC current gain (hFE) | 140 |
| JESD-30 code | R-PSSO-F3 |
| JESD-609 code | e0 |
| Number of components | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 150 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Polarity/channel type | NPN |
| Maximum power dissipation(Abs) | 1.3 W |
| Certification status | Not Qualified |
| surface mount | YES |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | FLAT |
| Terminal location | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| Nominal transition frequency (fT) | 120 MHz |
| Base Number Matches | 1 |
| 2SC3648-S-AB3-R | 2SC3648-R-AB3-R | 2SC3648G-S-AB3-R | 2SC3648G-R-AB3-R | 2SC3648L-R-AB3-R | 2SC3648L-T-AB3-R | 2SC3648L-S-AB3-R | 2SC3648-T-AB3-R | 2SC3648G-T-AB3-R | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Small Signal Bipolar Transistor, 0.7A I(C), 160V V(BR)CEO, 1-Element, NPN, Silicon, SOT-89, 3 PIN | Small Signal Bipolar Transistor, 0.7A I(C), 160V V(BR)CEO, 1-Element, NPN, Silicon, SOT-89, 3 PIN | Small Signal Bipolar Transistor, 0.7A I(C), 160V V(BR)CEO, 1-Element, NPN, Silicon, HALOGEN FREE PACKAGE-3 | Small Signal Bipolar Transistor, 0.7A I(C), 160V V(BR)CEO, 1-Element, NPN, Silicon, HALOGEN FREE PACKAGE-3 | Small Signal Bipolar Transistor, 0.7A I(C), 160V V(BR)CEO, 1-Element, NPN, Silicon, LEAD FREE PACKAGE-3 | Small Signal Bipolar Transistor, 0.7A I(C), 160V V(BR)CEO, 1-Element, NPN, Silicon, LEAD FREE PACKAGE-3 | Small Signal Bipolar Transistor, 0.7A I(C), 160V V(BR)CEO, 1-Element, NPN, Silicon, LEAD FREE PACKAGE-3 | Small Signal Bipolar Transistor, 0.7A I(C), 160V V(BR)CEO, 1-Element, NPN, Silicon, SOT-89, 3 PIN | Small Signal Bipolar Transistor, 0.7A I(C), 160V V(BR)CEO, 1-Element, NPN, Silicon, HALOGEN FREE PACKAGE-3 |
| Is it Rohs certified? | incompatible | incompatible | conform to | conform to | conform to | conform to | conform to | incompatible | conform to |
| package instruction | SMALL OUTLINE, R-PSSO-F3 | SMALL OUTLINE, R-PSSO-F3 | SMALL OUTLINE, R-PSSO-F3 | SMALL OUTLINE, R-PSSO-F3 | SMALL OUTLINE, R-PSSO-F3 | SMALL OUTLINE, R-PSSO-F3 | SMALL OUTLINE, R-PSSO-F3 | SMALL OUTLINE, R-PSSO-F3 | SMALL OUTLINE, R-PSSO-F3 |
| Contacts | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Reach Compliance Code | compli | compli | compli | compli | compli | compli | compli | compli | compli |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Maximum collector current (IC) | 0.7 A | 0.7 A | 0.7 A | 0.7 A | 0.7 A | 0.7 A | 0.7 A | 0.7 A | 0.7 A |
| Collector-emitter maximum voltage | 160 V | 160 V | 160 V | 160 V | 160 V | 160 V | 160 V | 160 V | 160 V |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Minimum DC current gain (hFE) | 140 | 100 | 140 | 100 | 100 | 200 | 140 | 200 | 200 |
| JESD-30 code | R-PSSO-F3 | R-PSSO-F3 | R-PSSO-F3 | R-PSSO-F3 | R-PSSO-F3 | R-PSSO-F3 | R-PSSO-F3 | R-PSSO-F3 | R-PSSO-F3 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Polarity/channel type | NPN | NPN | NPN | NPN | NPN | NPN | NPN | NPN | NPN |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| Terminal form | FLAT | FLAT | FLAT | FLAT | FLAT | FLAT | FLAT | FLAT | FLAT |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| transistor applications | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Nominal transition frequency (fT) | 120 MHz | 120 MHz | 120 MHz | 120 MHz | 120 MHz | 120 MHz | 120 MHz | 120 MHz | 120 MHz |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Maximum operating temperature | 150 °C | 150 °C | - | - | 150 °C | 150 °C | 150 °C | 150 °C | - |
| Maximum power dissipation(Abs) | 1.3 W | 1.3 W | - | - | 1.3 W | 1.3 W | 1.3 W | 1.3 W | - |
