BAS55212 datasheet, PDF - EEWORLD Datasheet

BAS55212: DescriptionDIODE 60 V, SILICON, SIGNAL DIODE, Signal Diode; CategoryDiscrete semiconductor diode; File Size119KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

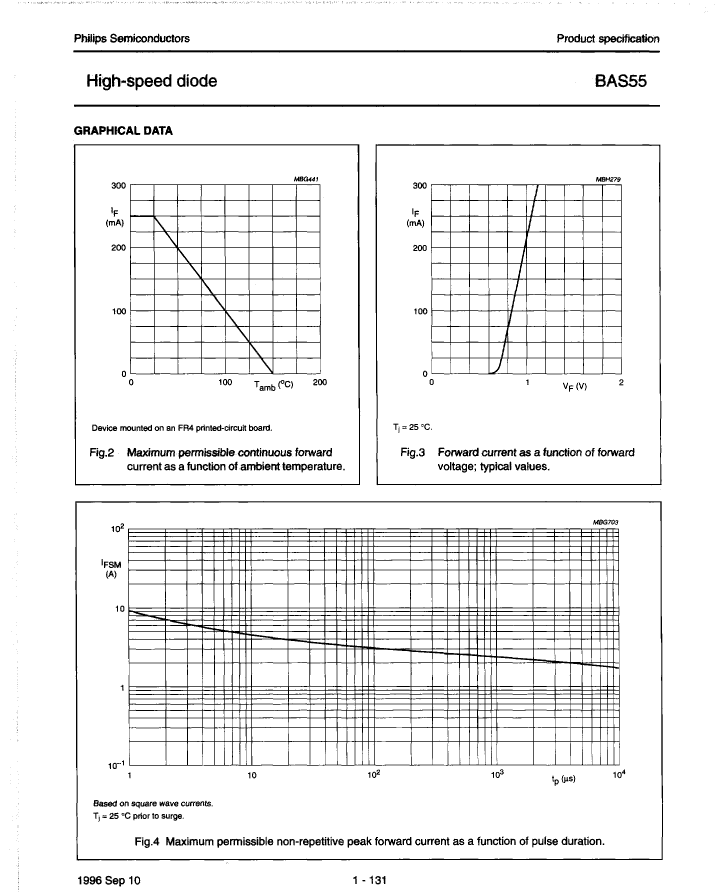

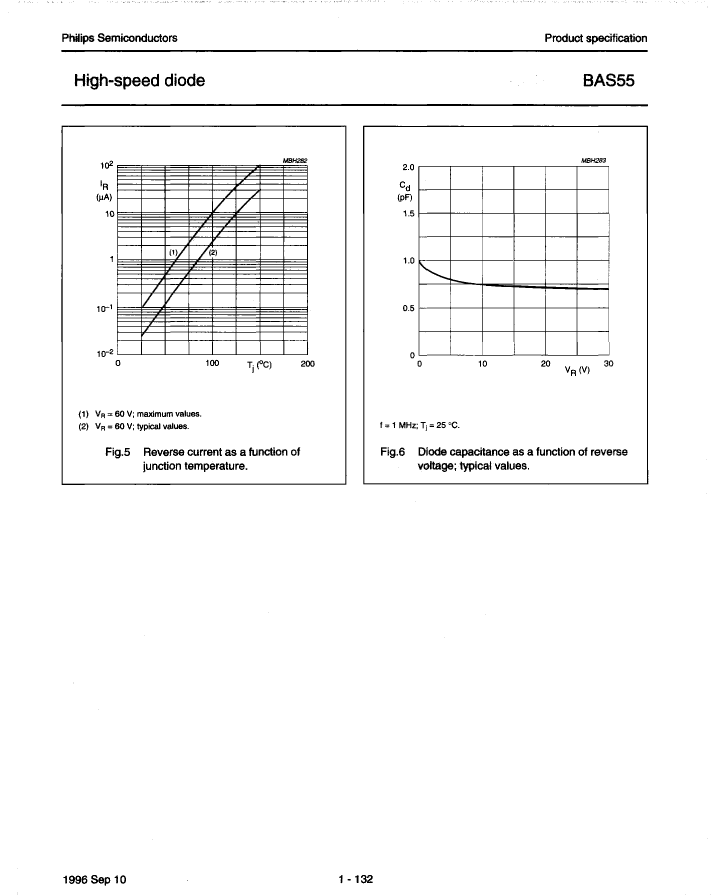

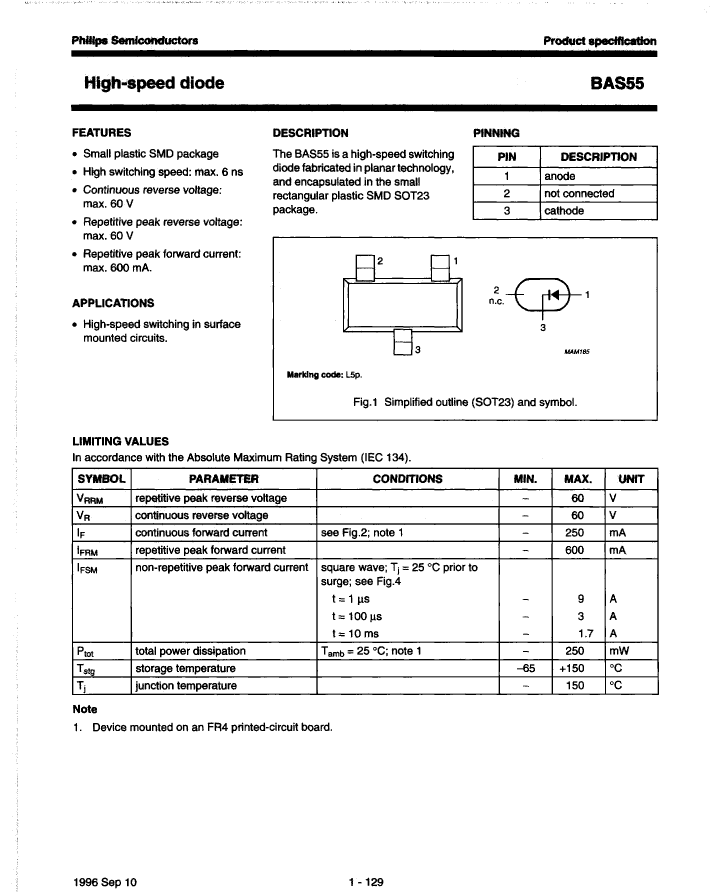

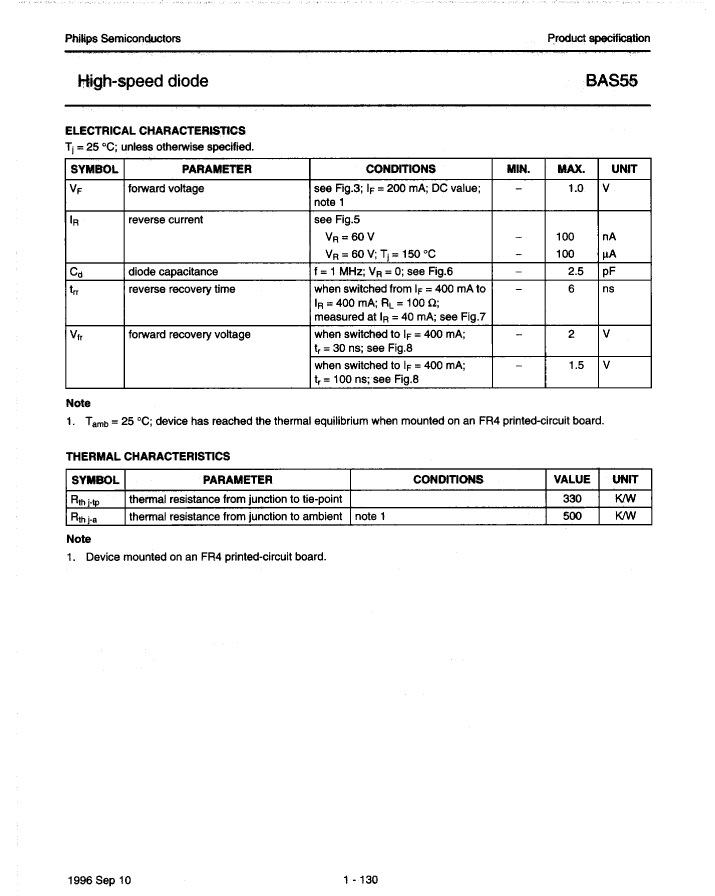

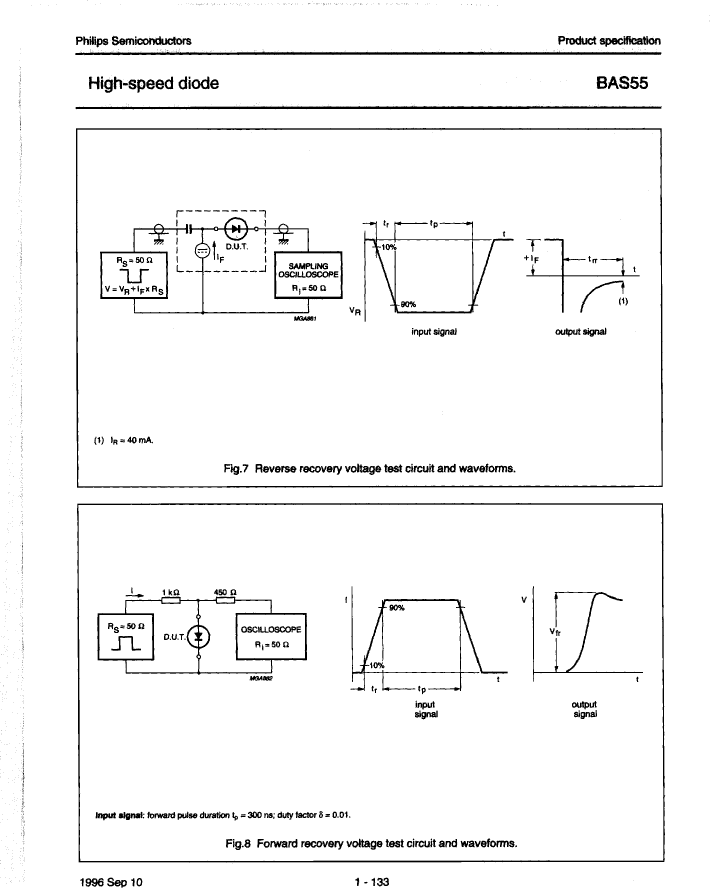

BAS55212 Overview

DIODE 60 V, SILICON, SIGNAL DIODE, Signal Diode

Parameter Name	Attribute value
Maker	NXP
package instruction	R-PDSO-G3
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.25 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	60 V
Maximum reverse recovery time	0.006 µs
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL

	BAS55212	BAS55235	BAS55215
Description	DIODE 60 V, SILICON, SIGNAL DIODE, Signal Diode	DIODE 60 V, SILICON, SIGNAL DIODE, Signal Diode	DIODE 60 V, SILICON, SIGNAL DIODE, Signal Diode
package instruction	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Number of components	1	1	1
Number of terminals	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum power dissipation	0.25 W	0.25 W	0.25 W
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	60 V	60 V	60 V
Maximum reverse recovery time	0.006 µs	0.006 µs	0.006 µs
surface mount	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL
Maker	NXP	-	NXP
