BC141-10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BC141-10

BC141-10: DescriptionSmall Signal Bipolar Transistor, 1A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-39,; CategoryDiscrete semiconductor The transistor; File Size82KB，2 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

BC141-10 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BC141-10	-	-	View	Buy Now

BC141-10 Overview

Small Signal Bipolar Transistor, 1A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-39,

BC141-10 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Central Semiconductor
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	1 A
Collector-emitter maximum voltage	60 V
Configuration	SINGLE
Minimum DC current gain (hFE)	10
JEDEC-95 code	TO-39
JESD-30 code	O-MBCY-W3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	200 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.75 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	50 MHz
Maximum off time (toff)	850 ns
Maximum opening time (tons)	250 ns

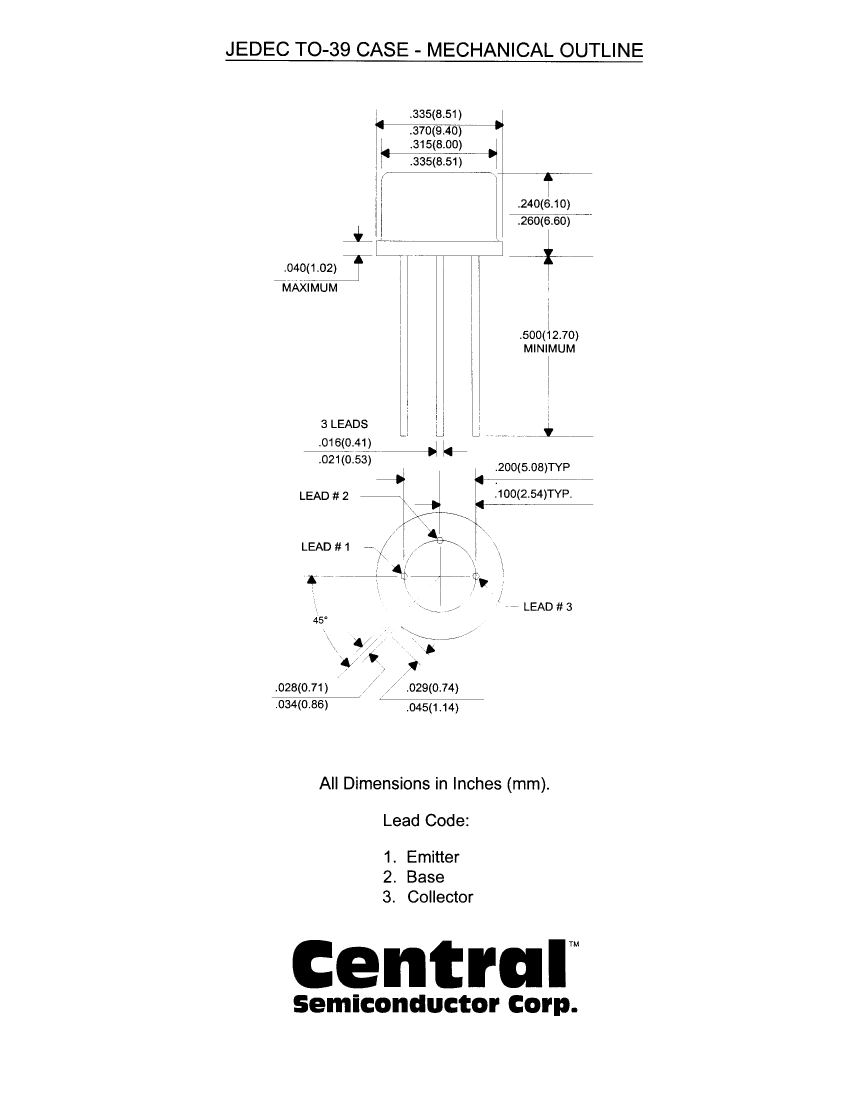

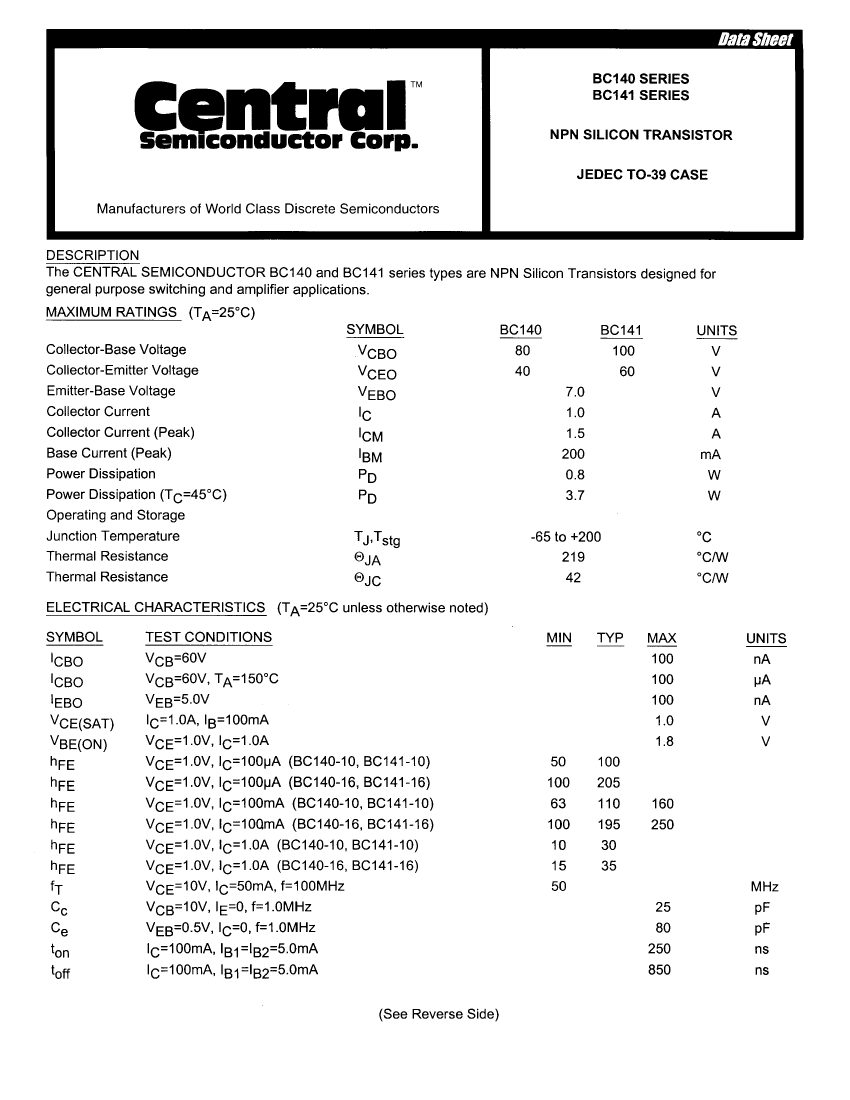

Preview

Download Datasheet

View All

145 Adams Avenue, Hauppauge, NY 11788 USA

Tel: (631) 435-1110 • Fax: (631) 435-1824

BC141-10 Related Products

	BC141-10	BC140-16	BC140-10
Description	Small Signal Bipolar Transistor, 1A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-39,	Small Signal Bipolar Transistor, 1A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-39,	Small Signal Bipolar Transistor, 1A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-39,
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Central Semiconductor	Central Semiconductor	Central Semiconductor
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Maximum collector current (IC)	1 A	1 A	1 A
Collector-emitter maximum voltage	60 V	40 V	40 V
Configuration	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	10	15	10
JEDEC-95 code	TO-39	TO-39	TO-39
JESD-30 code	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3
JESD-609 code	e0	e0	e0
Number of components	1	1	1
Number of terminals	3	3	3
Maximum operating temperature	200 °C	200 °C	200 °C
Package body material	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Polarity/channel type	NPN	NPN	NPN
Maximum power dissipation(Abs)	0.75 W	0.75 W	0.75 W
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
transistor applications	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	50 MHz	50 MHz	50 MHz
Maximum off time (toff)	850 ns	850 ns	850 ns
Maximum opening time (tons)	250 ns	250 ns	250 ns
