2325JM330KAT3A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 2325JM330KAT3A

2325JM330KAT3A: DescriptionCAP,CERAMIC,33PF,4KVDC,10% -TOL,10% +TOL,A7G TC CODE,-30,30PPM TC,2325 CASE; CategoryPassive components capacitor; File Size38KB，2 Pages; ManufacturerAVX

Download Datasheet Parametric View All

2325JM330KAT3A Overview

CAP,CERAMIC,33PF,4KVDC,10% -TOL,10% +TOL,A7G TC CODE,-30,30PPM TC,2325 CASE

2325JM330KAT3A Parametric

Parameter Name	Attribute value
Maker	AVX
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	0.000033 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	3.3 mm
length	5.84 mm
Manufacturer's serial number	2325(4000V)
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, 13 Inch
positive tolerance	10%
Rated (DC) voltage (URdc)	4000 V
series	2325 (4000V)
size code	2325
Temperature characteristic code	A7G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
width	6.35 mm

Preview

Download Datasheet

View All

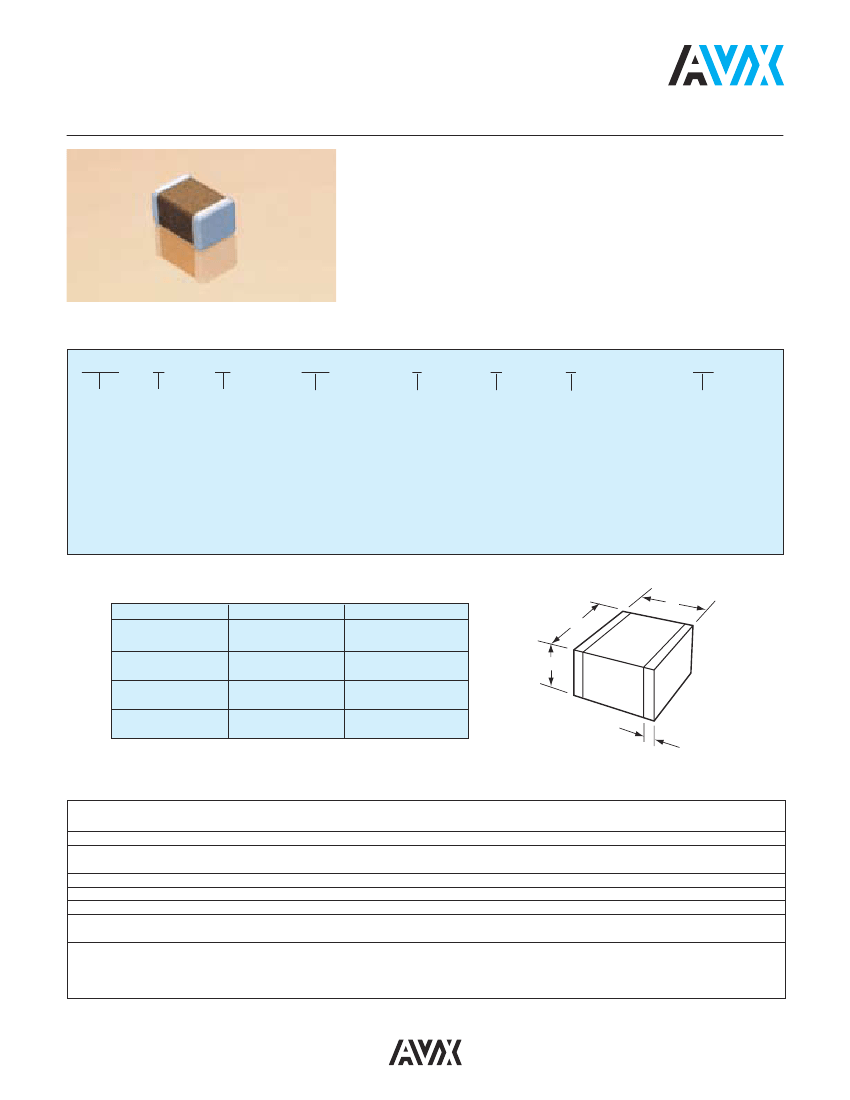

Hi-Q

High RF Power

MLC Surface Mount Capacitors

For 300V to 4000V Application

PRODUCT OFFERING – A7G

Hi-Q

, high RF power, surface mount MLC capacitors from AVX

Corporation are characterized with ultra-low ESR and dissipation factor

at high frequencies. They are designed to handle high power and

high voltage levels for applications in RF power amplifiers, inductive

heating, high magnetic field environments (MRI coils), medical and

industrial electronics.

The typical quality factor for this family of capacitors is 10,000

minimum.

HOW TO ORDER

2325

AVX

Style

2325

3739

271

Failure

Rate

A = Not

Applicable

Termination

1 = Pd/Ag

T = Solder

Plate

Packaging/Marking

ME = 7" Reel Marked*

RE = 13" Reel Marked*

BE = Bulk/Marked*

1A = 7" Reel Unmarked**

3A = 13" Reel Unmarked**

9A = Bulk/Unmarked**

Voltage Temperature Capacitance Code

Capacitance

300V = 9

Coefficient

(2 significant digits

Tolerance

A7G: F = ±1%

600V = C

A7G = M

+ no. of zeros)

G = ±2%

1000V = A

Examples:

J = ±5%

1500V = S

10 pF = 100

2000V = G

100 pF = 101

K = ±10%

2500V = W

1,000 pF = 102

M = ±20%

3000V = H

22,000 pF = 223

4000V = J

220,000 pF = 224

1 µF = 105

*Marking

(if required) will be a minimum of 2 digits in accordance with EIA198

**Unmarked

product is standard

DIMENSIONS

SIZE

(L) Length

(W) Width

(T) Thickness

Max.

(t) terminal

2325

5.84 ± 0.51

(0.230 ± 0.020)

6.35 ± 0.51

(0.250 ± 0.020)

3.3 max.

(0.130 max.)

0.64 ± 0.38

(0.025 ± 0.015)

millimeters (inches)

3739

9.4 ± 0.51

(0.370 ± 0.020)

9.9 ± 0.51

(0.390 ± 0.020)

3.3 max.

(0.130 max.)

1.14 ± 0.38

(0.045 ± 0.015)

A7G DIELECTRIC

PERFORMANCE CHARACTERISTICS

Capacitance Range

Capacitance Tolerances

Dissipation Factor 25°C

Operating Temperature Range

Temperature Characteristic

Voltage Ratings

Insulation Resistance

Dielectric Strength

10pF to .01µF

(25°C, 1.0 ±0.2 Vrms at 1kHz, for

≤

1000 pF use 1MHz)

±1%, ±2%, ±5%, ±10%, ±20%

0.1% Max (+25°C, 1.0 ±0.2 Vrms at 1kHz,

for

≤

1000 pF use 1MHz

-55°C to +125°C

A7G: +90 ± 30 ppm/°C (-55°C to +125°C)

300, 600, 1000, 1500, 2000, 2500, 3000, 4000VDC @ (+125°C)

100 Gigaohms min. @ 25°C and rated voltage or 500VDC, whichever is less

10 Gigaohms min. @ 125°C and rated voltage or 500VDC, whichever is less

1500V or more 120% of rated WVDC

1000V

150% of rated WVDC

600V

200% of rated WVDC

300V

250% of rated WVDC
