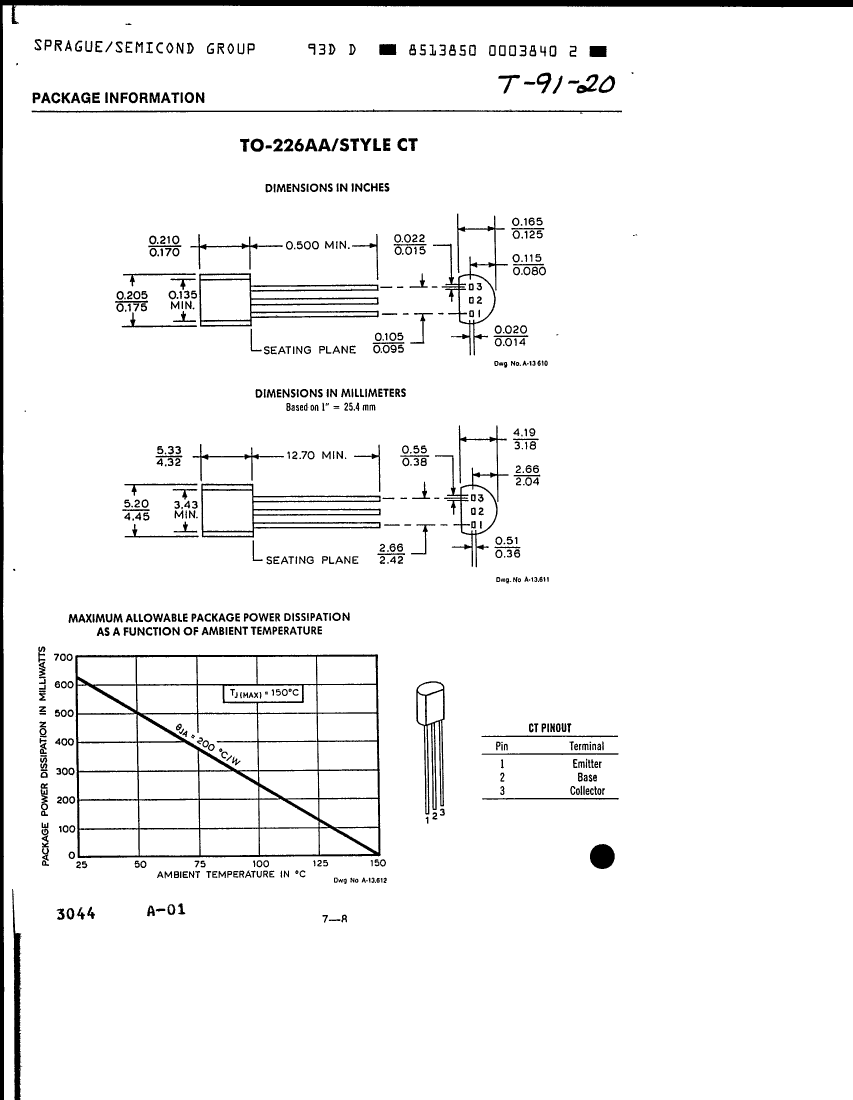

BC259 Overview

Transistor,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Vishay
package instruction	,
Reach Compliance Code	unknown
Maximum collector current (IC)	0.5 A
Configuration	Single
Minimum DC current gain (hFE)	180
JESD-609 code	e0
Maximum operating temperature	150 °C
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.3 W
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	130 MHz

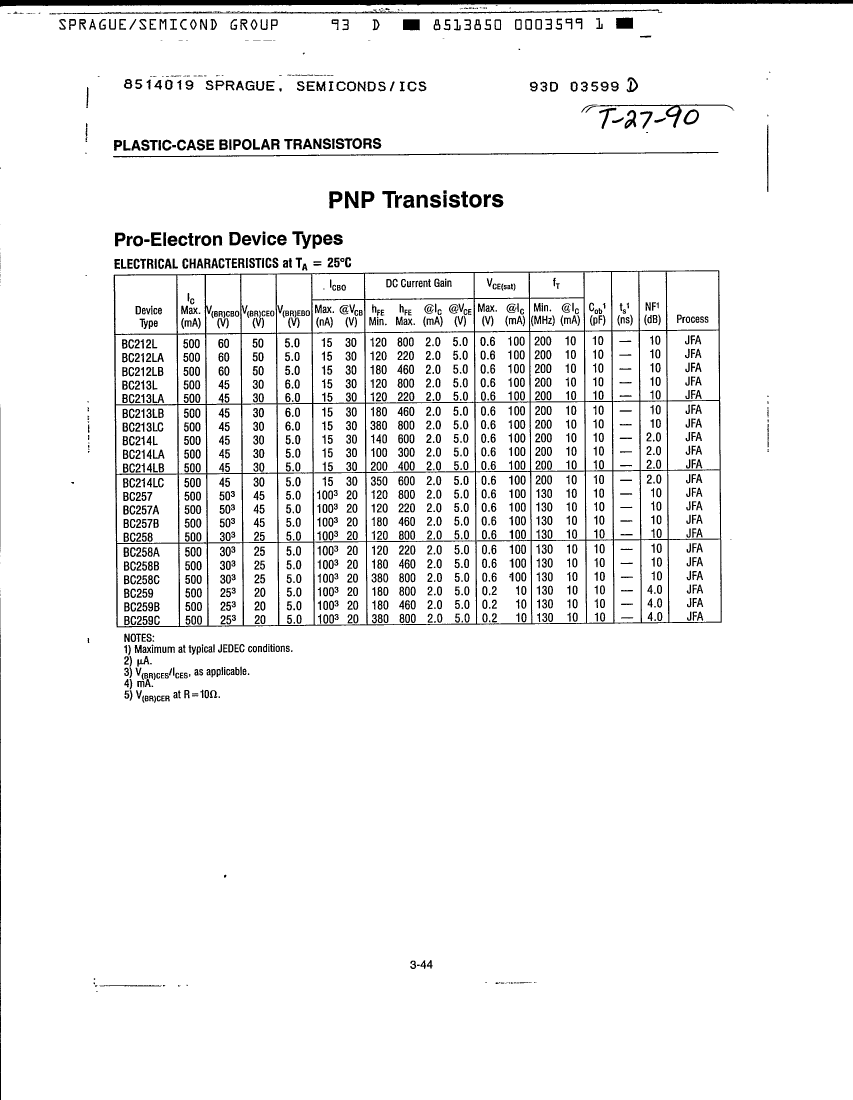

	BC259	BC214LC	BC213LC	BC214L	BC214LB	BC257	BC212LA
Description	Transistor,	Transistor,	Transistor,	Transistor,	Transistor,	Transistor,	Transistor,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum collector current (IC)	0.5 A	0.5 A	0.2 A	0.5 A	0.5 A	0.5 A	0.5 A
Configuration	Single	Single	Single	Single	Single	Single	Single
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Maximum operating temperature	150 °C	140 °C	140 °C	140 °C	140 °C	150 °C	140 °C
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	PNP	PNP
Maximum power dissipation(Abs)	0.3 W	0.5 W	0.5 W	0.5 W	0.5 W	0.3 W	0.5 W
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	130 MHz	200 MHz	200 MHz	200 MHz	200 MHz	130 MHz	200 MHz
