Features:
• High intensity
• Axial type
• “Z-bend” leads

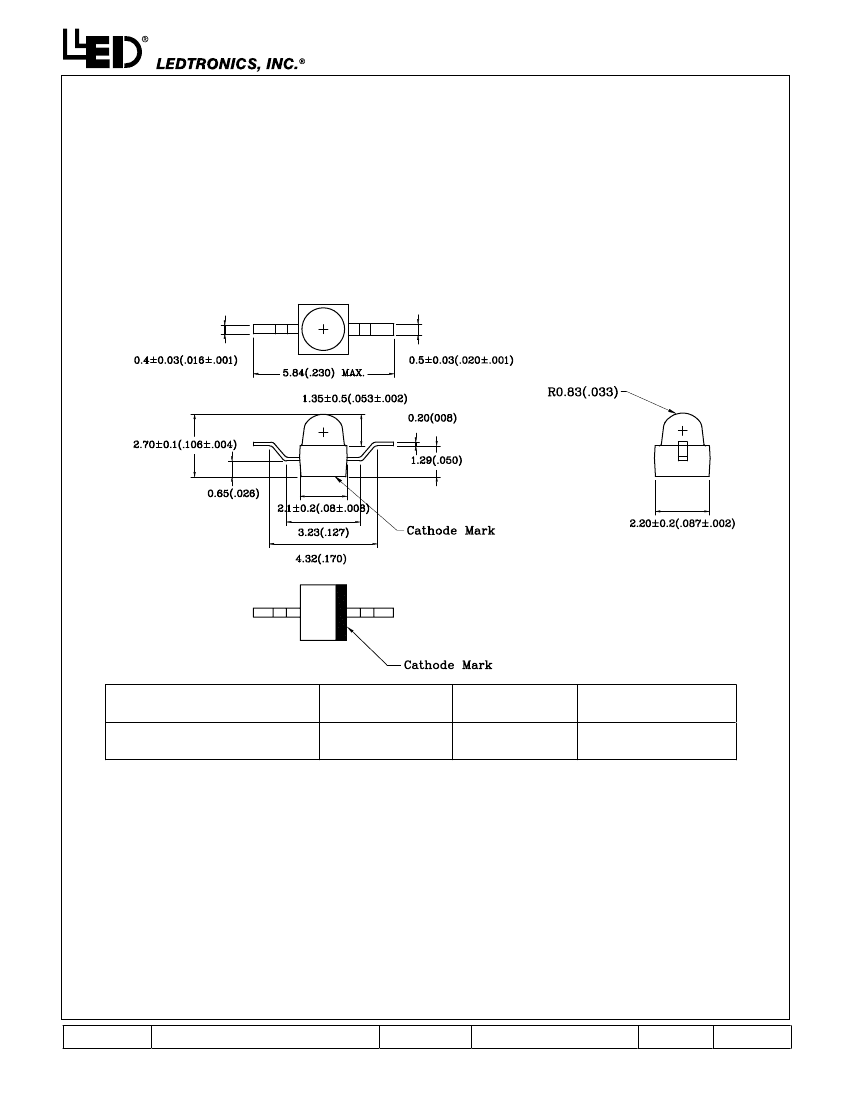

Package Dimensions:
Part No.
SML080CWY5B-031
Chip Material
GaAsP/GaP
Lens Color
Water Clear
Emission Color
Yellow
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25mm (.010”) unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. Specifications are subject to change without notice.
Part No.
SML080CWY5B-031
DWG NO.
DSTR0230
Page
2 of 5
23105 Kashiwa Court, Torrance, CA 90505
Phone: (800) 579-4875 or (310) 534-1505 Fax: (310) 534-1424
E-mail: webmaster@ledtronics.com
Website: http://www.ledtronics.com
Electrical and optical characteristics (Ta=25°C)
Parameter
Forward Voltage
Luminous Intensity
Peak Wave Length
Dominant Wave Length
Spectral Line Half-width
Viewing Angle*
Radiant Intensity
Chromaticity Coordinates
Symbol
V
F
Iv
λp
λd
∆λ
2
θ
1/2
Ie
Condition
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
Min.
-
-
583
585
-
-
-
-
-
Typ.
2.1
35
586
587
36
35
-
0.56
0.43
Max.
2.6
-
590
590
-
-
-
-
-
Unit
V
mcd
nm
nm
nm
deg
µW/sr
X
Y
* Viewing angle is the Off-axis at which the luminous intensity is half the axial intensity.
* This product is RoHS compliant.
Absolute Maximum Ratings (Ta=25°C)
Reverse Voltage
Reverse Current (VR=5V)
Continuous Forward Current
Peak Forward Current
Power Dissipation
Operating Temperature Range
Storage Temperature Range
Preheating Temperature
Soldering Temperature
V
R
I
R
If
Peak If
Pd
Topr
Tstg
5V
100
µ
A
30mA
100mA
100mW
-25°C ~ 80°C
-30°C ~ 85°C
100°C ~ 150°C Within 2 Minutes
240°C ~ 250°C Within 5 Seconds
1/10 duty cycle, 0.1ms Pulse Width

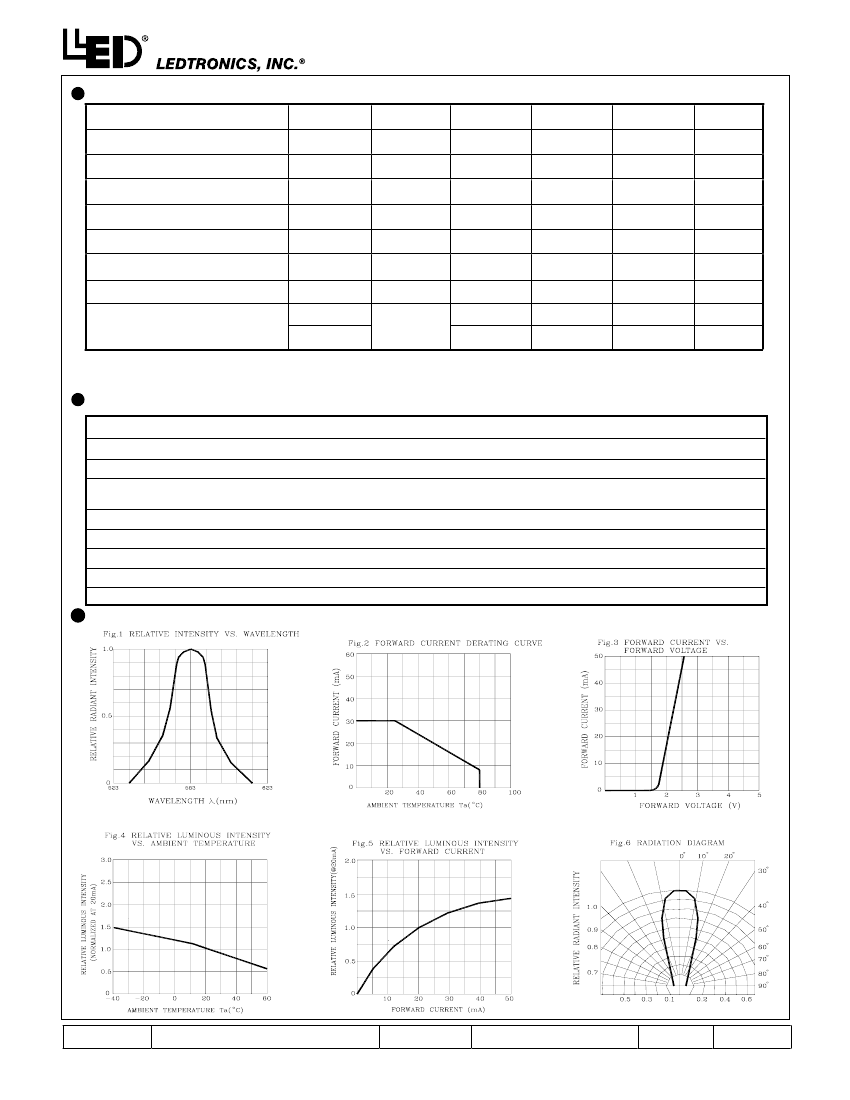

Typical Electro-Optical Characteristics Curves
Part No.
SML080CWY5B-031
DWG NO.
DSTR0230
Page
3 of 5
23105 Kashiwa Court, Torrance, CA 90505
Phone: (800) 579-4875 or (310) 534-1505 Fax: (310) 534-1424
E-mail: webmaster@ledtronics.com
Website: http://www.ledtronics.com

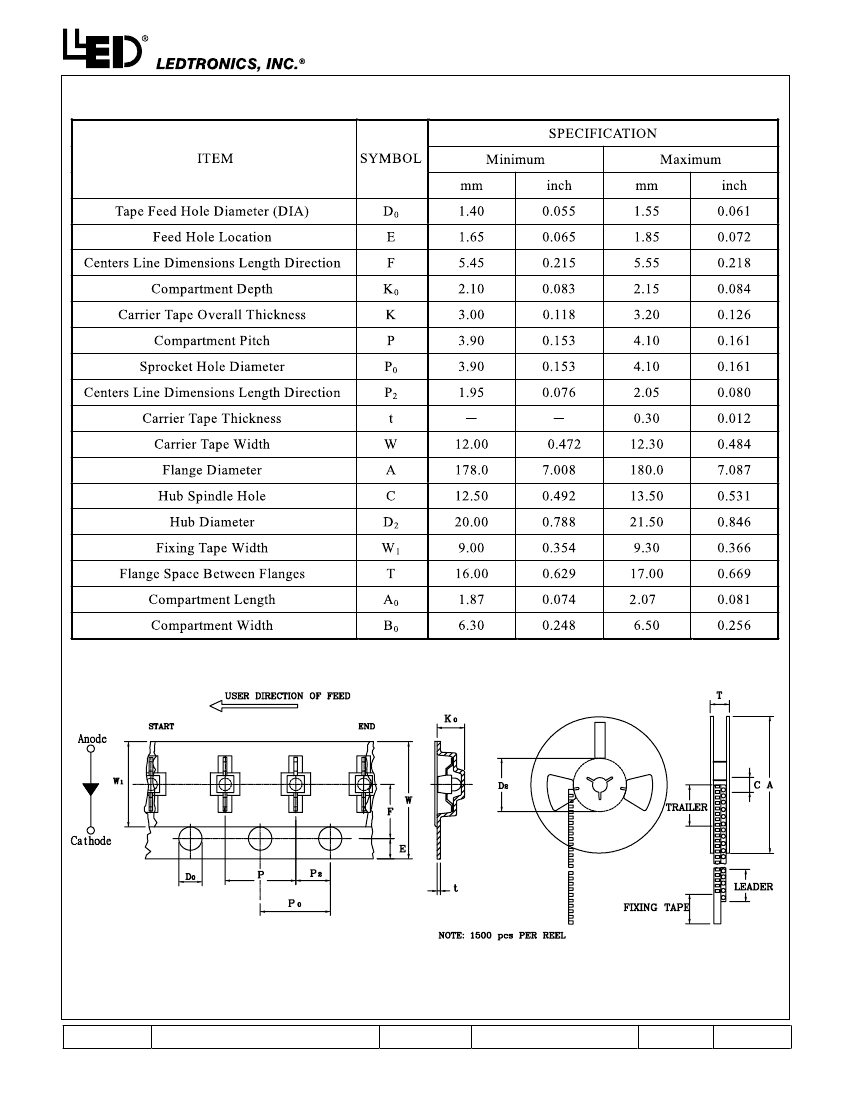

RELIABILITY TEST
Classification
Test Item
Operation
Life
High Temperature,
High Humidity
Storage
High Temperature
Storage
Low Temperature
Storage
Temperature
Cycling
Reference Standard
MIL-STD-750: 1026
MIL-STD-883: 1005
JIS C 7021: B-1
MIL-STD-202: 103B
JIS C 7021: B-11
MIL-STD-883: 1008
JIS C 7021: B-10
JIS C 7021:
B-12
Test Conditions
Connect with a power
Ι
= 20mAf
T a = Under room temperature
Test time = 1,000hrs
T a = +65°C±5°C
RH = 90%-95%
Test time = 240hrs
High T a = +85°C±5°C
Test time = 1,000hrs
Low T a = -35°C±5°C
Test time = 1,000hrs
-35°C ~ +25°C ~ +85°C ~ +25°C
60min. 20min. 60min. 20min.
Test time = 5 cycles
-35°C±5°C ~ +85°C±5°C
20min.
20min.
Test time = 10 cycles
Preheating:
140°C - 160°C, within 2 minutes.
Operation heating:
235°C (Max.), within 10 seconds. (Max.)
Judgment criteria for failure
Over Ux1.2
Over Ux2
Below Sx0.5
Result
0/20
0/20
0/20
0/20
Endurance
Test
MIL-STD-202: 107D
MIL-STD-750: 1051
MIL-STD-883: 1010
JIS C 7021: A-4
MIL-STD-202: 107D
MIL-STD-750: 1051
MIL-STD-883: 1011
MIL-STD-202: 201A
MIL-STD-750: 2031
JIS C 7021: A-1
0/20
Environmental
Test
Thermal Shock
0/20
Solder Resistance
0/20
JUDGEMENT CRITERIA OF FAILURE FOR THE RELIABILITY TEST
Measuring items
Forward voltage
Reverse current
Luminous intensity
Symbol
Vf (V)
Ι
r (uA)
Ι
v (mcd)
Measuring conditions
Ι
f = 20mA
Vr = 5V
Ι
f = 20mA
Note: 1. U means the upper limit of specific characteristics. S means initial value.
2. Measurement shall be taken between 2 hours and after the test pieces have been returned to
normal ambient conditions after completion of each test.
1. Soldering
Manual of Soldering
The temperature of the iron tip should not be higher than 300°C (572°F) and soldering within 3 seconds per
solder-land is to be observed.
Reflow Soldering
DIP Soldering (Wave Soldering)
Preheating: 140°C~160°C ±5°C, within 2 minutes.
Preheating: 120°C~150°C, within 120~180 sec.
Operation heating: 235°C (Max.) within 10
Operation heating: 245°C ±5°C within 5 sec.
seconds. (Max.)
260°C (Max.)
Gradual Cooling (Avoid quenching).
Gradual Cooling (Avoid quenching).
235°C
140~160°C
Over 2 min.
Time
4°C/sec.
Max.
4°C/sec. Max.
Temperature
10 sec.
Max.
Temperature
Soldering heat
Max. 260°C
120°~150°C
245±5°C
within
5 sec.
Preheat
4°C/sec.
120~180 sec.
Max.
Time
2. Handling
Care must be taken not to cause damage to the epoxy resin portion of LEDs while it is exposed to high
temperatures, or abrade the epoxy resin portion of LEDs with hard or sharp items as from sand blasting and
use of pointed objects.
Care must be taken to provide the current limiting resistor in the circuit so as to drive the LEDs within the
rated figures. Also, caution should be taken not to overload LEDs with instantaneous voltage at the turning ON
and OFF of the circuit.
When using the pulse drive care must be taken to keep the average current within the rated figures. Also, the
circuit should be designed so as to be subjected to reverse voltage when turning off the LEDs.
In order to avoid the absorption of moisture, it is recommended to solder LEDs as soon as possible after
unpacking the sealed envelope.
If the envelope is still packed, store it in the following environment:
(1) Temperature: 5°C-30°C (41°F-86°F) Humidity: RH 60% Max.
(2) After this bag is opened, devices that will be applied to infrared reflow, vapor-phase reflow, or equivalent
soldering process must be:
a. Completed within 24 hours.
b. Stored at less than 30% RH
(3) Devices require baking before mounting if: (2)a or (2)b is not met.
(4) If baking is required, devices must be baked under below conditions:
12 hours at 60°C ±3°C
3. Notes for designing
4. Storage:
Part No.
SML080CWY5B-031
DWG NO.
DSTR0230
Page
5 of 5
