SFC-150-T1-F-D-A datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> SFC-150-T1-F-D-A

Preview

SFC-150-T1-F-D-A: DescriptionBoard Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size564KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

SFC-150-T1-F-D-A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SFC-150-T1-F-D-A	-	-	View	Buy Now

SFC-150-T1-F-D-A Overview

Board Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT

SFC-150-T1-F-D-A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	8 weeks
Other features	ALIGNMENT PIN
body width	0.12 inch
subject depth	0.18 inch
body length	2.515 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	.695 N
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	100

Preview

Download Datasheet

View All

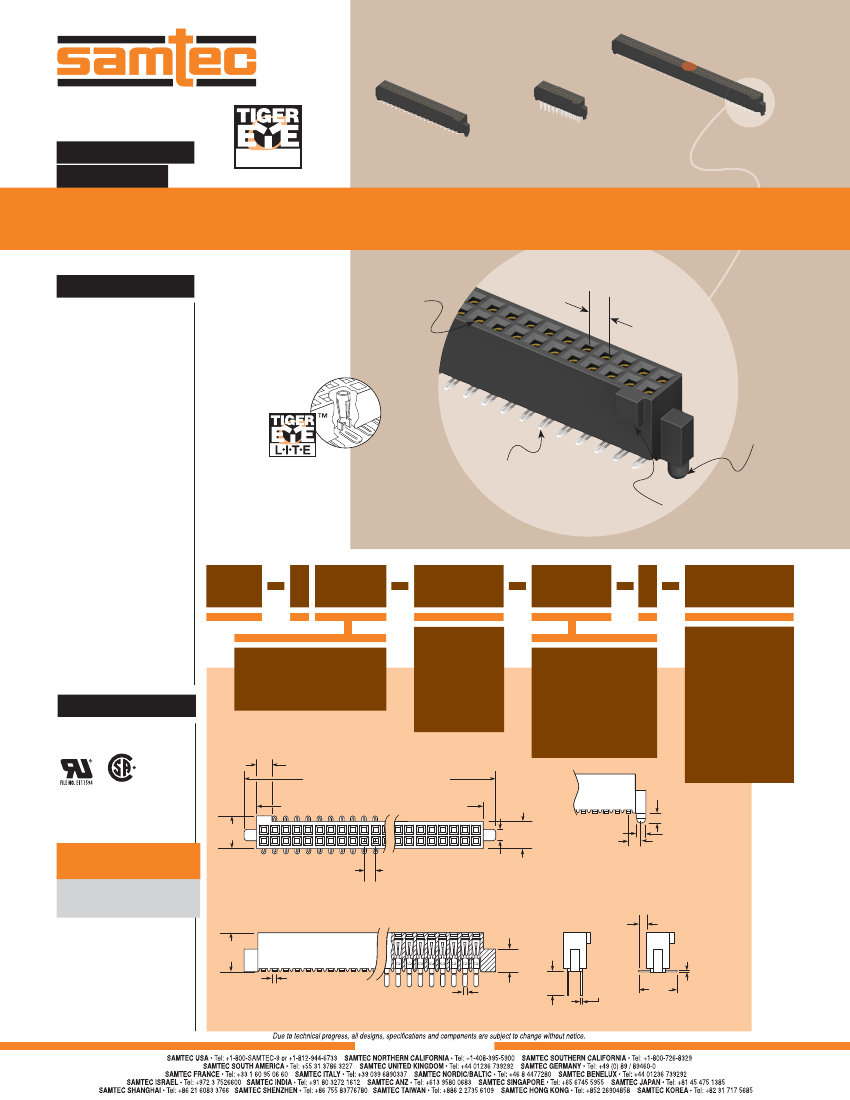

F-213 (Rev 26SEP13)

SFC–135–T2–L–D–A–K

SFC–120–T2–L–D–A

™

SFC–110–T1–L–D–A

(1,27 mm) .050"

SFC SERIES

SYSTEM

COST SAVING RELIABLE SOCKET

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts

see www.samtec.com?SFC

Insulator Material:

Black Liquid Crystal Polymer

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over

50µ" (1,27 µm) Ni

Current Rating:

2.9 A per pin

(1 pin powered per row)

Voltage Rating:

350 VAC mated with TFC

Operating Temp Range:

-55°C to +125°C

Contact Resistance:

15 mΩ

Insertion Depth:

(3,05 mm) .120" to

(4,06 mm) .160"

Insertion Force:

(Single contact only)

2.5 oz (0,69 N) avg.

Withdrawal Force:

(Single contact only)

2.0 oz (0,56 N) avg.

Max Cycles:

10,000 with 30µ" (0,76 µm) Au

RoHS Compliant:

Yes

Mates with:

TFC, TFSD, TFSDT

High reliability

Tiger Eye™ LITE

contacts

(1,27 mm x 1,27 mm)

.050" x .050"

micro pitch

Alignment

pin option

Slotted SMT tails

Polarized

SFC

1

NO. PINS

PER ROW

LEAD

STYLE

PLATING

OPTION

D

OPTION

Processing:

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0,10 mm) .004" max (10-25)

(0,15 mm) .006" max (30-50)

–T1

05, 10, 15, 20, 25,

30, 35, 40, 45, 50

(Standard sizes)

= Through-hole

Tiger Eye

™

LITE

–A

–F

= Gold ﬂash on contact,

Matte Tin on tail

= Alignment Pin

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

(2,03)

.080

FILE NO: 090871_0_000

–T2

= Surface Mount

Tiger Eye

™

LITE

–K

= (4,00 mm) .157" DIA

Polyimide ﬁlm

Pick & Place Pad

–L

= 10µ" (0,25 µm)

Gold on contact,

Matte Tin on tail

–TR

= Tape & Reel

(–T2 only)

(1,27)

.050

(1,27) .050 x No. of Positions + (3,94) .155

except for alignment pin option:

(1,27) .050 x No. of Positions + (3,17) .125

(1,27) .050 x No. of Positions + (0,38) .015

02

(3,68)

.145

(3,05)

.120

(1,27)

.050

TYP

01

ALSO AVAILABLE

(MOQ Required)

• Other sizes

Contact Samtec.

(1,59)

.063

(1,27)

.050

DIA

(1,27)

.050

–A OPTION

(4,57)

.180

(0,51) .020

(2,79)

.110

(0,51)

.020

(3,05)

.120

(0,58)

.023

(0,13)

.005

TYP

(0,13)

.005

TYP

(4,19)

.165

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

–T1

–T2

WWW.SAMTEC.COM
