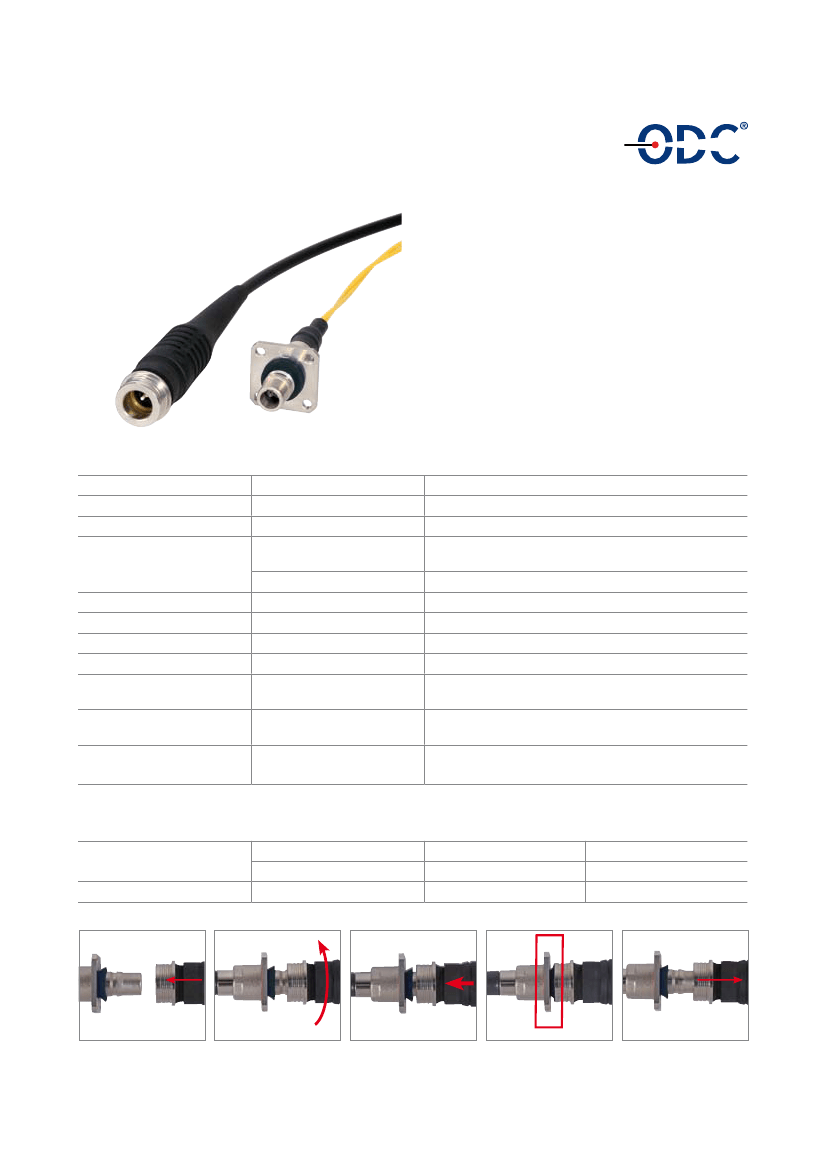

Q-ODC
®
outdoor connector plug/socket
Features
• Robust push-pull coupling mechanism – two clearly
defined mating states
• Highest outdoor installation safety
• Water proof, dust proof and corrosion resistant
• 2 channels for singlemode or multimode
• Compact design with 2×1.25 mm ferrules
• Connector, extension and build-in socket available
• Water-proof protection caps
• RoHs compliant
• EMI protected
Specifications
Mating mechanism
Housing material
Technology
Mechanical performance
Operating temperature
Mating durability
Ingress protection (mated)
Salt mist
Vibration
Shock
Performance standards
IEC 61300-2-2
IEC 60529
IEC 61300-2-26
IEC 61300-2-1
IEC 61373
IEC 61300-2-9
IEC 61373
IEC 61753-1 Cat. E
Telcordia GR 3120
Q-ODC plug
Q-ODC socket
push-pull with two clearly defined states
nickel plated brass
full ceramic ferrule and sleeve
≤ 450 N tensile load
≤ 30 N static side load
≤ 30 N tensile load
–40°C up to + 85 °C
100 cycles
IP68
30 days passed
passed 10 Hz – 50 Hz / 10 g
passed category 1A/B, 2, 3
passed 50 g
passed category 1, 2
compliant
compliant
Optical performance
Insertion loss / IEC 61300-3-34
Return loss
singlemode
multimode
singlemode
typ. ≤ 0.20 dB
typ. ≤ 0.20 dB
≥ 50 dB
97% ≤ 0.45 dB
97% ≤ 0.50 dB
Mating sequence
Push plug slightly into con-
nector socket
Rotate to find keying po-
sition
Unmated - push connector
to mate
Mated
–
connector snaps in
and is fully strain relieved
Pull coupling ring to unmate
HUBER+SUHNER FIBER OPTICS
Q-ODC
®
outdoor connector plug/socket
Type QA, QB: Q-ODC plug
Type QS: Q-ODC socket – square
Type QE: Q-ODC extension connector

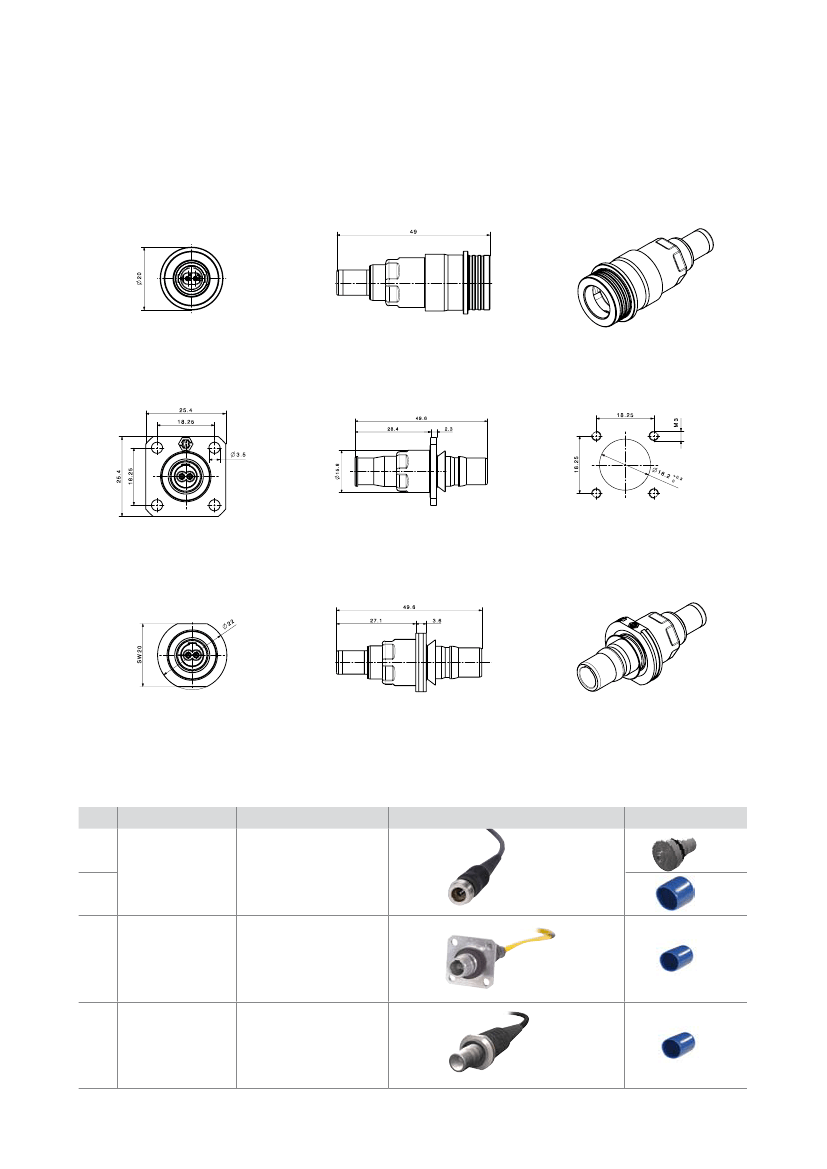

Overview of Q-ODC connector types
Type Connector
QA
Q-ODC plug
QB
Item number
Singlemode 84065742
=
Multimode = 84060725
Dust cap
IP 68
IP 54
QS
Q-ODC socket
square
Singlemode 4065745
=8
Multimode = 84060726
IP 65
QE
Q-ODC extension
connector
Singlemode 4065790
=8
Multimode = 4064543
8
IP 65
