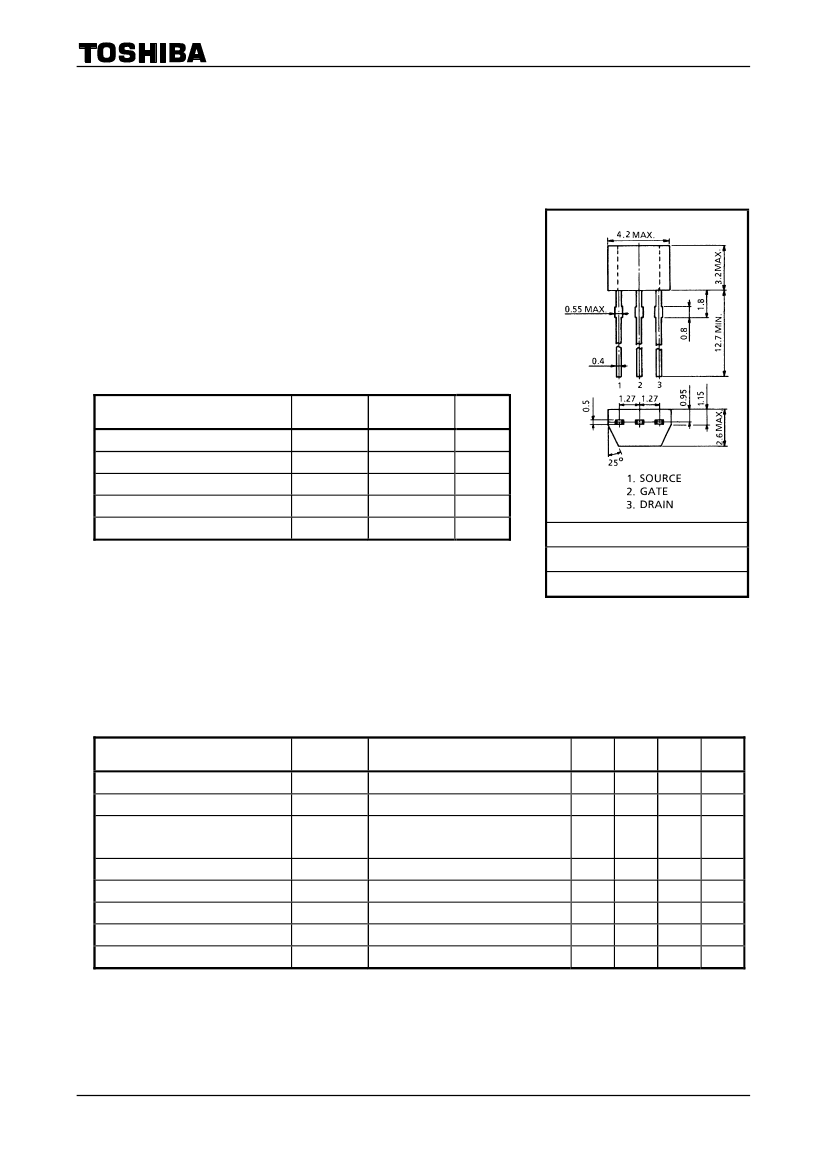

2SK330
TOSHIBA Field Effect Transistor
Silicon N Channel Junction Type
2SK330
For Audio Amplifier, Analog Switch, Constant Current
and Impedance Converter Applications
•
•
•
•
•
High breakdown voltage: V
GDS
=
−50
V
High input impedance: I
GSS
=
−1
nA (max) (V
GS
=
−30
V)
Low R
DS (ON)
: R
DS (ON)
= 320
Ω
(typ.) (I
DSS
= 5 mA)
Complementary to 2SJ105
Small package
Unit: mm
Absolute Maximum Ratings
(Ta
=
25°C)
Characteristics
Gate-drain voltage
Gate current
Drain power dissipation
Junction temperature
Storage temperature range
Symbol
V
GDS
I
G
P
D
T
j
T
stg
Rating
−50
10
200
125
−55~125
Unit
V
mA
mW
°C
°C
JEDEC
―
Note:
Using continuously under heavy loads (e.g. the application of
JEITA
―
high temperature/current/voltage and the significant change in
TOSHIBA
2-4E1B
temperature, etc.) may cause this product to decrease in the
reliability significantly even if the operating conditions (i.e.
Weight: 0.13 g (typ.)
operating temperature/current/voltage, etc.) are within the
absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
Electrical Characteristics
(Ta
=
25°C)
Characteristics
Gate cut-off current
Gate-drain breakdown voltage
Drain current
Gate-source cut-off voltage
Forward transfer admittance
Drain-source ON resistance
Input capacitance
Reverse transfer capacitance
Symbol
I
GSS
V
(BR) GDS
I
DSS
(Note)
V
GS (OFF)
⎪Y
fs
⎪
R
DS
(ON)
C
iss
C
rss
Test Condition
V
GS
= −30
V, V
DS
=
0
V
DS
=
0, I
G
= −100 μA
V
DS
=
10 V, V
GS
=
0
V
DS
=
10 V, I
D
=
0.1
μA
V
DS
=
10 V, V
GS
=
0, f
=
1 kHz
V
DS
=
10 mV, V
GS
=
0, I
DSS
=
5 mA
V
DS
=
10 V, V
GS
=
0, f
=
1 MHz
V
GD
= −10
V, I
D
=
0, f
=
1 MHz
Min
⎯
−50
1.2
−0.7
1.5
⎯
⎯
⎯
Typ.
⎯
⎯
⎯
⎯
4
320
9.0
2.5
Max
−1.0
⎯
14
−6.0
⎯
⎯
⎯
⎯
Unit
nA
V
mA
V
mS
Ω
pF
pF
Note: I
DSS
classification Y: 1.2~3.0 mA, GR: 2.6~6.5 mA, BL: 6~14 mA
1
2007-11-01

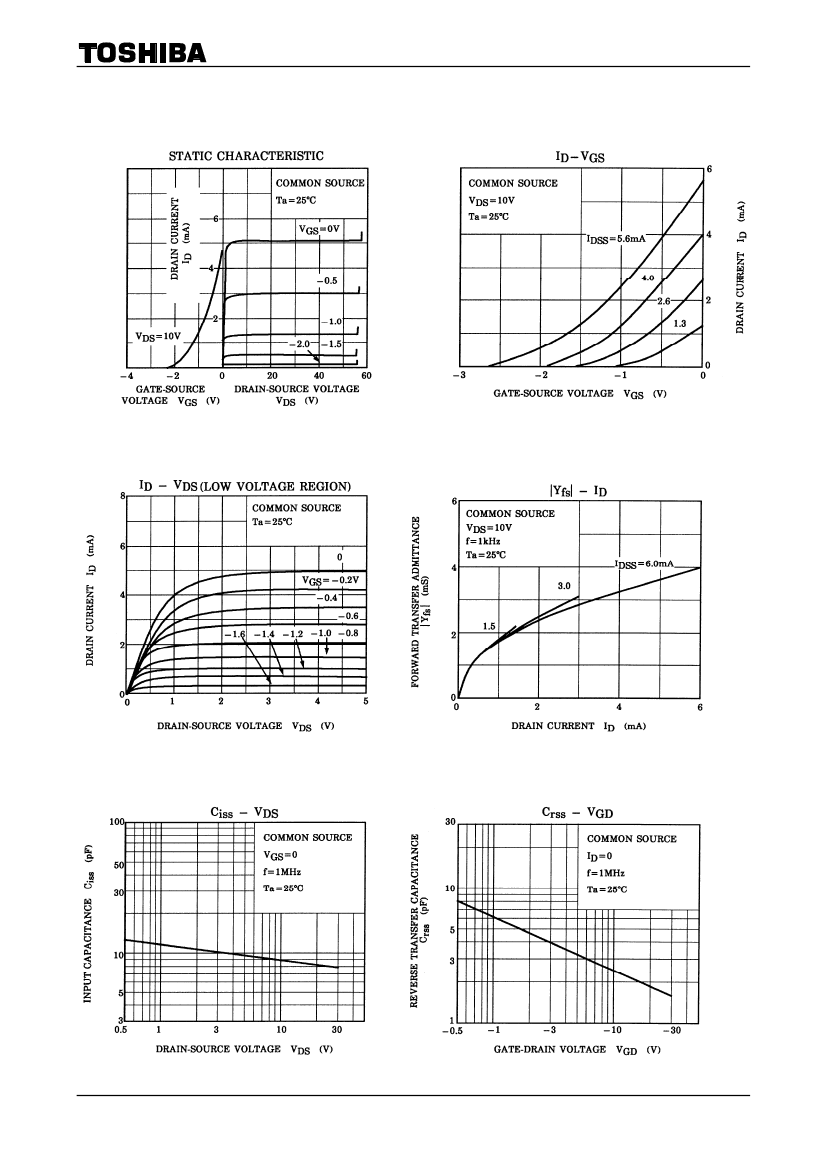

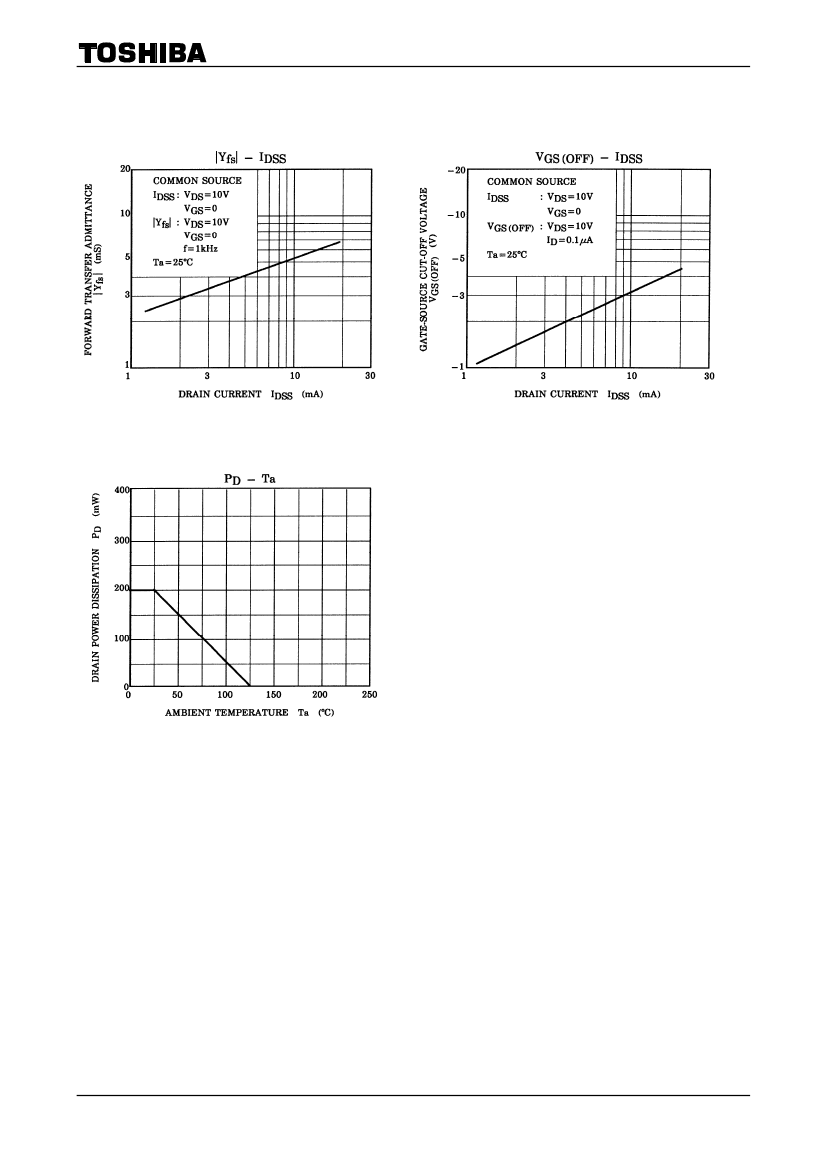

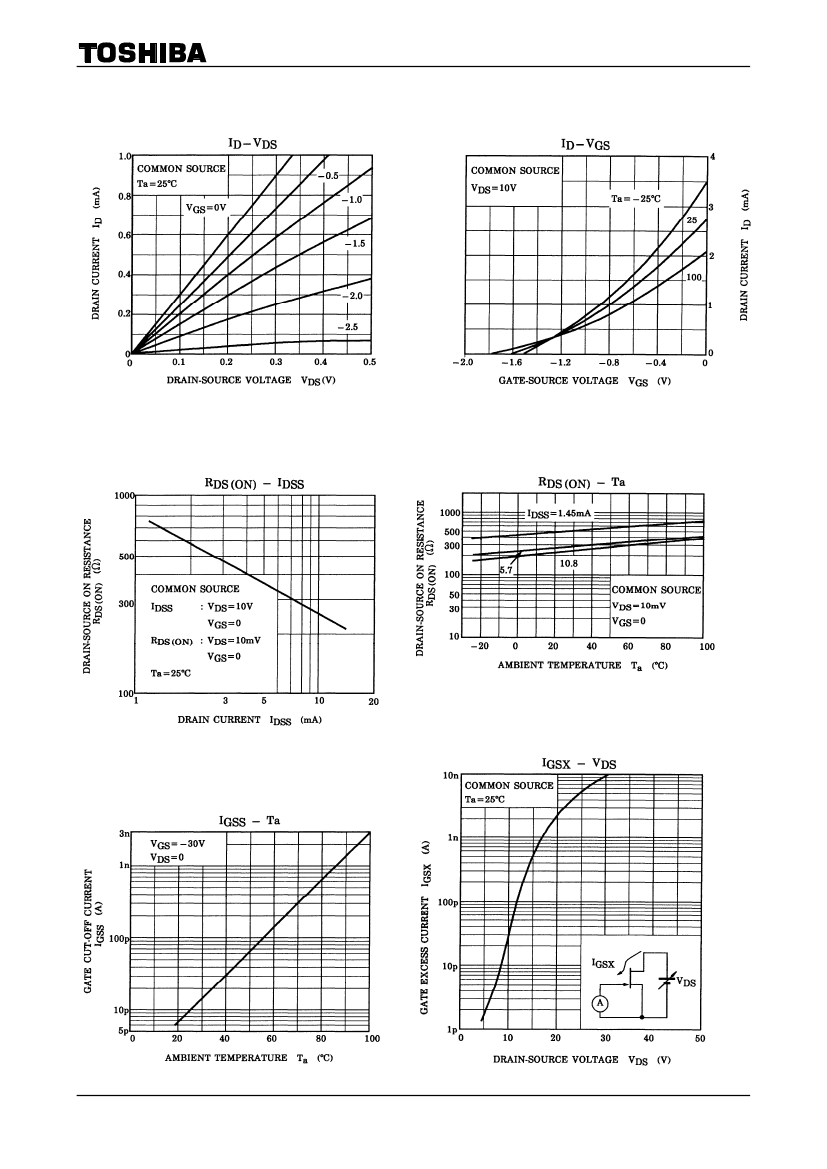

2SK330
