A-2145-BA10H-208 datasheet, PDF

Datasheet> All Categories > The connector> A-2145-BA10H-208

A-2145-BA10H-208: Description10 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector; File Size125KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

A-2145-BA10H-208 Overview

10 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

A-2145-BA10H-208 Parametric

Parameter Name	Attribute value
Contact materials	BRASS/PHOSPHOR BRONZE
Terminal spacing	3.96 mm
Total number of contacts	10
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
Options	GENERAL PURPOSE
Manufacturer Series	A-2145-BA10H-208
Contact surface matching	Gold(15) OVER Nickel
Contact coated terminals	Tin(100) OVER Nickel
Connection Type	Dual board connector
Connector male and female	Jack
collocation information	MULTIPLE MATING PARTS AVAILABLE
Installation method	straight
Installation type	BOARD
Number of load rows	1
Terminal type	welding
UL flammability code	94V-2

Preview

Download Datasheet

View All

This document was generated on 04/14/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Description:

0009623102

Active

3.96mm (.156") Pitch KK® PC Board Connector, Bottom Entry, Nylon Connector,

0.38µm (15µ") Gold (Au) Selective, 10 Circuits

Documents:

3D Model

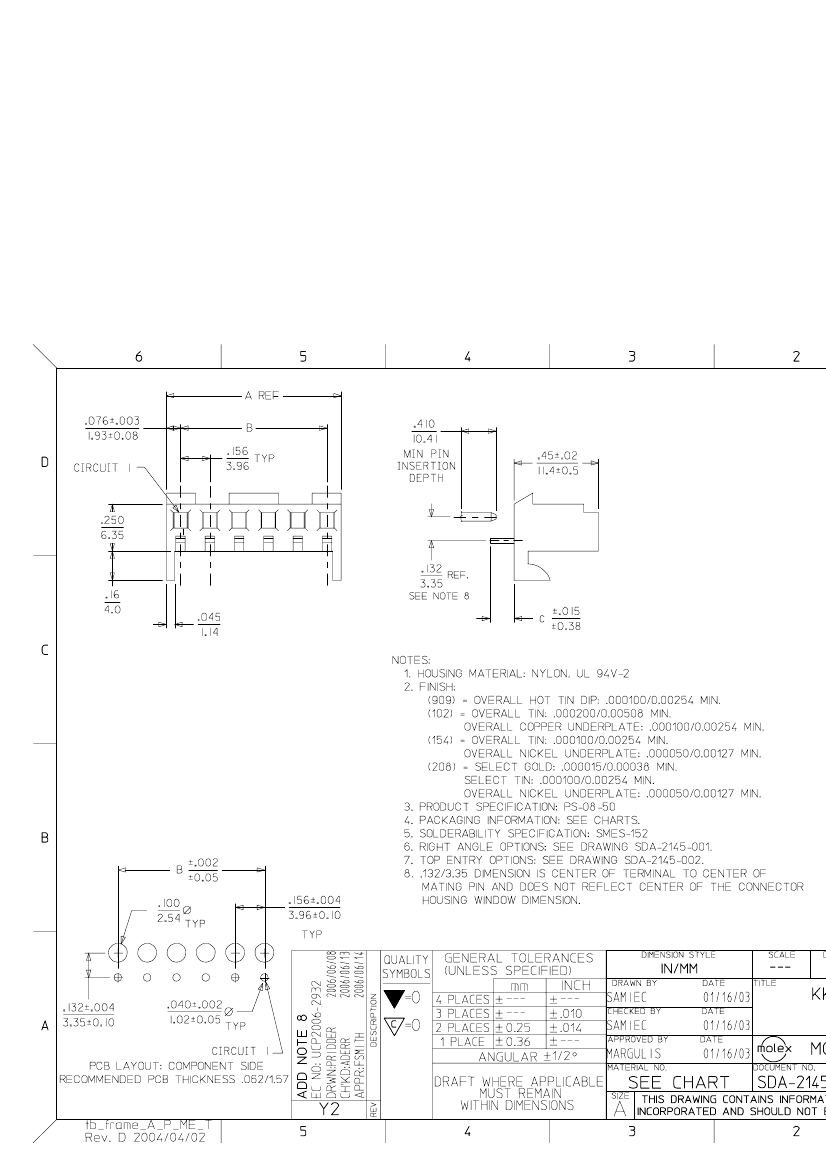

Drawing (PDF)

Product Specification PS-08-50 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

E29179

General

Product Family

Series

Application

Product Name

PCB Receptacles

2145

Board-to-Board

KK®

Physical

Circuits (Loaded)

Flammability

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Plating Mating

Material - Plating Termination

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Temperature Range - Operating

Termination Interface: Style

94V-2

Yes

Gold

Tin

Bottom Entry

0.160 In

4.06 mm

None

0.062 In

1.60 mm

Bag

0.156 In

3.96 mm

0.375

100

2.5

0°C to +75°C

Through Hole

EU RoHS

ELV and

Complia

REACH S

Not Revie

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

2145Se

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V

Solder Process Data

Duration at Max. Process Temperature (seconds)

Lead-free Process Capability

Max. Cycles at Max. Process Temperature

Process Temperature max. C

Wave Capable (TH only)

235

Material Info

Old Part Number

A-2145-BA10H-208

A-2145-BA10H-208 Related Products

	A-2145-BA10H-208	0009623102
Description	10 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	10 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
Contact materials	BRASS/PHOSPHOR BRONZE	BRASS/PHOSPHOR BRONZE
Terminal spacing	3.96 mm	3.96 mm
Total number of contacts	10	10
Lead-free	Yes	Yes
EU RoHS regulations	Yes	Yes
state	ACTIVE	ACTIVE
Options	GENERAL PURPOSE	GENERAL PURPOSE
Manufacturer Series	{partno}	{partno}
Contact surface matching	Gold(15) OVER Nickel	Gold(15) OVER Nickel
Contact coated terminals	Tin(100) OVER Nickel	Tin(100) OVER Nickel
Connection Type	Dual board connector	Dual board connector
Connector male and female	Jack	Jack
collocation information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Installation method	straight	straight
Installation type	BOARD	BOARD
Number of load rows	1	1
Terminal type	welding	welding
UL flammability code	94V-2	94V-2
