S949TR-GS18 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> S949TR-GS18

S949TR-GS18: DescriptionRF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET,; CategoryDiscrete semiconductor The transistor; File Size257KB，7 Pages; ManufacturerTEMIC; Websitehttp://www.temic.de/

Download Datasheet Parametric Compare View All

S949TR-GS18 Overview

RF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET,

S949TR-GS18 Parametric

Parameter Name	Attribute value
Maker	TEMIC
Reach Compliance Code	unknown
Shell connection	SOURCE
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	12 V
Maximum drain current (ID)	0.03 A
FET technology	METAL-OXIDE SEMICONDUCTOR
highest frequency band	ULTRA HIGH FREQUENCY BAND
JESD-30 code	R-PDSO-G4
Number of components	1
Number of terminals	4
Operating mode	DUAL GATE, DEPLETION MODE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	N-CHANNEL
Minimum power gain (Gp)	17 dB
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	AMPLIFIER
Transistor component materials	SILICON

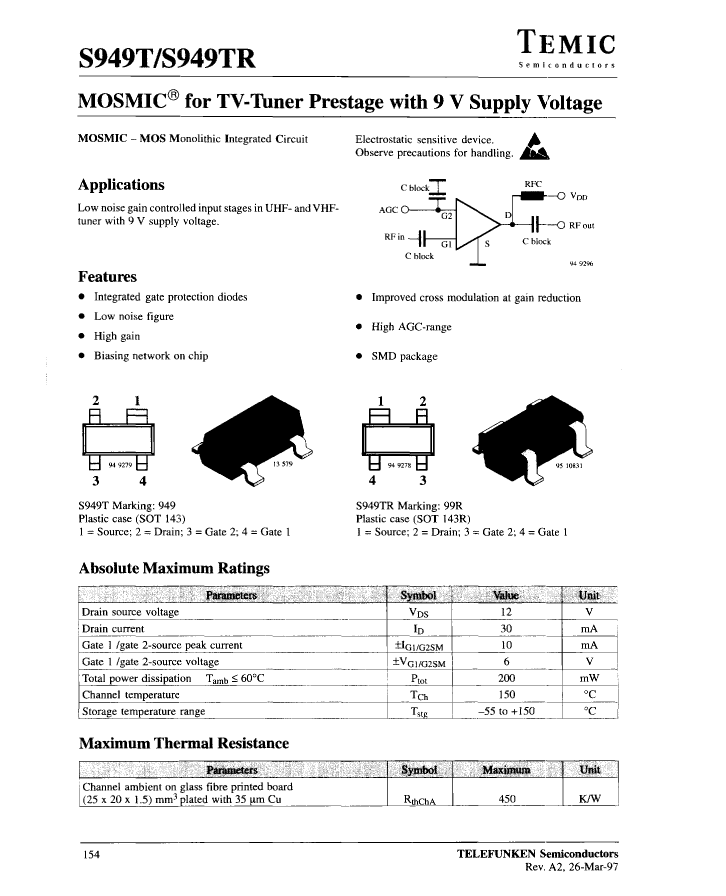

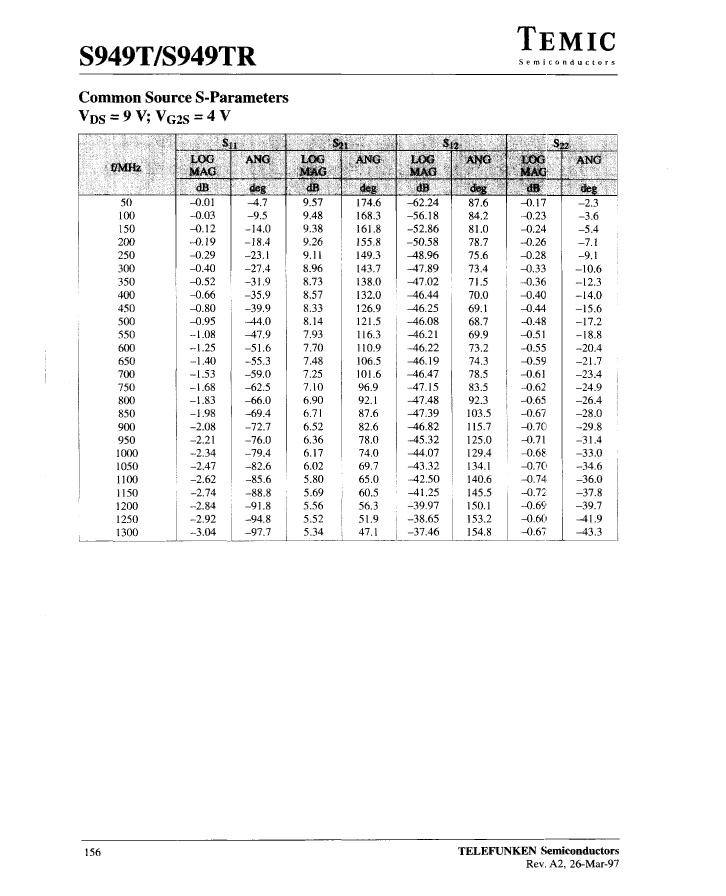

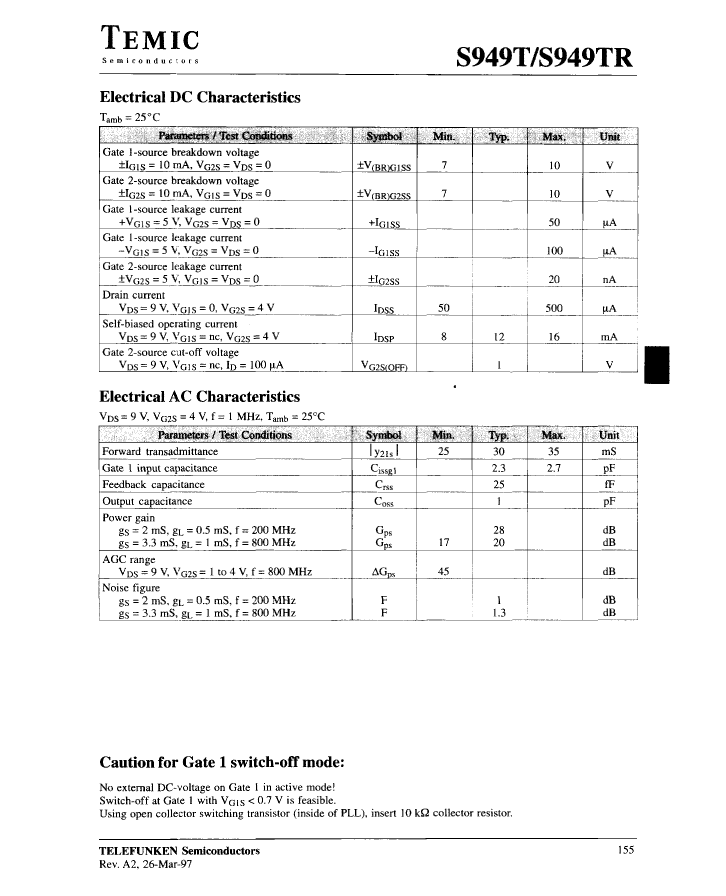

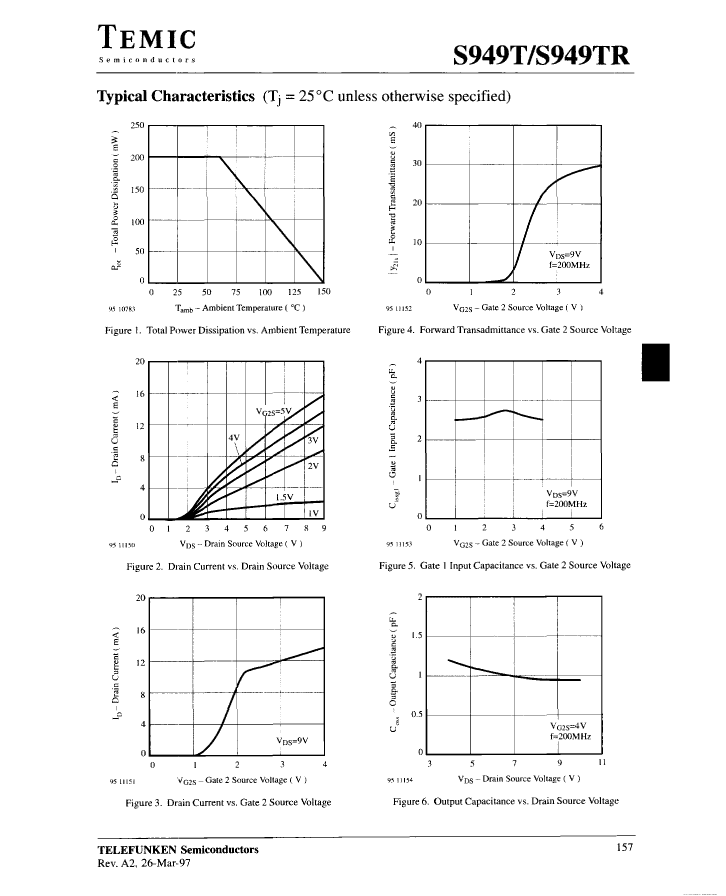

Preview

Download Datasheet

View All

S949TR-GS18 Related Products

	S949TR-GS18	S949T-GS08	S949TR-GS08	S949T-GS18
Description	RF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET,	RF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET,	RF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET,	RF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET,
Maker	TEMIC	TEMIC	TEMIC	TEMIC
Reach Compliance Code	unknown	unknown	unknown	unknown
Shell connection	SOURCE	SOURCE	SOURCE	SOURCE
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	12 V	12 V	12 V	12 V
Maximum drain current (ID)	0.03 A	0.03 A	0.03 A	0.03 A
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
highest frequency band	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND
JESD-30 code	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4
Number of components	1	1	1	1
Number of terminals	4	4	4	4
Operating mode	DUAL GATE, DEPLETION MODE	DUAL GATE, DEPLETION MODE	DUAL GATE, DEPLETION MODE	DUAL GATE, DEPLETION MODE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL
Minimum power gain (Gp)	17 dB	17 dB	17 dB	17 dB
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON
