FREQCFPS-34B: DescriptionCRYSTAL OSCILLATOR, CLOCK, 75 MHz - 170 MHz, LVPECL OUTPUT, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, SMD, 6 PIN; CategoryPassive components oscillator; File Size464KB，2 Pages; ManufacturerIQD Frequency Products

Download Datasheet Parametric View All

FREQCFPS-34B Overview

CRYSTAL OSCILLATOR, CLOCK, 75 MHz - 170 MHz, LVPECL OUTPUT, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, SMD, 6 PIN

FREQCFPS-34B Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IQD Frequency Products
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; BULK; TAPE AND REEL
maximum descent time	1 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Manufacturer's serial number	CFPS-34
Installation features	SURFACE MOUNT
Maximum operating frequency	170 MHz
Minimum operating frequency	75 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	LVPECL
Output load	50 OHM
physical size	7.5mm x 5.0mm x 1.4mm
longest rise time	1 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	40/60 %

Preview

Download Datasheet

View All

CFPS-34 SMD CLOCK OSCILLATORS

ISSUE 3; 1 NOVEMBER 2008 - RoHS 2002/95/EC

Description

Outline (mm)

▪

CLOCK

OSCILLATORS

Package Outline

7 x 5mm

75 to 170MHz

LVPECL

Output Load 50

Ω

terminated to +1.3V

±25ppm, ±50ppm, ±100ppm (inclusive of supply voltage and

output load variations over the operating temperature range)

–10 to 70°C (CFPS-34)

–40 to 85°C (CFPS-34I)

–55 to 125°C

Logic ‘1’ (>70% Vs) to pad 1 enables oscillator output

Logic ‘0’ (<30% Vs) to pad 1 disables oscillator output; the

oscillator output goes to the high impedance state

No connection to pad 1 enables oscillator output

‘0’ Level VoL +1.7V max

‘1’ Level VoH +2.2V min

1ps rms max (12kHz - 20MHz)

Shock: MIL-STD-202F, Method 213B (1000G, 0.5ms)

Vibration: MIL-STD-202F, Method 204D, Test Condition D

20G Frequency range 10-2000Hz, 4 hrs for X, Y & Z

(total 12hrs)

Model Number + Frequency

Bulk or Tape and Reel

Frequency + Model Number + Operating Temperature

Code (if applicable) + Frequency Stability

Power

Supply

Frequency Range

▪

1.4±0.1

5.0 max

3.3V surface mount oscillator in a ceramic package, with a

hermetically sealed metal lid and LVPECL outputs

7.5 max

Pad Connections

1. Enable/Disable

2. N/C

3. GND

4. Output 1

5. Output 2

6. +Vs

Solder pad layout

2.54

1.8

4.2

5.08

VoH

VoL

50R

6 5 4

Probe

0.01µF

Enable/

Disable

Probe

1 2 3

N/C

50R

0.01µF

Power

Supply

VTT= 1.3V

Oscilloscope

Frequency

Counter

Output Compatibility & Load

5.08

Output Waveform

Operating Temperature Ranges

Storage Temperature Range

Tri-state Operation

80%Vs

50%Vs

20%Vs

Output Voltage

Phase Jitter

Environmental

Duty cycle = t x 100(%)

Test Circuit

Vs = 3.3Vdc

Marking Includes

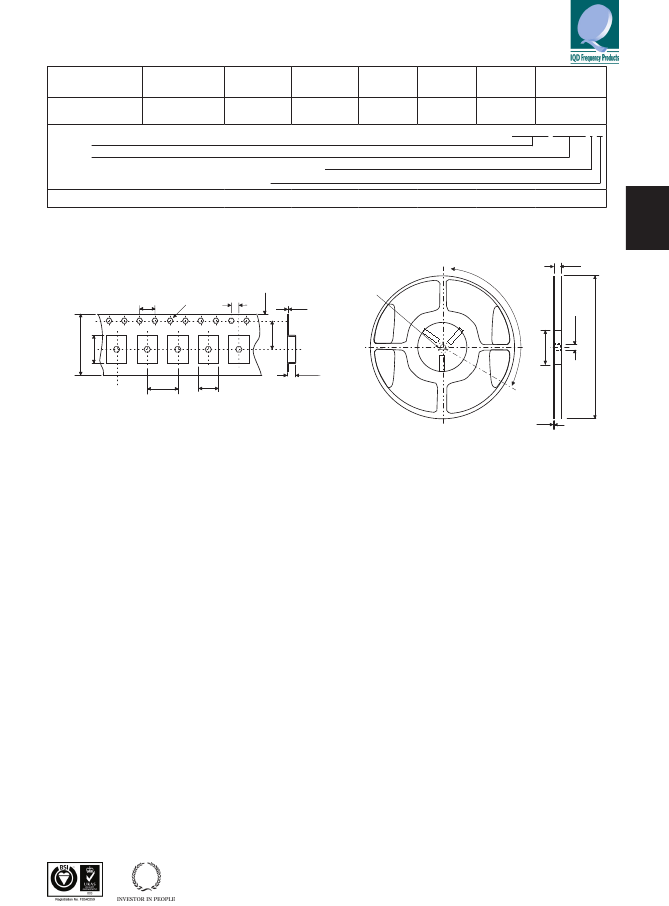

Packaging

Minimum Order Information Required

IQD Frequency Products Ltd, Station Road, Crewkerne, Somerset TA18 8AR, United Kingdom

Tel: +44 (1460) 270200; Fax: +44 (1460) 72578;

Email: info@iqdfrequencyproducts.com Web: www.iqdfrequencyproducts.com

2.6

Frequency Stabilities

2.0

1.4
