DTC-19300-392L

Description
LVDT or RVDT to Digital Converter, Hybrid, DDIP-36
CategoryAnalog mixed-signal IC    converter
File Size202KB,8 Pages
ManufacturerData Device Corporation
Download Datasheet Parametric View All

DTC-19300-392L Overview

LVDT or RVDT to Digital Converter, Hybrid, DDIP-36

DTC-19300-392L Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerData Device Corporation
Parts packaging codeMODULE
package instructionDDIP-36
Contacts36
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresBUILT-IN-TEST; PROGRAMMABLE RESOLUTION; IT ALSO REQUIRES A 15V SUPPLY
Maximum analog input voltage2 V
Converter typeLVDT OR RVDT TO DIGITAL CONVERTER
JESD-30 codeR-XDMA-P36
JESD-609 codee0
Number of digits14
Number of functions1
Number of terminals36
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formMICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum supply voltage5.5 V
Minimum supply voltage4.5 V
Nominal supply voltage5 V
surface mountNO
technologyHYBRID
Temperature levelCOMMERCIAL
Terminal surfaceTIN LEAD
Terminal formPIN/PEG
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum tracking rate1 rps

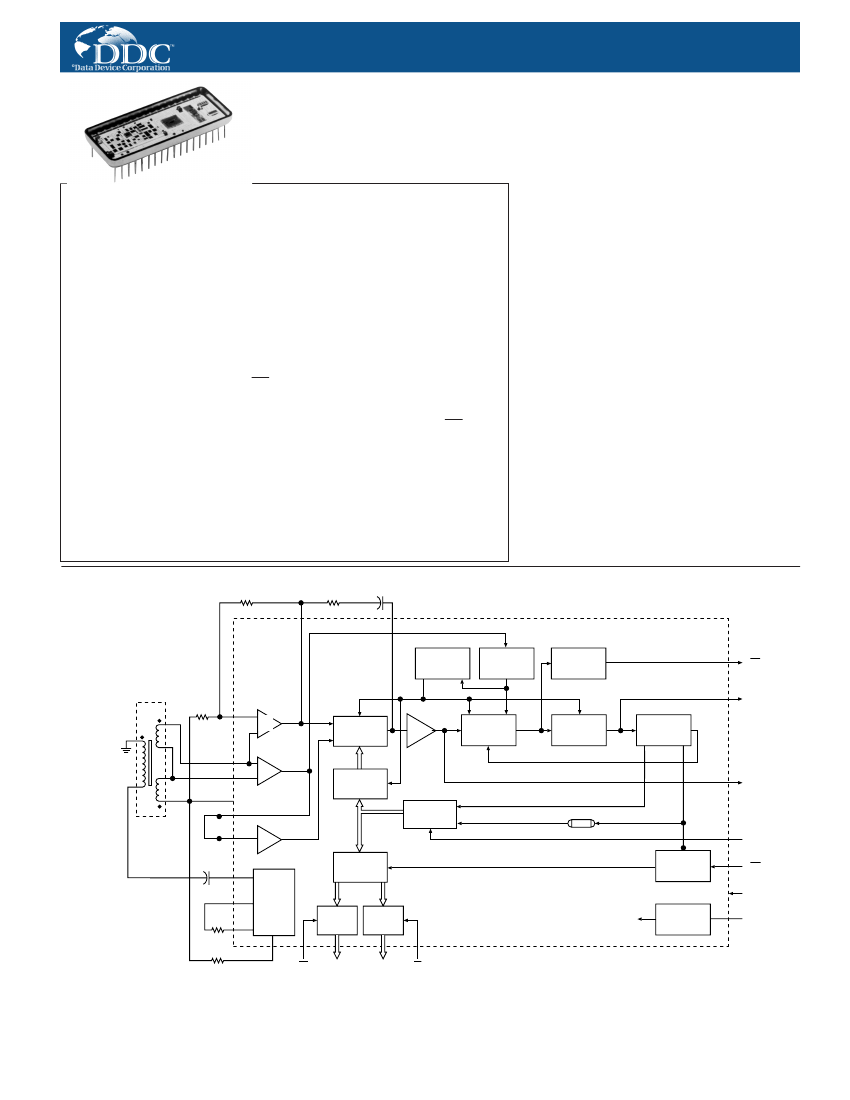

DTC-19300
LVDT/RVDT-TO-DIGITAL CONVERTER
DESCRIPTION
The DTC-19300 is a 12- or 14-bit
LVDT (Linear Variable Differential
Transformer)- or RVDT (Rotary
Variable Differential Transformer)-to-
digital converter which also supplies
the AC excitation to drive the LVDT.
Internal AC excitation voltage, fre-
quency, signal gain and resolution are
all programmable for optimum system
performance. Packaged in a 36-pin
hybrid, the DTC-19300 also features
Velocity (VEL) and Built-In-Test (BIT)
outputs. The three-state digital out-
puts are provided in a two byte for-
mat, for easy computer interface.
The DTC-19300 has been designed
precisely for use with an LVDT.
Inherent characteristics of the DTC-
19300, such as the input to output
phase shift, have been given con-
siderable attention. The converter’s
reference voltage is derived from,
and is in phase with, the LVDT out-
put signal. Therefore, any errors due
to the transducer’s phase shift are
virtually eliminated. Additionally, the
programmability of the DTC-19300
will accomodate a broad range of
LVDT’s.
FEATURES
Internal Oscillator:
Programmable for Voltage and
Frequency
Programmable Signal Gain
Programmable for 12- or 14-Bit
Resolution
APPLICATIONS
The DTC-19300 provides many fea-
tures previously supplied by individual
system components. Because of its
internal AC source, programmable
features, fault indicator (BIT), and
velocity output (VEL), the need for
other system circuits is minimized. The
DTC-19300 is an excellent choice for
applications using the LVDT transduc-
er for position feedback, such as mili-
tary, commercial aerospace and
industrial control systems.
Velocity Output
Built-In-Test Output
Three-State, Two-Byte
Digital Output
10k
R1
35
SO
10k
R5
PHASE
COMP
C2
29
SJ
DTC-19300
REFERENCE
CONDITIONER
BIT
DETECT
18
BIT
ZERO SET
TIMING
LVDT
FULL
SCALE
R2
26
34 SG
VEL
-
+
PROG
GAIN
AMP
DIFF
SIG
REF
HIGH
ACCURACY
RATIO BRIDGE
ERROR
AMP
DEMOD
1 LSB ANTILITTER
FEEDBACK
ERROR
PROCESSOR
VCO
U
T
33 S
32 R
25
DIF
GAIN
SUM
(REF)
14 BIT BRIDGE
TRANSPARENT
LATCH
U
14 BIT
U-D COUNTER
T
24
e
V
31 RO
36 RI
U/D
50 ns DELAY
23
A
C1
19 OSC
+
21
FREQ
R4 22
RM
AMPL
R3
20
1
EM
POWER
OSCILLATOR
14 BIT OUTPUT
TRANSPARENT
LATCH
INH
INHIBIT
Q
TRANSPARENT
LATCH
17
INH
30
POWER
SUPPLY
CONDITIONER
+5 V
3 STATE
TTL BUFFER
3 STATE
TTL BUFFER
INTERNAL
DC REF (11V)
27
+15 V
16
BITS 1-6
BITS 7-14
EL
FIGURE 1. DTC-19300 BLOCK DIAGRAM
©
1986, 1999 Data Device Corporation
