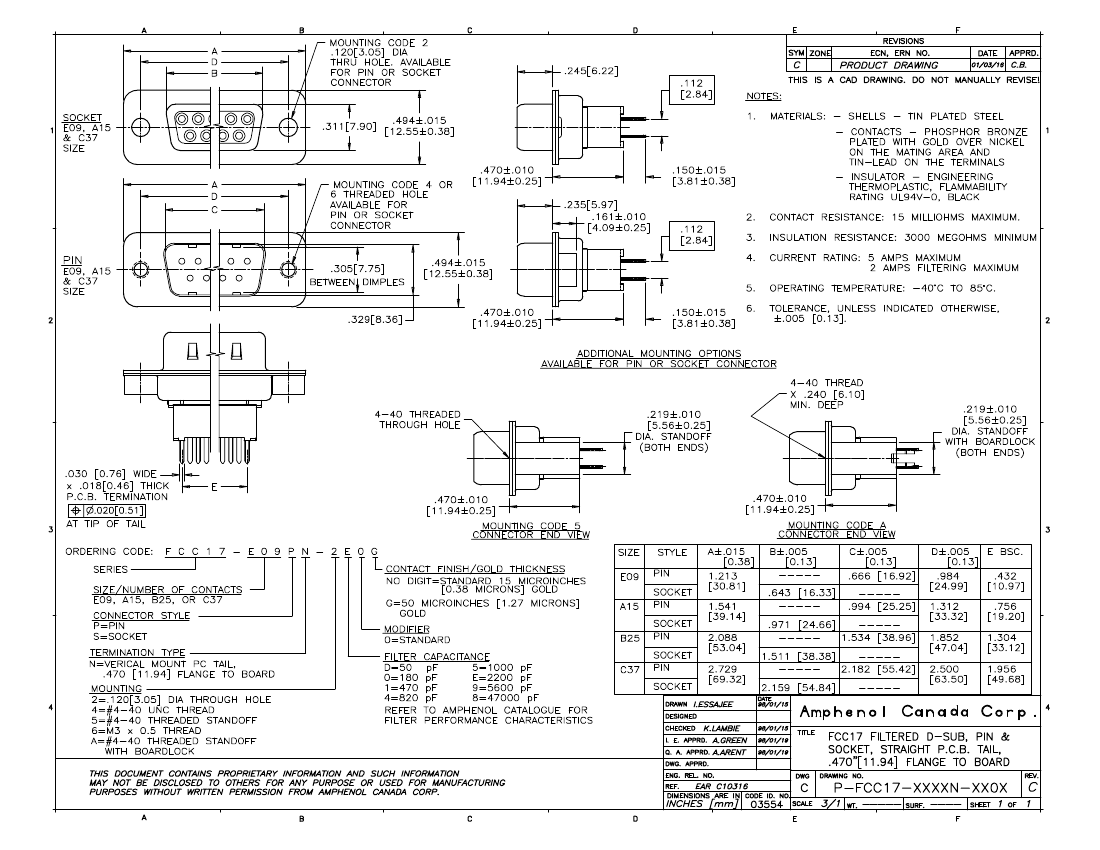

D Subminiature Connector, 25 Contact(s), Female, Solder Terminal,
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Amphenol |
| Reach Compliance Code | unknown |
| Factory Lead Time | 10 weeks 1 day |
| Connector type | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | GOLD (15) OVER NICKEL |
| Contact completed and terminated | Tin/Lead (Sn/Pb) |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| DIN compliance | NO |
| empty shell | NO |
| Filter function | YES |
| IEC compliance | NO |
| insulator material | POLYETHYLENE |
| JESD-609 code | e0 |
| MIL compliance | NO |
| Mixed contacts | NO |
| Installation type | BOARD |
| Options | GENERAL PURPOSE |
| Shell surface | TIN |
| Shell material | STEEL |
| Housing size | 3/B |
| Termination type | SOLDER |
| Total number of contacts | 25 |
| UL Flammability Code | 94V-0 |
| FCC17-B25PN-440 | FCC17-C37PN-540 | FCC17-B25SN-290G | FCC17-A15SN-200 | FCC17-A15SN-250 | FCC17-A15SN-400 | FCC17-A15SN-500 | FCC17-A15PN-280 | FCC17-A15PN-580 | |
|---|---|---|---|---|---|---|---|---|---|
| Description | D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, | D Subminiature Connector, 37 Contact(s), Female, 0.108 inch Pitch, Solder Terminal, Hole .115-.125, Receptacle, | D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, | D Subminiature Connector, 15 Contact(s), Female, 0.108 inch Pitch, Solder Terminal, Hole .115-.125, Plug, | D Subminiature Connector, 15 Contact(s), Female, 0.108 inch Pitch, Solder Terminal, Hole .115-.125, Plug, | D Subminiature Connector, 15 Contact(s), Female, 0.108 inch Pitch, Solder Terminal, Hole .115-.125, Plug, | D Subminiature Connector, 15 Contact(s), Female, 0.108 inch Pitch, Solder Terminal, Hole .115-.125, Plug, | D Subminiature Connector, 15 Contact(s), Female, 0.108 inch Pitch, Solder Terminal, Hole .115-.125, Receptacle, | D Subminiature Connector, 15 Contact(s), Female, 0.108 inch Pitch, Solder Terminal, Hole .115-.125, Receptacle, |
| Is it lead-free? | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Connector type | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | GOLD (15) OVER NICKEL | GOLD (15) OVER NICKEL | GOLD (50) OVER NICKEL | GOLD (15) OVER NICKEL | GOLD (15) OVER NICKEL | GOLD (15) OVER NICKEL | GOLD (15) OVER NICKEL | GOLD (15) OVER NICKEL | GOLD (15) OVER NICKEL |
| Contact completed and terminated | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | TIN LEAD | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| DIN compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| empty shell | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Filter function | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| IEC compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| insulator material | POLYETHYLENE | POLYETHYLENE | POLYETHYLENE | POLYETHYLENE | POLYETHYLENE | POLYETHYLENE | POLYETHYLENE | POLYETHYLENE | POLYETHYLENE |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| MIL compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Mixed contacts | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Shell surface | TIN | TIN | TIN | TIN | TIN | TIN | TIN | TIN | TIN |
| Shell material | STEEL | STEEL | STEEL | STEEL | STEEL | STEEL | STEEL | STEEL | STEEL |
| Housing size | 3/B | 4/C | 3/B | 2/A | 2/A | 2/A | 2/A | 2/A | 2/A |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 25 | 37 | 25 | 15 | 15 | 15 | 15 | 15 | 15 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| ECCN code | - | EAR99 | - | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| body width | - | 0.494 inch | - | 0.494 inch | 0.494 inch | 0.494 inch | 0.494 inch | 0.494 inch | 0.494 inch |
| subject depth | - | 0.47 inch | - | 0.47 inch | 0.47 inch | 0.47 inch | 0.47 inch | 0.47 inch | 0.47 inch |
| body length | - | 2.729 inch | - | 1.541 inch | 1.541 inch | 1.541 inch | 1.541 inch | 1.541 inch | 1.541 inch |
| Body/casing type | - | RECEPTACLE | - | PLUG | PLUG | PLUG | PLUG | RECEPTACLE | RECEPTACLE |
| contact mode | - | STAGGERED | - | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED |
| Contact resistance | - | 15 mΩ | - | 15 mΩ | 15 mΩ | 15 mΩ | 15 mΩ | 15 mΩ | 15 mΩ |
| Contact style | - | RND PIN-SKT | - | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT |
| Dielectric withstand voltage | - | 600VAC V | - | 600VAC V | 600VAC V | 600VAC V | 600VAC V | 150VAC V | 150VAC V |
| Insulation resistance | - | 3000000000 Ω | - | 3000000000 Ω | 3000000000 Ω | 3000000000 Ω | 3000000000 Ω | 3000000000 Ω | 3000000000 Ω |
| Plug contact pitch | - | 0.108 inch | - | 0.108 inch | 0.108 inch | 0.108 inch | 0.108 inch | 0.108 inch | 0.108 inch |
| Match contact row spacing | - | 0.112 inch | - | 0.112 inch | 0.112 inch | 0.112 inch | 0.112 inch | 0.112 inch | 0.112 inch |
| Installation option 1 | - | HOLE .115-.125 | - | HOLE .115-.125 | HOLE .115-.125 | HOLE .115-.125 | HOLE .115-.125 | HOLE .115-.125 | HOLE .115-.125 |
| Installation method | - | STRAIGHT | - | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| PCB row number | - | 2 | - | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of rows loaded | - | 2 | - | 2 | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | - | 85 °C | - | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | - | -40 °C | - | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| PCB contact pattern | - | STAGGERED | - | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED |
| PCB contact row spacing | - | 2.8448 mm | - | 2.8448 mm | 2.8448 mm | 2.8448 mm | 2.8448 mm | 2.8448 mm | 2.8448 mm |
| Plating thickness | - | 15u inch | - | 15u inch | 15u inch | 15u inch | 15u inch | 15u inch | 15u inch |
| Rated current (signal) | - | 5 A | - | 5 A | 5 A | 5 A | 5 A | 5 A | 5 A |
| Guideline | - | UL, CSA | - | UL, CSA | UL, CSA | UL, CSA | UL, CSA | UL, CSA | UL, CSA |
| reliability | - | COMMERCIAL | - | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | - | 0.14 inch | - | 0.14 inch | 0.14 inch | 0.14 inch | 0.14 inch | 0.14 inch | 0.14 inch |
| Terminal pitch | - | 2.7432 mm | - | 2.7432 mm | 2.7432 mm | 2.7432 mm | 2.7432 mm | 2.7432 mm | 2.7432 mm |
| Base Number Matches | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Other features | - | - | - | FILTER CAPACITANCE=180pF | - | FILTER CAPACITANCE=180pF | FILTER CAPACITANCE=180pF | FILTER CAPACITANCE=47000pF | FILTER CAPACITANCE=47000pF |
