2SA684L-S-AB3-R datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SA684L-S-AB3-R

2SA684L-S-AB3-R: DescriptionSmall Signal Bipolar Transistor, 1A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, LEAD FREE PACKAGE-3; CategoryDiscrete semiconductor The transistor; File Size258KB，5 Pages; ManufacturerUNISONIC TECHNOLOGIES CO.,LTD; Websitehttp://www.unisonic.com.tw/; Environmental Compliance

Download Datasheet Parametric View All

2SA684L-S-AB3-R Overview

Small Signal Bipolar Transistor, 1A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, LEAD FREE PACKAGE-3

2SA684L-S-AB3-R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	SMALL OUTLINE, R-PSSO-F3
Contacts	3
Reach Compliance Code	compli
ECCN code	EAR99
Maximum collector current (IC)	1 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE
Minimum DC current gain (hFE)	170
JESD-30 code	R-PSSO-F3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	YES
Terminal form	FLAT
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	200 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

UNISONIC TECHNOLOGIES CO., LTD

2SA684

PNP SILICON TRANSISTOR

DESCRIPTION

The

UTC 2SA684

is power amplifier and driver.

PNP SILICON TRANSISTOR

FEATURES

* Automatic insertion by radial taping possible.

* Complementary pair with 2SC1384

Lead-free:

2SA684L

Halogen-free: 2SA684G

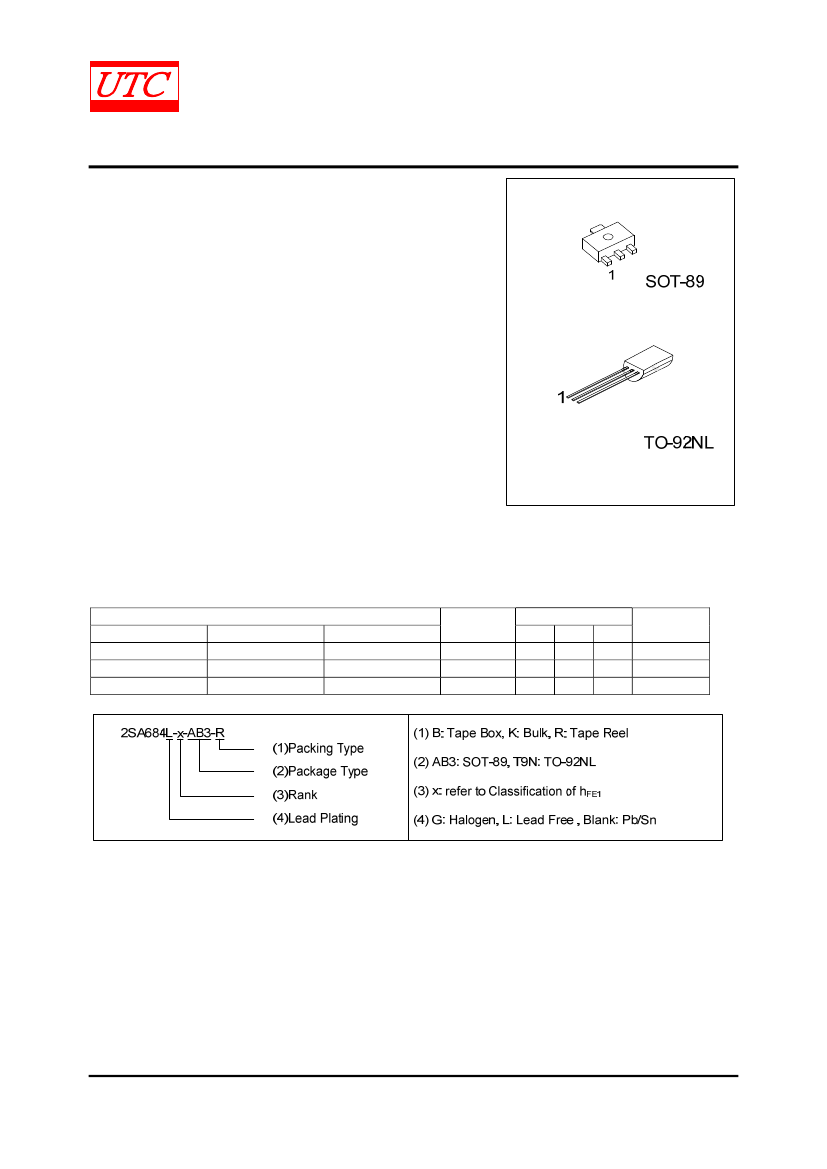

ORDERING INFORMATION

Normal

2SA684-x-AB3-R

2SA684-x-T9N-B

2SA684-x-T9N-K

Ordering Number

Lead Free

Halogen Free

2SA684L-x-AB3-R 2SA684G-x-AB3-R

2SA684L-x-T9N-B 2SA684G-x-T9N-B

2SA684L-x-T9N-K 2SA684G-x-T9N-K

Package

SOT-89

TO-92NL

Pin Assignment

Packing

Tape Reel

Tape Box

Bulk

www.unisonic.com.tw

1 of 5

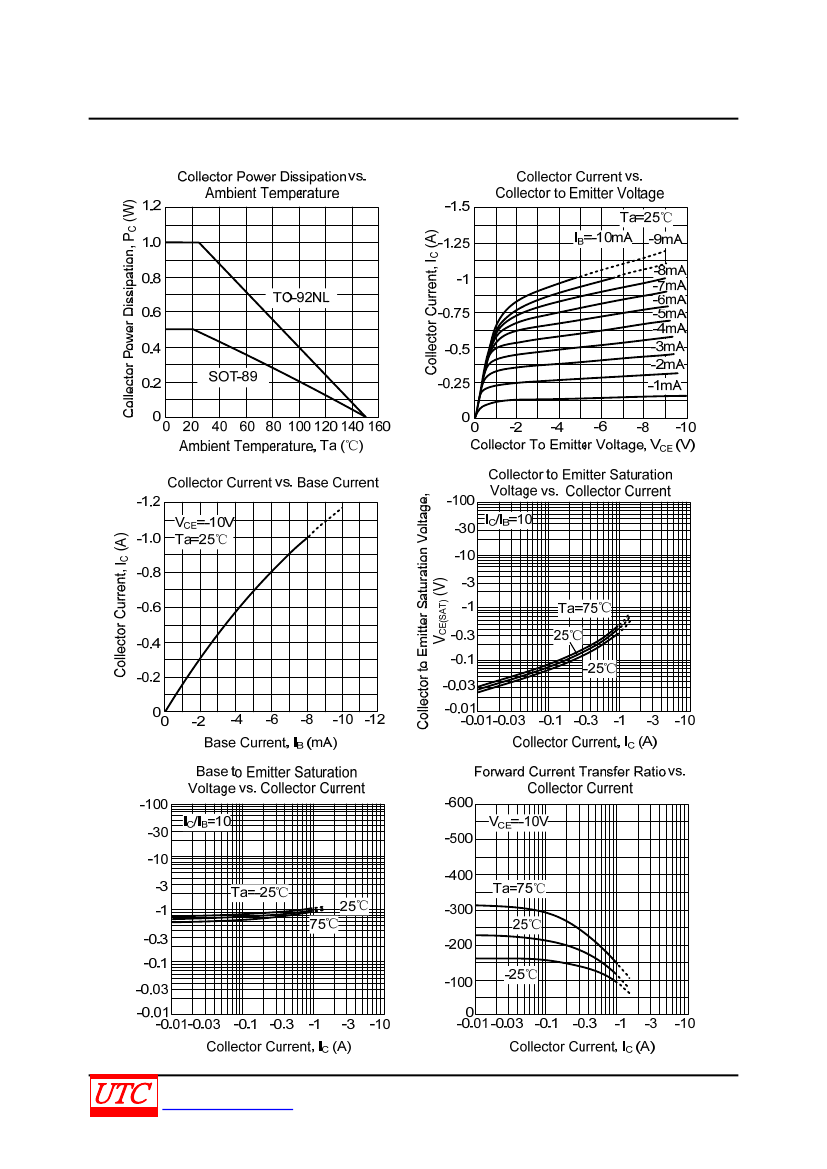

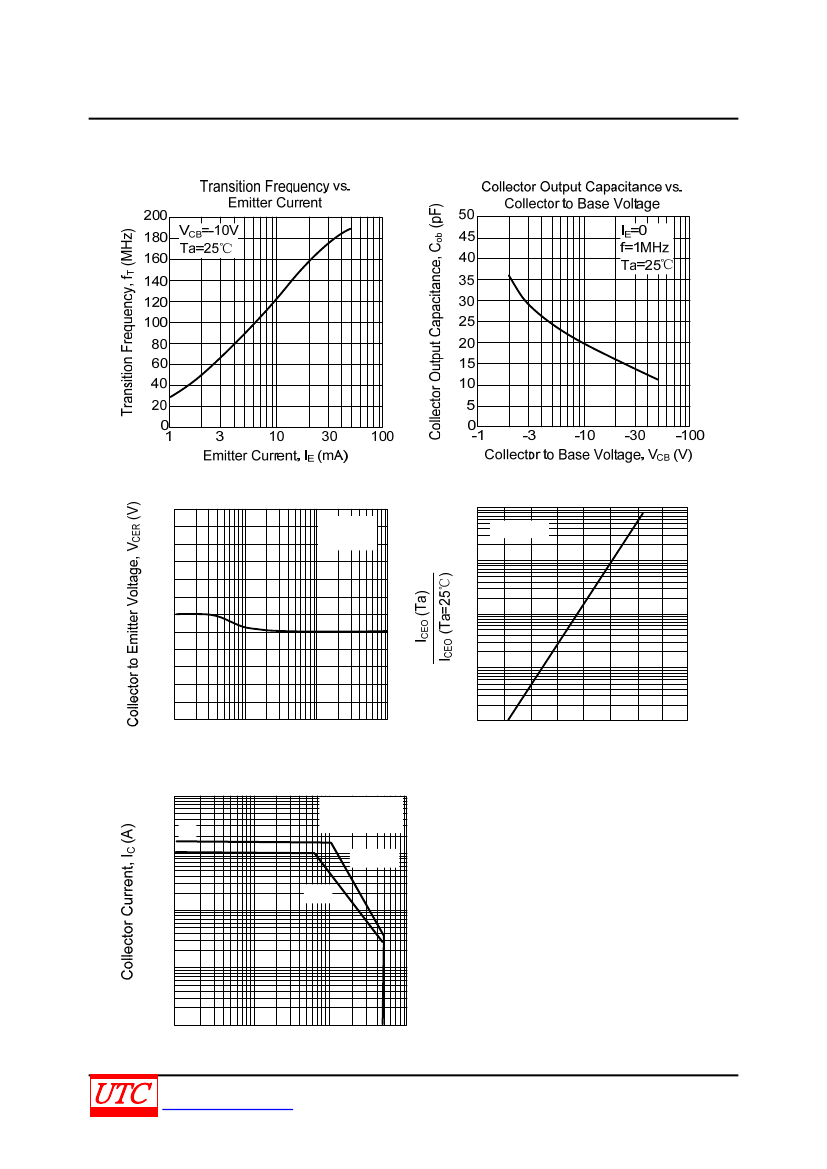

QW-R211-006.C
