ABT-4-3D-T datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power management> transformer> ABT-4-3D-T

Preview

ABT-4-3D-T: DescriptionRF Transformer, 30MHz Min, 1400MHz Max; CategoryPower management transformer; File Size94KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ABT-4-3D-T Overview

RF Transformer, 30MHz Min, 1400MHz Max

ABT-4-3D-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LENGTH DIMENSION INCLUDES TERMINAL ALSO
maximum cutoff frequency	1400 MHz
minimum cutoff frequency	30 MHz
high	3.7 mm
Insertion loss	3 dB
length	5 mm
Manufacturer's serial number	ABT-4-3D
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TAPE & REEL
physical size	L5XB4XH3.7 (mm)
surface mount	YES
Transformer type	RF TRANSFORMER
width	4 mm

Preview

Download Datasheet

View All

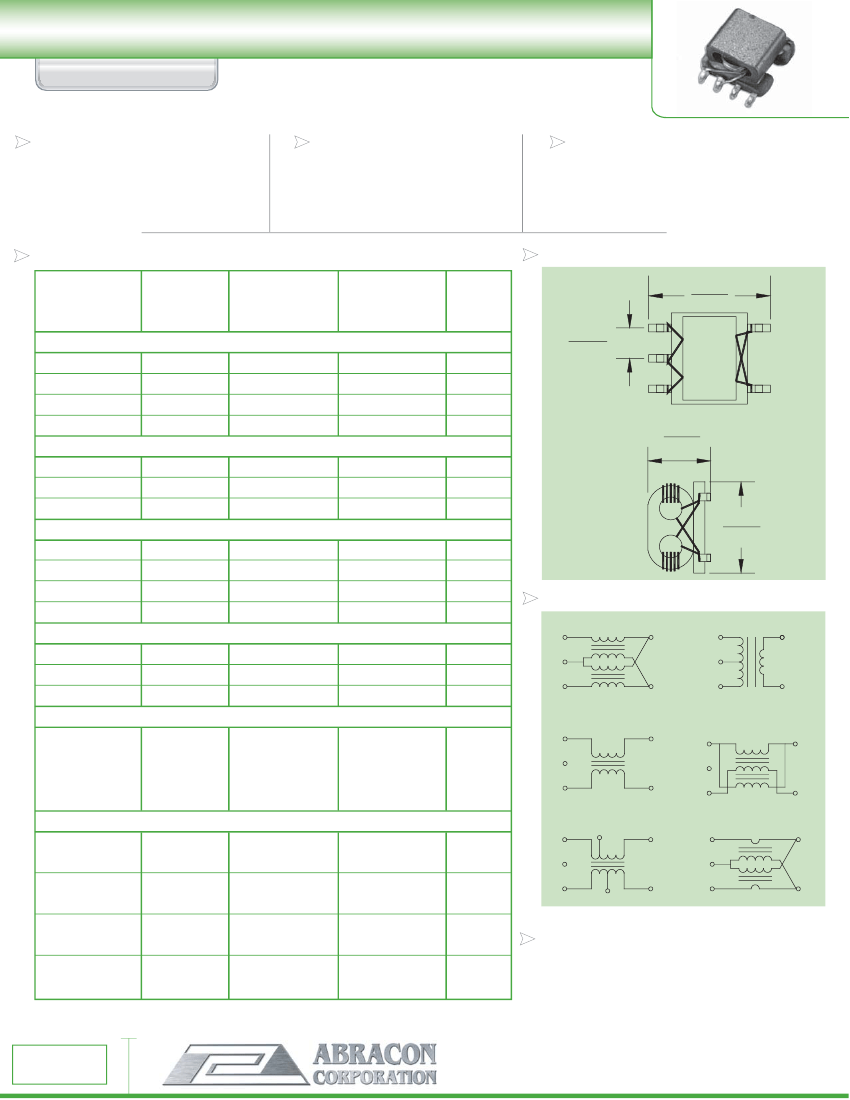

SMD BALUN SERIES

ABT-4-XXX

| | | | | | | | | | | | | | |

FEATURES:

• SMT and Thru Hole available

• High Reliability

• Extended Temperature

• Lead Free

OPTIONS:

• Tape and Reel is standard

• Custom design available

APPLICATIONS:

• RF, Set Top Box, Cable Modem

• Cable TV, Wide Band RF Applicants

• Balance to Unbalance application

• RF signal monitor point

STANDARD SPECIFICATIONS:

Part No

ABT-4-

Turns

Operating

Frequency

MHz

Insertion

Loss

dB Max

3

in-out1,2

4.5dB max

out1-out2,

isolation 10dB

in-out1, 2dB

in-out2, 10dB

in-out1, 1.5dB

in-out2, 11dB

in-out1, 1.3dB

in-ou2t, 13dB

in-out1, 1.0dB

in-out2, 15dB

Figure

OUTLINE DRAWING:

0.197

5,00

1

6

Double Balanced Mixer

25-2000

1½

1A

6-2000

2½

2A

3.5-2000

3½

3A

2-2000

4½

4A

Frequency Mixer

8-750

1

1B

3.5-700

2

2B

2-800

3

3B

Balun Transformer

20-750

1½

1C

4.5-3000

2½

2C

2.3-2700

3½

3C

1.5-2400

4½

4C

Balun Transformer

160-2000

1½

1D

55-1700

2½

2D

30-1400

3½

3D

Power Distributor/Combiners

20-600

-

2E

A

B

C

D

E

0.050

1,50

3

4

0.146 Max

3,70

0.158

4,00

FIGURE (WIRE CONNECTION):

A

1

6

1

B

6

2

3

4

3

4

C

1

6

1

D

6

2

4

3

4

Directional Coupler

2½

2F

3F

4F

5F

3½

4½

5½

E

F

6

1

In

2

1

6

Out1

6-600

F

1

In

2

Out1

3

Out2

4

Out2

3

1

4

Dimensions: inch/mm

TECHNICAL INFORMATION:

• NO MARKING

• Add-T for tape and reel, -Z for lead free

• Operating temperature: -40°C to +85°C

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

|

fax 949-546-8001

| www.abracon.com
