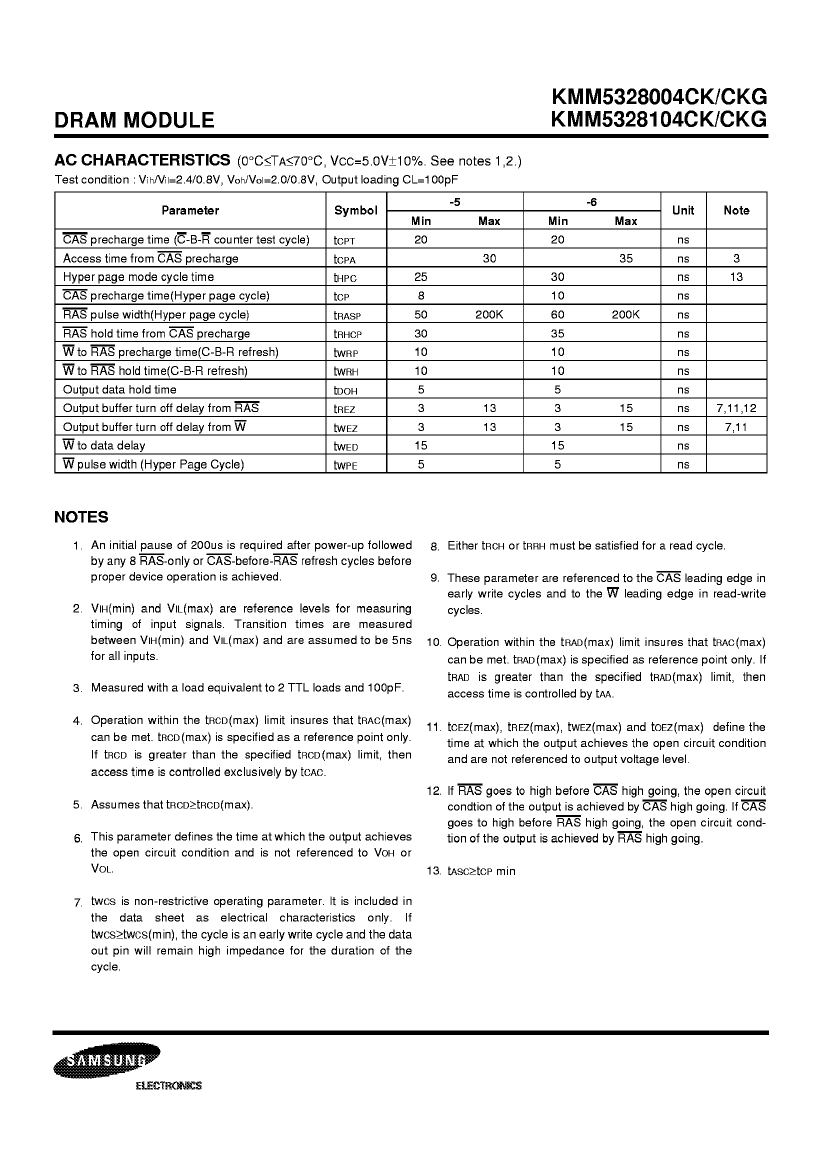

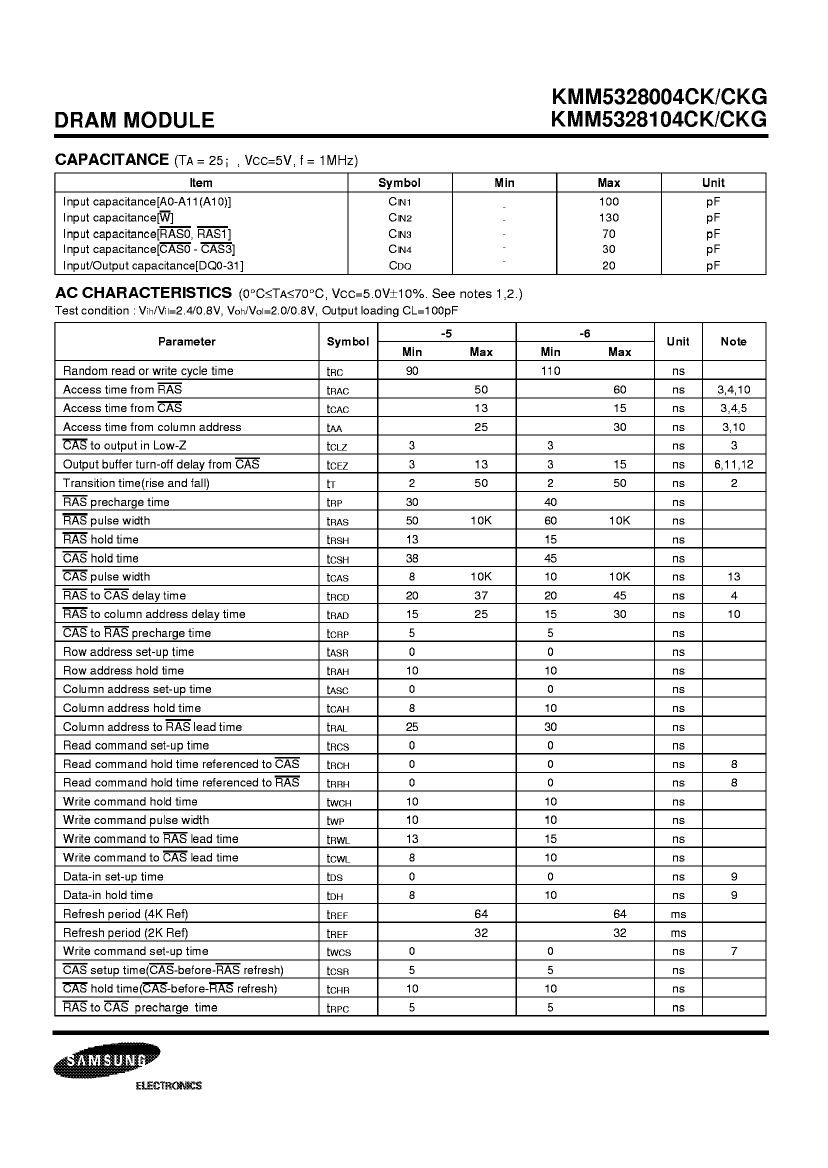

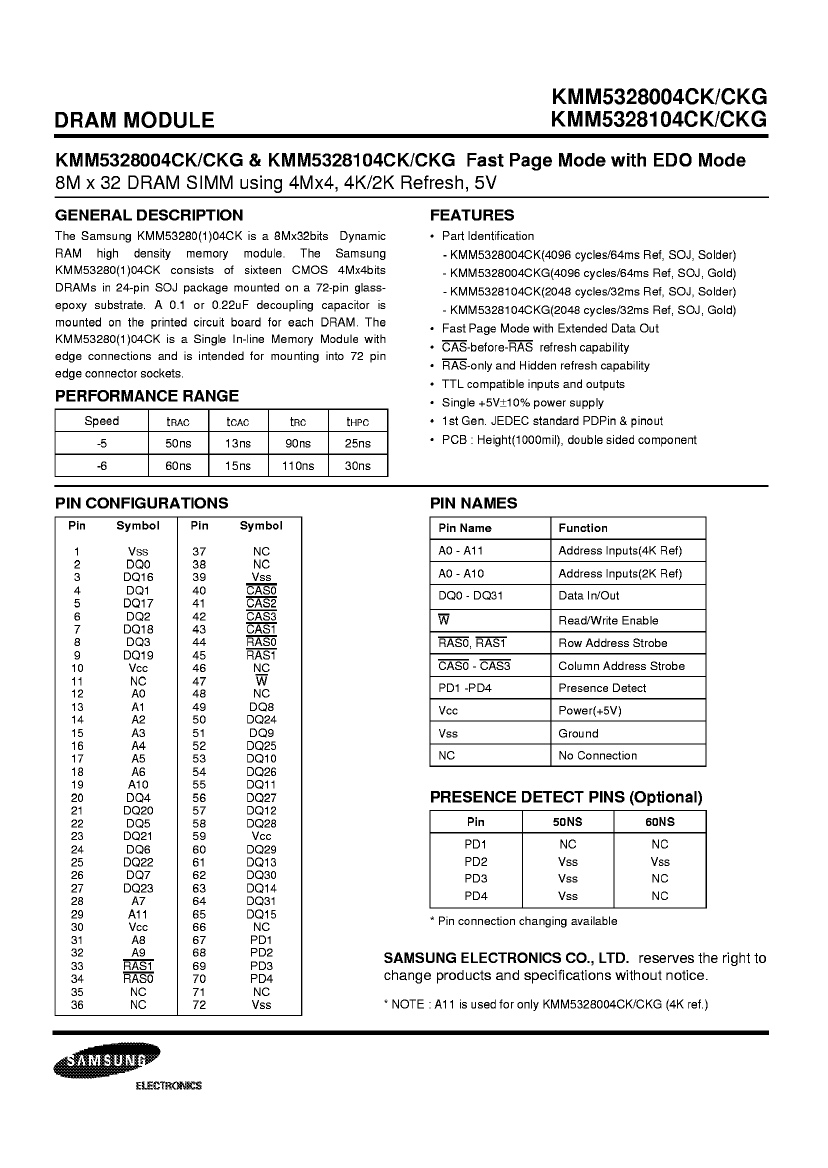

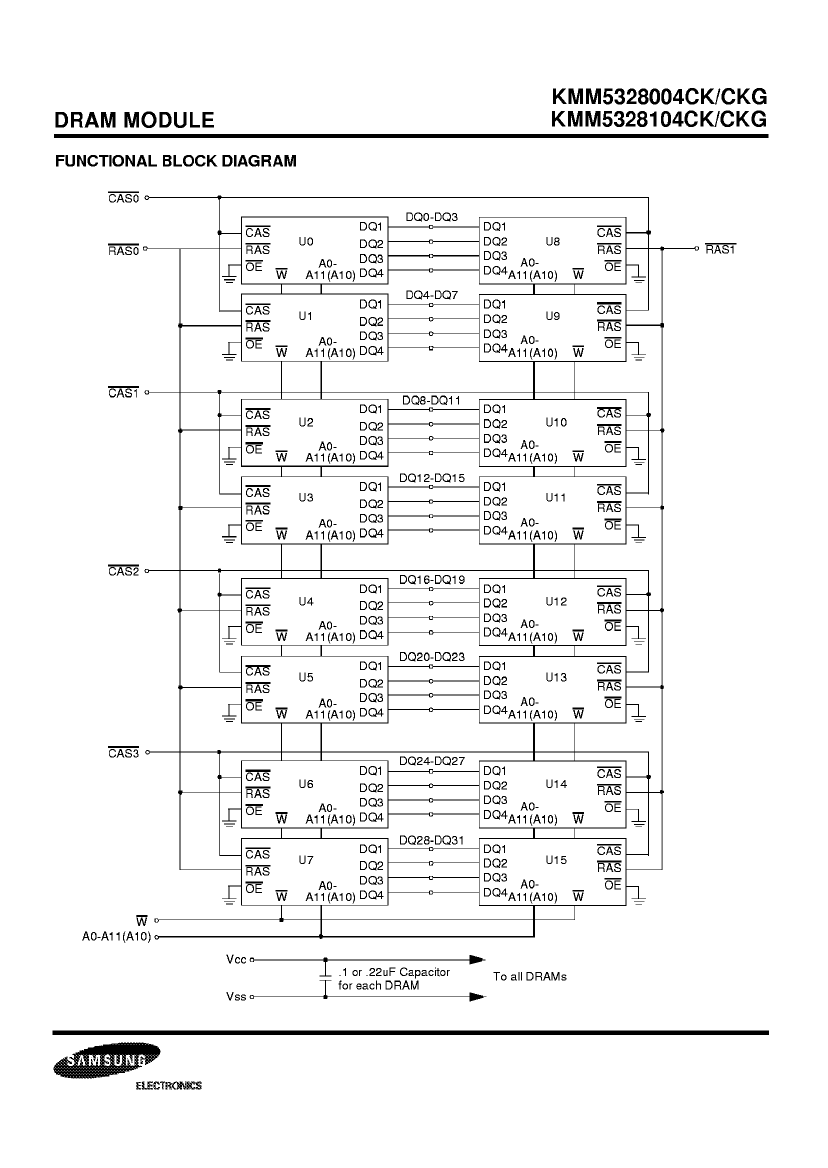

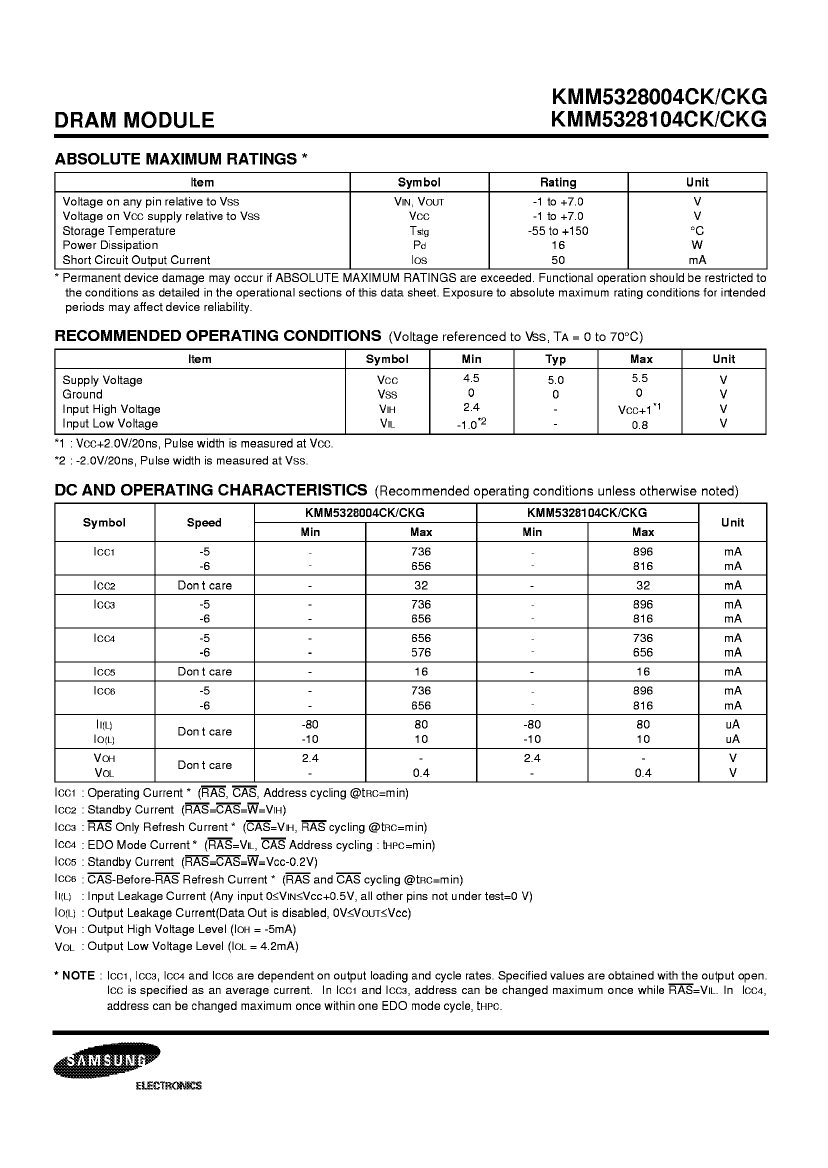

Preview

KMM5328104CK-5: DescriptionEDO DRAM Module, 8MX32, 50ns, CMOS, SIMM-72; Categorystorage storage; File Size326KB，15 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KMM5328104CK-5 Overview

EDO DRAM Module, 8MX32, 50ns, CMOS, SIMM-72

KMM5328104CK-5 Parametric

Parameter Name	Attribute value
Parts packaging code	SIMM
package instruction	SIMM, SSIM72
Contacts	72
Reach Compliance Code	unknow
ECCN code	EAR99
access mode	FAST PAGE WITH EDO
Maximum access time	50 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O type	COMMON
JESD-30 code	R-XSMA-N72
memory density	268435456 bi
Memory IC Type	EDO DRAM MODULE
memory width	32
Number of functions	1
Number of ports	1
Number of terminals	72
word count	8388608 words
character code	8000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	8MX32
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	SIMM
Encapsulate equivalent code	SSIM72
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	5 V
Certification status	Not Qualified
refresh cycle	2048
Maximum seat height	25.4 mm
self refresh	NO
Maximum standby current	0.016 A
Maximum slew rate	0.896 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	SINGLE
Base Number Matches	1

Preview

Download Datasheet

View All

KMM5328104CK-5 Related Products

	KMM5328104CK-5	KMM5328104CK-6	KMM5328104CKG-6	KMM5328104CKG-5	KMM5328004CKG-6	KMM5328004CK-5	KMM5328004CK-6	KMM5328004CKG-5
Description	EDO DRAM Module, 8MX32, 50ns, CMOS, SIMM-72	EDO DRAM Module, 8MX32, 60ns, CMOS, SIMM-72	EDO DRAM Module, 8MX32, 60ns, CMOS, SIMM-72	EDO DRAM Module, 8MX32, 50ns, CMOS, SIMM-72	EDO DRAM Module, 8MX32, 60ns, CMOS, SIMM-72	EDO DRAM Module, 8MX32, 50ns, CMOS, SIMM-72	EDO DRAM Module, 8MX32, 60ns, CMOS, SIMM-72	EDO DRAM Module, 8MX32, 50ns, CMOS, SIMM-72
Parts packaging code	SIMM	SIMM	SIMM	SIMM	SIMM	SIMM	SIMM	SIMM
package instruction	SIMM, SSIM72	SIMM, SSIM72	SIMM, SSIM72	SIMM, SSIM72	SIMM, SSIM72	SIMM-72	SIMM, SSIM72	SIMM, SSIM72
Contacts	72	72	72	72	72	72	72	72
Reach Compliance Code	unknow	unknow	unknow	unknow	unknown	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO
Maximum access time	50 ns	60 ns	60 ns	50 ns	60 ns	50 ns	60 ns	50 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72
memory density	268435456 bi	268435456 bi	268435456 bi	268435456 bi	268435456 bit	268435456 bit	268435456 bi	268435456 bi
Memory IC Type	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE
memory width	32	32	32	32	32	32	32	32
Number of functions	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1
Number of terminals	72	72	72	72	72	72	72	72
word count	8388608 words	8388608 words	8388608 words	8388608 words	8388608 words	8388608 words	8388608 words	8388608 words
character code	8000000	8000000	8000000	8000000	8000000	8000000	8000000	8000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	8MX32	8MX32	8MX32	8MX32	8MX32	8MX32	8MX32	8MX32
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	SIMM	SIMM	SIMM	SIMM	SIMM	SIMM	SIMM	SIMM
Encapsulate equivalent code	SSIM72	SSIM72	SSIM72	SSIM72	SSIM72	SSIM72	SSIM72	SSIM72
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	2048	2048	2048	2048	4096	4096	4096	4096
self refresh	NO	NO	NO	NO	NO	NO	NO	NO
Maximum standby current	0.016 A	0.016 A	0.016 A	0.016 A	0.016 A	0.016 A	0.016 A	0.016 A
Maximum slew rate	0.896 mA	0.816 mA	0.816 mA	0.896 mA	0.656 mA	0.736 mA	0.656 mA	0.736 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
