5962F0254201QXC datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> 5962F0254201QXC

Preview

5962F0254201QXC: Description5962F0254201QXC amplifier basic information: 5962F0254201QXC is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are DFP, FL14,.25 5962F0254201QXC amplifier core information: The minimum operating temperature of 5962F0254201QXC is -55 °C and the maximum operating temperature is 125 °C. Maximum bias current at 25°C: 0.4 µA Maximum average bias current is 0.4 µA The maximum slew rate of the 5962F0254201QXC given by the manufacturer is 3 mA, while the minimum slew rate is 0.4 V/us. Its minimum voltage gain is 20000. The power of 5962F0254201QXC is NO. Its programmable power is NO. The nominal supply voltage of 5962F0254201QXC is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of 5962F0254201QXC is 10000 µV (input offset voltage: the compensation voltage between the two input terminals required to make the output terminal of the operational amplifier 0V (or close to 0V).) The width of 5962F0254201QXC is: 6.285 mm. Related dimensions of 5962F0254201QXC: 5962F0254201QXC has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 14 5962F0254201QXC amplifier additional information: 5962F0254201QXC adopts the VOLTAGE-FEEDBACK architecture. It is not a low-bias amplifier. It does not belong to the low offset class of amplifiers. The frequency compensation status of 5962F0254201QXC is: YES. Its temperature grade is: MILITARY. It is a micropower amplifier. The corresponding JESD-30 code is: R-CDFP-F14. The corresponding JESD-609 code is: e4. The packaging code of 5962F0254201QXC is: DFP. The materials used in the 5962F0254201QXC package are mostly CERAMIC, METAL-SEALED COFIRED. The package shape is RECTANGULAR. The 5962F0254201QXC package pin format is: FLATPACK. Its terminal form is: FLAT. The maximum seat height is 2.92 mm.; CategoryAnalog mixed-signal IC Amplifier circuit; File Size123KB，2 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/; Related ProductsFound5parts with similar functions to 5962F0254201QXC; Alternative parts：5962F0254201QXC

Download Datasheet Parametric Compare View All

5962F0254201QXC Overview

5962F0254201QXC amplifier basic information:

5962F0254201QXC is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are DFP, FL14,.25

5962F0254201QXC amplifier core information:

The minimum operating temperature of 5962F0254201QXC is -55 °C and the maximum operating temperature is 125 °C. Maximum bias current at 25°C: 0.4 µA Maximum average bias current is 0.4 µA

The maximum slew rate of the 5962F0254201QXC given by the manufacturer is 3 mA, while the minimum slew rate is 0.4 V/us. Its minimum voltage gain is 20000. The power of 5962F0254201QXC is NO. Its programmable power is NO.

The nominal supply voltage of 5962F0254201QXC is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of 5962F0254201QXC is 10000 µV (input offset voltage: the compensation voltage between the two input terminals required to make the output terminal of the operational amplifier 0V (or close to 0V).) The width of 5962F0254201QXC is: 6.285 mm.

Related dimensions of 5962F0254201QXC:

5962F0254201QXC has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 14

5962F0254201QXC amplifier additional information:

5962F0254201QXC adopts the VOLTAGE-FEEDBACK architecture. It is not a low-bias amplifier. It does not belong to the low offset class of amplifiers. The frequency compensation status of 5962F0254201QXC is: YES. Its temperature grade is: MILITARY.

It is a micropower amplifier. The corresponding JESD-30 code is: R-CDFP-F14. The corresponding JESD-609 code is: e4. The packaging code of 5962F0254201QXC is: DFP. The materials used in the 5962F0254201QXC package are mostly CERAMIC, METAL-SEALED COFIRED.

The package shape is RECTANGULAR. The 5962F0254201QXC package pin format is: FLATPACK. Its terminal form is: FLAT. The maximum seat height is 2.92 mm.

5962F0254201QXC Parametric

Parameter Name	Attribute value
Parts packaging code	DFP
package instruction	DFP, FL14,.25
Contacts	14
Reach Compliance Code	compli
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.4 µA
Maximum bias current (IIB) at 25C	0.4 µA
Nominal Common Mode Rejection Ratio	70 dB
frequency compensation	YES
Maximum input offset voltage	10000 µV
JESD-30 code	R-CDFP-F14
JESD-609 code	e4
low-bias	NO
low-dissonance	NO
micropower	YES
Negative supply voltage upper limit	-17.5 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	4
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Encapsulate equivalent code	FL14,.25
Package shape	RECTANGULAR
Package form	FLATPACK
power	NO
power supply	+-5/+-15/10/30 V
Programmable power	NO
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class Q
Maximum seat height	2.92 mm
minimum slew rate	0.4 V/us
Maximum slew rate	3 mA
Supply voltage upper limit	17.5 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BICMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
total dose	300k Rad(Si) V
Minimum voltage gain	20000
broadband	NO
width	6.285 mm
Base Number Matches	1

Preview

Download Datasheet

View All

ISL7124SRH

Data Sheet

September 2002

FN9090

Single-Event Hardened, Single Supply,

Quad Operational Amplifier

The single-event radiation hardened ISL7124SRH consists

of four independent, high gain, internally frequency

compensated operational amplifiers, specifically designed to

operate from a single power supply over a wide range of

voltages. The device is functionally equivalent to industry

standard 124 types, offering improvements in supply current

and power supply rejection ratio.

Constructed with Intersil’s dielectrically isolated, radiation

hardened silicon gate (RSG) BiCMOS process, these

devices are immune to single event latchup. Additionally, the

design has been hardened to prevent single event transients

(SETs) in excess of 1V for LETs up to 36MeV/mg/cm

The ISL7124SRH has been specifically designed and

manufactured to provide highly reliable performance in

harsh radiation environments. It is total dose hardened to

300krad(Si) and offers guaranteed performance over the full

-55C to +125C military temperature range.

Specifications for Rad Hard QML devices are controlled

by the Defense Supply Center in Columbus (DSCC). The

SMD numbers listed here must be used when ordering.

Detailed Electrical Specifications for these devices are

contained in SMD 5962-02542. A “hot-link” is provided

on our website for downloading.

Features

• QML Qualified per MIL-PRF-38535 Requirements

• Electrically Screened to DSCC SMD # 5962-02542

• Radiation Environment

- Total Dose. . . . . . . . . . . . . . . . . . . . . . 300krad(Si)(Max)

- Latch-Up Immune

- SET Threshold (Delta Vo<1V) . . . 36MeV/mg/cm

(Min)

• Single Supply Voltage Range (5V to 30V)

• Input Common Mode Voltage Range Includes Ground

• Input Offset Voltage . . . . . . . . . . . . . . . . . . +/-10mV(Max)

• Input Offset Current . . . . . . . . . . . . . . . . . . +/-150nA(Max)

• Input Bias Current . . . . . . . . . . . . . . . . . . . . . 400nA(Max)

• Open Loop Voltage Gain . . . . . . . . . . . . . . . 20V/mV(Min)

• Power Supply Rejection Ratio . . . . . . . . . . . . . .70dB(Min)

• Common Mode Rejection Ratio . . . . . . . . . . . . .70dB(Min)

• ESD (HBM) . . . . . . . . . . . . . . . . . . . . . . . . . . .3000V(Min)

Applications

• Single Supply Operation of Op-Amp Circuits

• General Analog Signal Processing

Ordering Information

ORDERING NUMBER

5962F0254201VXC

INTERNAL

MKT. NUMBER

ISL7124SRHVF

ISL7124SRHQF

ISL7124SRHF/Proto

TEMP. RANGE

(

-55 to 125

Pinout

ISL7124SRHF (FLATPACK CDFP3-F14)

TOP VIEW

OUT 1

-IN 1

+IN 1

+IN 2

-IN 2

OUT 2

OUT 4

-IN 4

+IN 4

-V

+IN 3

-IN 3

OUT 3

5962F0254201QXC

ISL7124SRHF/Proto

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 321-724-7143

Intersil (and design) is a registered trademark of Intersil Americas Inc.

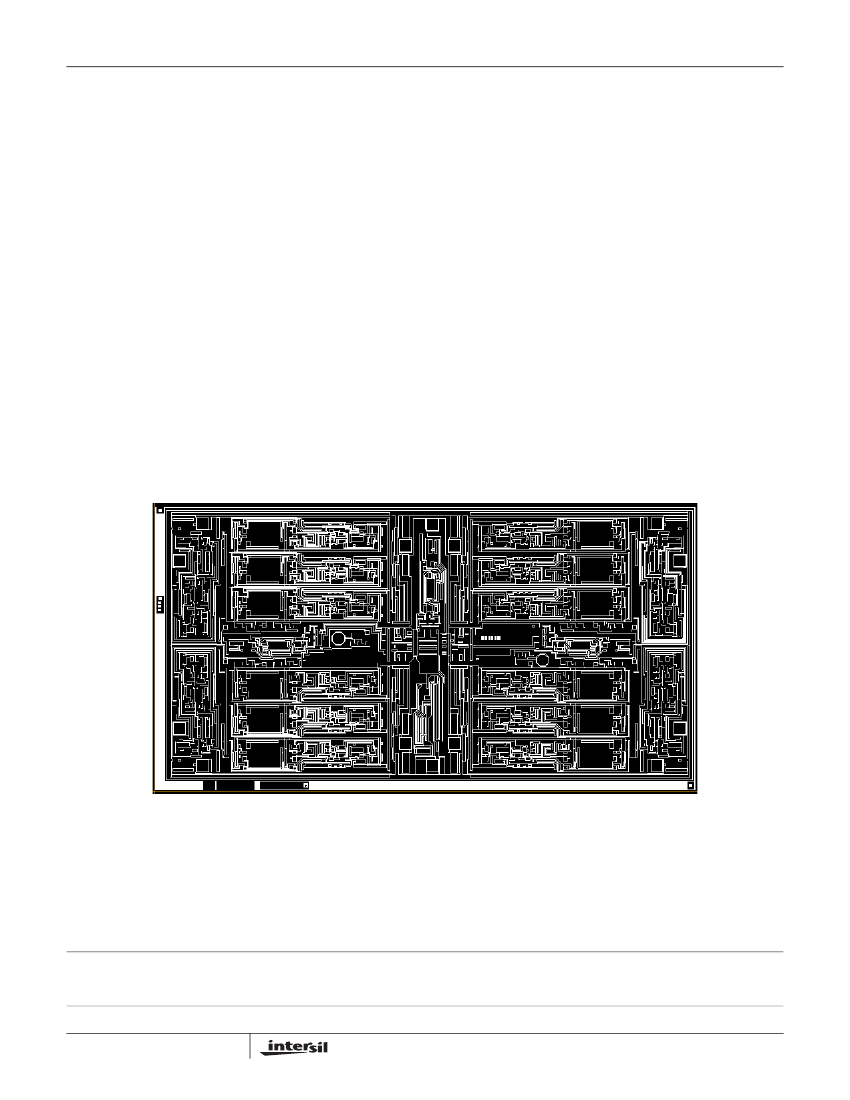

5962F0254201QXC Related Products

	5962F0254201QXC	5962F0254201VXC
Description	QUAD OP-AMP, 10000uV OFFSET-MAX, CDFP14, CERAMIC, GREEN, DFP-14	QUAD OP-AMP, 10000uV OFFSET-MAX, CDFP14, CERAMIC, DFP-14
Parts packaging code	DFP	DFP
package instruction	DFP, FL14,.25	DFP, FL14,.25
Contacts	14	14
Reach Compliance Code	compli	compli
ECCN code	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.4 µA	0.4 µA
Maximum bias current (IIB) at 25C	0.4 µA	0.4 µA
Nominal Common Mode Rejection Ratio	70 dB	70 dB
frequency compensation	YES	YES
Maximum input offset voltage	10000 µV	10000 µV
JESD-30 code	R-CDFP-F14	R-CDFP-F14
JESD-609 code	e4	e4
low-bias	NO	NO
low-dissonance	NO	NO
micropower	YES	YES
Negative supply voltage upper limit	-17.5 V	-17.5 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of functions	4	4
Number of terminals	14	14
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DFP
Encapsulate equivalent code	FL14,.25	FL14,.25
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK
power	NO	NO
power supply	+-5/+-15/10/30 V	+-5/+-15/10/30 V
Programmable power	NO	NO
Certification status	Not Qualified	Not Qualified
Filter level	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class V
Maximum seat height	2.92 mm	2.92 mm
minimum slew rate	0.4 V/us	0.4 V/us
Maximum slew rate	3 mA	3 mA
Supply voltage upper limit	17.5 V	17.5 V
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	YES	YES
technology	BICMOS	BICMOS
Temperature level	MILITARY	MILITARY
Terminal surface	GOLD	Gold (Au)
Terminal form	FLAT	FLAT
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
total dose	300k Rad(Si) V	300k Rad(Si) V
Minimum voltage gain	20000	20000
broadband	NO	NO
width	6.285 mm	6.285 mm
Base Number Matches	1	1
