DATA SHEET
PART NO. : PL-IRM0206-A538
REV : A / 4
CUSTOMER’S APPROVAL : _______________
DCC : ____________
DRAWING NO. : DS-27-03-0004
DATE : 2010-06-28
Page : 1
PARA-FOR-065
INFRARED REMOTE CONTROL RECEIVER MODULE
PL-IRM0206-A538

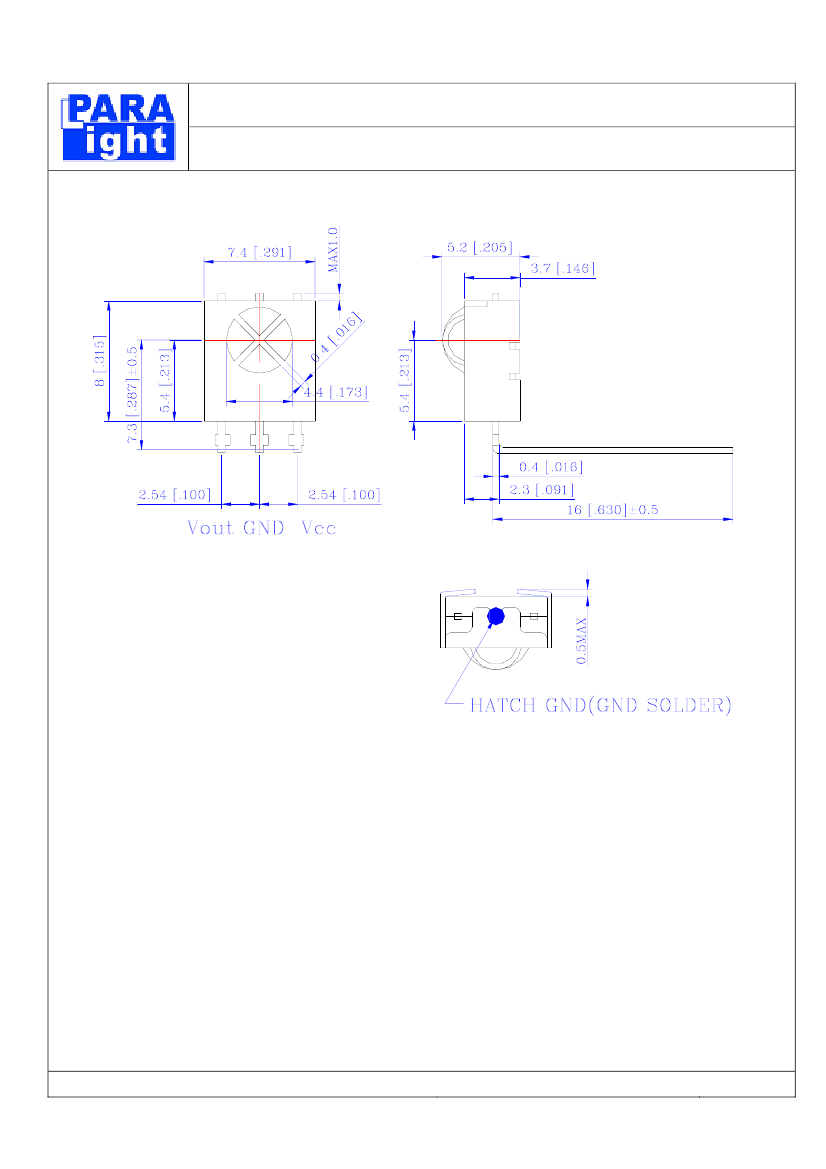

PACKAGE DIMENSIONS
REV:A / 4
NOTES :
1. All dimensions are in millimeters.
2. Tolerance is
±
0.25(0.010") unless otherwise specified
DRAWING NO. : DS-27-03-0004
PARA-FOR-068
DATE : 2010-06-28
Page : 2
INFRARED REMOTE CONTROL RECEIVER MODULE
PL-IRM0206-A538
FEATURES
ONE MOLD SMALL PACKAGE
5VOLT SUPPLY VOLTAG,LOW POWER CONSUMPTION
SHEILDED AGAINST ELECTRICAL FIELD DISTURBANCE
REV:A / 4
ABSOLUTE MAXIMUM RATING : ( Ta = 25°C )
SYMBOL
Vcc
Tstg
Topr
Tsol
Supply Voltage
Storage Temperature Range
Operating Temperature Range
Solding Temperature
PARAMETER
ULTRA CONDITION UNIT
5.5
－25to
85
－25to
85
250(MAX 8sec)
V
℃
℃
℃
Lead manual solding temperature
½1.6mm（0.063inch）from
body½350℃max for 3 seconds.
ELECTRO-OPTICAL CHARACTERISTICS : ( Ta = 25℃)
SYMBOL
Vcc
Icc
λ
P
fo
L
Voh
Vol
Twh
Twl
PARAMETER
Supply Voltage
Current Consumption
Peak Emission Wavelength
B.P.F Center Frequency
Arrival Distance
H Level Output Voltage
L Level Output Voltage
H Level Output Pulse Width
L Level Output Pulse Width
Output Form
L-514EIR1C
0°
±30°
4.5
0.1
400
400
600
600
0.5
800
800
Input sigal=0
940
38
35
9
CONDITION
MIN. TYP. MAX. UNIT
4.5
5
2.5
V
mA
nm
KHz
m
m
V
V
μs
μs
30cm over the axis
Burst wave=600μs
Period=1.2ms
Active low output
Arrival light source: Detecting surface illumination shall be irradiate 200Lux under ordinary white
fluorescence lamp without high frequency lightening.
DRAWING NO. : DS-27-03-0004
PARA-FOR-068
DATE : 2010-06-28
Page : 3
INFRARED REMOTE CONTROL RECEIVER MODULE
PL-IRM0206-A538
BLOCK DIAGRAM
VS
REV:A / 4
IN
INPUT
CGA
＆FILTER
OUT
DEMODULATOR
us
OSCILLATOR
AGC/ATC＆DIGITAL CONTROL
G ND
TRANSMIT SIGNAL (CARRIER FREQUENCY=fo)
μ
μ
DATA TRANSMISSION RATE,Vs=5V
5000
4000
3000
(bit/s)
2000
1500
1000
0
25.0
35.0
45.0
55.0
fo(KHz)
65.0
75.0
85.0
DRAWING NO. : DS-27-03-0004
PARA-FOR-068
DATE : 2010-06-28
Page :4
INFRARED REMOTE CONTROL RECEIVER MODULE
PL-IRM0206-A538
ILLUSTRATION OF USED TERMS
600us
600us
8
8
REV:A / 4
IN
1
8
t
D O N
t
D O F F
600us
600us
OUT
E N V E LO P E 1
E N V E LO P E 2
E N V E LO P E 2 3
2 7 6 0 0 u s/D A T A W O R D
OUT
D A TA W O R D
T E LE G R A M P A U S E
D A TA W O R D
t
2 7 .6 m s
T rep =6 2 m s

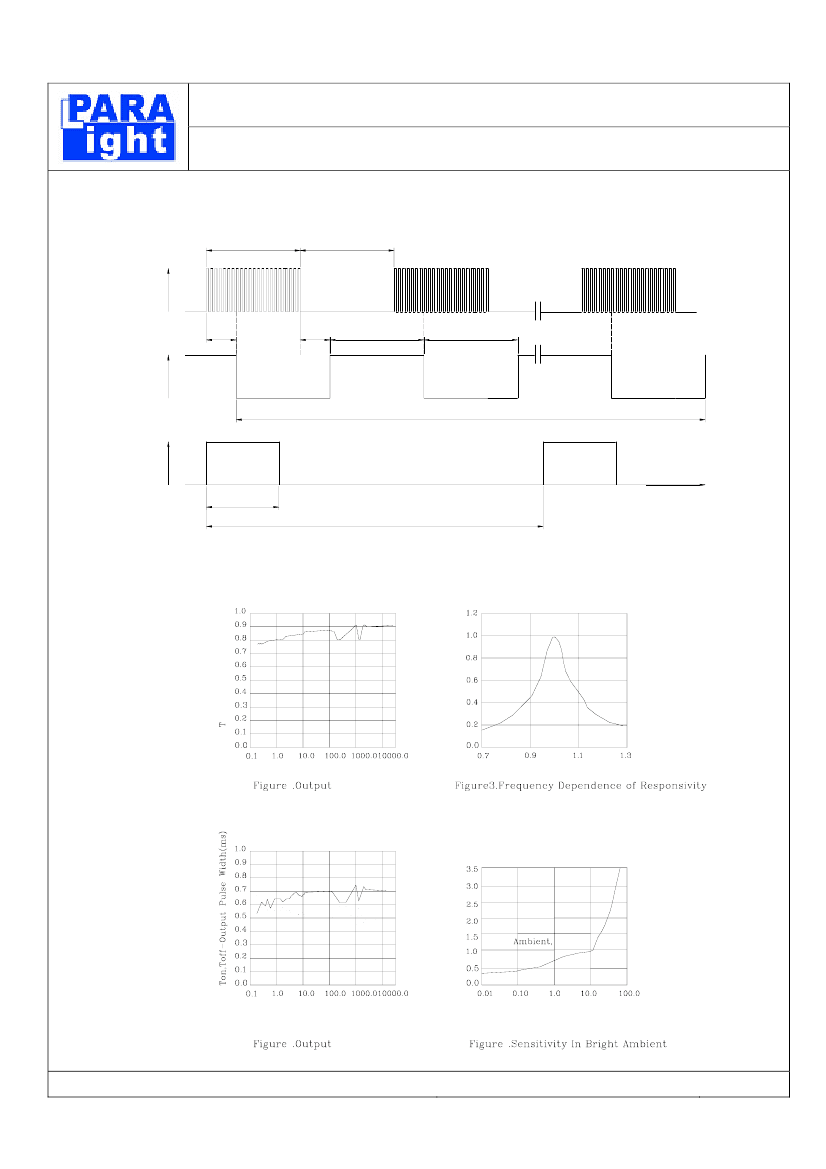

TYPICAL CHARACTERISTICS（Ta=25℃unless otherwise specified）
po-Output Pulse Width(ms)
Eemin/Ee-Rel.Responsivity
λ=940nm
optical test signal,fig1
f=fo±5%
△f(3dB)=fo/10
Ee-Irradiance(mW/㎡)
f/fo-Relative Frequency
1
Pulse Diagram
λ=940nm
optical test signal,fig3
Eemin-Threshold Irradiance(mW/㎡)
λ=940nm
Ee-Irradiance(mW/㎡)
E-Ambient DC Irradiance(mW/㎡)
2
Pulse Diagram
4
DRAWING NO. : DS-27-03-0004
PARA-FOR-068
DATE : 2010-06-28
Page : 5
