518-13-296-69-129008: DescriptionIC Socket, PGA296, 296 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size206KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

518-13-296-69-129008 Overview

IC Socket, PGA296, 296 Contact(s), ROHS COMPLIANT

518-13-296-69-129008 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PGA SOCKET
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Gold (Au)
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	PGA296
Shell material	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER
JESD-609 code	e4
Number of contacts	296

Preview

Download Datasheet

View All

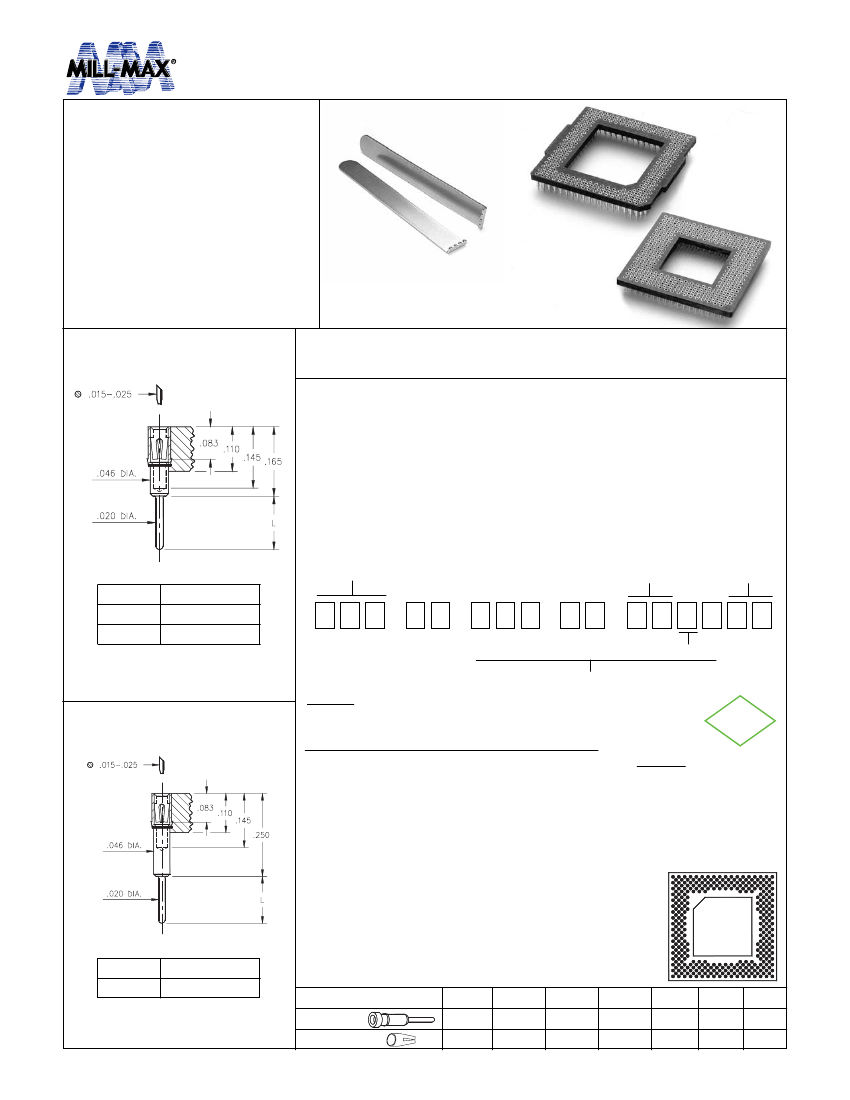

PIN GRID ARRAY SOCKETS

Optional Tabs for Clip-on Heatsink**

Interstitial Pattern

•

Series 518 Interstitial PGA

sockets are available with and

without tabs for clip-on heatsinks.

•

Mill-Max #43, “Ultra-Lite” contact

standard, see page 209 for

details.

•

Hi-Temp PCT polyester insulator

material suitable for all forms of

soldering.

•

A pry-bar tool is available for

extraction (part # 828-01-010).

Series 518

SOLDER TAIL SOCKET PIN

(Without Heatsink Tabs)

Ordering Information

Interstitial configurations are a .100” grid pattern overlapped with a second,

staggered .100” grid pattern thus doubling the package density of the socket.

1. Locate interstitial footprint pattern from pages 107 to 111, the middle 8

digits of the part number will be located under the pattern.

2. Specify 2-digit plating code from chart at bottom of page.

3. Determine the last 2 digits of part number from the pin type at left.

For sockets with heatsink tabs, see chart

“A”

below for pin options.

Pin Type

For L = .125”

For L = .145”

For L = .100”

Series

Plating

Code

Window

Pin Type

5 1 8

No. of pins

Grid size

Pattern #

PIN 08 IS USED EXCLUSIVELY IN

CERTAIN PATTERNS. SEE

CHART “A”.

Determined from footprint pattern pages 107 to 111

CHART

FOOTPRINT

HEATSINK

PATTERN

MFG.

TYPE

296-19-126

THERMALLOY

04, 06

NOTE**

296-19-127

THERMALLOY

04, 06

Designed to work with:

320-19-126

THERMALLOY

04, 06

THERMALLOY

296-19-128

WAKEFIELD

04, 06

WAKEFIELD

296-69-129008 SEE NOTE**

08 ONLY

AAVID

320-69-129008 SEE NOTE**

08 ONLY

IERC

387-01-016508 SEE NOTE**

08 ONLY

heatsinks & clips.

EXAMPLE OF COMPLETE PART NUMBER:

518-43-325-18-105003

This is a 325 pin interstitial (11x11 grid) insulator with a

1.00” square window and fitted with standard solder tail

receptacles. Pin sleeve is tin plated, inner contacts are

Mill-Max #43 and are plated 30μ” gold.

SPECIFY PLATING CODE XX=

SOLDER TAIL SOCKET PIN

(With Heatsink Tabs)

Pin Type

For L = .080”

For L = .115”

PIN 08 IS USED EXCLUSIVELY IN

CERTAIN PATTERNS. SEE

CHART “A”.

10µ” Au

30µ” Au

10µ” Au

30µ” Au

200µ”Sn/Pb

10µ” Au

Sleeve (Pin)

Contact (Clip)

200µ” Sn/Pb

200µ”Sn/Pb 200µ”Sn

200µ”Sn

30µ” Au

200µ”Sn

w w w. m i l l - m a x . c o m

103

516-922-6000

518-13-296-69-129008 Related Products

	518-13-296-69-129008	518-13-387-01-016008	518-13-320-69-129008	RIAN08TTE223GCDT	RIAN08TTE223GCGY	1N4006-HF	518-93-387-01-016008
Description	IC Socket, PGA296, 296 Contact(s), ROHS COMPLIANT	IC Socket, PGA387, 387 Contact(s),	IC Socket, PGA320, 320 Contact(s), ROHS COMPLIANT	Array/Network Resistor, Isolated, Thin Film, 0.05W, 22000ohm, 100V, 2% +/-Tol, -50,50ppm/Cel, 1915,	Array/Network Resistor, Isolated, Thin Film, 0.05W, 22000ohm, 100V, 2% +/-Tol, -50,50ppm/Cel, 1915,	Rectifier Diodes	IC Socket, PGA387, 387 Contact(s),
Is it lead-free?	Lead free	Lead free	Lead free	-	-	-	Contains lead
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	-	incompatible
Maker	Mill-Max	Mill-Max	Mill-Max	-	-	-	Mill-Max
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	-	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	-	-	EAR99
Other features	PGA SOCKET	PGA SOCKET	PGA SOCKET	HIGH PRECISION	HIGH PRECISION	-	PGA SOCKET
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (100)	-	-	-	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Gold (Au)	Gold (Au)	Gold (Au)	-	-	-	Tin/Lead (Sn/Pb)
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-	-	NOT SPECIFIED
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	-	-	-	IC SOCKET
Type of equipment used	PGA296	PGA387	PGA320	-	-	-	PGA387
Shell material	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER	-	-	-	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER
JESD-609 code	e4	e4	e4	e3	e3	-	e0
Number of contacts	296	387	320	-	-	-	387
