55299-0601: DescriptionBoard Stacking Connector, 60 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size472KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

55299-0601 Overview

Board Stacking Connector, 60 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Plug

55299-0601 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	55299
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	60
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

s

Stacking height: 3.00mm (.118")

s

Sizes 100 and 140 circuits

s

Locking feature provides secure mating

s

Metal solder tabs provide PCB hold-down and

strain relief for SMT tails

s

Durable blade on beam contact interface

s

Anti-ﬂux design

Reference Information

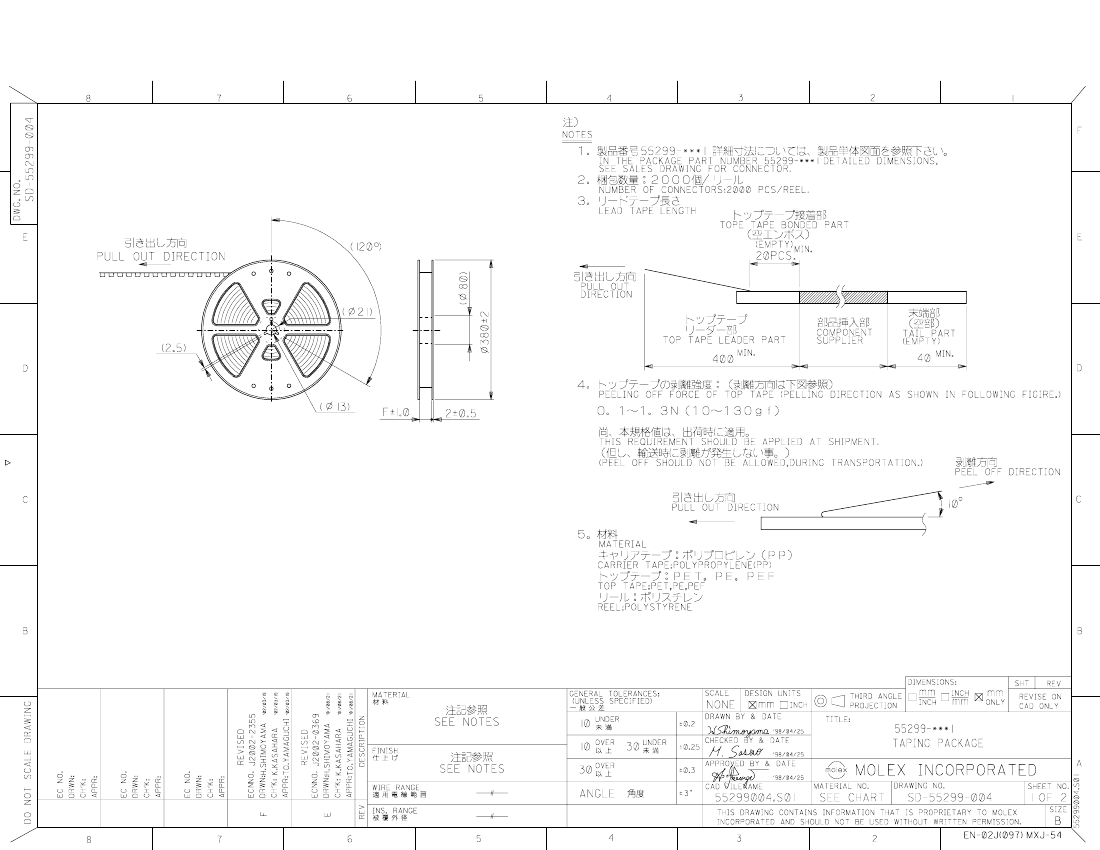

Packaging: Embossed

Mates With:

54363

Designed In: Millimeters

Mating Dimensions

55299/54363

H=3.00mm (.118")

W=5.00mm (.197")

Physical

Housing: Black glass-filled LCP, UL 94V-0

Contact: Copper Alloy

Plating: Gold over Nickel

Solder Tab: Copper Alloy, Tin/Lead over Copper plating

Operating Temperature: -25 to +85

˚

C

H

W

* Total current must not exceed 10A max.

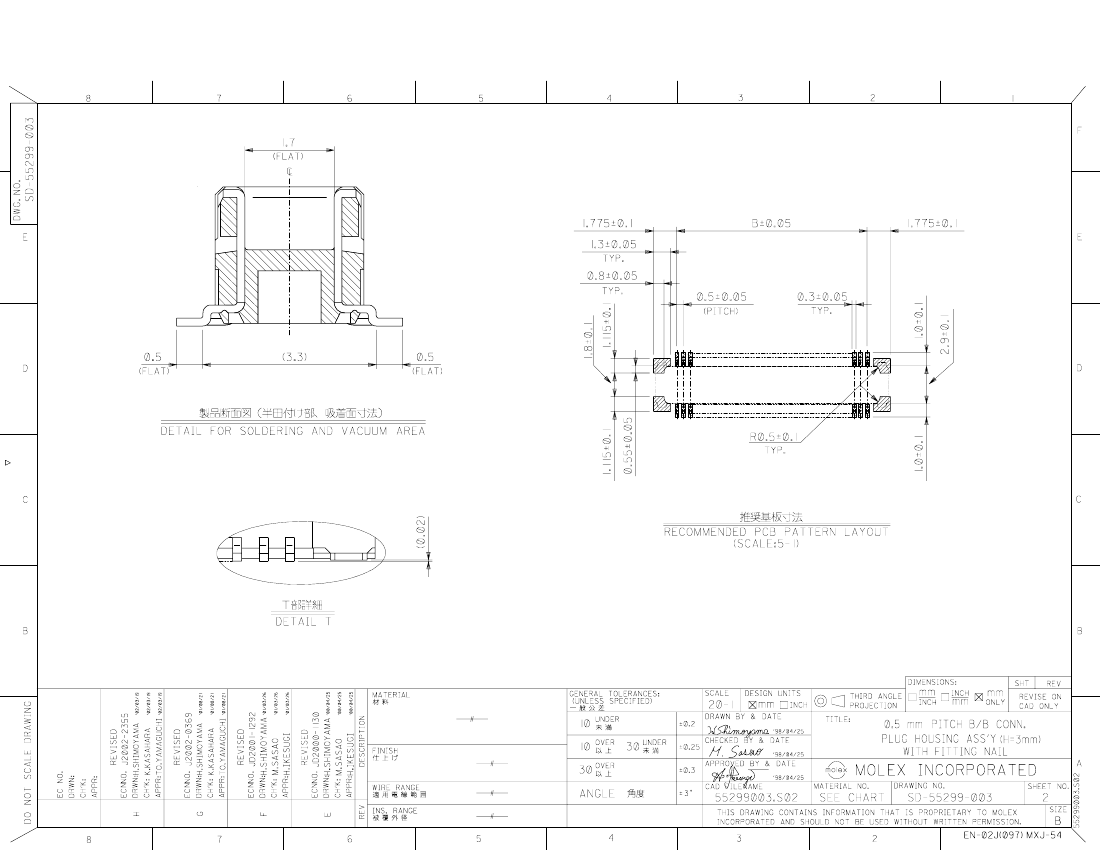

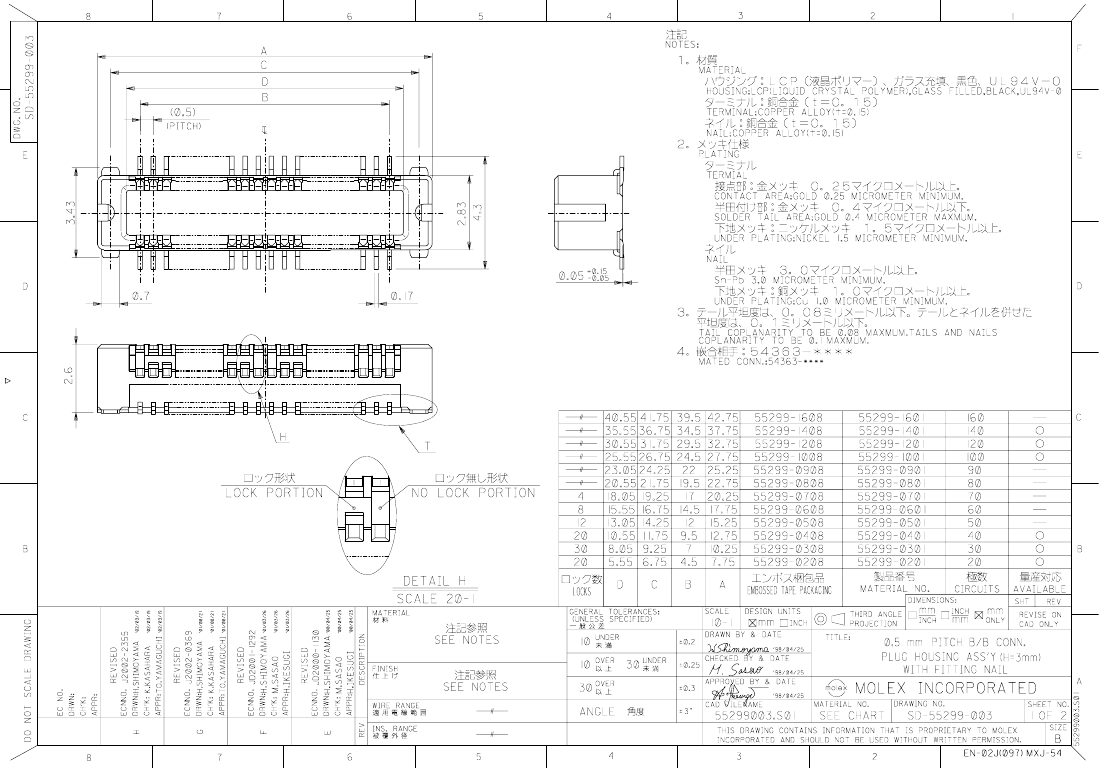

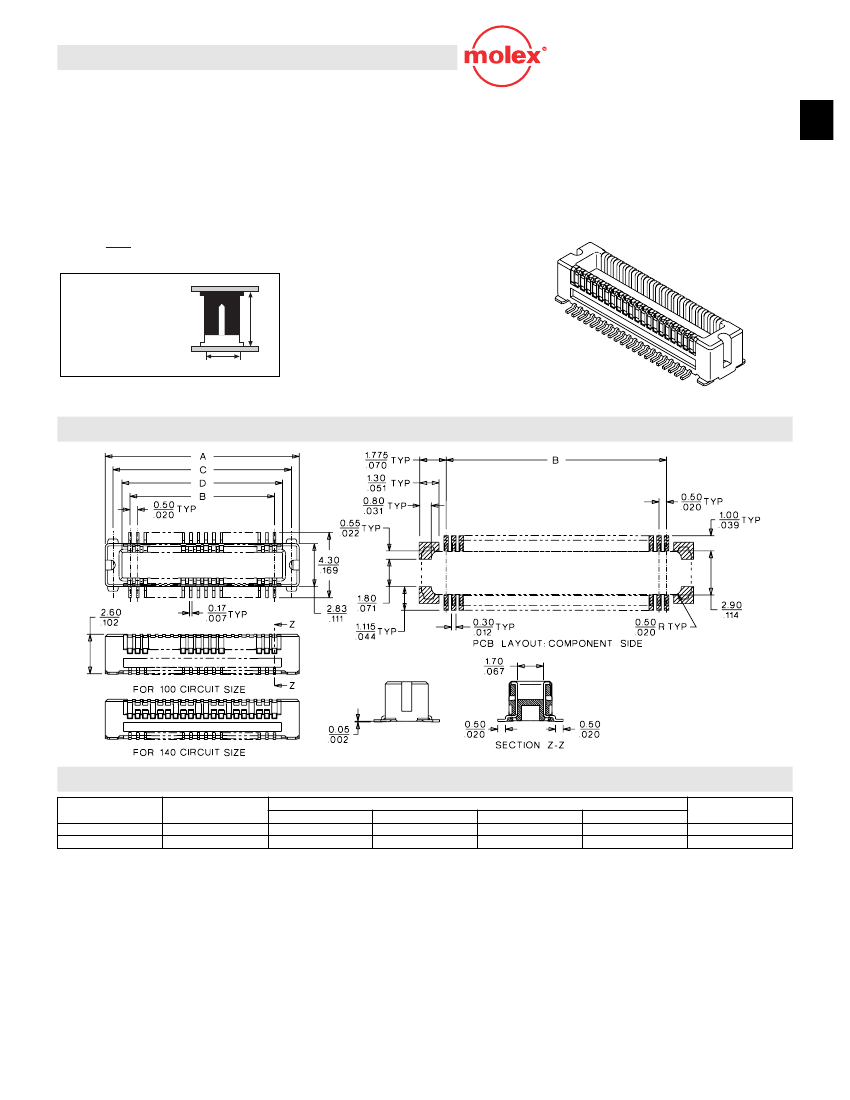

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

100

140

Order No.

55299-1008

55299-1408

Dimension

A

27.75 (1.093)

37.75 (1.486)

B

24.50 (.965)

34.50 (1.358)

C

26.75 (1.053)

36.75 (1.447)

D

25.55 (1.006)

35.55 (1.400)

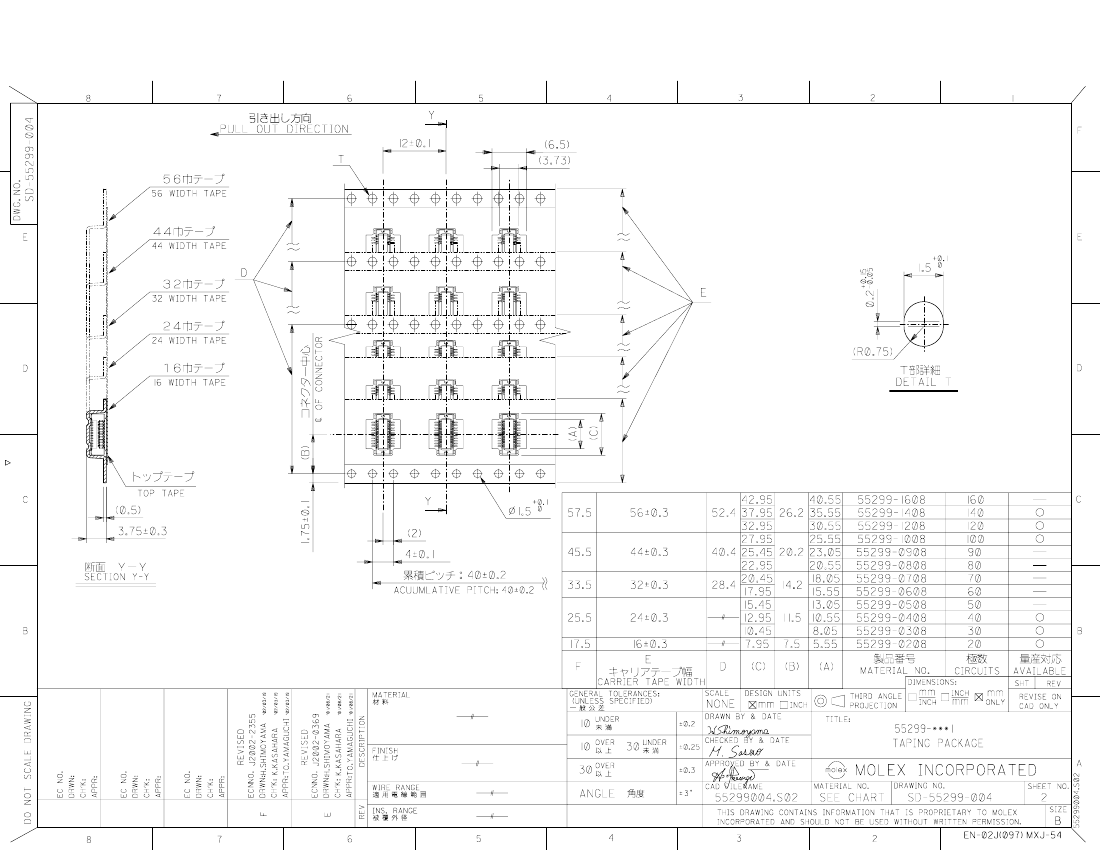

Tape Width

44.00 (1.732)

56.00 (2.205)

MX01

A-17

0.40 to 1.60mm (.016 to .063") Pitch

Electrical

Voltage: 50V

Current: 0.5A*

Contact Resistance: 50m

Ω

max.

Dielectric Withstanding Voltage: 125V AC/1 min.

Insulation Resistance: 100 M

Ω

min.

0.50mm (.020") Pitch

Board-to-Board

Plug

55299

SMT, Dual Row

Vertical Stacking

A
