Printed Circuit Board Connectors
Surface Mount Micro-D
– These connectors feature .025 inch
terminal spacing and an alignment strip for accurate registration. The
integral mounting legs provide a ground path.
9 To 51 Contacts
– These compact connectors are lighter and
smaller than comparable thru-hole versions.
Mil Spec Reliability
– Suitable for mission-critical requirements,
These high performance connectors meet the requirements of
MIL-DTL-83513.

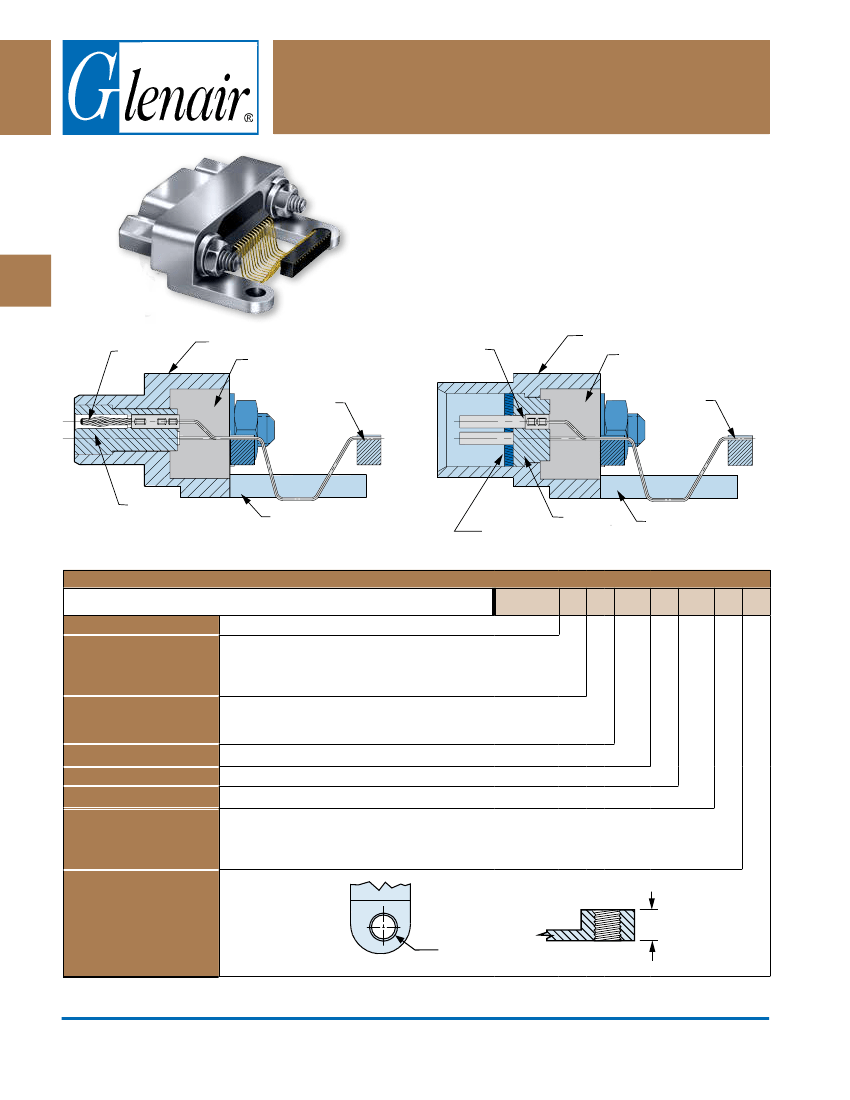

TwistPin
Contact
Aluminum Shell
Epoxy Potting
Plastic
Alignment
Strip
Socket
Contact
Aluminum Shell
Epoxy Potting
Plastic
Alignment
Strip
Micro-D MWDM-SMR
Surface Mount Right Angle
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
INDEX
© 2013 Glenair, Inc.
Micro-D PCB
Insulator
Integral Mounting Leg
Pin Connector
Sample Part Number
Series
Shell Material
and Finish
MWDM
Glenair Micro-D
Aluminum–Shell
1
- Cadmium
4
- Black Anodize
6
- Chem Film
2
- Nickel
5
- Gold
Flourosilicone
Interfacial Seal
Insulator
Integral Mounting Leg
Socket Connector
2
l
51-2
P
SMR
P
N
How To Order Surface Mount PCB Micro-D Connectors
MWDM
Stainless Steel Shell
3
- Passivated
Insulator Material
Contact layout
Contact Type
Termination Type
Jackpost or
Jackscrew Option
l
– LCP or PPS
LCP - 30% Glass-Filled Liquid Crystal Polymer/
PPS - 40% Glass Filled Polyphenylene Sulfide
9, 15, 21, 25, 31, 37, 51-2
(See Table I)
P
- Pin
S
- Socket
SMR
- Surface Mount Right Angle
N
- Thru-Hole
P
- Jackpost
M
- Jackscrew, Hex Head
T
- Threaded Insert
N
- Thru-Hole, No Insert
T
- Threaded Inserts
Jackposts for Rear Panel Mounting
R1
– .032” Panel
R4
– .093” Panel
R2
– .047” Panel
R5
– .125 Panel
R3
– .062” Panel
R6
– .080” Panel
Board Mounting Threaded
Insert Option
#2-56 Insert
.160 (4.06) Max
High Performance Micro-D Connectors and Cables
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-28
E-Mail: sales@glenair.com

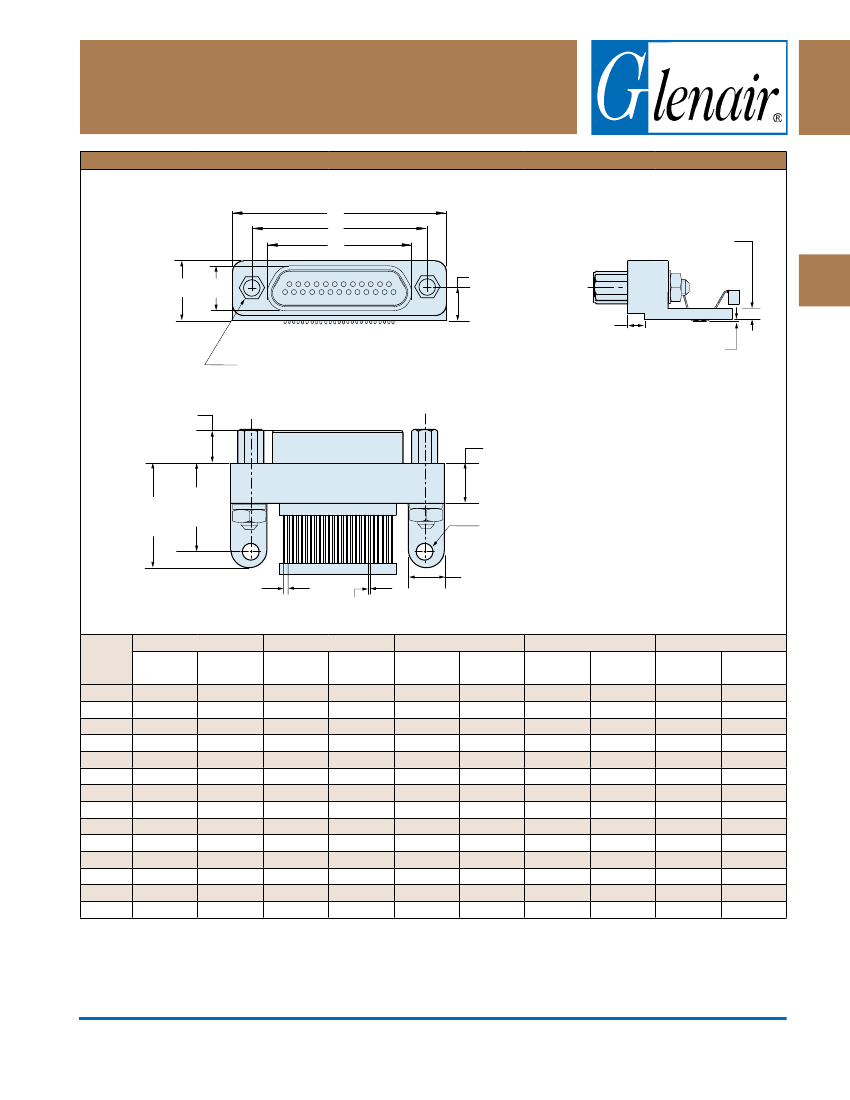

Dimensions
Table I: Dimensions
A
.070 Max
A
B
C
.324 (8.23)
D
.177 (4.50)
B
C
D
E
F
G
H
J
.094 (2.39)
JACKPOST, THREADED INSERT: #2-56 UNC-2B THREADS
THRU-HOLE: .096 ± .005 (2.43 ± 0.13
)
F
.224
(5.69)
.008±.005 (0.20± 0.08)
.581
(14.76)
.492
(12.47)
.093 ± .005
(2.36 ± 0.13)
.200 (5.08) TYP
Ø.008 ± .001 (0.20 ± 0.03)
B
mm.
19.94
.025 (0.64) TYP
A Max.
Layout
9P
9S
15P
15S
21P
21S
In.
.785
.785
.935
.935
1.085
1.085
1.185
1.185
1.335
1.335
1.485
1.485
1.840
1.840
In.
±.005
.565
.565
.715
.715
.865
.865
.965
.965
1.115
1.115
1.265
1.265
1.615
1.615
C Max.
mm.
± 0.13
14.35
14.35
18.16
18.16
21.97
21.97
24.51
24.51
28.32
28.32
32.13
32.13
41.02
41.02
In.
.333
.400
.483
.551
.633
.701
.733
.801
.883
.951
1.033
1.101
1.375
1.444
mm.
8.46
10.16
12.27
14.00
16.08
17.81
18.62
20.35
22.43
24.16
26.24
27.96
34.93
36.68
In.
.184
.250
.184
.250
.184
.250
.184
.250
.184
.250
.184
.250
.184
.250
D Max.
mm.
4.67
6.35
4.67
6.35
4.67
6.35
4.67
6.35
4.67
6.35
4.67
6.35
4.67
6.35
In.
±.003
.183
.195
.183
.195
.183
.195
.183
.195
.183
.195
.183
.195
.183
.195
F
mm.
± 0.08
4.65
4.95
4.65
4.95
4.65
4.95
4.65
4.95
4.65
4.95
4.65
4.95
4.65
4.95
K
L
M
N
P
Q
INDEX
19.94
23.75
23.75
27.56
27.56
30.01
30.01
33.91
33.91
37.72
37.72
46.74
46.74
25P
25S
31P
31S
37P
37S
51-2P
51-2S
© 2013 Glenair, Inc.
High Performance Micro-D Connectors and Cables
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-29
E-Mail: sales@glenair.com
Micro-D PCB
Micro-D MWDM-SMR
Surface Mount Right Angle
Micro-D MWDM-SMR
Surface Mount Right Angle
Hardware
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
INDEX
© 2013 Glenair, Inc.
Current Rating
DWV
Insulation Resistance
Contact Resistance
Low Level Contact Resist.
Magnetic Permeability
Operating Temperature
Shock, Vibration
Mating Force
Micro-D PCB

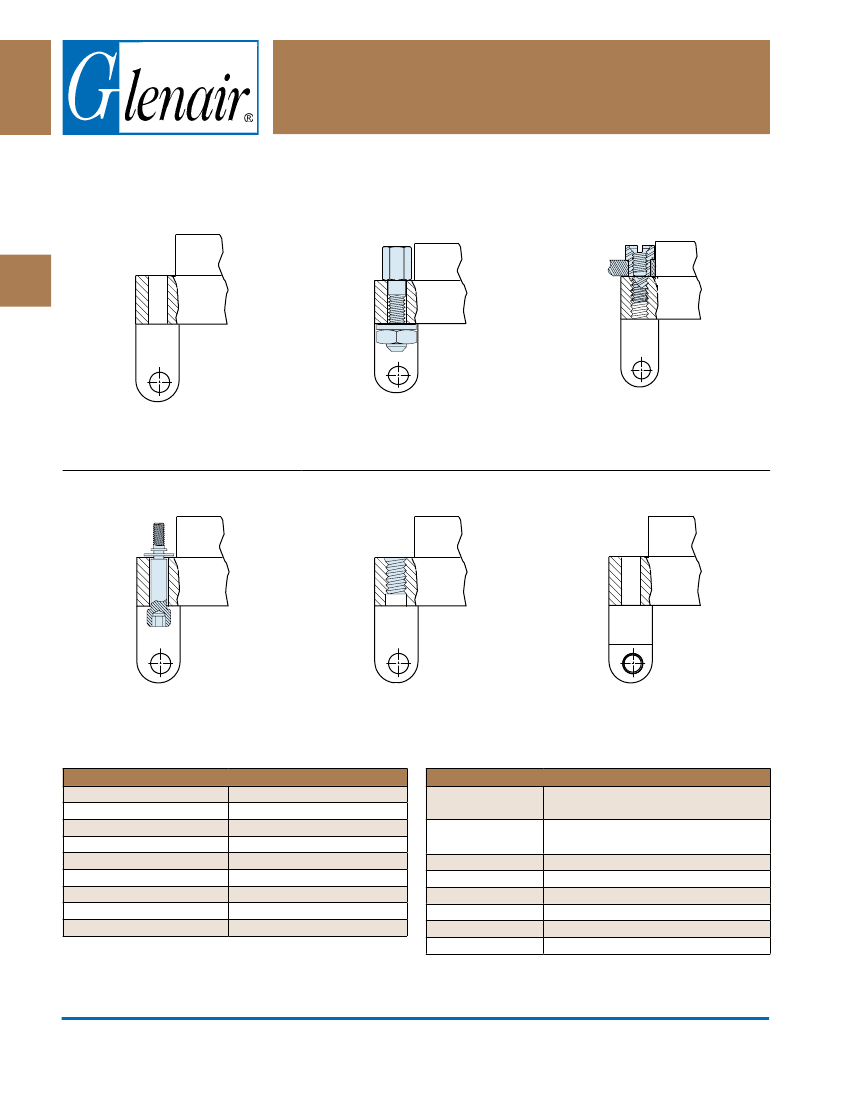

Surface Mount MICRO-D Hardware Options
N
P
R1 Thru R6
Thru-Hole
No jackpost supplied
Standard Jackpost
Factory installed with nut and lockwasher
Jackpost for Rear Panel Mounting
Shipped loosely installed. Install with permanent
threadlocking compund.
M
T
T
Jackscrew, Hex Drive
Attached with e-ring
Threaded Insert
#2-56 Thread
Board Mount Threaded Insert
Performance Specifications
1 AMP
600 VAC Sea level
5000 Megohms Minimum
8 Milliohms Maximum
32 Milliohms Maximum
2
µ
Maximum
-55° C. to +150° C.
50 g., 20g.
(10 Ounces) X (# of Contacts)
Connector Shell
Insulators
Interfacial Seal
Pin Contact
Socket Contact
PCB Terminals
Hardware
Encapsulant
Materials And Finishes
Aluminum Alloy 6061.See Ordering Info for
Plating Options
Liquid Crystal Polymer (LCP)/Polyphenylene
Sulfide (PPS)
Fluorosilicone Rubber, Blue
Beryllium Copper Gold over Nickel Plating
Copper Alloy Gold Over Nickel Plating
Gold Plated Copper Alloy, Solder Dipped
300 Series Stainless Steel
Epoxy Resin Hysol EE4215
High Performance Micro-D Connectors and Cables
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-30
E-Mail: sales@glenair.com
PCB layouts
SMR Surface Mount Connector PCB layouts
FRONT OF CONNECTOR FLANGE
A
B
.025 (0.64) TYP
.492(12.47)
Suggested Printed Circuit Board Layout
.174
(4.42)
.012 (0.30
Ø.093
(2.36)
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
INDEX
9 Contacts
5 9 4 8 3 7 2 6 1
Socket
.160 (4.06)
.017 (0.43)
1 6 2 7 3 8 4 9 5
A
Pin
15 Contacts
8 15 7 14 6 13 5 12 4 11 3 10 2 9 1
Socket
Layout
9
15
21
A
In.
.565
.715
.865
.965
1.115
1.265
1.615
mm.
14.35
18.16
21.97
24.51
28.32
32.13
41.02
In.
.200
.350
.500
.600
.750
.900
1.250
B
mm.
5.08
8.89
12.70
15.24
19.05
22.86
31.75
1 9 2 10 3 11 4 12 5 13 6 14 7 15 8
Pin
21 Contacts
11 21 10 20 9 19 8 18 7 17 6 16 5 15 4 14 3 13 2 12 1
Socket
25
31
37
51-2
1 12 2 13 3 14 4 15 5 16 6 17 7 18 8 19 9 20 10 21 11
Pin
25 Contacts
13 25 12 24 11 23 10 22 9 21 8 20 7 19 6 18 5 17 4 16 3 15 2 14 1
Socket
1 14 2 15 3 16 4 17 5 18 6 19 7 20 8 21 9 22 10 23 11 24 12 25 13
Pin
31 Contacts
16 31 15 30 14 29 13 28 12 27 11 26 10 25 9 24 8 23 7 22 6 21 5 20 4 19 3 18 2 17 1
Socket
1 17 2 18 3 19 4 20 5 21 6 22 7 23 8 24 9 25 10 26 11 27 12 28 13 29 14 30 15 31 16
Pin
37 Contacts
19 37 18 36 17 35 13 34 15 33 14 32 13 31 12 30 11 29 10 28 9 27 8 26 7 25 6 24 5 23 4 22 3 21 2 20 1
16
Socket
1 20 2 21 3 22 4 23 5 24 6 25 7 26 8 27 9 28 10 29 11 30 12 31 13 32 14 33 15 34 16 35 17 36 18 37 19
13
Pin
51 Contacts
26 51 25 50 24 49 23 48 22 47 21 46 20 45 19 44 18 43 17 42 13 41 15 40 14 39 13 38 12 37 11 36 10 35 9 34 8 33 7 32 6 31 5 30 4 29 3 28 2 27 1
16
Socket
1 27 2 28 3 29 4 30 5 31 6 32 7 33 8 34 9 35 10 36 11 37 12 38 13 39 14 40 15 41 13 42 17 43 18 44 19 45 20 46 21 47 22 48 23 49 24 50 25 51 26
16
Pin
© 2013 Glenair, Inc.
High Performance Micro-D Connectors and Cables
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-31
E-Mail: sales@glenair.com
Micro-D PCB
Micro-D MWDM-SMR
Surface Mount Right Angle
