82MMBX-50-0-2/111NH

Description
BOARD TERMINATED, FEMALE, RF CONNECTOR, SOLDER, JACK, ROHS COMPLIANT
CategoryThe connector    The connector
File Size51KB,1 Pages
ManufacturerHUBER+SUHNER
Download Datasheet Parametric Compare View All

82MMBX-50-0-2/111NH Overview

BOARD TERMINATED, FEMALE, RF CONNECTOR, SOLDER, JACK, ROHS COMPLIANT

82MMBX-50-0-2/111NH Parametric

Parameter NameAttribute value
package instructionROHS COMPLIANT
Reach Compliance Codeunknow
Other featuresVSWR MAX AT 6 GHZ
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderFEMALE
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialLIQUID CRYSTAL POLYMER
MIL complianceNO
Manufacturer's serial numberMMBX
Installation methodSTRAIGHT
Installation typeBOARD
Maximum operating frequency12.4 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeSOLDER
voltage standing wave ratio1.15
Base Number Matches1
HUBER+SUHNER
®
DATA SHEET

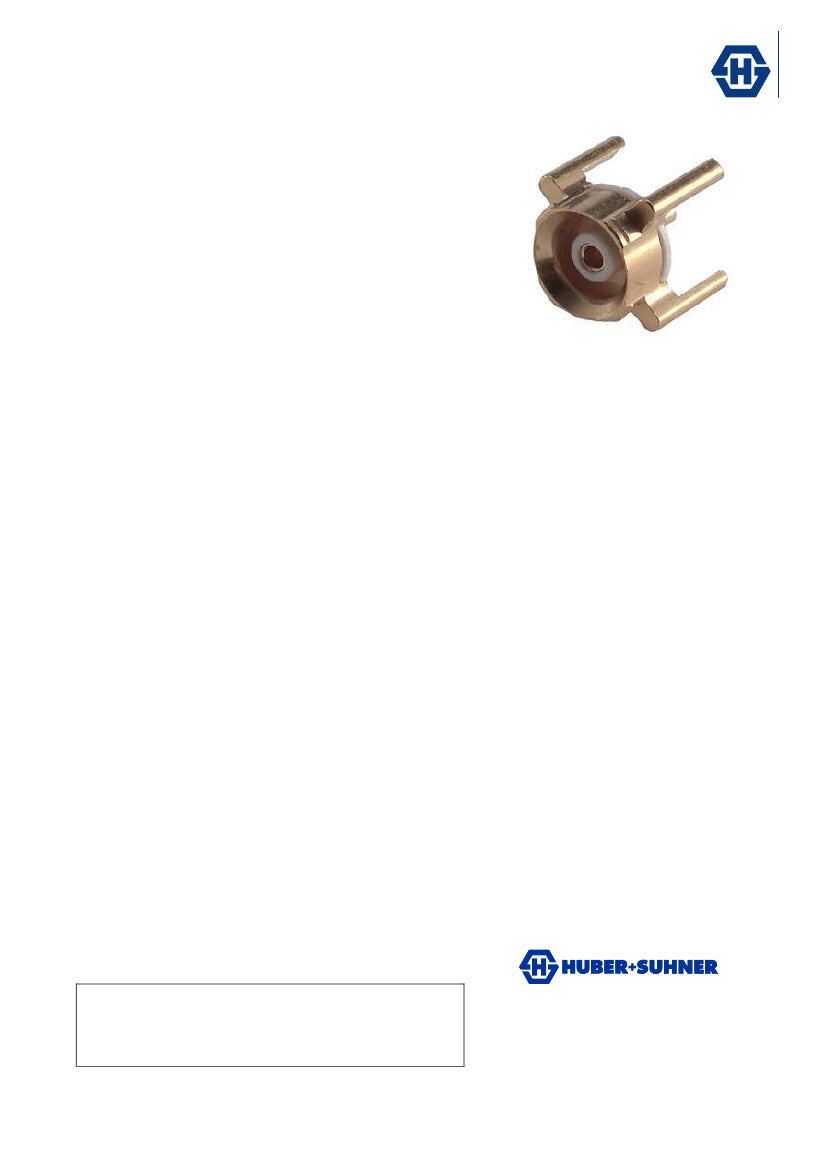

Coaxial PCB Connector: 82_MMBX-50-0-2/111_N
Description
Rev.: D
Straight PCB jack
Interface Standards
SUHNER-MMBX
Technical Data
Electrical Data
Impedance
Interface frequency max.
Frequency range
Return loss
50
12.4 GHz
DC to 2 GHz
≥ 30 dB
through holes
0.0004 kg
-55 °C to 155 °C
compliant
Material
Brass
Brass
Brass
LCP
DOU-00012955
DCA-00012957
DOU-00002008
82_MMBX-50-0-2/111_NE
82_MMBX-50-0-2/111_NM
82_MMBX-50-0-2/111_NH
Surface Plating
Gold Plating (Nickel underplated)
SUCOPRO Plating
SUCOPRO Plating
Mechanical Data
2 to 6 GHz
≥ 23 dB
Board mounting type
Weight
Environmental Data
Operating Temperature
2002/95/EC (RoHS)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material Data
Related Documents
Outline drawing
Catalogue drawing
Mounting hole
Ordering Information
Single package
Tape and Reel package
Bulk 100 pcs package
Remarks
PCB connector with stand-offs
HUBER+SUHNER is certified according to ISO 9001 and ISO 14001
WAIVER!
It is exclusively in written agreements that we provide our customers with warrants and
representations as to the technical contained specifications and/or the fitness for any particular
purpose. The facts and figures herein are carefully compiled to the best of our knowledge, but they are
intended for general informational purposes only.
HUBER+SUHNER AG
RF Technology
9100 Herisau, Switzerland
Phone +41 (0)71 353 41 11
Fax
+41 (0)71 353 45 90
www.hubersuhner.com
Uncontrolled Copy
Page 1/1
HUBER+SUHNER – Excellence in Connectivity Solutions
Document: DOC-0000193146 L
Issued: 03.08.11

82MMBX-50-0-2/111NH Related Products

82MMBX-50-0-2/111NH 82MMBX-50-0-2/111NM 82MMBX-50-0-2/111NE
Description BOARD TERMINATED, FEMALE, RF CONNECTOR, SOLDER, JACK, ROHS COMPLIANT BOARD TERMINATED, FEMALE, RF CONNECTOR, SOLDER, JACK, ROHS COMPLIANT BOARD TERMINATED, FEMALE, RF CONNECTOR, SOLDER, JACK, ROHS COMPLIANT
package instruction ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT
Reach Compliance Code unknow unknow compliant
Other features VSWR MAX AT 6 GHZ VSWR MAX AT 6 GHZ VSWR MAX AT 6 GHZ
Body/casing type JACK JACK JACK
Characteristic impedance 50 Ω 50 Ω 50 Ω
Connector type RF CONNECTOR RF CONNECTOR RF CONNECTOR
Contact to complete cooperation GOLD OVER NICKEL GOLD OVER NICKEL GOLD OVER NICKEL
Contact completed and terminated GOLD OVER NICKEL GOLD OVER NICKEL GOLD OVER NICKEL
Contact point gender FEMALE FEMALE FEMALE
Coupling type SNAP SNAP SNAP
DIN compliance NO NO NO
Filter function NO NO NO
IEC compliance NO NO NO
insulator material LIQUID CRYSTAL POLYMER LIQUID CRYSTAL POLYMER LIQUID CRYSTAL POLYMER
MIL compliance NO NO NO
Manufacturer's serial number MMBX MMBX MMBX
Installation method STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD
Maximum operating frequency 12.4 GHz 12.4 GHz 12.4 GHz
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Panel mounting NO NO NO
Termination type SOLDER SOLDER SOLDER
voltage standing wave ratio 1.15 1.15 1.15
Base Number Matches 1 1 1
