F82337-000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> F82337-000

F82337-000: DescriptionRESISTOR, VOLTAGE DEPENDENT, 38V, 17J, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components The resistor; File Size106KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

F82337-000 Overview

RESISTOR, VOLTAGE DEPENDENT, 38V, 17J, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

F82337-000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	RADIAL LEADED, ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Circuit maximum DC voltage	38 V
Circuit RMS maximum voltage	30 V
Maximum energy absorption capacity	17 J
Manufacturer's serial number	ROV20
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Package shape	DISK PACKAGE
Rated power dissipation(P)	0.2 W
Resistor type	VARISTOR
surface mount	NO
Terminal location	RADIAL
Terminal shape	WIRE

Preview

Download Datasheet

View All

C orporate Hom e

Electronic Components

Se gm e nts

W ho W e Are

My Account

Searc h

Products

Documentation

Resources

My Account

Customer Support

Home

Products

By Type

Overvoltage Devices

Product Feature Selector

> Product Details

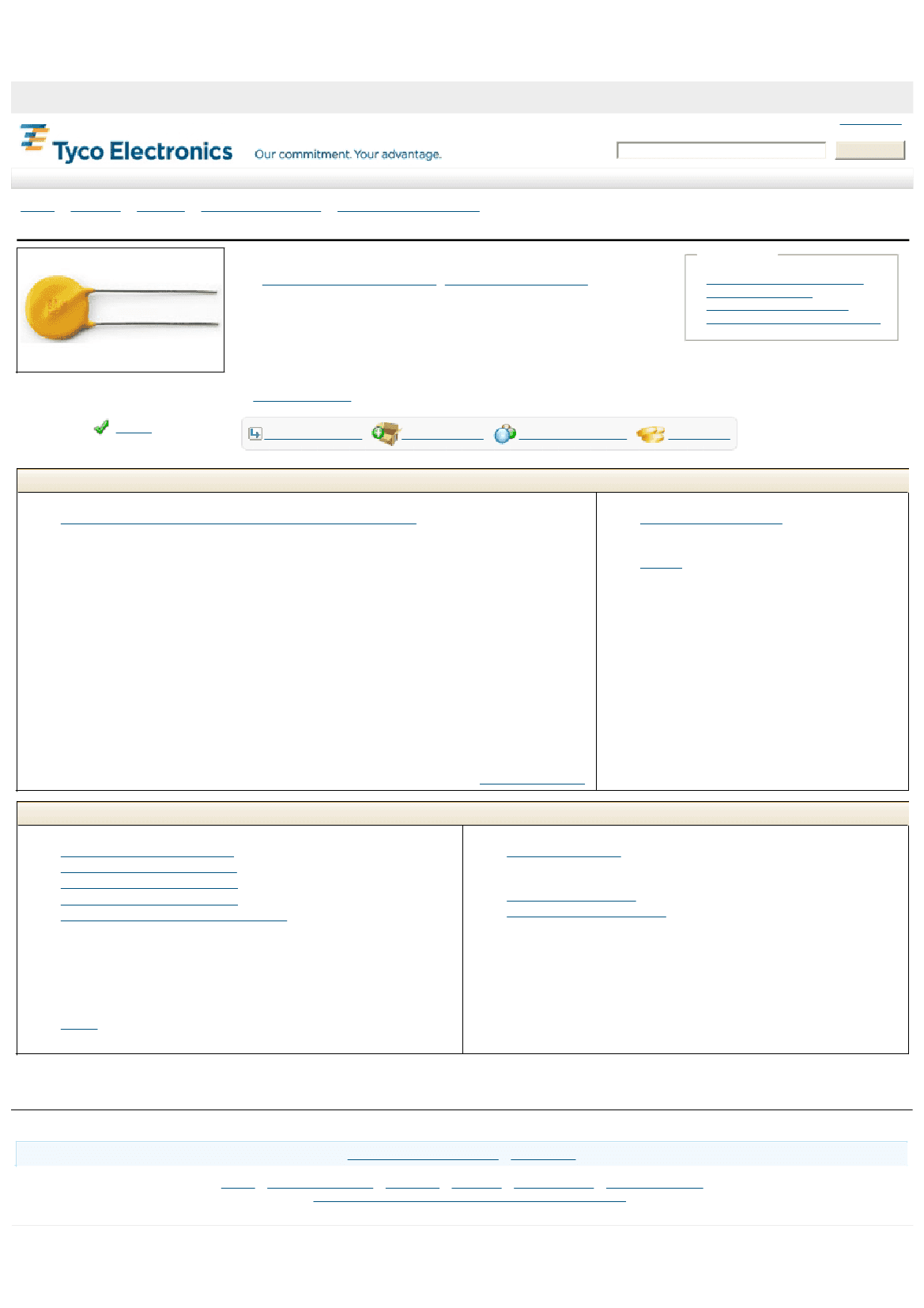

ROV20-470L-S Product Details

Radial-leaded Metal Oxide Varistor (ROV)

Always EU R oHS/ELV C om plia nt

(

Sta te m e nt of C om plia nce

)

Quick Links

C heck Pricing & Availability

Search for Tooling

Product Feature Selector

C ontact Us About This Product

ROV20-470L-S

T E I nternal N umber: F8 2 3 3 7 - 0 0 0

Product Highlights:

Standard Series

Diameter = 20.00 mm

Varistor Voltage Rating = 47 VDC

Allowable Voltage, Max. = 30 VAC

Allowable Voltage, Max. = 38 VDC

View all Features

Active

A dd to M y P art L is t

Reques t Sample

Find Similar P roduc ts

Buy P roduc t

Documentation & Additional Information

Product Drawings:

ROV20, ROV20H, ROV20E 20mm Series Metal Oxide Varistors

(PDF, English)

Catalog Pages/Data Sheets:

None Available

Product Specifications:

None Available

Application Specifications:

None Available

Instruction Sheets:

None Available

CAD Files:

None Available

List all Documents

Product Features

(Please use the Product Drawing for all design activity)

Electrical Characteristics:

Varistor Voltage Rating (VDC )

= 47

Allowable Voltage, Max. (VAC )

= 30

Allowable Voltage, Max. (VDC )

= 38

C lamping Voltage, Max. (VDC )

= 93

Surge C urrent (8x20 ?s), Max. (Amps.)

= 2000

Varistor Voltage Tolerance (%) = 15

Rated Wattage (W) = 0.2

Energy (10x1000 ?s) (Joule) = 17

C apacitance (pF) = 12,080

Body Related Features:

Series

= Standard

Configuration Related Features:

Diameter (mm [in])

= 20.00 [0.787]

Industry Standards:

RoHS/ELV C ompliance

= RoHS compliant, ELV compliant

Lead Free Solder Processes

= Wave solder capable to 240?C , Wave

solder capable to 260?C , Wave solder capable to 265?C

RoHS/ELV C ompliance History = Always was RoHS compliant

Other:

Brand = Raychem

Additional Information:

Product Line Information

F82337-000 Related Products

	F82337-000	ROV20470LS
Description	RESISTOR, VOLTAGE DEPENDENT, 38V, 17J, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT	RESISTOR, VOLTAGE DEPENDENT, 38V, 17J, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT
Maker	TE Connectivity	TE Connectivity
package instruction	RADIAL LEADED, ROHS COMPLIANT	RADIAL LEADED, ROHS COMPLIANT
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Circuit maximum DC voltage	38 V	38 V
Circuit RMS maximum voltage	30 V	30 V
Maximum energy absorption capacity	17 J	17 J
Manufacturer's serial number	ROV20	ROV20
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of terminals	2	2
Package shape	DISK PACKAGE	DISK PACKAGE
Rated power dissipation(P)	0.2 W	0.2 W
Resistor type	VARISTOR	VARISTOR
surface mount	NO	NO
Terminal location	RADIAL	RADIAL
Terminal shape	WIRE	WIRE
