Power entry modules without line filter
Felcom 64
www.schurter.com/pg05
Plug removal necessary for fuse
replacement

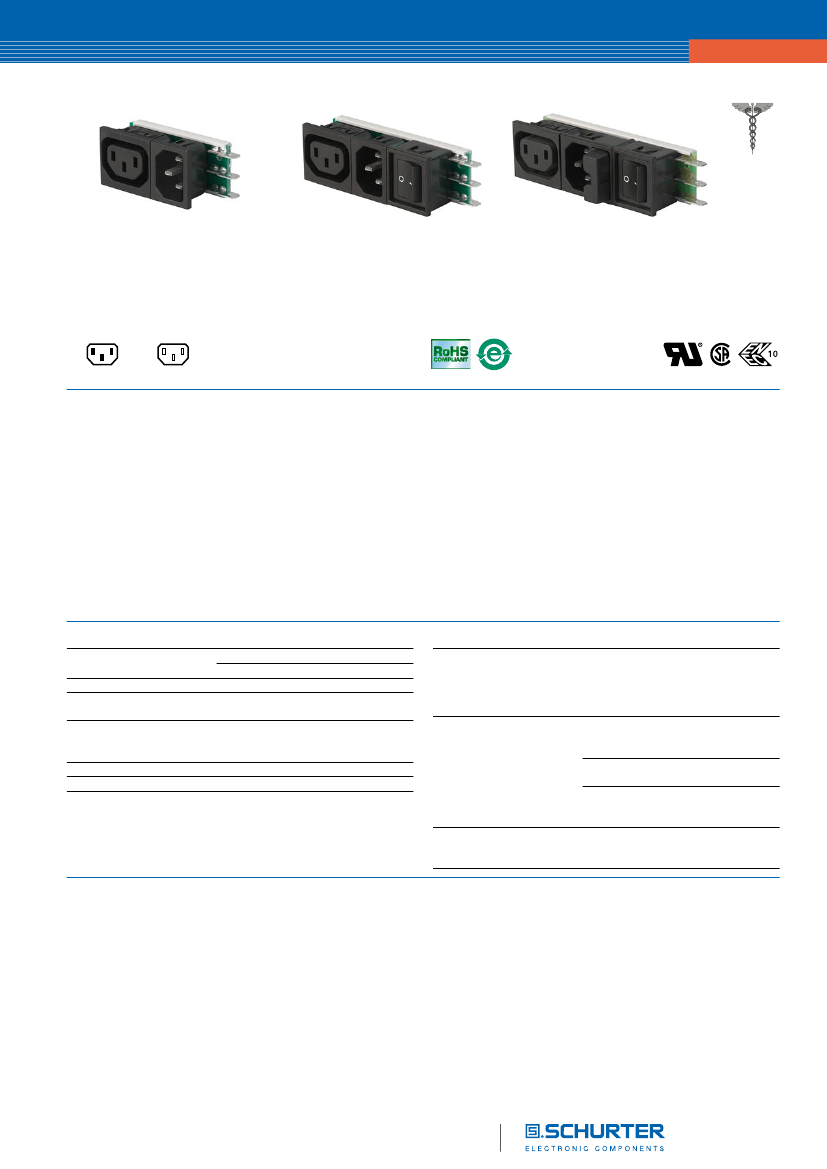

IEC Appliance Inlet C14 with modular extended Components
6421.005X.XX
Appliance inlet
Appliance outlet
6431.005X.XX
Appliance inlet
Switch
Appliance outlet
6432.0X5X.XX
Appliance inlet
Fuseholder
Switch
Appliance outlet
C14
70° C
F
70° C
Description
- Panel Mount:
Snap-in version, from front side
- 2 - 5 Functions:
Appliance Inlet, Protection class I, Outlet, Line Switch 2-pole, Fusehol-
der for fuse-links 5 x 20 mm 1- or 2-pole, Solder terminals 3.5 x 0.8
mm or quick connect terminals 6.3 x 0.8 mm
Characteristics
Approvals
- Modular component selection
- Individual components soldered on a printed circuit board
- Plug removal necessary for fuse-link replacement
Fuse drawer meets requirements of medical standard IEC/EN 60601-1
The fuseholder is accessible from the equipment front
- Fully insulated from the rear
- Qualified for use in equipment according IEC/EN 60950
- VDE Certificate Number: 40028094
- UL File Number: E103791, E96454
- CSA File Number: 38456
Other versions on request
References
Weblinks
- Line switch with other rocker marking
Alternative: version with line filter Felcom 54
pdf, html, General Product Information, Approvals, RoHS, CHINA-RoHS,
Mating Connectors, e-Shop, SCHURTER-Stock-Check, Distributor-
Stock-Check, Accessories
Technical Data
Ratings IEC
Ratings UL/CSA
Allowable Operation Temp.
Protection Class
Terminal
10 A / 250 VAC; 50 Hz
10 A / 125/250 VAC; 60 Hz
-25 °C to 70 °C
Suitable for appliances with protection
class 1 acc. to IEC 61140
Solder terminals 3.5 x 0.8 mm or quick
connect terminals 6.3 x 0.8 mm , tin-
plated
Snap-in: 1/1.2/1.5/2/2.5/3 mm
Thermoplastic, black, UL 94V-0
Appliance Inlet / Appliance
Outlet
C14 acc. to IEC/EN 60320-1
and F acc. to IEC/EN 60320-2-2,
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class 1
1 or 2 pole, Shocksafe category PC2
acc. to IEC 60127-6,
for fuse-links 5 x 20 mm
5 x 20: 2 W (1 pole)/ 1.6 W (2-pole) per
pole
Admissible power acceptance at hig-
her ambient temperature see derating
curves
Rocker switch 2-pole, non-illuminated,
IEC 61058-1
Technical Details
Fuseholder
Panel Thickness s
Material: Housing
Rated Power Acceptance @
Ta 23 °C
Power Acceptance @ Ta >
23°C
Line Switch
Connectors
Felcom 64
www.schurter.com/pg05

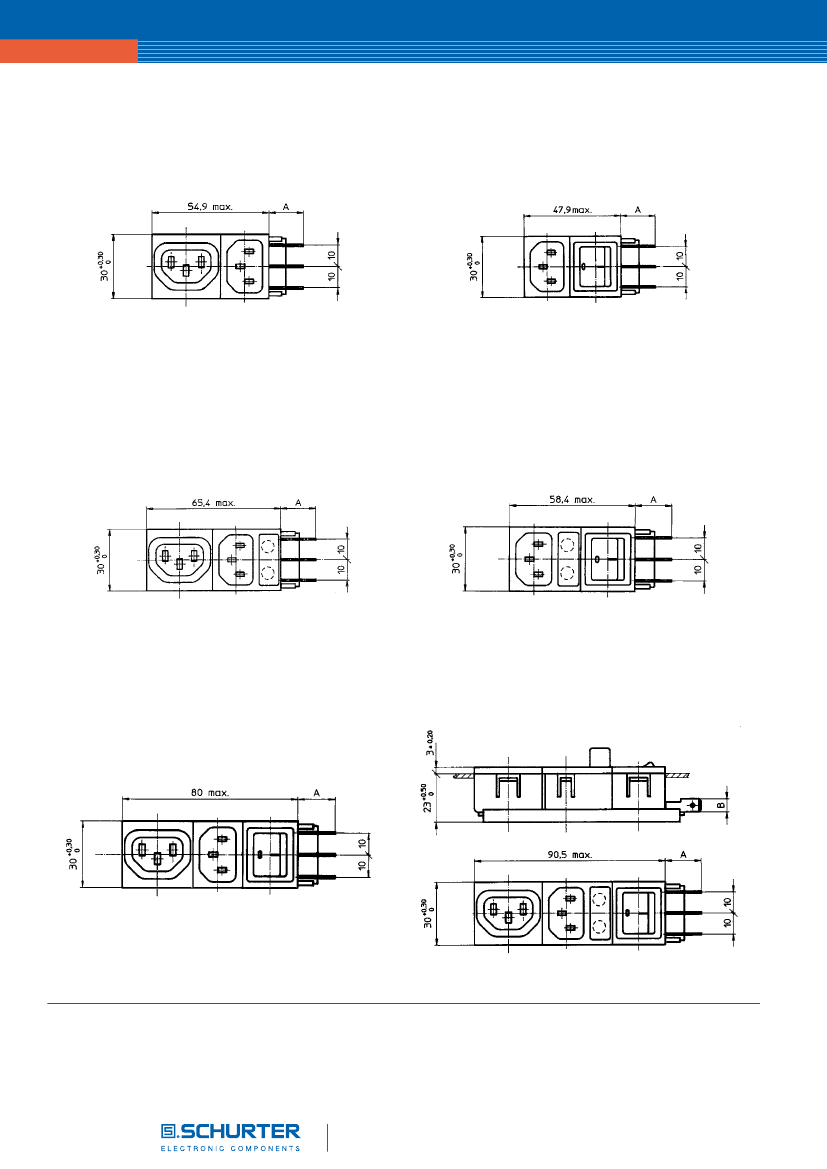

Dimensions
Power entry modules without line filter
Variants 6421.005X.XX
Mounting hole: 53.6+0,2 x 27.6+0,2
Variants 6422.005X.XX
Mounting hole: 46.7+0,2 x 27.6+0,2
Variants 6423.0X5X.XX
Mounting hole: 65.5+0,2 x 27.6+0,2
Variants 6424.0X5X.XX
Mounting hole: 57+0,2 x 27.6+0,2
Variants 6431.005X.XX
Mounting hole: 80.1+0,2 x 27.6+0,2
Variants 6432.0X5X.XX
Mounting hole: 90.6+0,2 x 27.6+0,2
Connectors
Power entry modules without line filter
Felcom 64
www.schurter.com/pg05
6423
6424

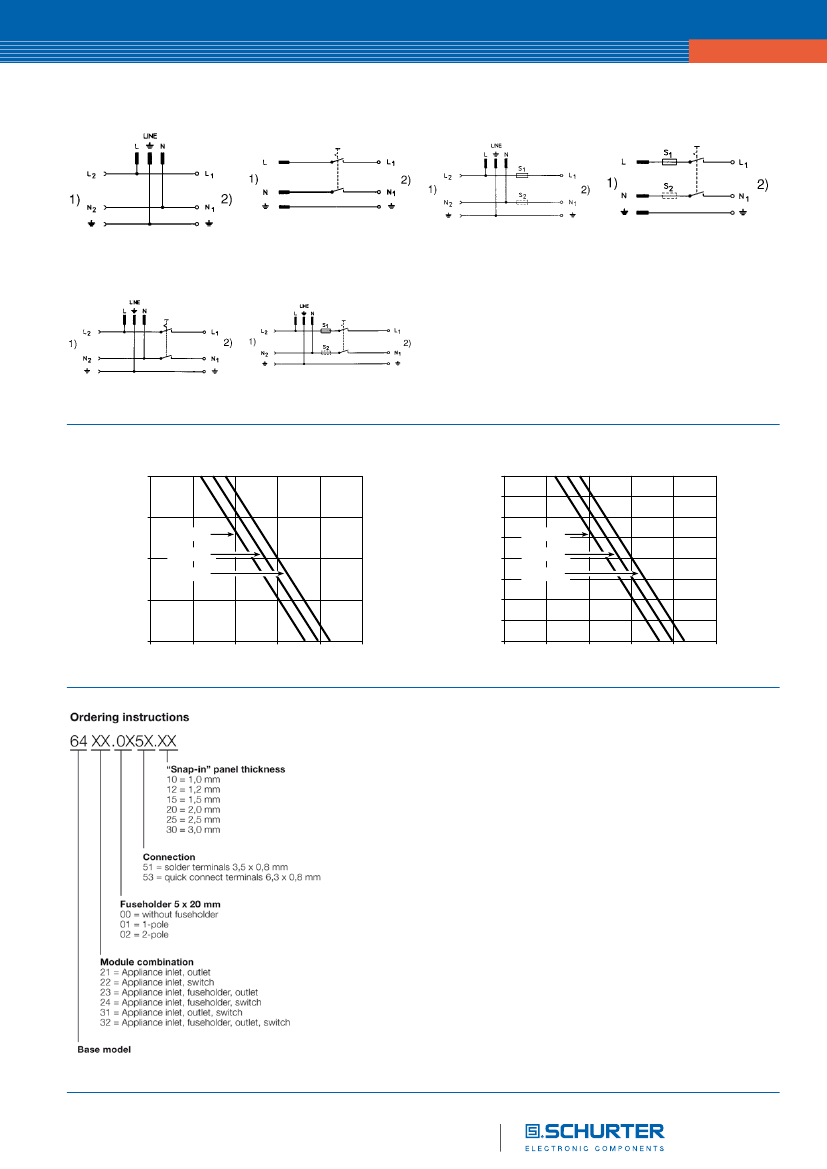

Diagrams
6421
6422
1) Load 2
2) Load 1
1) Line
2) Load 1
1) Load 2
2) Load 1
1) Line
2) Load 1
6431
6432
1) Load 2
2) Load 1
1) Load 2
2) Load 1
Derating Curves
1-pole
2.0
2-pole
Admissible power acceptance in Watt per pole
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = < < I
n
Admissible power acceptance in Watt
1.5
I = 1.0 I
n
1.0
I = 0.7 I
n
I = < < I
n
0.5
0.0
0
20
40
60
80
100
Ambient air temperature Ta °C
Ambient air temperature Ta °C
Packaging unit
10 Pcs
Connectors
Felcom 64
www.schurter.com/pg05
Accessories
Description
Power entry modules without line filter
Cord retaining kits
Cord retaining strain relief

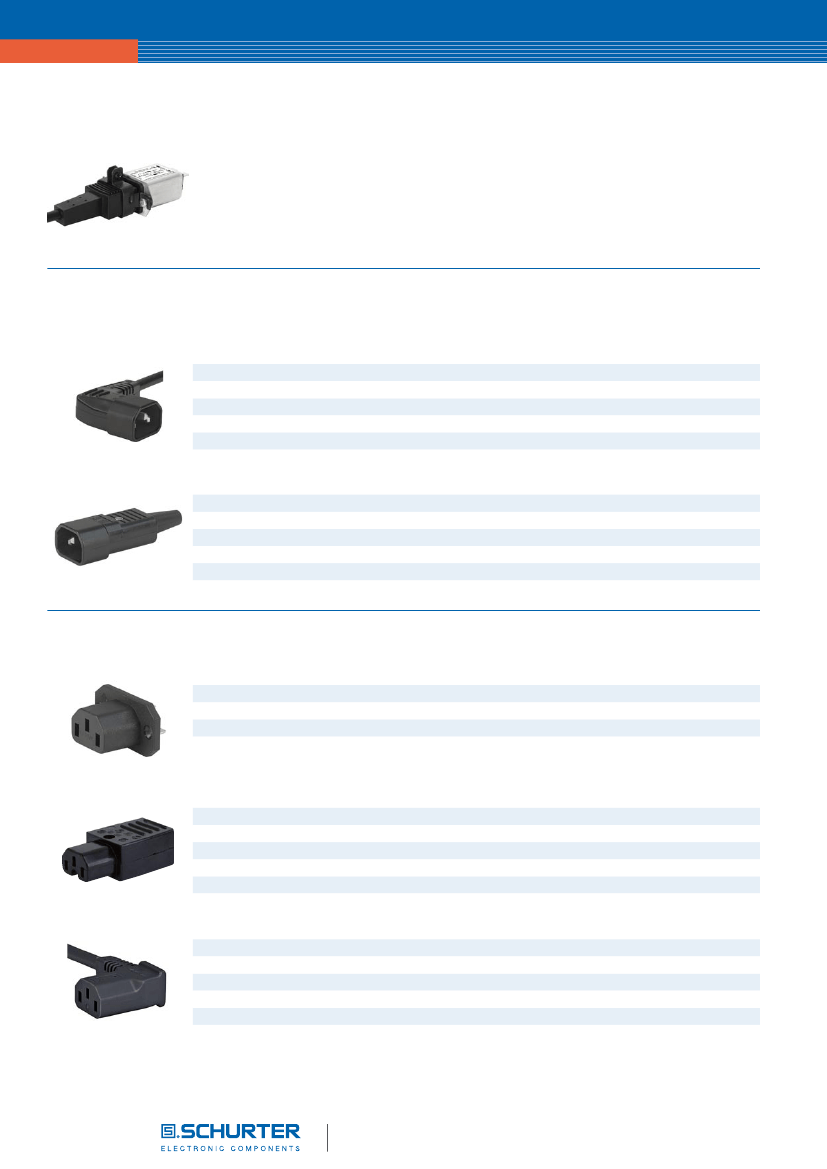

Mating Inlets/Plugs
Category / Description
Interconnection Cord Overview complete
Interconnection Cord with IEC Plug E, Angled
Interconnection Cord with IEC Plug E, Angled
Interconnection Cord with IEC Plug E, Straight
Interconnection Cord with IEC Plug G, Angled
Interconnection Cord with IEC Plug G, Angled
Interconnection Cord further types toFelcom 64
Plug Overview complete
IEC Plug E, Cord Connector (Rewireable), Straight, max. cable Diameter 8.5 mm
IEC Plug E, Cord Connector (Rewireable), Angled, max. Cable Diameter 8.5 mm
IEC Plug E, Cord Connector (Rewireable), Straight, max. Cable Diameter 10 mm
IEC Plug E, Cord Connector (Rewireable), Angled, max. Cable Diameter 10 mm
IEC Plug E, Cord Connector (Rewireable), Straight
Plug further types toFelcom 64
4732
4733
4735
4736
9009
...
0607
0608
0609
607B
608B
...
Mating Outlets/Connectors
Appliance Outlet Overview complete
IEC Appliance Outlet F, Screw-on Mounting, Front Side, Solder Terminal
IEC Appliance Outlet F, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal
IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder, PCB or Quick-connect Terminal
IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder or Quick-connect Terminal
Appliance Outlet further types toFelcom 64
Connector Overview complete
IEC Connector C15, Rewireable, Straight
IEC Connector C15A, Rewireable, Straight
IEC Connector C15A, Rewireable, Straight
IEC Connector C15A, Rewireable, Angled
IEC Connector C13, Rewireable, Angled
Connector further types toFelcom 64
Power Cord Overview complete
Power Cord with IEC Connector C13, Angled
Power Cord with IEC Connector C13, Angled
Power Cord with IEC Connector C13, Angled
Power Cord with IEC Connector C13, Angled
Power Cord with IEC Connector C13
Power Cord further types toFelcom 64
0311
3011
3012
3013
3020
...
0101
0102
0102-G
0112
4012
...
4787
4788
5091
5092
4
Connectors
Power entry modules without line filter
Felcom 64
www.schurter.com/pg05
Power Supply or Interconnection Cord Overview complete
Diverse Power Supply and Interconnection Cords 10 A
Power Supply or Interconnection Cord further types toFelcom 64
Cord Sets 10 A
The specifications, descriptions and illustrations indicated in this document are based on
Connectors
current information. All content is subject to modifications and amendments.
5
11.08.2012
