BS-C54DRD Overview

Smart/Normal 7 Seg Numeric LED Display, 1-Character, Super Red, 13.208mm, SD-24, 10 PIN

Parameter Name	Attribute value
Maker	BRIGHT
package instruction	SD-24, 10 PIN
Reach Compliance Code	unknown
color	SUPER RED
color@wavelength	Red
Configuration	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT
Display height	13.208 mm
Maximum forward current	0.03 A
Maximum forward voltage	2.5 V
Number of characters	1
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
peak wavelength	660 nm

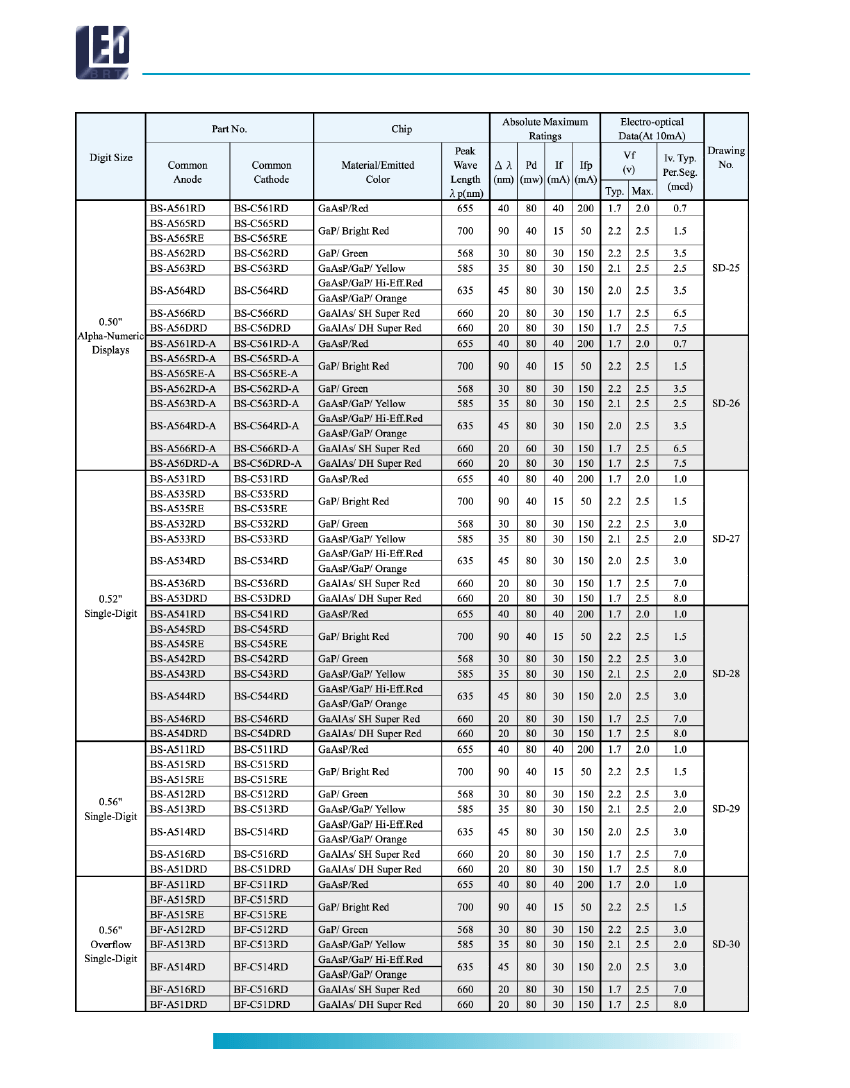

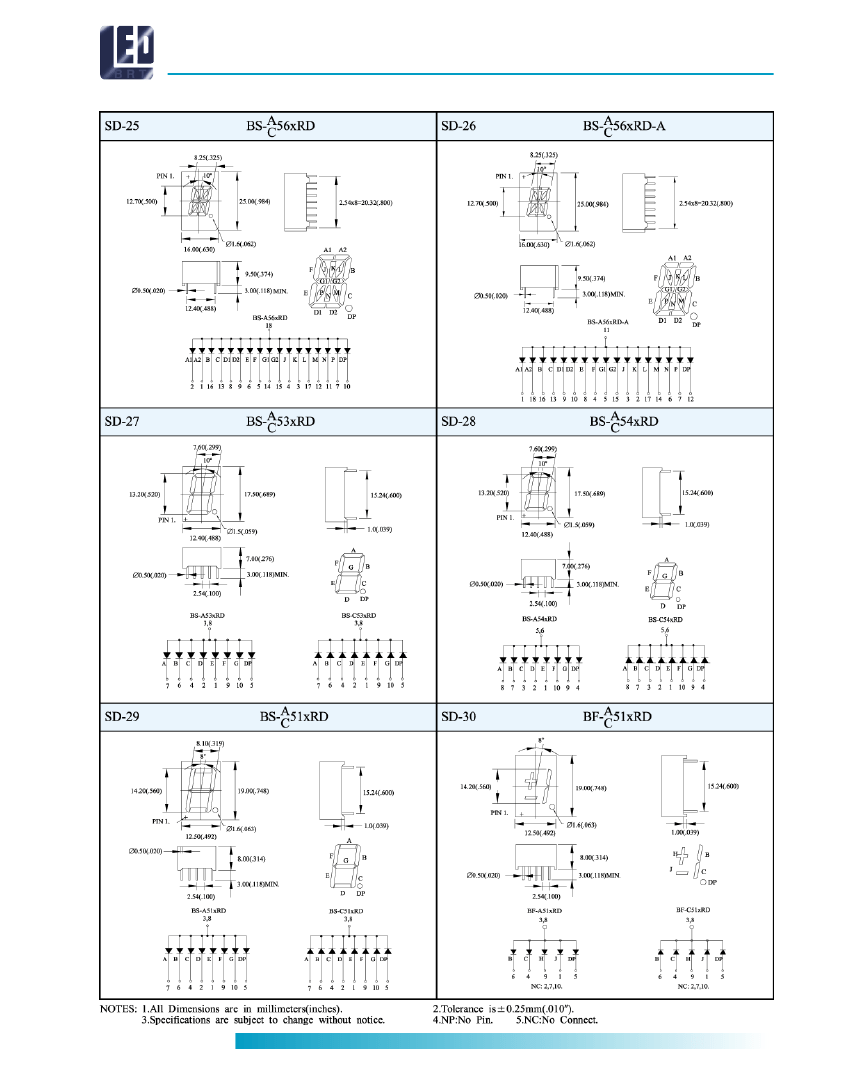

Single Digit LED Displays

BS-A/C, BF-A/C Series

16-segment, 7-segment, ±1 overflow

AMERICAN BRIGHT

118

w w w. a m e r i c a n b r i g h t l e d . c o m

.
