PZ5032-10BC-S datasheet, PDF - EEWORLD Datasheet

PZ5032-10BC-S: DescriptionEE PLD, 12.5ns, 32-Cell, CMOS, PQFP44,; CategoryProgrammable logic devices Programmable logic; File Size709KB，12 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

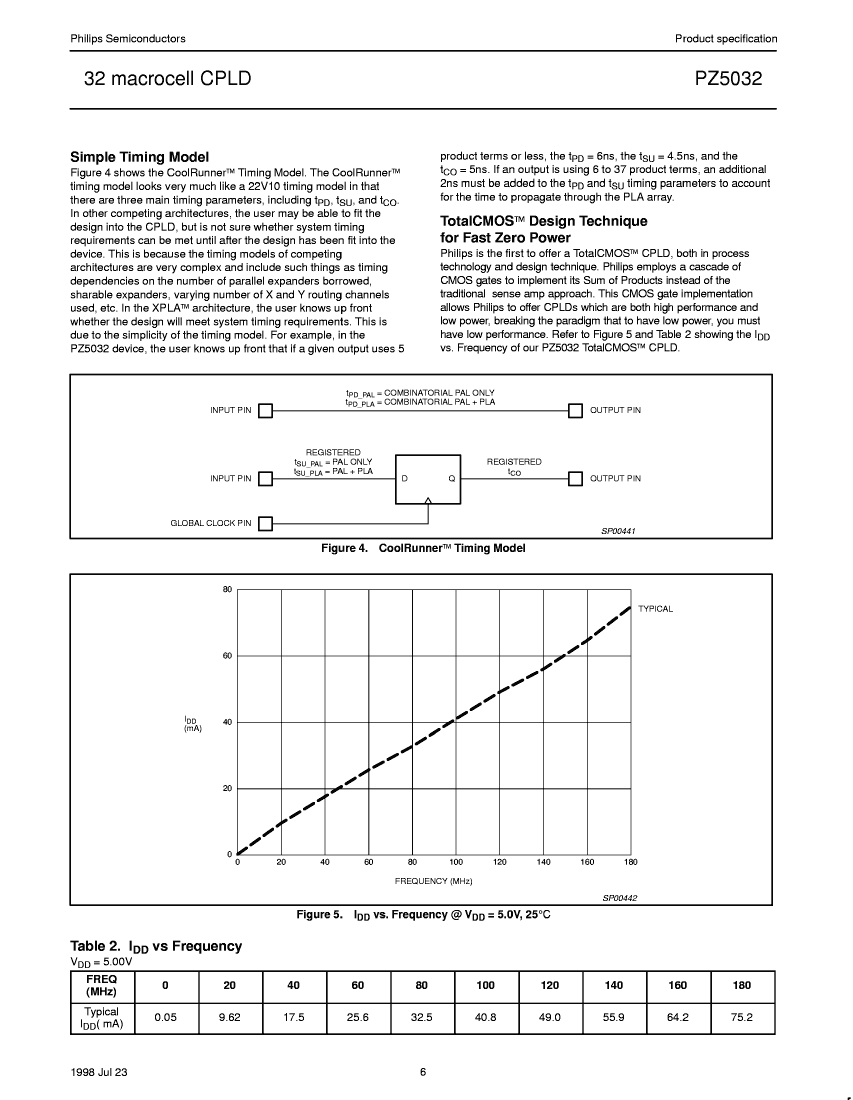

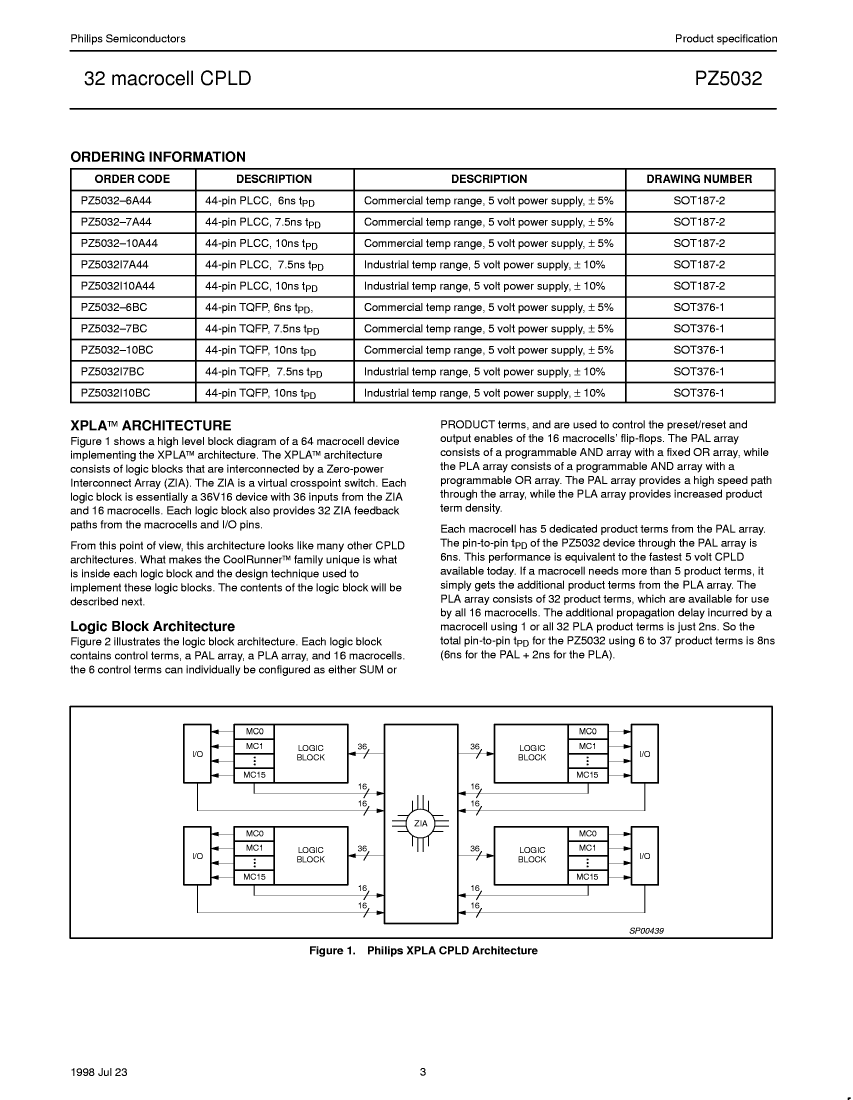

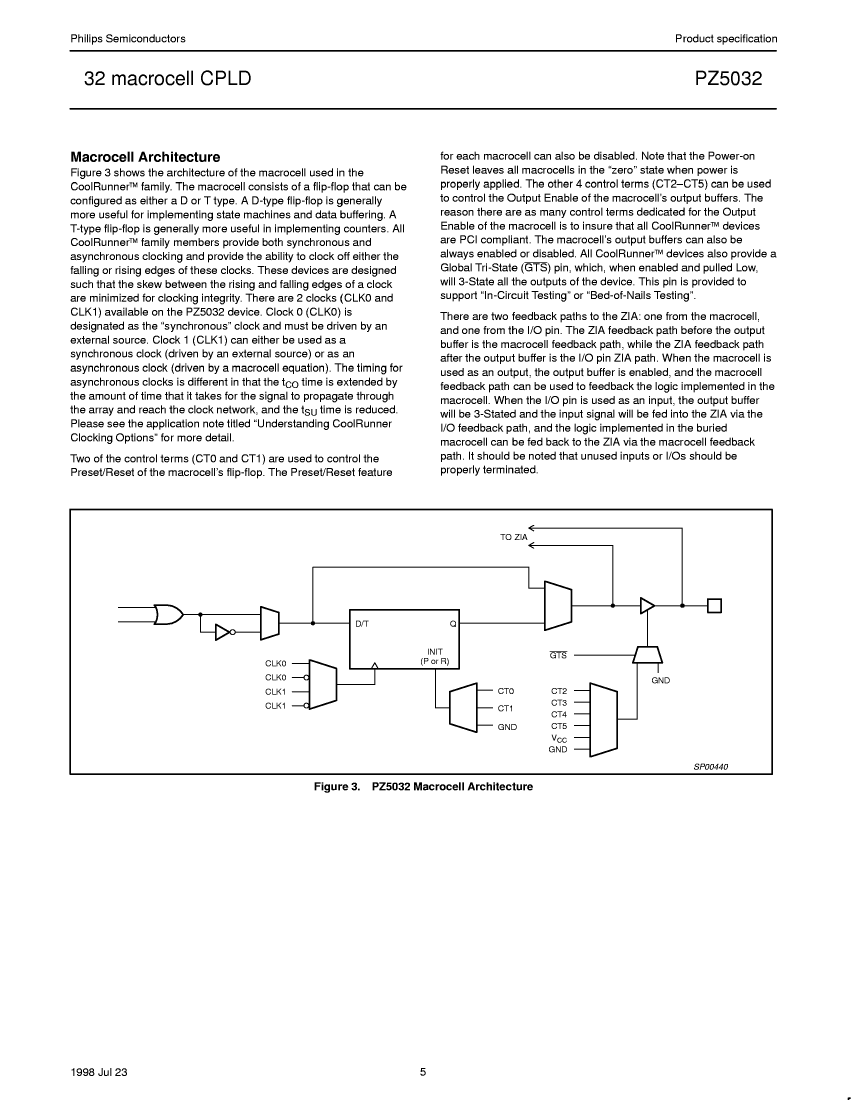

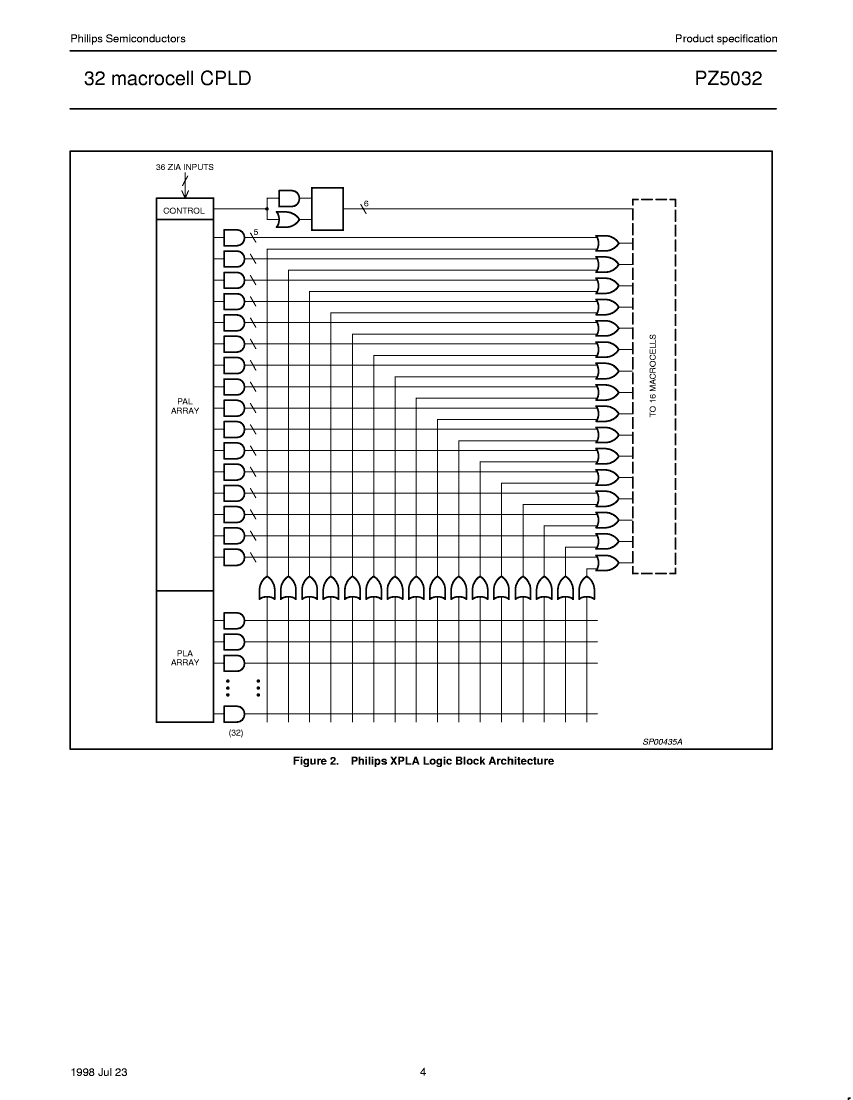

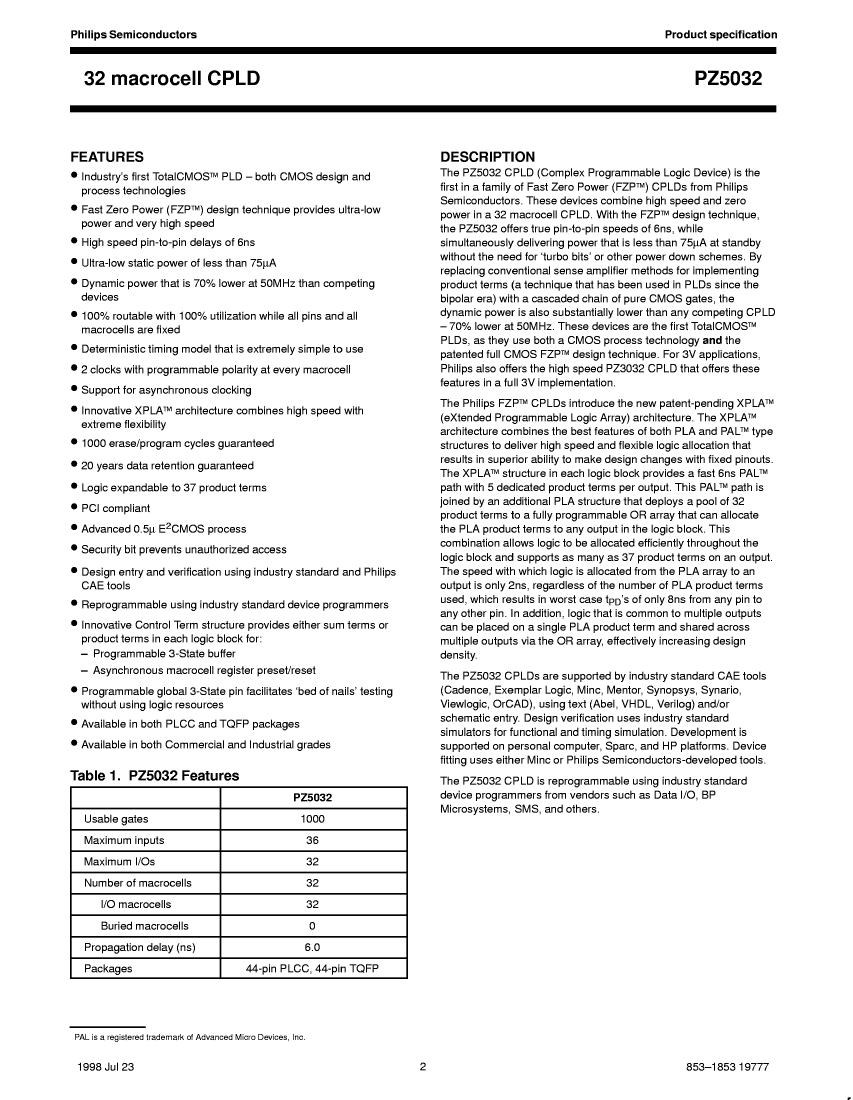

PZ5032-10BC-S Overview

EE PLD, 12.5ns, 32-Cell, CMOS, PQFP44,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	QFP, TQFP44,.47SQ,32
Reach Compliance Code	unknown
Other features	NO
In-system programmable	NO
JESD-30 code	S-PQFP-G44
JESD-609 code	e0
JTAG BST	NO
Number of macro cells	32
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	TQFP44,.47SQ,32
Package shape	SQUARE
Package form	FLATPACK
method of packing	TRAY
power supply	5 V
Programmable logic type	EE PLD
propagation delay	12.5 ns
Certification status	Not Qualified
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD

	PZ5032-10BC-S	PZ5032-7BC-S	PZ5032I10BC-S
Description	EE PLD, 12.5ns, 32-Cell, CMOS, PQFP44,	EE PLD, 10ns, 32-Cell, CMOS, PQFP44,	EE PLD, 12.5ns, 32-Cell, CMOS, PQFP44,
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	QFP, TQFP44,.47SQ,32	QFP, TQFP44,.47SQ,32	QFP, TQFP44,.47SQ,32
Reach Compliance Code	unknown	unknown	unknown
Other features	NO	NO	NO
In-system programmable	NO	NO	NO
JESD-30 code	S-PQFP-G44	S-PQFP-G44	S-PQFP-G44
JESD-609 code	e0	e0	e0
JTAG BST	NO	NO	NO
Number of macro cells	32	32	32
Number of terminals	44	44	44
Maximum operating temperature	70 °C	70 °C	85 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP	QFP
Encapsulate equivalent code	TQFP44,.47SQ,32	TQFP44,.47SQ,32	TQFP44,.47SQ,32
Package shape	SQUARE	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK	FLATPACK
method of packing	TRAY	TRAY	TRAY
power supply	5 V	5 V	5 V
Programmable logic type	EE PLD	EE PLD	EE PLD
propagation delay	12.5 ns	10 ns	12.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm	0.8 mm
Terminal location	QUAD	QUAD	QUAD
