235-85AB Overview

Heat Sink

235-85AB Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Heat Resistant Support Device Type	HEAT SINK
Base Number Matches	1

Preview

Download Datasheet

View All

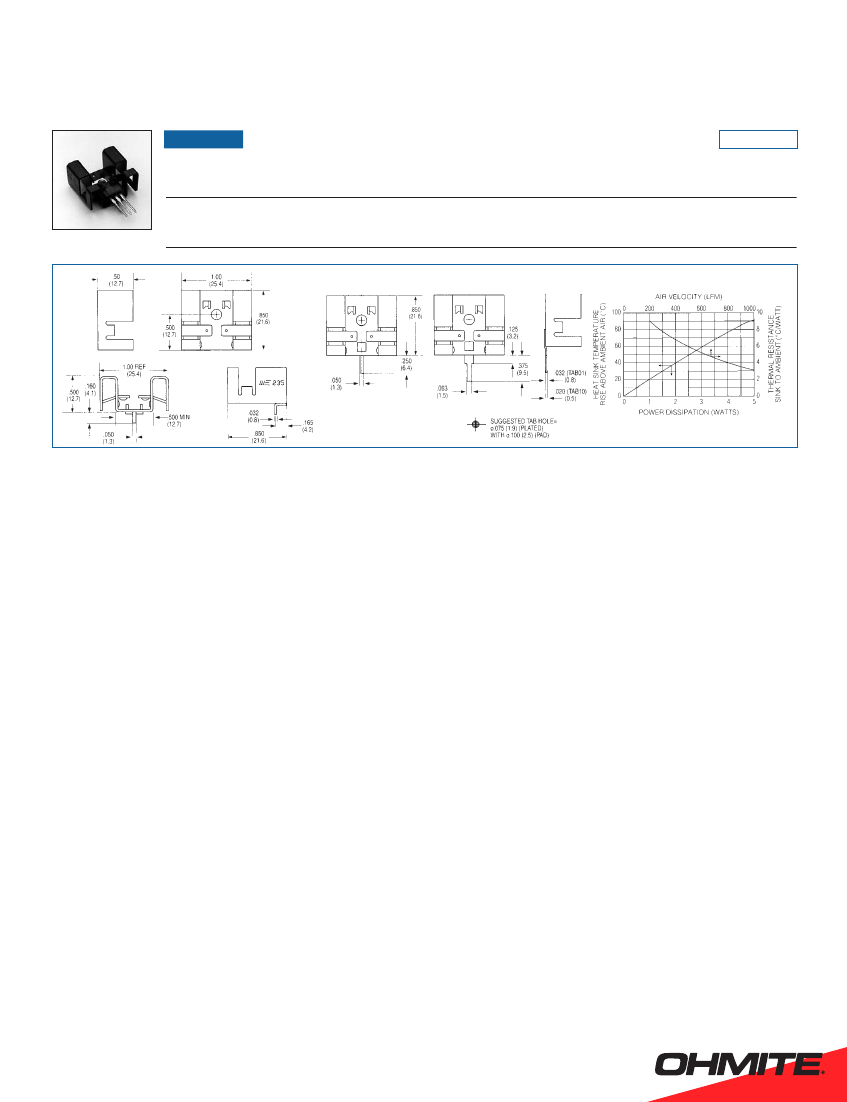

BOARD LEVEL POWER SEMICONDUCTOR HEAT SINKS

235 SERIES

Standard

P/N

Compact, Stress-Free Labor-Saving Locking-Tab Heat Sinks

Footprint

Dimensions

in. (mm)

.500 (12.7)

1.000 (25.4)

.500 (12.7)

Mounting

Configuration

Vert./Horiz.

Vertical

Horizontal

Vertical

Solderable

Tab Options

No Tab

235 SERIES

TO-220

Height Above

PC Board

in. (mm)

Mounting

Style

Clip/Mtg Hole

Thermal Performance at Typical Load

Natural

Forced

Convection

40°C @ 2W

6.8°C/W @ 400 LFM

PATENT 5381041

235-85AB

.850 (21.6) 1.000 (25.4) x

235-85ABE-01 .850 (21.6) 1.000 (25.4) x

235-85ABE-05 .500 (12.7)

.850 (21.6) x

235-85ABE-10 .975 (24.8) 1.000 (25.4) x

Material: Aluminum, Black Anodized

235-85AB

MECHANICAL DIMENSIONS

NATURAL AND FORCED

CONVECTION CHARACTERISTICS

235-85AB-05

235-85AB-01

235-85AB-10

Dimensions: in. (mm)

1-866-9-OHMITE • Int’l 1-847-258-0300 • Fax 1-847-574-7522 • www.ohmite.com • info@ohmite.com
