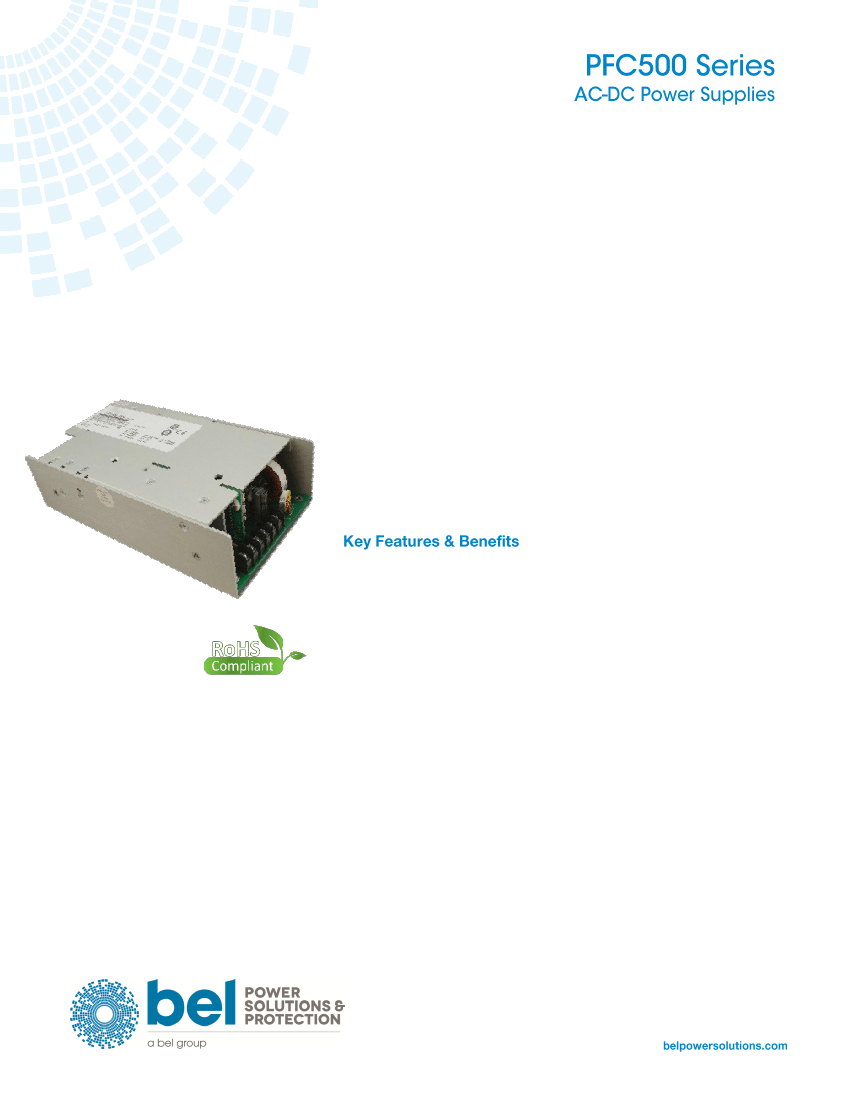

The PFC500 products of the PerFormanCe Power Series combine high
performance midrange power with high power density (4.4 watts/in
3
)
and high reliability to meet the requirements of communications,
commercial, and industrial systems.
Providing tightly regulated DC power, the PFC500 delivers full output
performance with only 300 Linear Feet per Minute (LFM) forced-air
cooling (factory-installed fan optional). Main channel current sharing
is provided for redundant applications.
Units are available with SAE mountings or optional metric mountings.
The PFC500 product line is approved to the latest international
regulatory standards, and displays the CE Mark.
RoHS Compliant
Power Factor Correction meets EN61000-3-2 (AC input
versions)
Fully-regulated outputs
Remote sense
Logic level Inhibit
Current Share, Power Fail, and Power Good Signals
Overtemperature, overvoltage, and overcurrent protected
Available with metric or SAE mountings
Input transient & ESD compliance to EN61000-4-2/-3/-4/-5
Fan output voltage and optional fan
Optional isolation diodes for parallel or redundant operation
DC input versions (36-75 VDC)
Asia-Pacific
+86 755 298 85888
Europe, Middle East
+353 61 225 977
North America
+1 866 513 2839
© 2015 Bel Power Solutions, Inc.
BCD.00595_AB
2
MODEL
5
OUTPUT
VOLTAGE
ADJUSTMENT
RANGE
MAX. OUTPUT
CURRENT
2
LINE
REGULATION
LOAD
REGULATION
3
RIPPLE & NOISE
% p-p
4
INITIAL SETTING
ACCURACY
PFC500-1024G
PFC500-1028G
1
PFC500-1048G
1
24V
28V
48V
21.6V to 26.4V
25.2V to 30.8V
46.0V to 56.0V
21A
17.9A
10.4A
0.5%
0.5%
0.5%
0.2%
0.2%
0.5%
1%
1%
1%
23.88V to 24.12V
27.86V to 28.14V
47.52V to 48.48V
NOTES:
1
2
3
4
5
Consult factory for availability of 28V and 48V units with DC input.
Output currents ratings are expressed with 300 LFM forced air.
Remote sense connected. See Application Note #P1 for load regulation when using the D option for 24V units.
Maximum peak to peak noise expressed as a percentage of output voltage, 20 MHz bandwidth. For ripple/noise on “D” option models,
see options data.
Models without suffix G use the lead solder exemption
PARAMETER
Input Voltage - AC
Input Frequency
Brown Out Protection
Hold-Up Time
Input Current
Input Protection
Inrush Surge Current
Power Factor
Operating Frequency
CONDITIONS / DESCRIPTION
Continuous input range.
AC Input.
Lowest AC input voltage that regulation is maintained with full rated
loads.
Over full AC input voltage range at full rated load.
85 VAC at full rated load.
Non-user serviceable internally located AC input line fuse, F10A, 250 V.
Internally limited by thermistor, one cycle, 25°C.
Per EN61000-3-2.
Switching frequency of main transformer.
110 VAC
220 VAC
MIN
85
47
85
20
NOM
MAX
264
63
UNITS
VAC
Hz
VAC
ms
7.8
A
RMS
35
65
0.98
100
A
PK
W/VA
kHz
PARAMETER
Efficiency
Minimum loads
Ripple and Noise
Output Power
Overshoot / Undershoot
Regulation
Transient Response
Turn-on Delay
Turn-on Rise Time
CONDITIONS / DESCRIPTION
Full rated load, 110 VAC.
PFC500-1024G
PFC500-1028G
PFC500-1048G
Full load, 20 MHz bandwidth.
300 LFM forced air cooling required for operation. See optional fan.
Continuous power, multiple output models.
Output voltage overshoot/undershoot at turn-on.
PFC500-1024G
PFC500-1028G
PFC500-1048G
Recovery time, to within 1% of initial set point due to a 50-100% load
change, 3% max. deviation.
Without connection of remote sense.
Time required for initial output voltage stabilization.
Time required for output voltage to rise from 10% to 90%.
MIN
75
0.6
0.6
1.2
NOM
MAX
UNITS
%
Amps
See Model Selection Charts
500
0
0.8
0.7
1.0
1
1
10
Watts
V
%
ms
Sec
ms
tech.support@psbel.com
3
PARAMETER
Overvoltage Protection
Overload Protection
Overtemperature Protection
Remote Sense
Current Share
Inhibit
Input Power
Fail Warning
CONDITIONS / DESCRIPTION
PFC500-1024G
PFC500-1028G
PFC500-1048G
Fully protected against output overload and short circuit. Automatic
recovery upon removal of overload condition.
System shutdown due to excessive internal temperature, automatic reset.
Total voltage compensation for cable losses with respect to the main
output.
Accuracy of shared current with up to 6 parallel units.
TTL compatible logic signal will inhibit outputs by the application of a logic
low signal. An open circuit or external TTL high signal allows normal
operation.
TTL compatible logic signal. Time before regulation dropout due to loss of
input power at 110 VAC.
TTL compatible signal. Signal is low if main output is
greater or less than 10% of nominal. For models without PFC500-1024G
the “D” option, internal pull-up resistor is 1k> For “D”
PFC500-1028G
option, pull-up resistor is 475. See Apps Note #P1 for
PFC500-1048G
details.
MIN
27.0
32.0
60.0
NOM
MAX
30.7
35.0
70.0
UNITS
V
250
10
mV
%
4
22.08
25.20
44.20
27.36
30.80
54.72
ms
Power Good
V
Fan Voltage
Provides 170 mA current to user supplied fan if fan option is not
selected.
12
V
PARAMETER
Agency Approvals
Dielectric Withstand
Electromagnetic Interference
ESD Susceptibility
Radiated Susceptibility
EFT/Burst
Input Transient Protection
Insulation Resistance
Leakage Current
CONDITIONS / DESCRIPTION
Approved to the latest edition of the following standards.
UL/CSA60950-1, EN60950-1 and IEC60950-1
Meets reinforced insulation of IEC60950.
FCC CFR title 47 Part 15 Sub-Part B - Conducted.
EN55022 / CISPR 22 Conducted.
Per EN61000-4-2, level 4.
Per EN61000-4-3, level 3.
Per EN61000-4-4, level 4.
Per EN61000-4-5 class 3.
Input to output.
Per EN60950, 264 VAC.
Line to Line
Line to Ground
MIN
NOM
MAX
UNITS
Approved
B
B
8
10
±4
1
2
10
2.0
Class
kV
V/M
kV
kV
M
mA
tech.support@psbel.com
4
PARAMETER
Altitude
Operating Temperature
Storage Temperature
CONDITIONS / DESCRIPTION
Operating.
Non-Operating.
Derate linearly above 50°C by 2.5% per °C.
Forced air cooling of 300 LFM is required if the
internal fan is not specified. Cooling air velocity is
measured at the output exiting window (2.5” x 5”).
Airflow direction is from the input section to the
output section.
0°C to 70°C (after 15 minute warm-up).
Non-Condensing.
Operating: 10±3mSec, 3 axis, Half Sine.
Non-operating: 10±3mSec, 3 axis, Half Sine.
Operating: 5-32 Hz
32-2000 Hz Sinusoidal
Non-operating:
At 100% load
At 50% load
MIN
NOM
MAX
10k
40k
50
70
85
UNITS
ASL Ft.
°C
°C
0
0
-55
Forced Air Cooling
Temperature Coefficient
Relative Humidity
Shock
Vibration
±0.02
5
±0.05
95
20
40
0.02
1
6.15
%/°C
%RH
G
in (DA)
G
PK
G
RMS
PARAMETER
Dimensions
CONDITIONS / DESCRIPTION
Overall Size
Overall Length With Fan
MIN
NOM
MAX
UNITS
mm
in
mm
in
kg
lb
Weight
228.6 x 127.0 x 63.5
9.00 x 5.00 x 2.50
266.7
10.50
1.95
4.3
PARAMETER
CONDITIONS / DESCRIPTION
Add “D” as a suffix to the model number to order factory installed
isolation diodes for parallel or redundant operation. For 24V models
with the “D” option, external caps are required to meet the 1%
noise/ripple spec. Power Good has a pull-up resistor of 475 on the
24V models. See Application Note #P1 for details.
Add “F” as a suffix to the model number to order integral fan.
Fan provides the required 300 LFM of forced air cooling, or
otherwise provided by the end user.
Add “M” as a suffix to the model number to order chassis with M4 x
0.7 mounting inserts.
MIN
NOM
MAX
UNITS
Isolation Diodes
N/A
Fan
Metric Mounting
266.7 x 127.0 x 63.5
10.50 x 5.00 x 2.50
N/A
mm
in
tech.support@psbel.com
5
NOTES:
Chassis: 0.090" (2.3mm) Aluminum Alloy, With Clear Finish
*Airflow should be measured at the exiting window (5” x 2.5”).

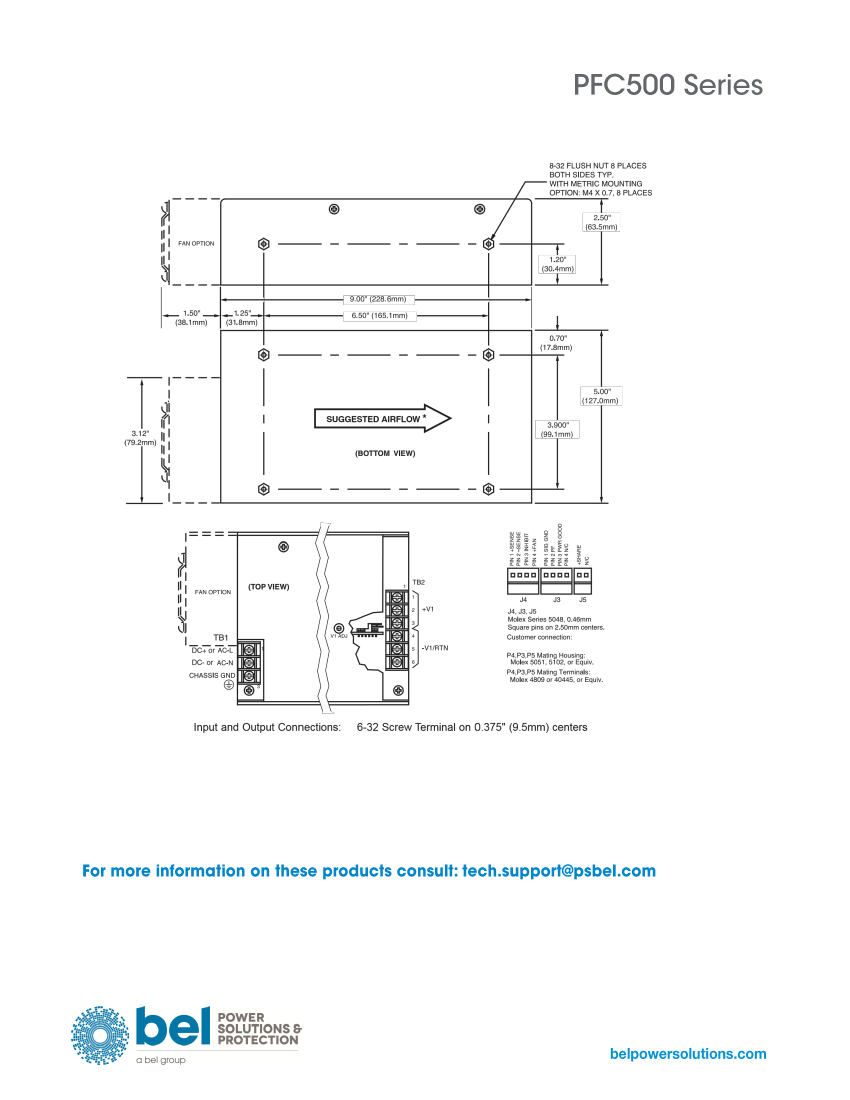

Figure 1. Mechanical Drawing PFC500
NUCLEAR AND MEDICAL APPLICATIONS -
Products are not designed or intended for use as critical components in life support systems,
equipment used in hazardous environments, or nuclear control systems.
TECHNICAL REVISIONS -
The appearance of products, including safety agency certifications pictured on labels, may change depending on
the date manufactured. Specifications are subject to change without notice.
